Description

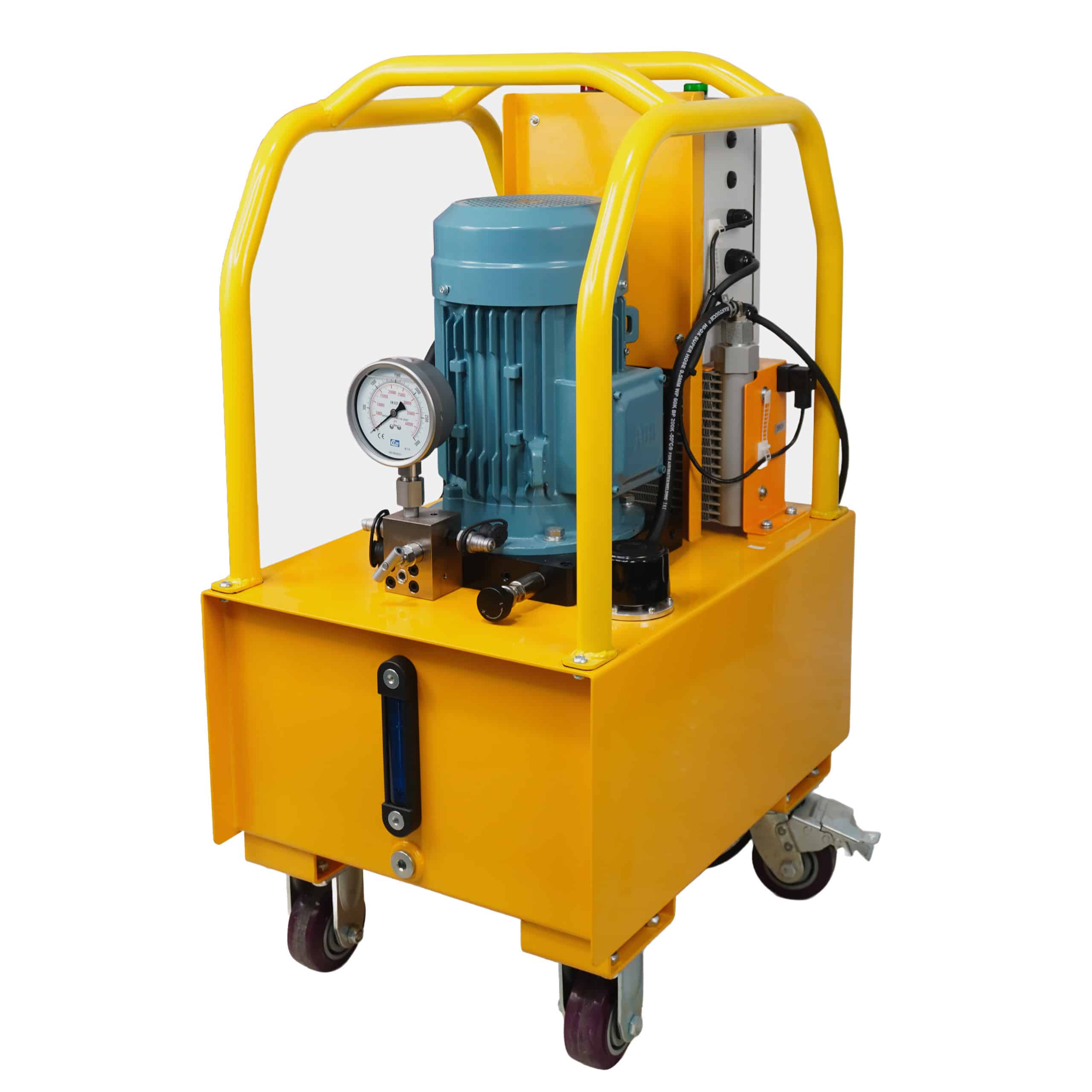

Model: EPU
Product Lines: Industrial Tools
- ABB IEC Brushless Motor (4.0 kW): Maintenance-free industrial power with superior thermal efficiency.
- Dual-Stage Intensifier-Free System: High-speed filling + ultra-high-pressure output (radial piston pump for 50% longer service life).
- Continuous Pressure Adjustment: Fine-tune output from 10–350 MPa (±1% accuracy).
- Three-Phase Motor Protector: Guards against overloads, phase failure, and overheating.
- Forced-Air Cooling System: Maintains <60°C oil temperature during 24/7 operation.
- Low-Voltage Remote Handle: Intrinsically safe control in high-risk zones.
- Multi-Fluid Compatibility: Runs on ISO VG46 or Water-Glycol for extreme cold/heat environments.
- Heavy-Duty Mobile Frame: Industrial casters + integrated lifting points for rugged deployment.
Think Safety
Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!
Specifications
Model | Rated Working Pressure(Bar) | High Pressure Flow Rate(L/min) | Low Pressure Flow Rate(L/min) | Usable Oil(L) | Power(KW) | Voltage | Weight Without Oil(Kg) |
---|---|---|---|---|---|---|---|
EPU1500 | 1500 | 1.2 | 4.8 | 60 | 4 | 380VAC | 110 |
EPU2500 | 2500 | 0.8 | 4.8 | 60 | 4 | 380VAC | 110 |
EPU3500 | 3500 | 0.6 | 4.8 | 60 | 4 | 380VAC | 110 |
