Description
Model: RSM1500
Series: RSM
Product Lines: Industrial Tools
- Compact, flat design for use where most other cylinders won’t fit
- Single-acting, spring return
- Mounting holes for easy fixturing
- RSM-750,1000 and 1500 have handles for easy carrying
- Baked enamel finish for increased corrosion resistance
- Hard chrome plated high quality steel plungers
- Grooved plunger ends require no saddle
- Plunger wiper reduces contamination, extending cylinder life
- Hardened and chromed piston reduces wear and corrosion
- An Industrial U-cup style seal prevents costly leaks
- Hardened alloy steel guide ring eliminates over travel and provides support to reduce wear from off-center loads
Think Safety
Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!

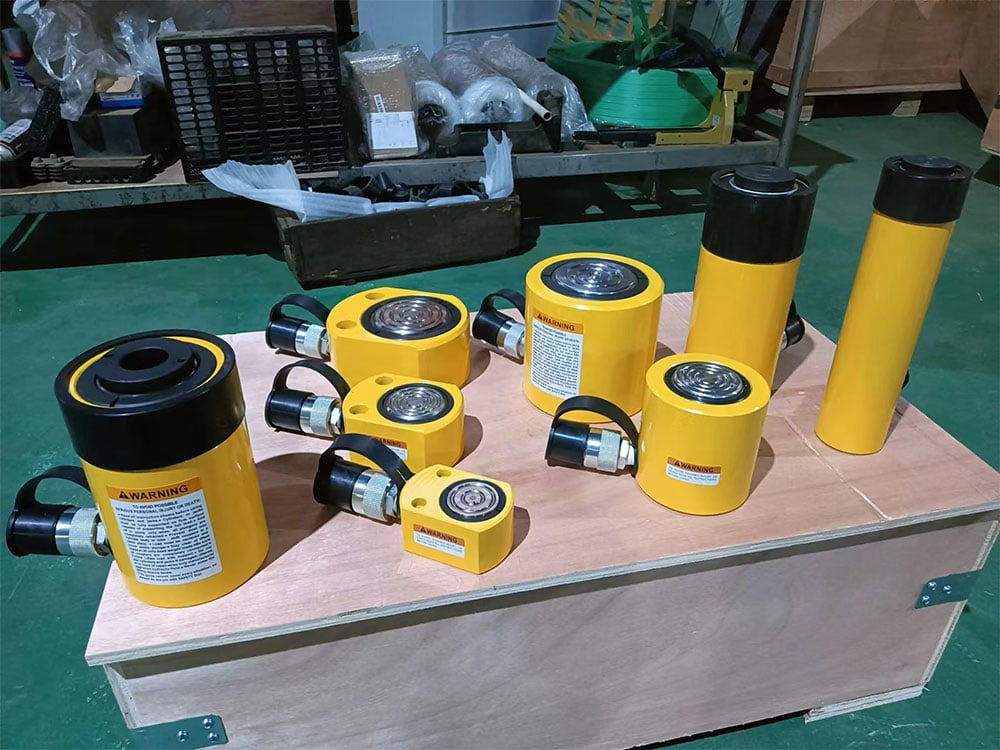

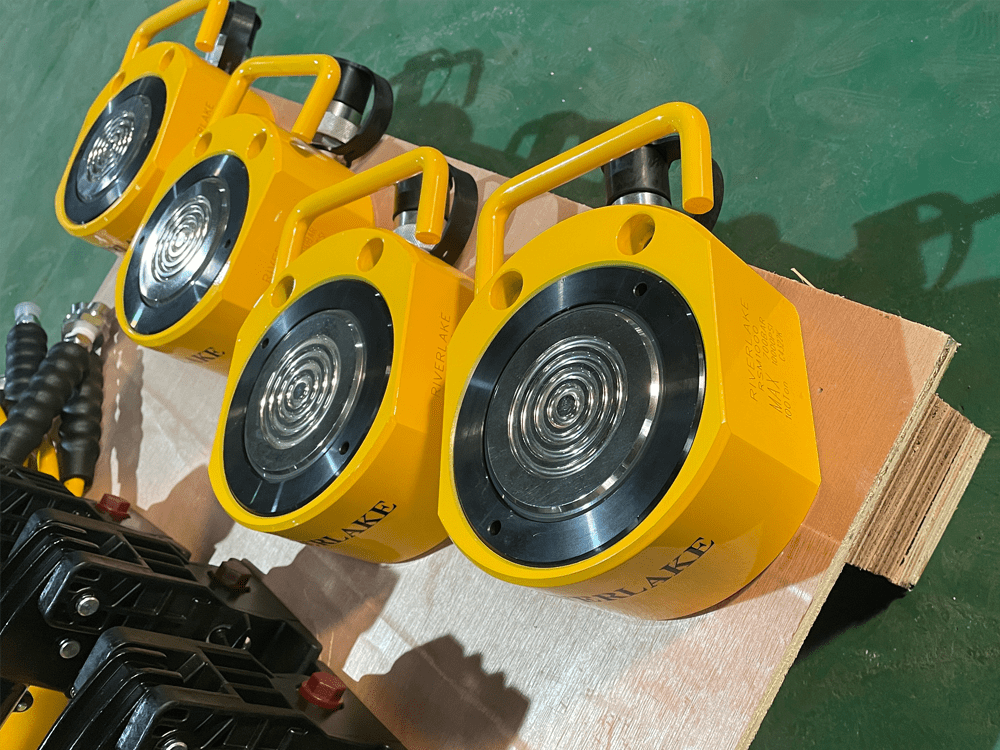

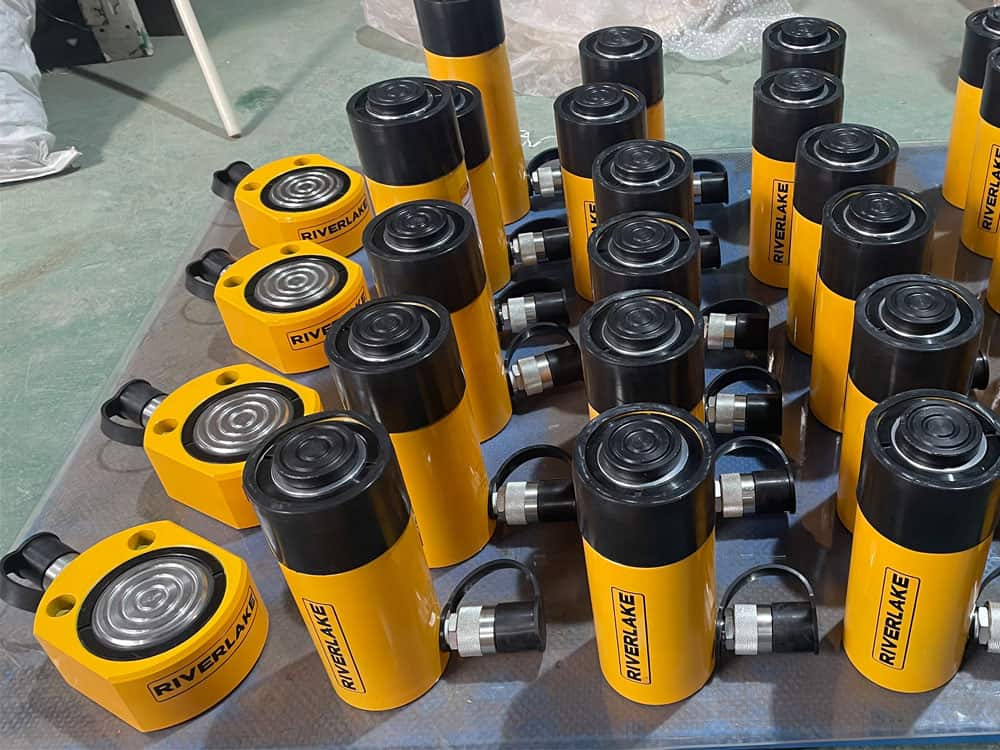

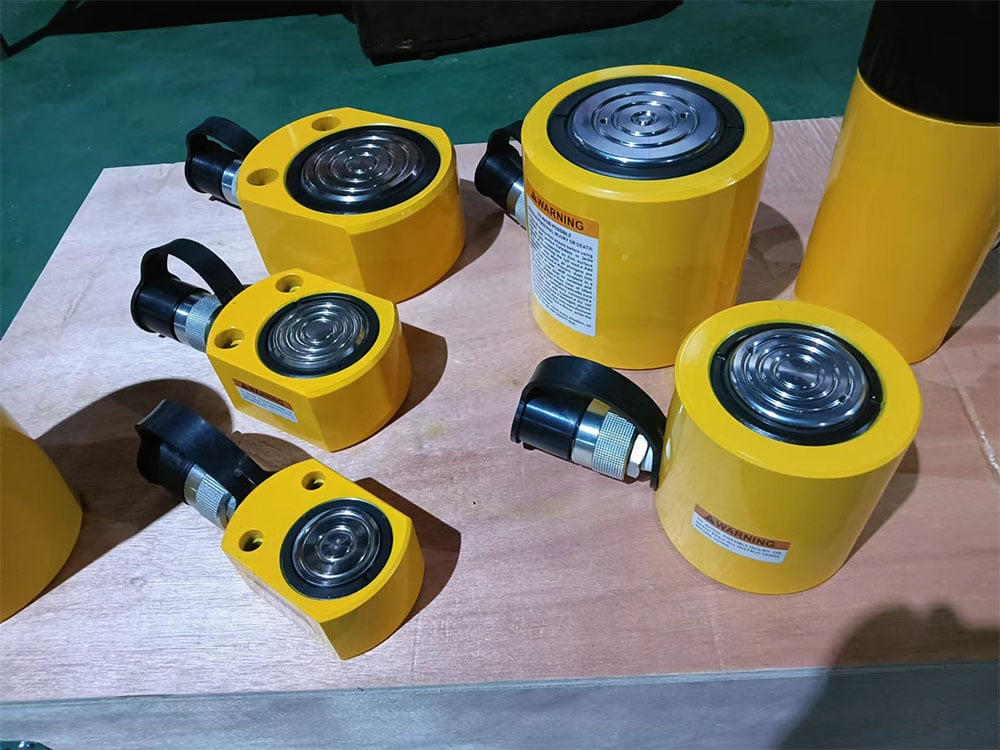

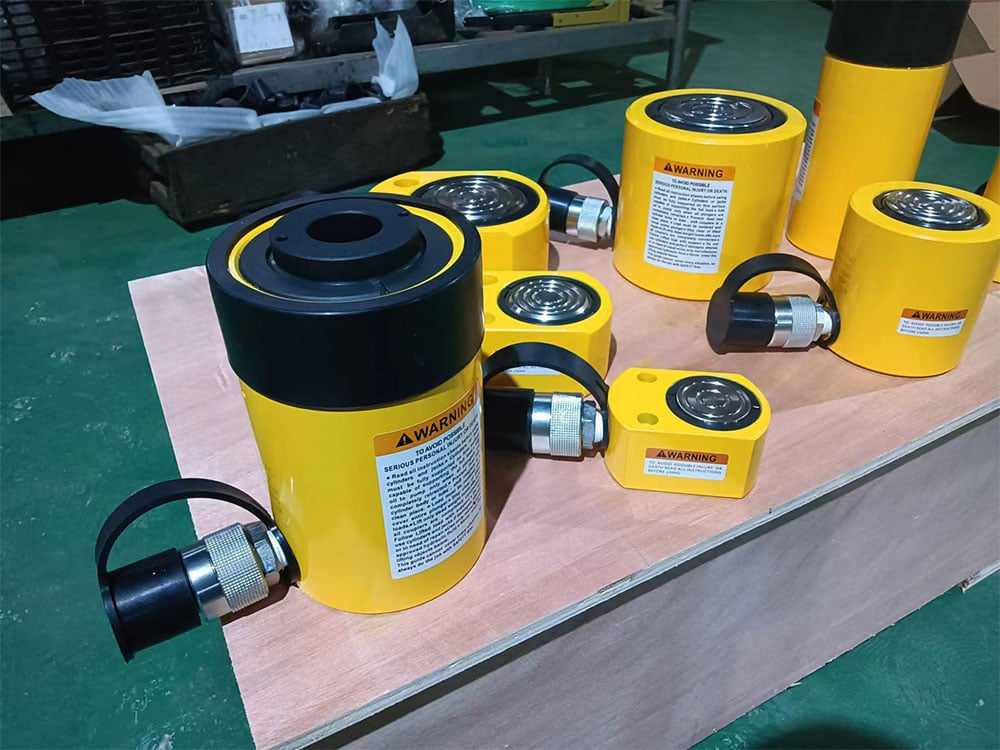

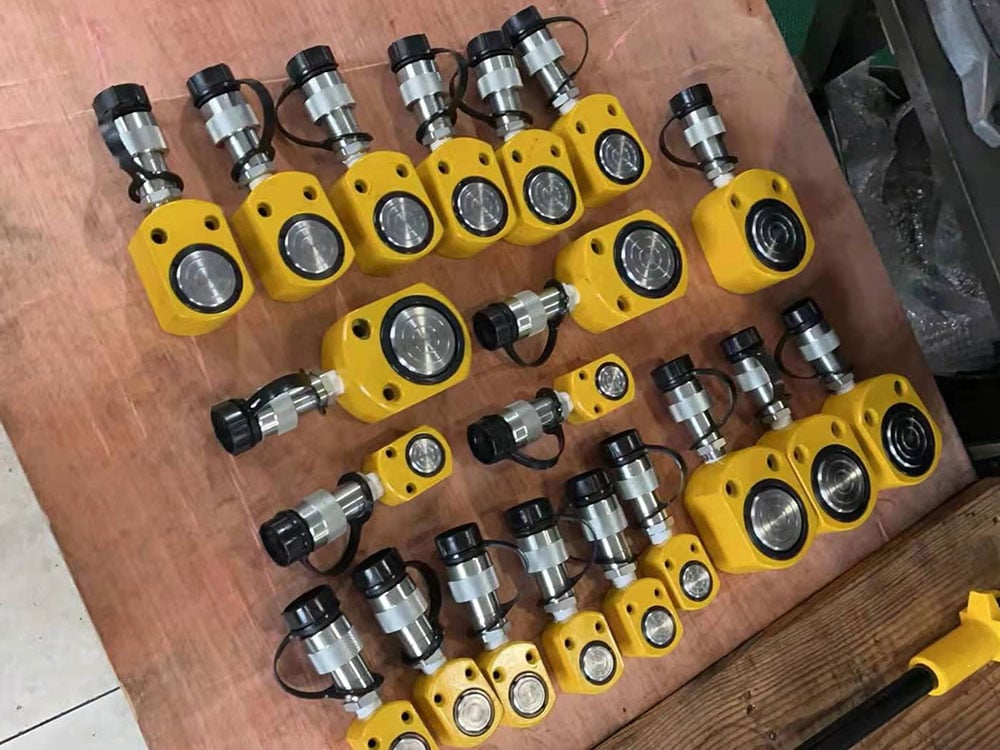

Image Gallery
CE Certification
Specifications
| Maximum Operating Pressure (bar) | 700 |
| Capacity Class (tonnage) | 150 |
| Stroke (mm) | 16 |
| Collapsed Height A (mm) | 100 |
| Extended Height B (mm) | 116 |
| Return Type | Single-Acting, Spring Return |
| Plunger Type | Solid |
| Material | CR40 |
| Cylinder Effective Area Advance (cm2) | 198.1 |
| Oil Capacity Advance (cm3) | 317 |
| Surface Treatment | Baked enamel finish |
| Coupler | 3/8NPT-18 |
| Weight (kg) | 26.3 |

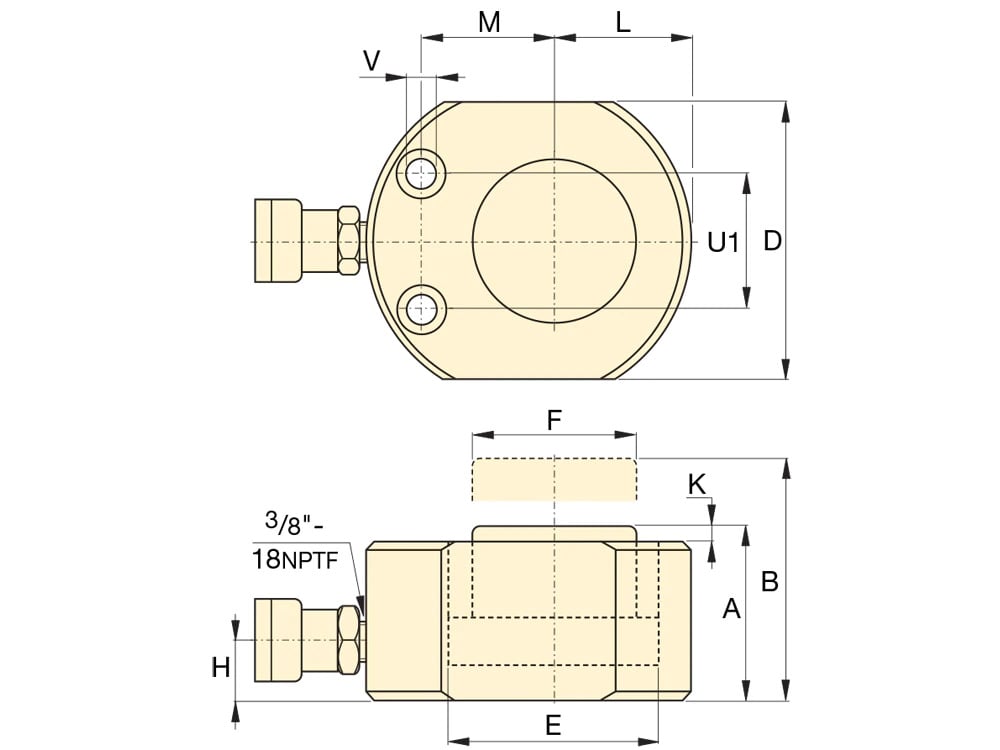

Dimensions
| Collapsed Height/mm(A) | 100 |
| Extended Height/mm(B) | 116 |
| Outside Dia/mm(D) | 215×190 |
| Cylinder Bore Dia/mm(E) | 158.8 |
| Plunger Dia/mm(F) | 115 |
| Base To Advance Port/mm(H) | 23 |
| Plunger Protrusion From Base/mm(K) | 2 |
| Plunger To Plg. Hole/mm(M) | 82 |
| Base Mounting Holes Bolt Circle/mm(U1) | 117.3 |
| Base Mounting Holes Dia/mm(V) | 13.5 |
| Mounting Hole Counter Bore Dia/mm | 20.6 |
| Mounting Counter Bore Depth/mm | 14.2 |
Series Comparison
| Model Number | Capacity/Ton | Stroke/mm | Cylinder Effective Area/cm2 | Oil Capacity/cm3 | Collapsed Height/mm(A) | Extended Height/mm(B) | Outside Dia/mm(D) | Cylinder Bore Dia/mm(E) | Plunger Dia/mm(F) | Base To Advance Port/mm(H) | Plunger Protrusion From Base/mm(K) | Plunger To Plg. Hole/mm(M) | Base Mounting Holes Bolt Circle/mm(U1) | Base Mounting Holes Dia/mm(V) | Mounting Hole Counter Bore Dia/mm | Mounting Counter Bore Depth/mm | Weight/Kg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RSM-50 | 5 | 6 | 7.1 | 4.3 | 33 | 39 | 59×42 | 28.7 | 25 | 16 | 1 | 22 | 28.5 | 5.5 | 9.1 | 4.3 | 1 |
| RSM-100 | 10 | 10 | 14.5 | 16 | 42 | 55 | 83×56 | 42.9 | 38 | 19 | 1 | 34 | 36.6 | 7.1 | 10.7 | 7.9 | 1.4 |
| RSM-200 | 20 | 11 | 28.6 | 31 | 51 | 63 | 101×76 | 60.5 | 51 | 19 | 1 | 39 | 49.3 | 10 | 15.1 | 9.9 | 3.1 |
| RSM-300 | 30 | 13 | 42 | 55 | 58.5 | 71 | 117×95 | 73.2 | 66 | 19 | 2 | 44 | 52.3 | 10 | 15.9 | 11.2 | 4.5 |
| RSM-500 | 45 | 16 | 62.1 | 99 | 67 | 83 | 140×114 | 88.9 | 70 | 19 | 2 | 53 | 66.5 | 11 | 19 | 12.7 | 6.8 |
| RSM-750 | 75 | 16 | 102.7 | 164 | 79 | 95 | 165×139 | 114.3 | 83 | 19 | 2 | 66 | 78.2 | 13.5 | 20.6 | 14.2 | 11.4 |
| RSM-1000 | 90 | 16 | 126.8 | 203 | 86 | 102 | 178×153 | 127 | 92 | 19 | 2 | 74 | 76.2 | 13.5 | 20.6 | 14.2 | 14.5 |
| RSM-1500 | 150 | 16 | 198.1 | 317 | 100 | 116 | 215×190 | 158.8 | 115 | 23 | 2 | 82 | 117.3 | 13.5 | 20.6 | 14.2 | 26.3 |
