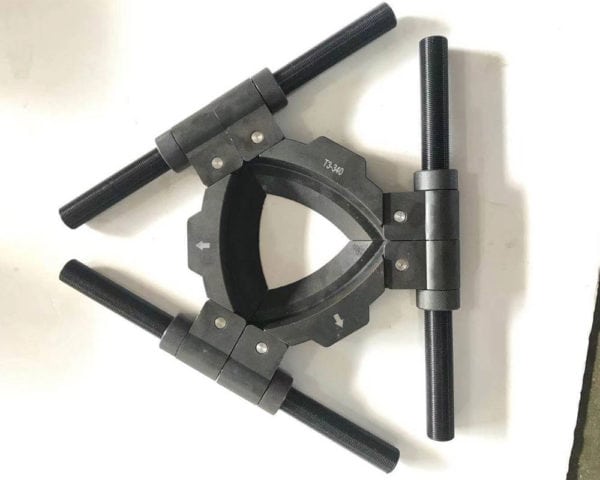

Description
Model: T3-210
Product Lines: Industrial Tools
- The unique design of the T3 series allows the application of force on the most efficient point; the inner ring, thereby requiring less force for dismounting than when pulling on the outer ring.
- The firm grip behind the bearing’s inner ring ensures that the pulling forces are only transmitted through the inner ring and not through the outer ring or the rolling elements, preventing bearing damage.
- The tri-section construction allows even force distribution, preventing bearing locking and/or tilting on the shaft.
- Suitable for use in combination with any three-armed puller.
- A special wig shape allows the plates to be easily inserted between the bearing and the shoulder on the shaft.
- Available in a wide range, covering the most common shaft sizes.
Think Safety
Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!
Specifications
Capacity(Ton) | 8 |
For Shaft Dia A(mm) | 50 |
For Shaft Dia A2(mm) | 210 |
Max. Reach(mm) | 280 |
Weight(Kg) | 5.5 |

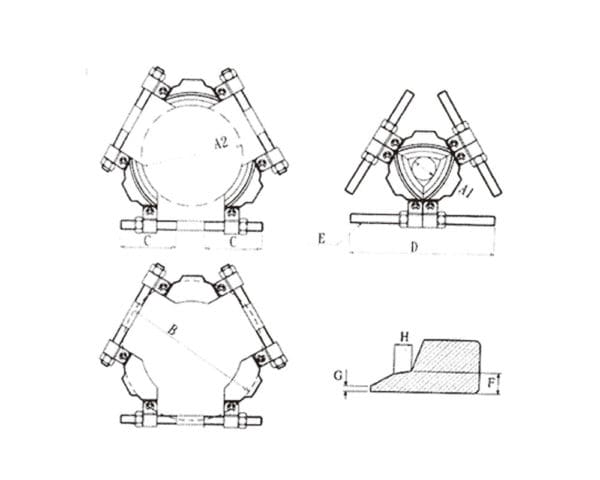

Dimension Drawing
Series Comparison
Model | Capacity/Ton | For Shaft Dia A/mm | For Shaft Dia A2/mm | Max. Reach/mm | C/mm | D/mm | E/mm | F/mm | G/mm | H/mm | Weight/Kg |
---|---|---|---|---|---|---|---|---|---|---|---|
T3-160 | 6 | 25 | 160 | 216 | 105 | 240 | 5/8”-11UNF | 8 | 2 | 6.5 | 3.5 |
T3-210 | 8 | 50 | 210 | 280 | 117 | 285 | 7/8”-14UNF | 10 | 2 | 9 | 5.5 |
T3-340 | 20 | 90 | 340 | 460 | 175 | 460 | 1 1/4”-12UNF | 14 | 2 | 8 | 18 |
T3-495 | 30 | 140 | 495 | 660 | 235 | 660 | 1 3/4”-12UNF | 20 | 2 | 12 | 45 |
