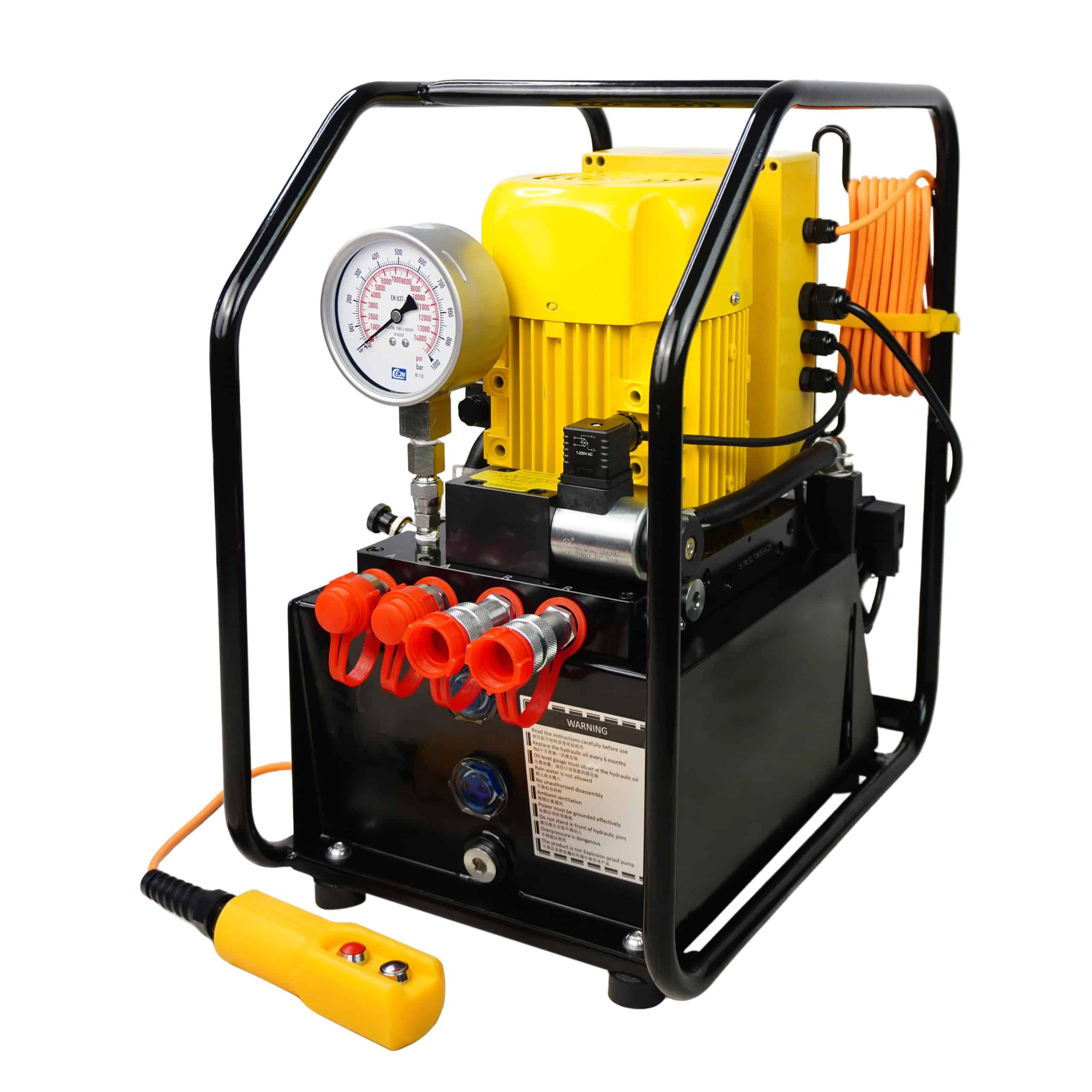

Description
Series: HTTW
Product Lines: Industrial Tools
Key Features
- Maintenance-Free Brushless Motor: Ultra-quiet, reliable operation (<75 dB).
- Integrated Cable Reel Frame: Compact design with tangle-free wire storage.
- Tool-Free Pressure Gauge: Quick-release installation – no rotation needed.
- Dual Output Ports: Drive two hydraulic wrenches simultaneously, doubling productivity.
- Electromagnetic Auto-Bleed Valve: Automatic air purging at startup – eliminates manual bleeding.
The HTTW Advantage
✓ Smart 3-Stage Pump:
→ Stage 1: Ultra-rapid approach (gear pump)
→ Stage 2: Medium-pressure seating
→ Stage 3: High-pressure torque precision
✓ Zero Downtime Design:
→ Auto-bleed valve prevents airlocks
→ Brushless motor: 10,000+ hour lifespan
→ IP54-rated components
Perfect For:
- Steel structure assembly
- Wind turbine maintenance
- Pipeline flange bolting
- Heavy equipment servicing
Think Safety
Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!
CE Certification
Specifications
| Max Working Pressure(bar) | 700 |
| High-Pressure Oil Flow (L/min) | 0.7 |
| Middle-Pressure Oil Flow (L/min) | 1.5 |
| Low-Pressure Oil Flow (L/min) | 6 |
| Motor Power(KW) | 1.1 |
| Oil Capacity(L) | 7 |
| Weight(Kg) | 30 |
Specification
| Model | Max Working Pressure(Mpa) | High Pressure Oil Flow (L/min) | Middle Pressure Oil Flow (L/min) | Low Pressure Oil Flow (L/min) | Motor Power(KW) | Voltage | Oil Capacity(L) | Torque Wrench Number | Dimension(mm) | Weight Without Oil(Kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| HT4TW | 70 | 0.7 | 1.5 | 6 | 1.1 | 230V 50HZ | 7 | 2 | 440*295*485 | 30 |
| HT4TW-115/60 | 70 | 0.7 | 1.5 | 6 | 1.1 | 115V 60HZ | 7 | 2 | 440*295*485 | 30 |
| HT5TW | 70 | 1 | 2 | 8 | 1.5 | 230V 50HZ | 7 | 2 | 440*295*485 | 33 |
| HT5TW-115/60 | 70 | 1 | 2 | 8 | 1.5 | 115V 60HZ | 7 | 2 | 440*295*485 | 33 |
