Description
Model: P141
Series: P Series
Product Lines: Industrial Tools
- Lightweight and compact design
- Durable glass-filled nylon reservoir and nylon encapsulated aluminum pump base for maximum corrosion resistance
- Two-speed operation on most models reduces handle strokes by as much as 78% over single-speed pumps
- Lower handle effort to minimize operator fatigue
- Handle lock and lightweight construction for easy carrying
- Large oil capacities to power a wide range of cylinders or tools
- Non-conductive fiberglass handle for operator safety
- Internal pressure relief valve for overload protection
Think Safety
Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!

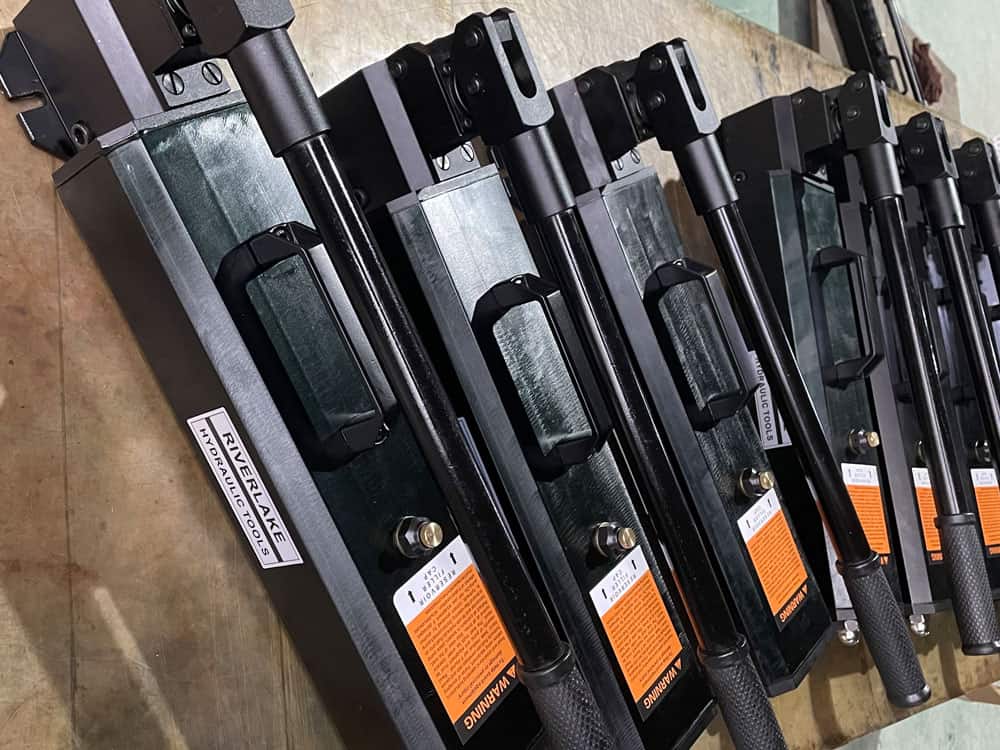

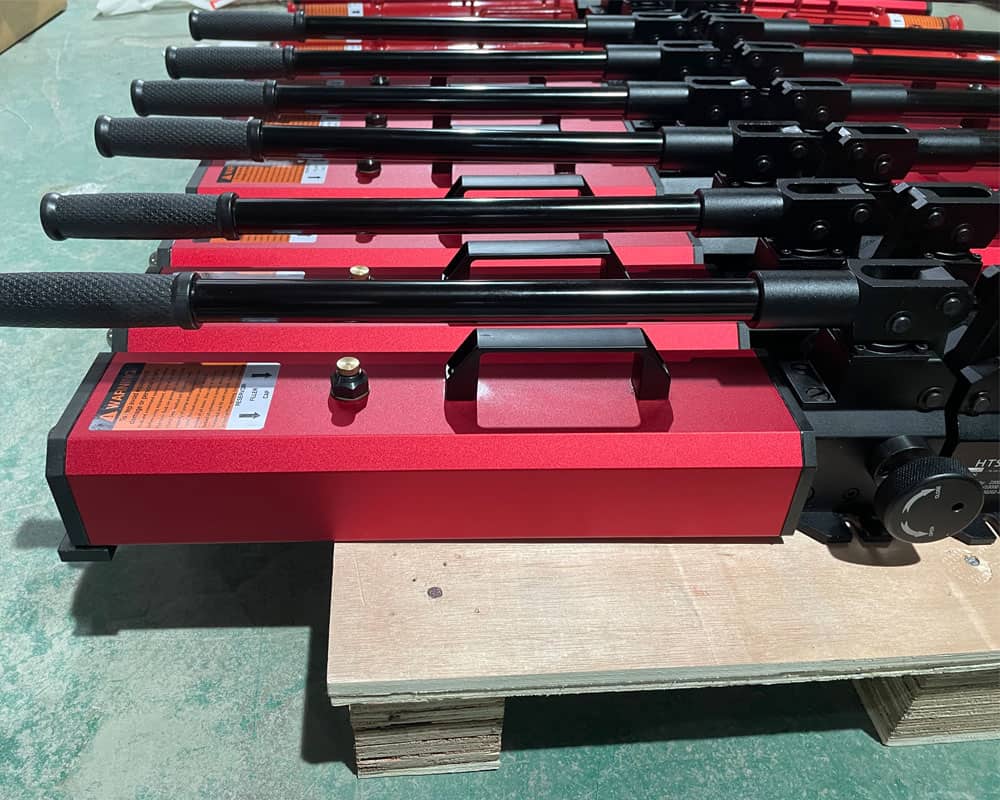

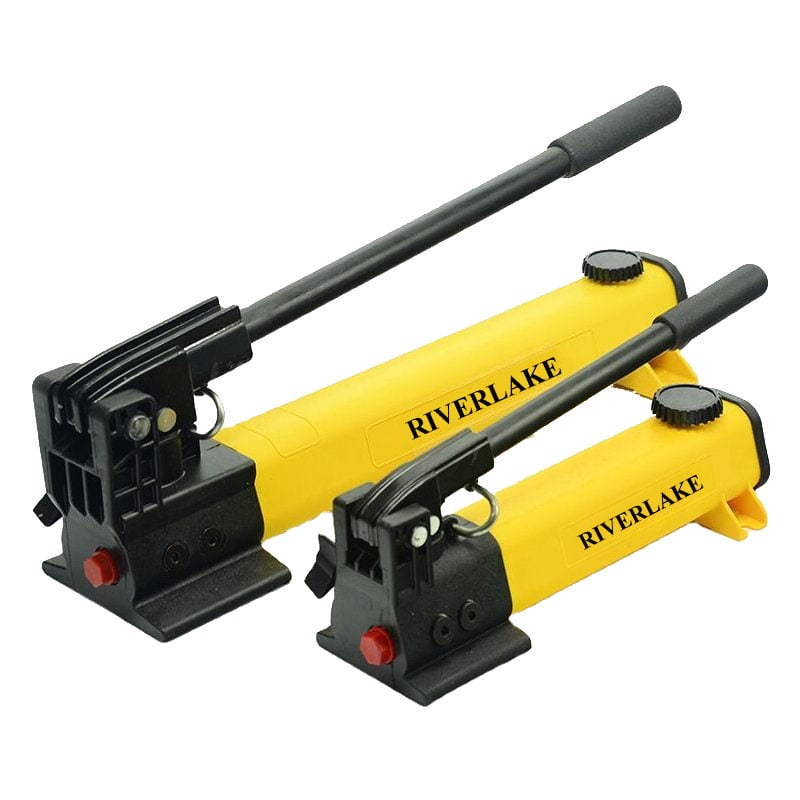

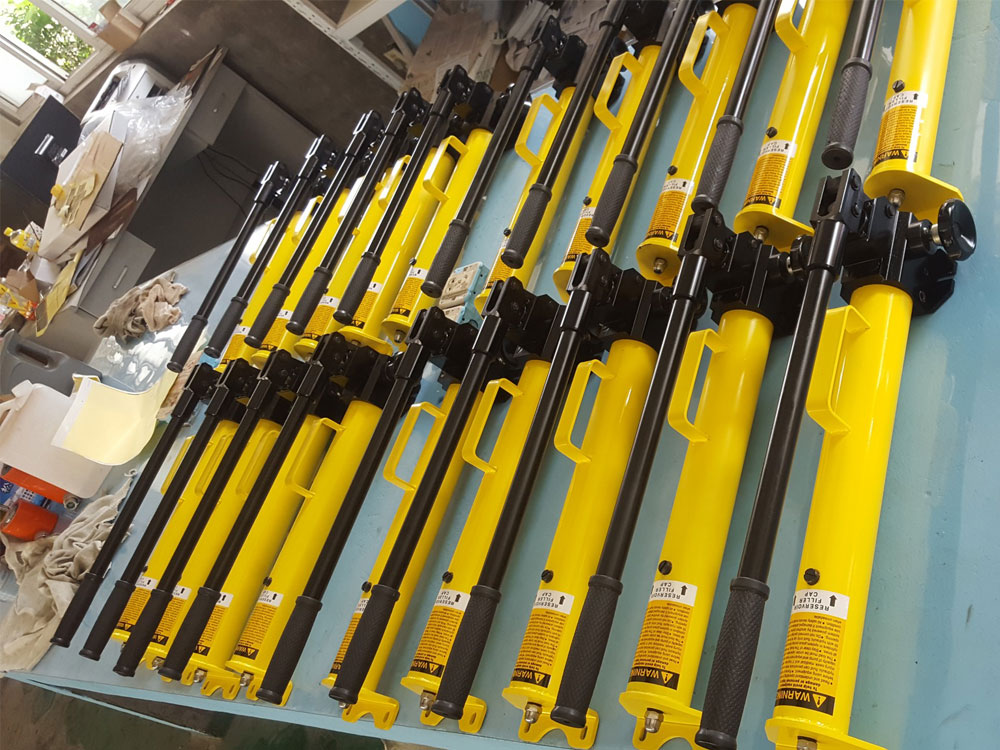

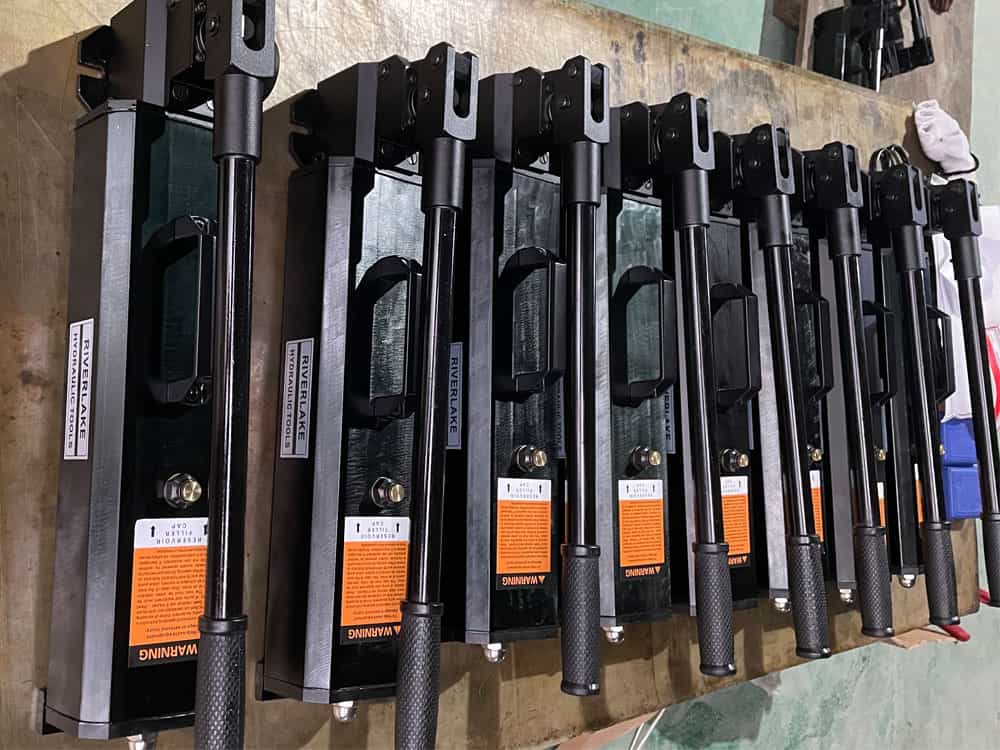

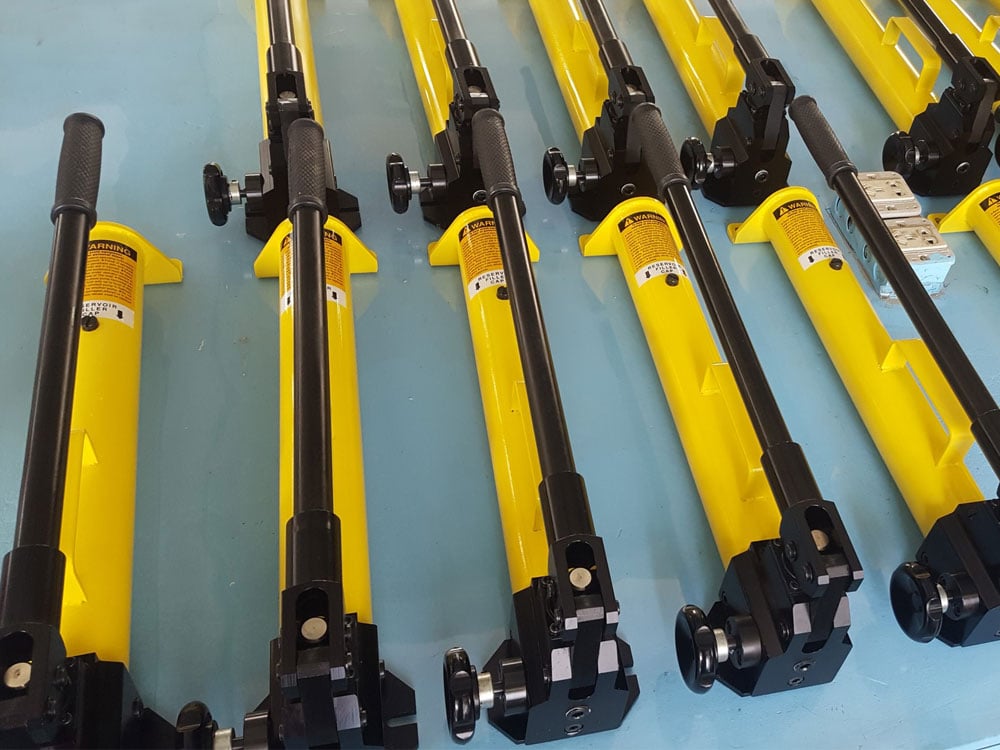

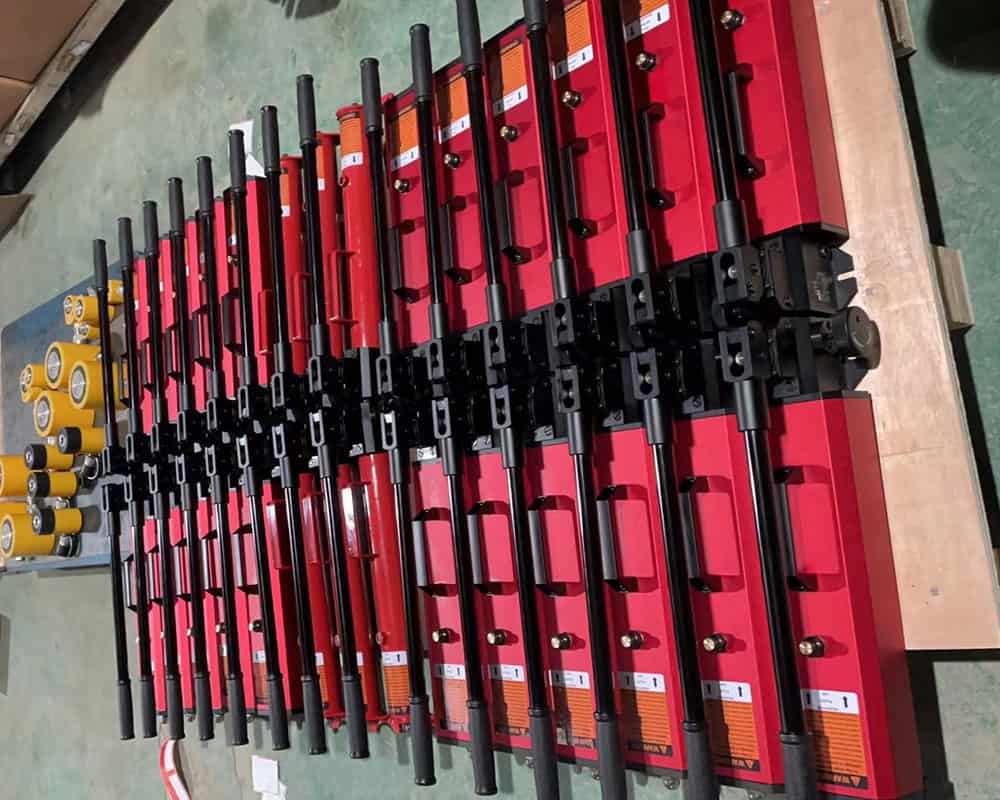

Image Gallery
Specifications
| Maximum Operating Pressure (bar) | 700 |
| Usable Oil Capacity/cm3 | 327 |
| Oil Displacement Per Stroke (cm3) | 0.9 |
| Piston Stroke(mm) | 12.7 |
| Pump Type | Single acting, single speed |
| Max handle Force(Kg) | 32.7 |
| Weight(Kg) | 2.4 |

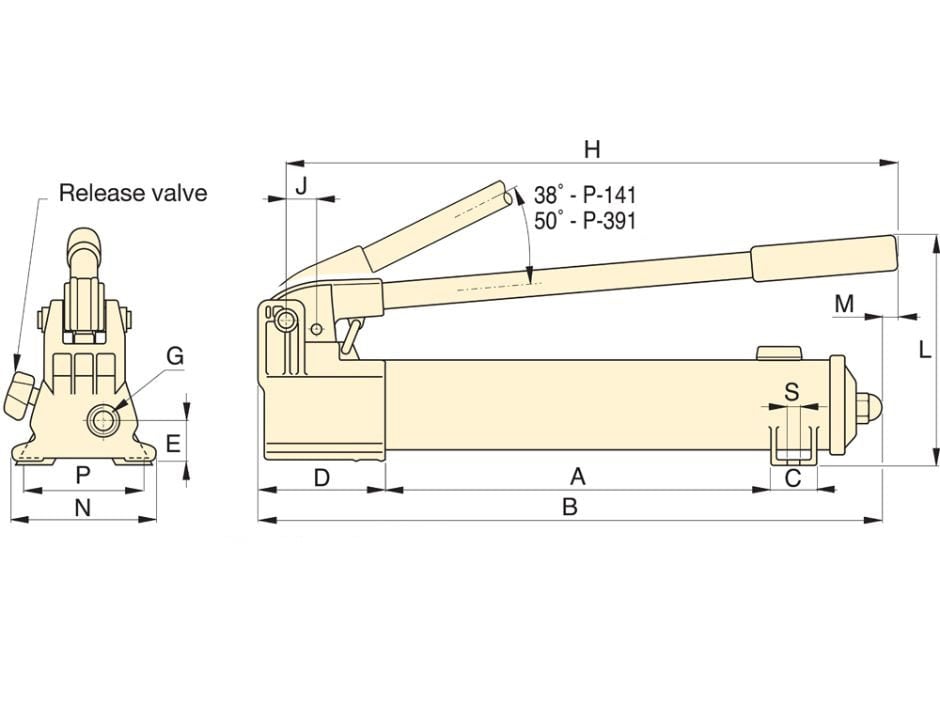

Dimensions
| Dimension A/mm | 185 |
| Dimension B/mm | 336 |
| Dimension C/mm | 28 |
| Dimension D/mm | 85 |
| Dimension E/mm | 28 |
| Dimension G/mm | 1/4″ – 18 NPTF |
| Dimension H/mm | 319 |
| Dimension J/mm | 19 |
| Dimension L/mm | 143 |
| Dimension N/mm | 95 |
| Dimension P/mm | 80 |
| Dimension S/mm | 7 |
Series Comparison
| Model | Usable Oil Capacity/cm3 | First Stage Pressure/bar | Second Stage Pressure/bar | Max handles Force/Kg | Oil Displacement Per Stroke 1st Stage (cm3) | Oil Displacement Per Stroke 2nd Stage (cm3) | Piston Stroke | Weight/Kg |
|---|---|---|---|---|---|---|---|---|
| P-141 | 327 | * | 700 | 32.7 | * | 0.9 | 12.7 | 2.4 |
| P-391 | 901 | 14 | 700 | 42 | 11.26 | 2.47 | 25.4 | 6 |
