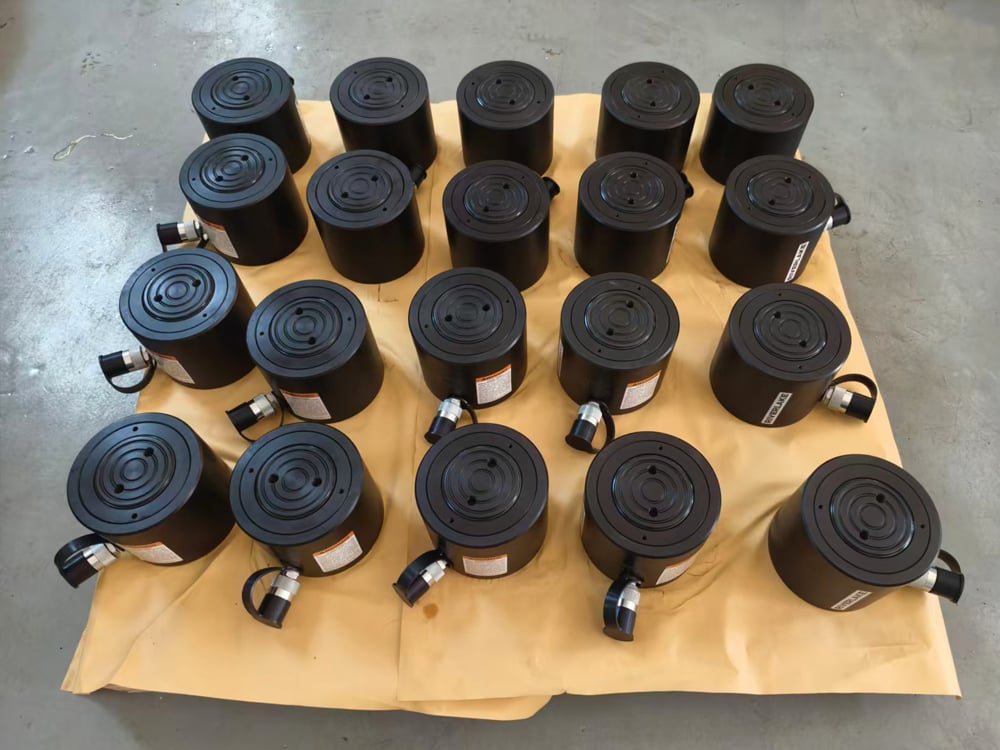

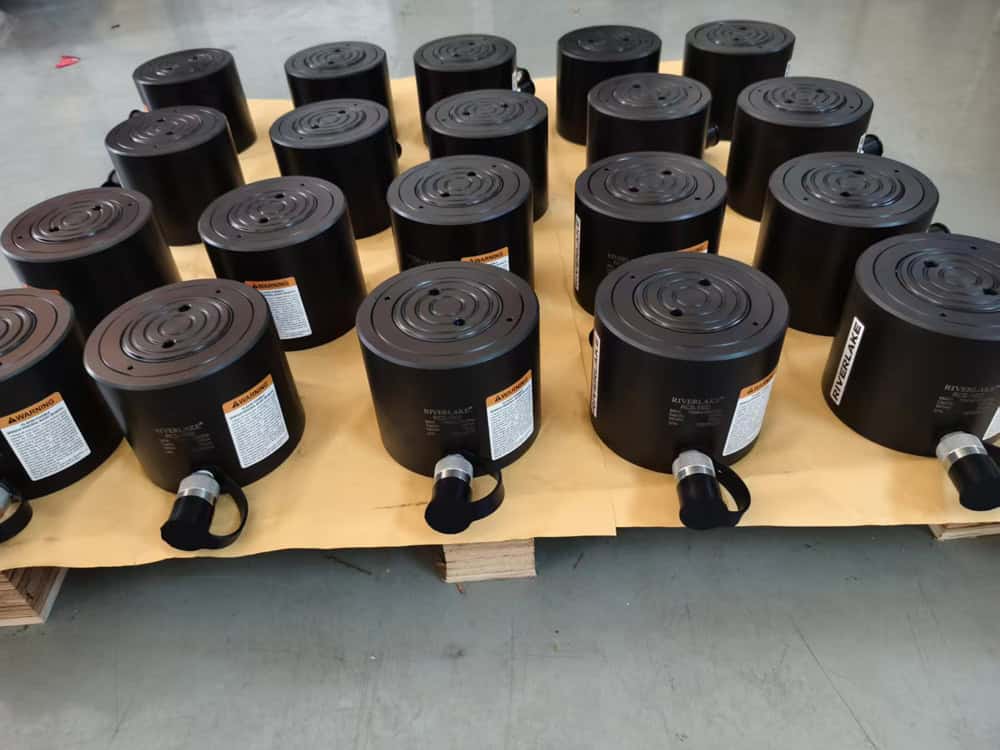

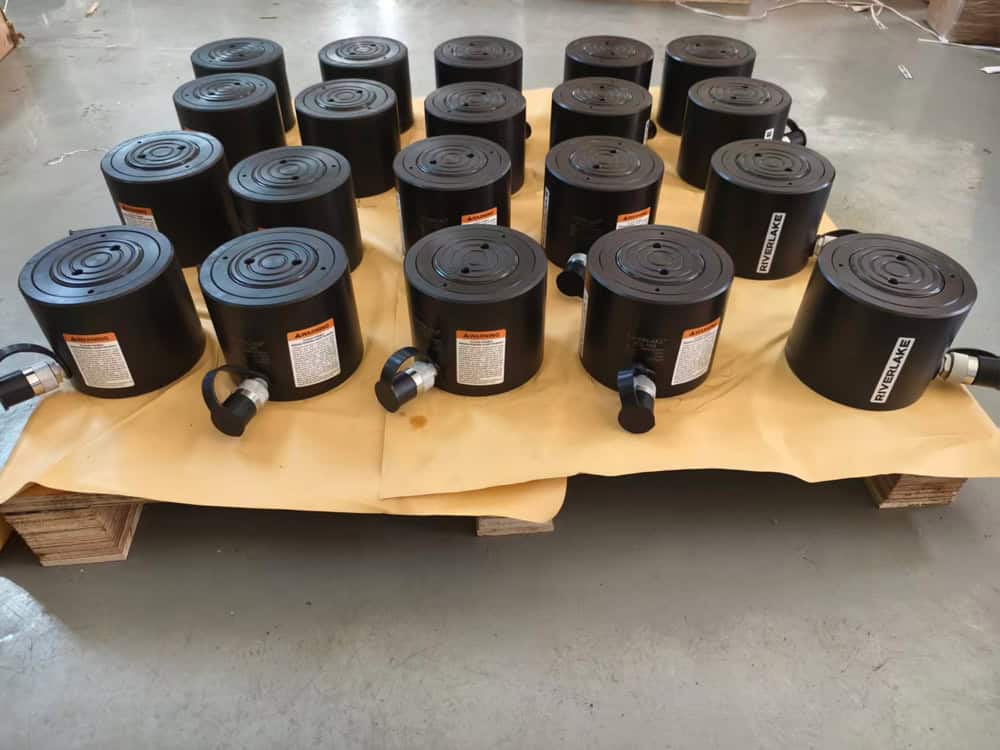

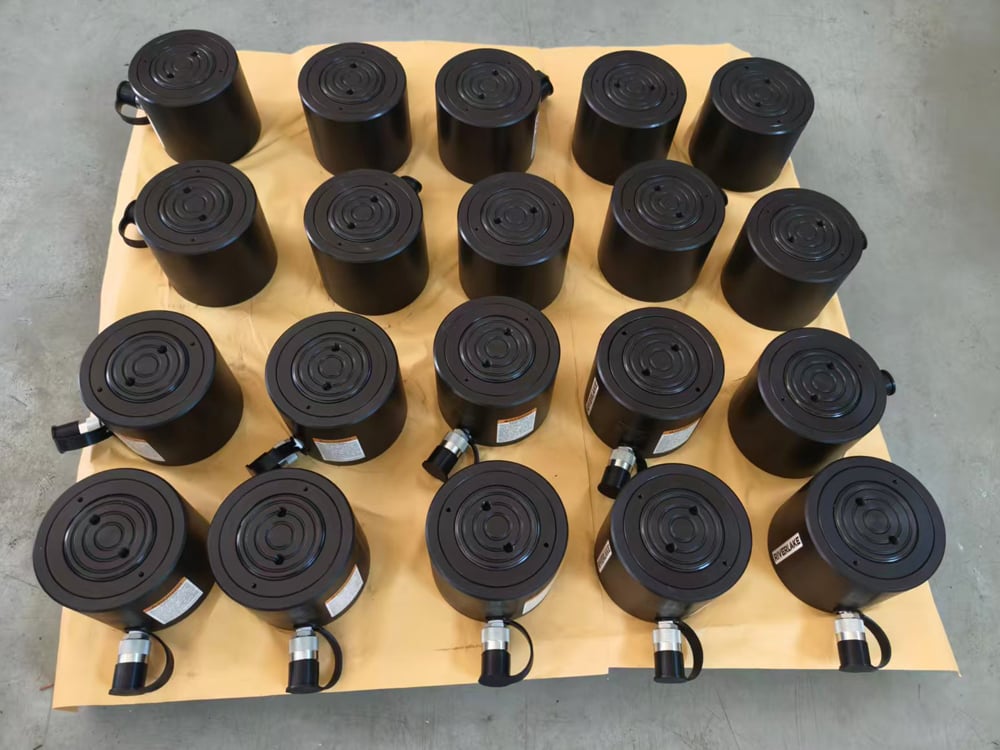

Description
Model: RCS-101
Series: RCS
Product Lines: Industrial Tools
- Lightweight, low profile design for use in confined spaces
- Baked enamel finish for increased corrosion resistance
- Plunger wiper reduces contamination, extending cylinder life
- Grooved plunger end with threaded holes for mounting tilt saddles
- Plated steel plungers
- Single-acting spring return
- Hardened and chromed piston reduces wear and corrosion
- An Industrial U-cup style seal prevents costly leaks
- The integral handle on RCS-1002 for easy carrying
- Hardened alloy steel guide ring eliminates over travel and provides support to reduce wear from off center loads
Think Safety
Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!
Specifications
Maximum Operating Pressure (bar) | 700 |
Capacity Class (tonnage) | 10 |
Stroke (mm) | 38 |
Collapsed Height A (mm) | 88 |
Extended Height B (mm) | 126 |
Return Type | Single-Acting, Spring Return |
Plunger Type | Solid |
Material | CR40 |
Cylinder Effective Area Advance (cm2) | 14.4 |
Oil Capacity Advance (cm3) | 55 |
Surface Treatment | Baked enamel finish |
Coupler | 3/8NPT-18 |
Weight (kg) | 4.1 |
Dimensions
Collapsed Height/mm(A) | 88 |
Extended Height/mm(B) | 126 |
Outside Dia/mm(D) | 69 |
Cylinder Bore Dia/mm(E) | 42.9 |
Plunger Dia/mm(F) | 38 |
Base To Advance Port/mm(H) | 17 |
Plunger Protrusion From Base/mm(K) | 5 |
Base Mounting Holes Bolt Circle/mm(U) | 26 |
Base Mounting Holes Thread(V) | M4 |
Base Mounting Holes Thread Depth/mm(Z) | 8 |
Series Comparison
Model Number | Capacity/Ton | Stroke/mm | Cylinder Effective Area/cm2 | Oil Capacity/cm3 | Collapsed Height/mm(A) | Extended Height/mm(B) | Outside Dia/mm(D) | Cylinder Bore Dia/mm(E) | Plunger Dia/mm(F) | Base To Advance Port/mm(H) | Plunger Protrusion From Base/mm(K) | Base Mounting Holes Bolt Circle/mm(U) | Base Mounting Holes Thread(V) | Base Mounting Holes Thread Depth/mm(Z) | Weight/Kg |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
RCS-101 | 10 | 38 | 14.4 | 55 | 88 | 126 | 69 | 42.9 | 38 | 17 | 5 | 26 | M4 | 8 | 4.1 |
RCS-201 | 20 | 45 | 28.3 | 129 | 98 | 143 | 92 | 60.5 | 51 | 17 | 3 | 39 | M5 | 8 | 4.7 |
RCS-302 | 30 | 62 | 41.8 | 261 | 117 | 180 | 102 | 73.2 | 66 | 19 | 3 | 39 | M5 | 8 | 6.8 |
RCS-502 | 45 | 60 | 63.6 | 373 | 122 | 182 | 124 | 88.9 | 70 | 23 | 2 | 39 | M5 | 8 | 10.1 |
RCS-1002 | 90 | 57 | 132.8 | 722 | 141 | 198 | 165 | 127 | 92 | 31 | 1 | 55 | M8 | 11 | 19.2 |
