Description

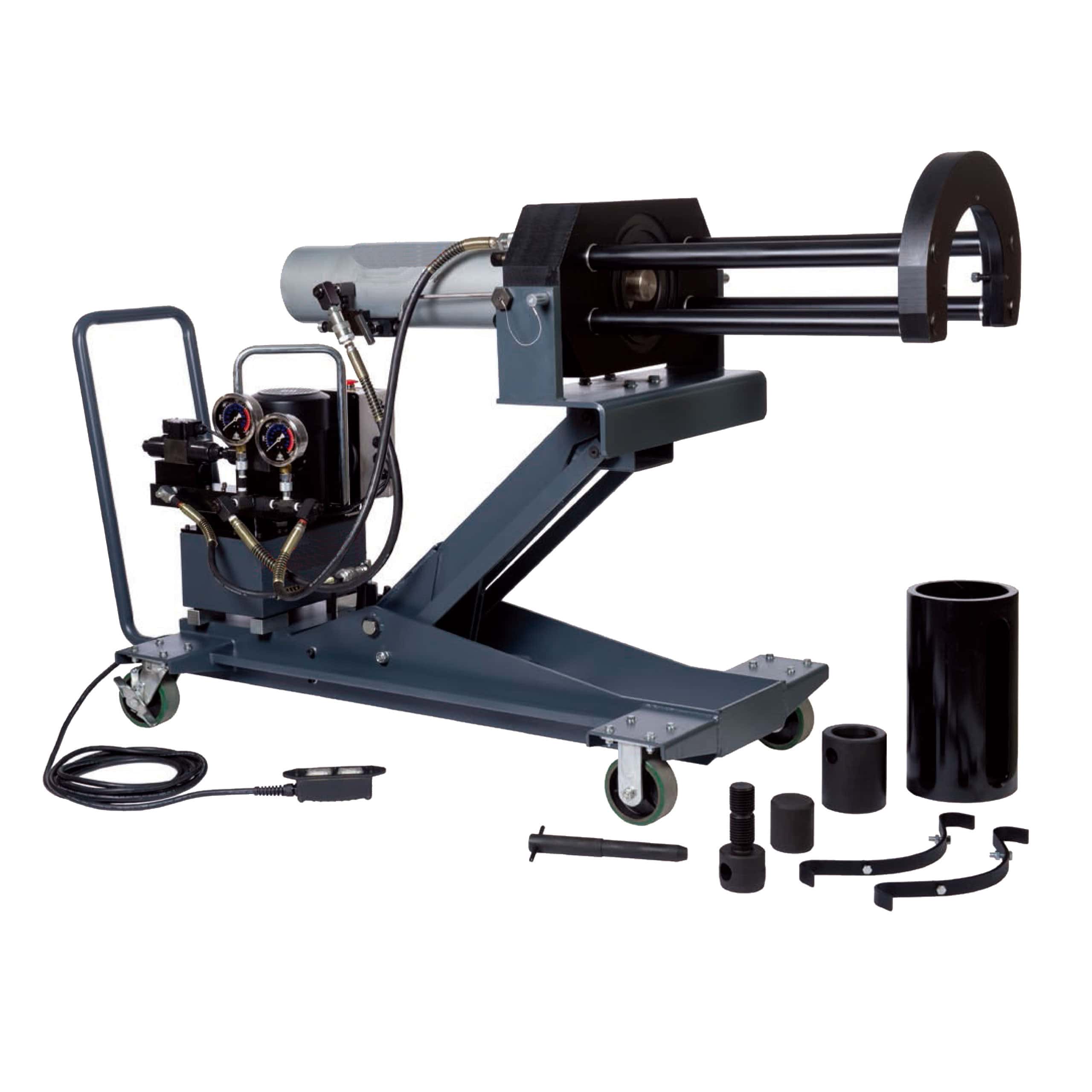

Model: BPPS100 Slide-Shift
Product Lines: Hydraulic Pullers
- Unmatched Mobility & Ease of Use: Designed for operation by a single person, these units are highly mobile. The BPPS Side-Shift model, in particular, offers superior maneuverability with its four caster wheels, allowing for easy positioning in tight workshop spaces.
- Rail-Specific Application: Expertly suited for critical railway maintenance tasks, including the mounting and dismounting of TBU, SP, and TAROL bearing sets. Their robust design ensures reliability in demanding daily operations.
- Exceptional Power & Versatility: The series delivers massive force for any task. Both models offer a maximum pulling capacity (dismounting) of 100 t. For mounting, the BPP provides an adjustable pushing force of up to 68 t, while the BPPS Side-Shift offers a powerful pushing capacity of up to 100 t.
- Comprehensive Accessory System: A wide range of accessory sets is available in various sizes and both metric and inch versions. This ensures a perfect fit and optimal performance for different applications, including housing-type locomotives and passenger cars.
- Adaptable Functionality: The BPPS Side-Shift model is a versatile solution for various workshop needs. The unit must be converted between its mounting and dismounting configurations, a simple process that allows one tool to handle multiple critical jobs safely and effectively.
To order the correct accessory set for bearings (housing-type locomotives and passenger cars), please provide us with the following information:
- Bearing number and manufacturer number
- Drawing of bearing and shaft
Think Safety
Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!
Specifications
| Model | BPPS100 Slide-Shift |
| Maximum Operating Pressure (bar) | 700 |
| Pulling Capacity (tonnage) | 100 |
| Pushing Capacity (tonnage) | 100 |
| Stroke (mm) | 255 |
| Shaft Diameter Range(mm) | Depending on acc. |
| Main Cylinder Operation & Height Adjustment | Electric Hydraulic Pump |
| Wheels | 4 Castor Wheels |
| Dimension(mm) | 1299X627X909 |
| Weight(KG) | 400 |
Series Comparison
| Model | Pulling Capacity/Ton | Pushing Capacity/Ton | Stroke/mm | Shaft Diameter Range/mm | Main Cylinder Operation & Height Adjustment | Wheels | Dimension/mm | Weight/Kg |
|---|---|---|---|---|---|---|---|---|
| BPP100 | 100 | 68 | 392 | Depending on acc. | Electric Hydraulic Pump | 2 Fixed Wheels,2Castor Wheels | 2210X652X900 | 560 |
| BPPS100 Slide-Shift | 100 | 100 | 255 | Depending on acc. | Electric Hydraulic Pump | 4 Castor Wheels | 1299X627X909 | 400 |
