Description

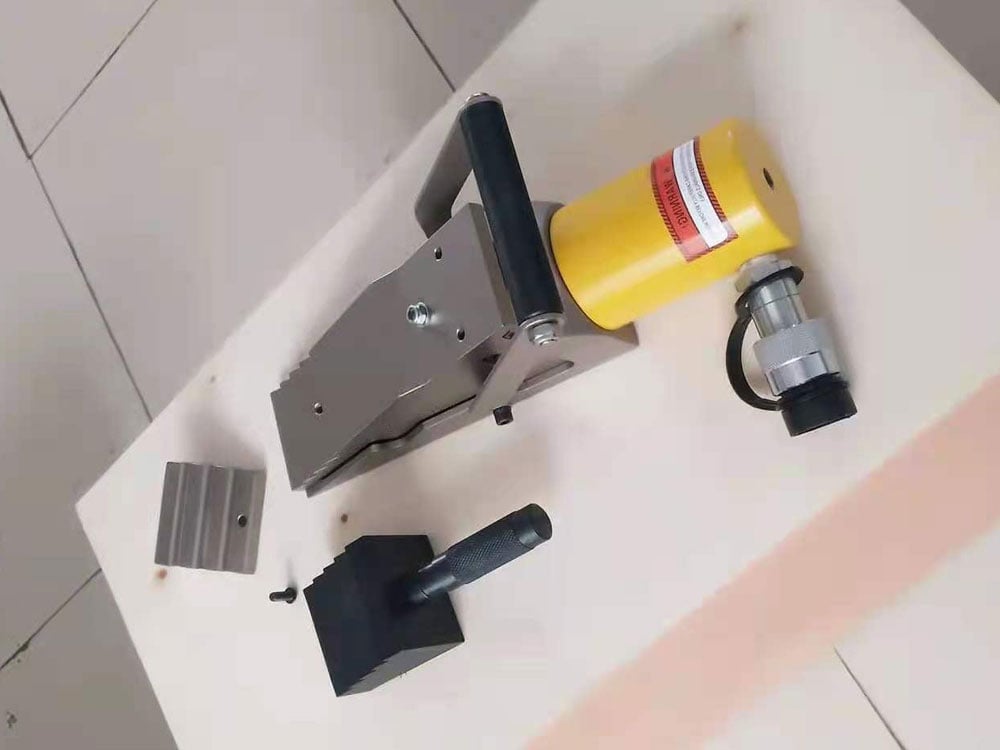

Model: LW16

Series: LW

Product Lines: Industrial Tools

  • Minimized access gap for greater accessibility on applications with limited insertion space
  • Secure, stable lifting and lowering motion with no slippage
  • A single-acting spring return cylinder allows for automatic, mechanical retraction
  • Includes safety block SB2
  • It can be used in multiple setups.

Think Safety

Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!

Specifications

Maximum Operating Pressure (bar)700
Maximum Lifting Force (ton)16
Lifting Stroke (mm)21
Tip Clearance (mm)10
Power SourceHydraulic
Oil Capacity (cm3)78
Weight (kg)9

Dimensions

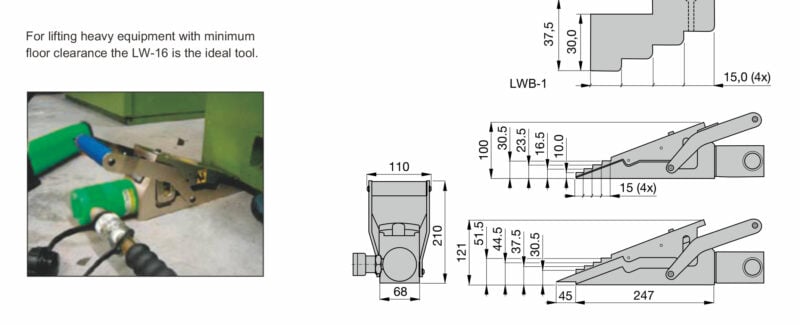

LW16, 16 Ton Hydraulic Vertical Lifting Wedge Dimension

Series Comparison

Model NumberMax Lifting Force/TonTip Clearance/mmMax Spread/mmSpreader Type Oil Capacity/cm³Weight/Kg
LW16161021Hydraulic789
