RT2119, 20.2 Ton Capacity, 500mm Stroke,Multi-stage, Telescopic Hydraulic Cylinder
The RIVERLAKE RT Series Telescopic Hydraulic Cylinders are precision-engineered for heavy-duty lifting, pushing, and maintenance applications where high force, compact design, and long-term reliability are essential. Incorporating advanced surface treatments, high-performance sealing, and robust internal components, the RT Series delivers exceptional performance under demanding conditions, including eccentric loading.
PRICE ON REQUEST
Features
Description
Series: RT | Product Line: Industrial Tools
-
High Eccentric Load CapacityCapable of handling an eccentric load of up to 4% at maximum rated capacity, ensuring stable and safe operation even when the load is not perfectly centered on the cylinder axis.
-
Nitrided Stop RingThe nitrided stop ring effectively absorbs eccentric loads and limits plunger overstroke, preventing internal damage and enhancing operational safety.
-
Gas-Nitrided Piston RodThe piston rod undergoes a gas nitriding process, providing excellent wear resistance, corrosion resistance, and self-lubricating properties for smoother operation and extended service life.
-
Wiper SealA built-in wiper seal prevents external contaminants (dust, dirt, debris) from entering the cylinder cavity, reducing the risk of internal contamination and mechanical damage.
-
High-Pressure Sealing SystemEquipped with high-pressure seals, the RT Series achieves zero leakage in the hydraulic system, minimizes wear, and significantly extends the service life of the cylinder.
-
Low Closed HeightThe compact, low-profile design allows for easy installation in space-restricted environments, maximizing lifting efficiency while minimizing the required clearance.
-
Gas-Nitrided and Post-Oxidized Cylinder BodyThe cylinder body is treated with a gas nitriding and post-oxidation surface process, delivering superior corrosion resistance for reliable performance in harsh or humid environments.
-
Standard CEJN Quick CouplerEach cylinder comes standard with a CEJN quick coupler, enabling fast, secure, and spill-free connection to compatible hydraulic systems.
-
Integrated Tilt Saddle (Up to 5°)All RT Series cylinders are equipped with a one-piece integrated tilt saddle, allowing a maximum tilt angle of up to 5 degrees. This feature helps maintain full contact between the cylinder and the load surface under angled or uneven conditions, improving stability and reducing the risk of side loading.
Specifications
Specifications
| Maximum Operating Pressure (bar) | 700 |
| Capacity Class (tonnage) | 20.2 |
| Stroke (mm) | 500 |
| Collapsed Height/mm | 395 |
| Extended Height/mm | 895 |
| First Stage Capacity (tonnage) | 126 |
| First Stage Stroke(mm) | 170 |
| Second Stage Capacity (tonnage) | 51 |
| Second Stage Stroke(mm) | 170 |
| Third Stage Capacity (tonnage) | 20.2 |
| Third Stage Stroke(mm) | 160 |
| Return Type | Single-Acting,Load Retraction |
| Oil Capacity Advance (cm3) | 4661 |
| Surface Treatment | Gas Nitriding and Post Oxidation |
| Coupler | CEJN 3/8NPT-18 |
| Weight (kg) | 67.3 |

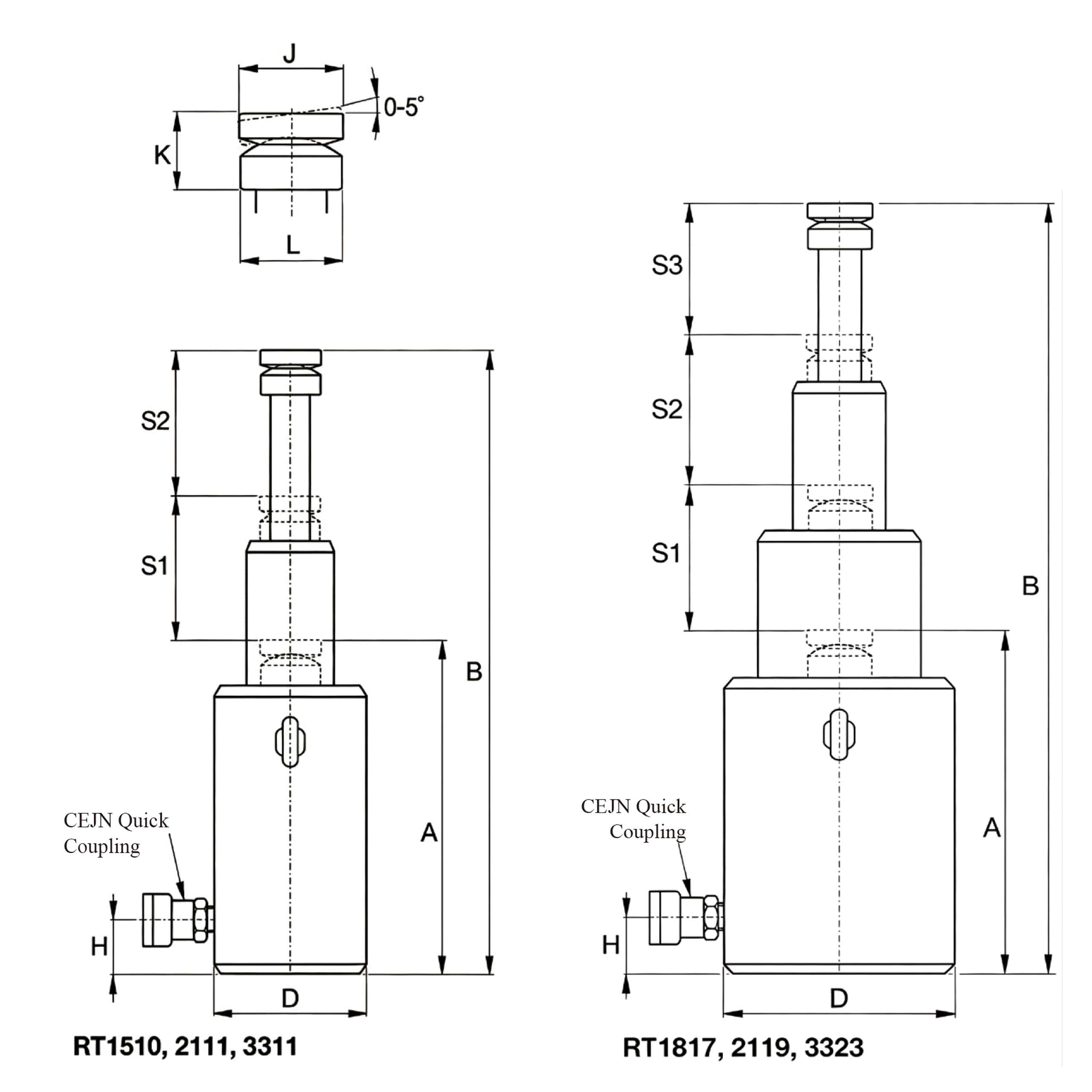

Dimensions
Dimensions
| Collapsed Height With Tilt Saddle/mm(A) | 395 |
| Extended Height With Tilt Saddle/mm(B) | 895 |
| Cylinder Outside Dia/mm(D) | 220 |
| Bottom To Advance Oil Port/mm(H) | 334 |
| Saddle Dia/mm(J) | 90 |
| Saddle Protri. From Plgr./mm(K) | 83 |
| Saddle Support/mm(L) | 100 |
Series Comparison
Series Comparison
| Model Number | Capacity/Ton（kN) | Stroke/mm | Oil Capacity/cm3 | Collapsed Height/mm(A) | Extended Height/mm(B) | First Stage Capacity/Ton（kN) | First Stage Stroke/mm | Second Stage Capacity/Ton（kN) | Secondt Stage Stroke/mm | Third Stage Capacity/Ton（kN) | Third Stage Stroke/mm | Cylinder Outside Dia/mm(D) | Bottom To Advance Oil Port/mm(H) | Saddle Dia/mm(J) | Saddle Protri. From Plgr./mm(K) | Saddle Support/mm(L) | Weight/Kg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RT1510 | 14(137) | 270 | 944 | 283 | 553 | 36(352) | 135 | 14（137） | 135 | * | * | 110 | 220 | 60 | 49 | 60 | 15.1 |
| RT1817 | 17(166) | 435 | 3092 | 345 | 780 | 95(929) | 145 | 41（397） | 145 | 17（166） | 145 | 170 | 277 | 80 | 73 | 85 | 40.3 |
| RT2111 | 20.2(198) | 300 | 1487 | 317 | 617 | 51（496） | 150 | 20（198） | 150 | * | * | 125 | 233 | 60 | 53 | 66 | 21.8 |
| RT2119 | 20.2(198) | 500 | 4661 | 395 | 895 | 126（1237） | 170 | 51（496） | 170 | 20.2（198） | 160 | 220 | 334 | 90 | 83 | 100 | 67.3 |
| RT3311 | 31.5(309) | 300 | 2359 | 352 | 652 | 81（792） | 150 | 32（309） | 150 | * | * | 160 | 255 | 80 | 66 | 89 | 39.9 |
| RT3323 | 31.5(309) | 600 | 8816 | 476 | 1076 | 202（1985） | 200 | 81（792） | 200 | 31.5（309） | 220 | 250 | 444 | 110 | 111 | 123 | 124 |
