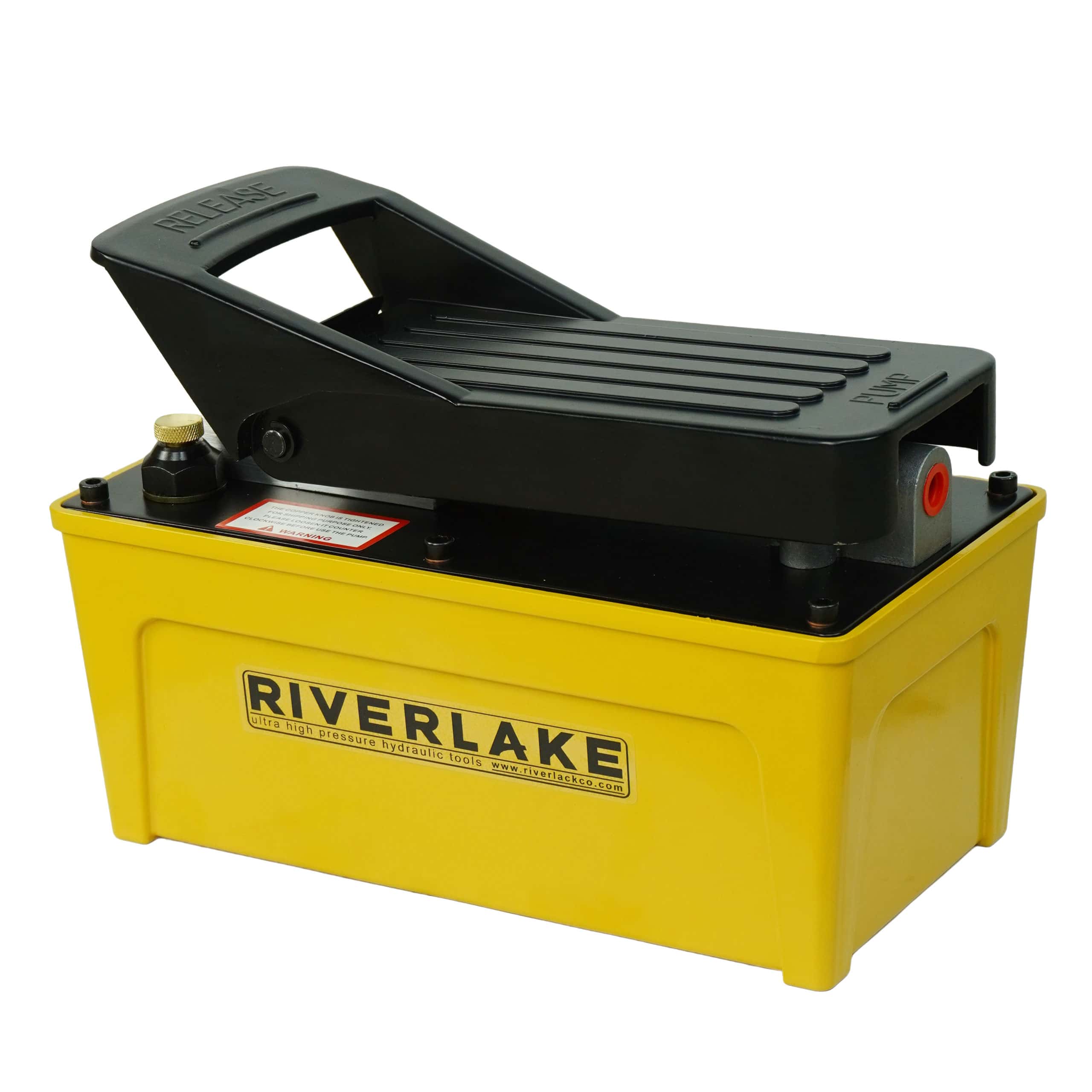

PATG1102N, Single Acting, Foot Operated, 1.6L Usable Oil, Pneumatic Hydraulic Pump
The PATG1102N is a premium foot-operated air pump manufactured by RIVERLAKE, engineered to deliver stable, efficient and reliable performance for a wide range of industrial applications. Combining robust construction, user-centric design and advanced functional features, this pump stands out as a versatile and cost-effective solution for demanding working conditions.
PRICE ON REQUEST
Features
Description
Model: PATG1102N | Product Line: Industrial Tools
-
Precision Pressure Control & Overload Protection: Equipped with an externally adjustable relief valve located at the rear of the level gauge, paired with a built-in overload relief valve to deliver full overload protection and secure operation.
-
Optimized Oil Return & Low Air Consumption: The oil tank comes with a dedicated oil return port to fully meet the needs of remote valve applications. With remarkably low air consumption, it effectively cuts down overall equipment operating costs.
-
Ultra-Quiet Operation: Designed with noise reduction technology, the pump runs at a low noise level as low as 76dBA, minimizing operator fatigue during long-hour working shifts.
-
Wide Air Pressure Compatibility: Features an operating air pressure range of 2.8–8.8bar, with excellent low-pressure startup performance that allows the pump to activate smoothly even at extremely low air pressure, ensuring strong adaptability to various air supply conditions.
-
High-Efficiency Power System: Built with a high-performance cast aluminum pneumatic motor that provides consistent, stable and efficient power output for sustained operation.
-
Heavy-Duty Durable Construction: Adopts a reinforced heavy-duty oil tank, making the pump tough enough to withstand harsh and rugged working environments.
-
Premium Sealing Performance: Fitted with composite material pneumatic plunger seals, enabling normal and stable operation even in completely dry air environments without performance degradation.
-
Dual-Mode Flexible Operation: Supports both manual and foot-operated working modes, offering flexible, convenient and hassle-free operation for different usage scenarios.
Specifications
Specifications
| Maximum Operating Pressure (bar) | 700 |
| Type | Single Acting,Foot Operated |
| Usable Oil (L) | 1.6 |
| First Stage Oil Flow Rate(L/min) | 1 |
| Second Stage Oil Flow Rate(L/min) | 0.16 |
| Weight With Oil(Kg) | 6.5 |
