P2282-1500K,150Mpa Ultra High Pressure Manual Hydraulic Pump Tool Kit
The RIVERLAKE P2282 Series represents the pinnacle of ultra high pressure manual hydraulic pump technology. Engineered for demanding applications requiring extreme pressure capabilities, this advanced pump combines efficient dual-speed operation, superior safety features, and comprehensive accessory integration to deliver reliable, precise hydraulic power in a portable, operator-friendly package.
Description
Series: P2282 | Product Line: Industrial Tools
High-Performance Hydraulic Power:
-
Dual-Speed Operation for Enhanced Efficiency: The P2282 Series features a dual-speed operating mode that enables faster pressurization, significantly reducing cycle times across a variety of testing and application scenarios—improving productivity without compromising precision.
-
Precise Pressure Control: Equipped with a large-format release knob that provides enhanced pressure release control, allowing operators to make fine adjustments with confidence and ease.
-
Superior Safety with Premium Couplings: Standard configuration includes CEJN 116/125 ultra high pressure couplings, delivering enhanced safety performance and reliable connection integrity even at extreme pressures.
-
Complete Accessory Package: Supplied as a complete accessory set, the P2282 Series eliminates the need for time-consuming assembly, allowing for immediate deployment while improving overall work efficiency and enhancing safety through factory-matched components.
Comprehensive Pressure Range:
-
The P2282 Series offers two distinct models to accommodate varying application requirements:
-
P2282-1500K: Maximum working pressure of 150 MPa (21,750 psi)
-
P2282-2500K: Maximum working pressure of 280 MPa (40,600 psi)
-
Tool Kit Component
1PCS P2282-1500 Hand Pump,Max WP 1500Bar
1PCS Pressure Gauge Adapter,Max WP 3000Bar
1PCS Pressue Gauge Connector,Max WP 3000Bar
1PCS Pressuge Gauge,Max Measure Range 3000Bar
1PCS 1800Bar Hydraulic Hose,Both End CEJN 116 Female Quick Couplers,With PC Buurst Sleeve

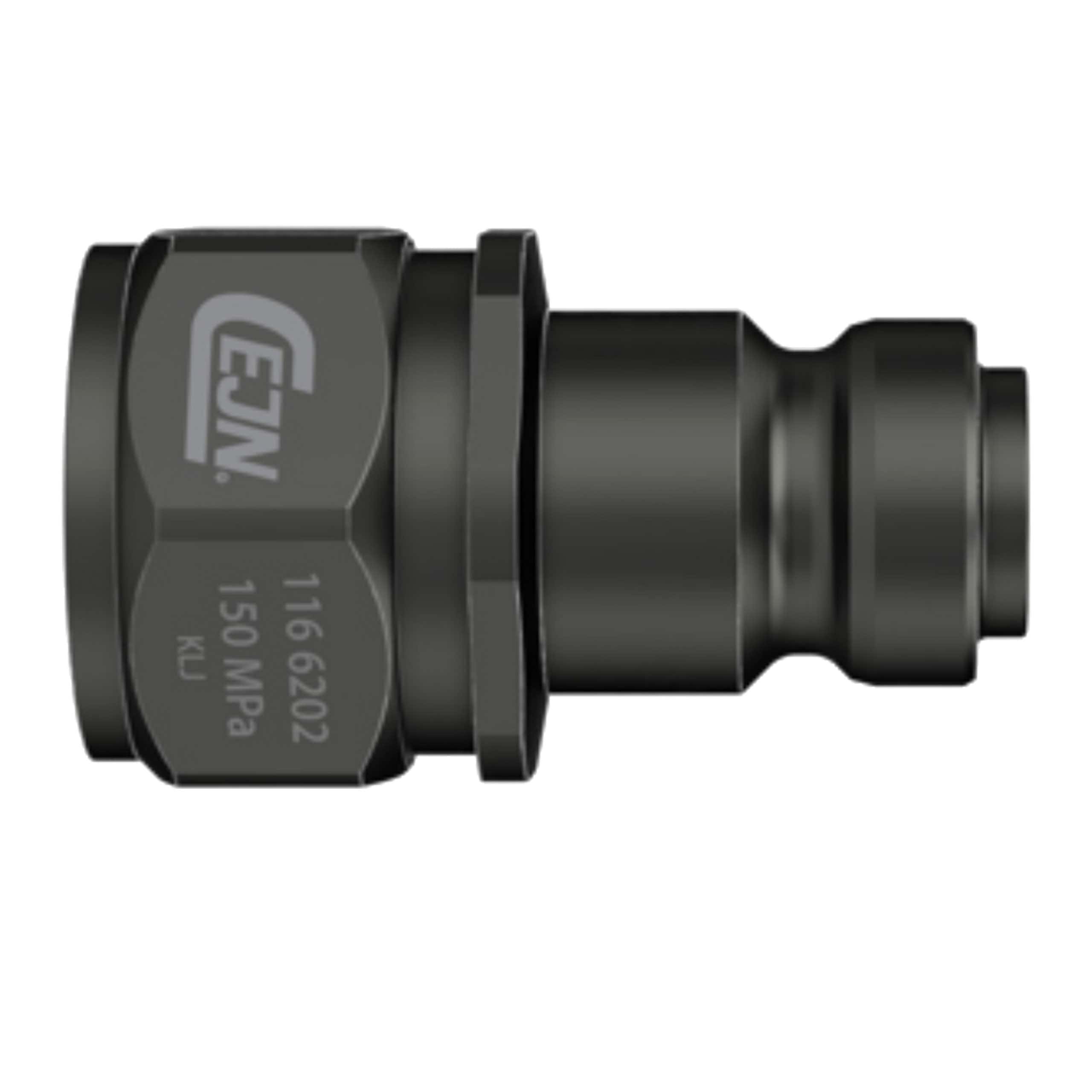

1PCS CEJN 116 Male Quick Coupler,Max WP 1500Bar
Specifications
| Model | P2282-1500k |
| Maximum Operating Pressure (bar) | 1500 |
| Usable Oil (cm³) | 983 |
| First Stage Pressure (bar) | 13 |
| Second Stage Pressure (bar) | 1500 |
| First Stage Oil Flow Rate Per Stroke (cm³) | 16.22 |
| Second Stage Oil Flow Rate Per Stroke (cm³) | 0.61 |
| Max Handle Force(Kg) | 48.1 |
| Quick Couplers | CEJN 116 |
Dimensions
Dimensions
Series Comparison
| Model Number | Max Working Pressure | First Stage Pressure (bar) | Second Stage Pressure (bar) | First Stage Oil Flow Rate Per Stroke (cm³) | Second Stage Oil Flow Rate Per Stroke (cm³) | Usable Oil (cm³) | Max Handle Force(Kg) | Weight Without Oil | Dimension A(mm) | Dimension B(mm) | Dimension C(mm) | Dimension E(mm) | Dimension F(mm) | Dimension H(mm) | Dimension J(mm) | Dimension L(mm) | Dimension M(mm) | Dimension N(mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| P2282 | 2800bar | 13 | 2800 | 16.22 | 0.61 | 983 | 48.1 | 6.5 | 344 | 558 | 35 | 31 | 133 | 527 | 29 | 228 | 7 | 120 |
| P2282-1500K | 1500bar | 13 | 1500 | 16.22 | 0.61 | 983 | 48.1 | * | 344 | 558 | 35 | 31 | 133 | 527 | 29 | 228 | 7 | 120 |
| P2282-2500K | 2500bar | 13 | 2500 | 16.22 | 0.61 | 983 | 48.1 | * | 344 | 558 | 35 | 31 | 133 | 527 | 29 | 228 | 7 | 120 |
