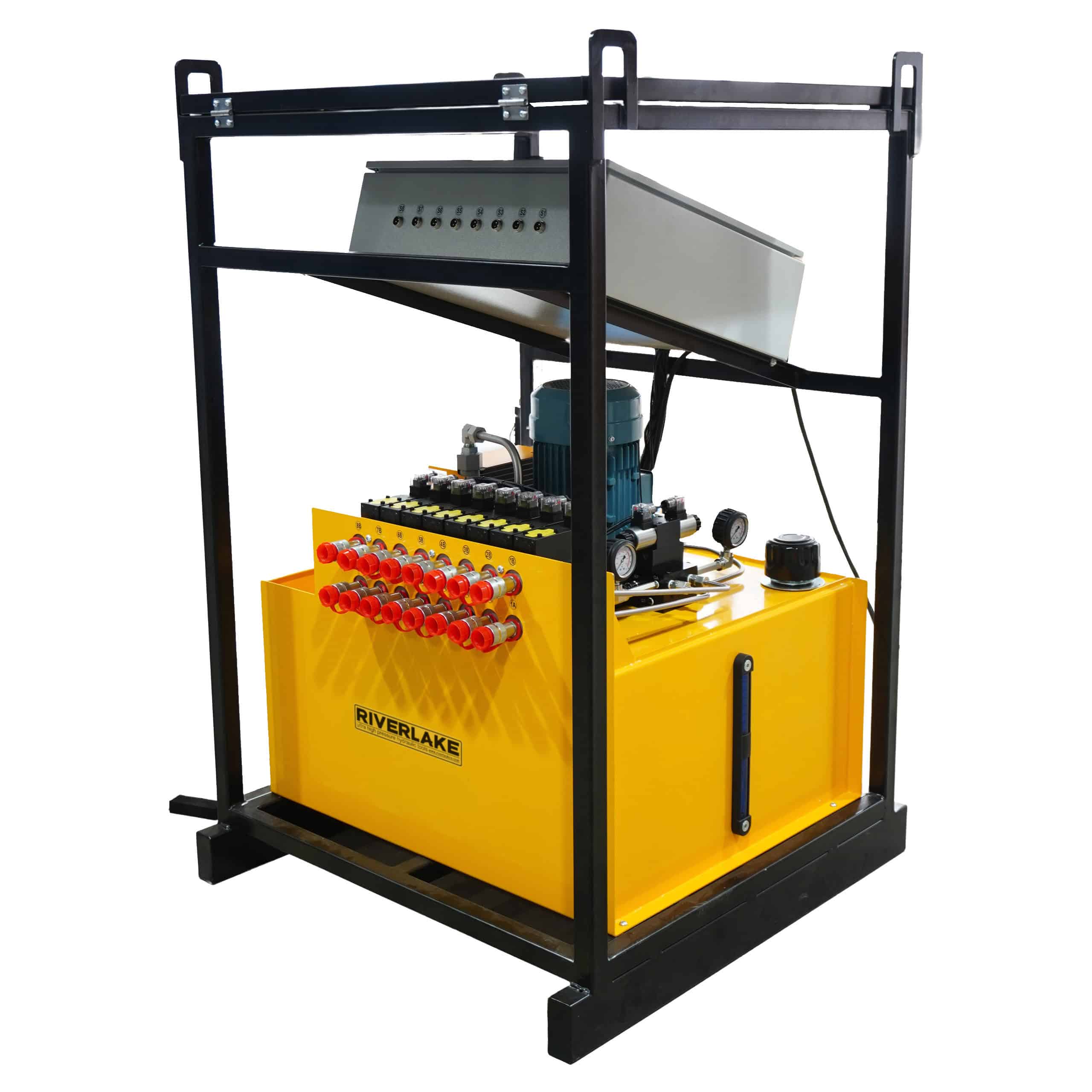

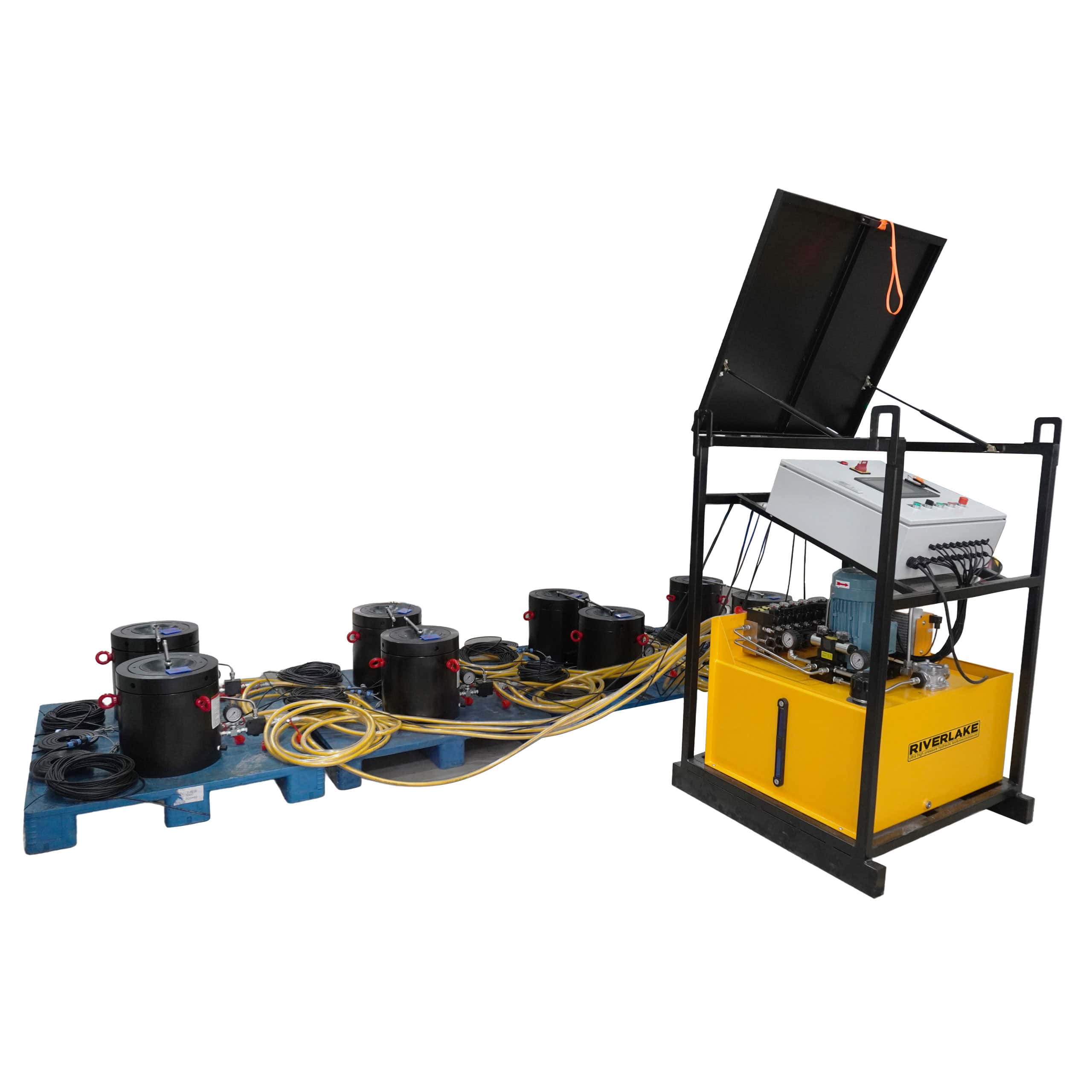

HE84200LL-8-3,24 Points,12KW,PLC Valve-Controlled Synchronous Lifting System
This system utilizes a PLC to control high-frequency solenoid valves at each lifting point, precisely regulating hydraulic flow to individual cylinders. Assisted by displacement sensors, it delivers synchronized lifting with accuracy of ±1 mm. Offering higher precision and greater intelligence than the M Series, the HELL Series is suited for applications requiring tighter control.
Description
Series:HELL | Product Line: Industrial Tools
Intelligent Control at Your Fingertips:
-
Large Touchscreen Interface: Equipped with a 10-inch touchscreen featuring built-in control software, the HELL Series allows operators to access and adjust parameters with ease—providing full visibility and control over the lifting process.
-
Industrial-Grade Core Components: Powered by Siemens processing and analog modules, ensuring robust computational performance, reliable signal processing, and long-term operational stability.
-

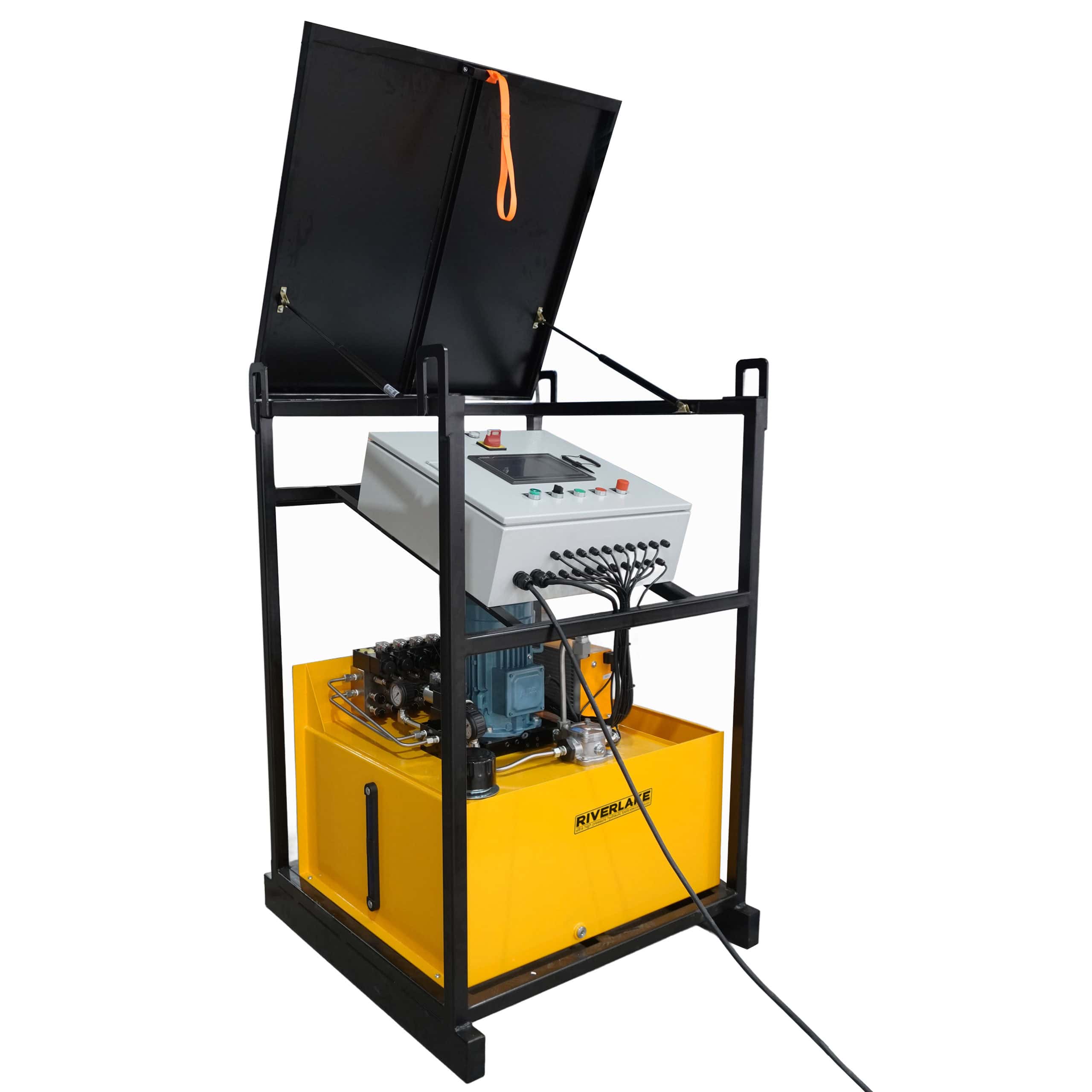

High-Protection Electrical Enclosure: The PLC control cabinet is designed with high ingress protection for durability in demanding job site environments. An optional remote touchscreen control panel is available for enhanced operational flexibility.
Comprehensive Monitoring & Safety Features:
-
Extended Sensor Capability: Supplied with 20-meter or 30-meter displacement sensor data cables and a standard 1000mm displacement sensor, enabling precise position feedback across extended lifting distances.
-
Advanced Functionality: The system incorporates a full suite of operational and safety functions, including:
-
Sensor parameter configuration
-
Pre-lift pressure setting
-
Overload alarm
-
Sensor loss alarm
-
Synchronization deviation alarm
-
Pre-lift, synchronous lifting, and synchronous lowering functions
-
User-Friendly System Integration:
-

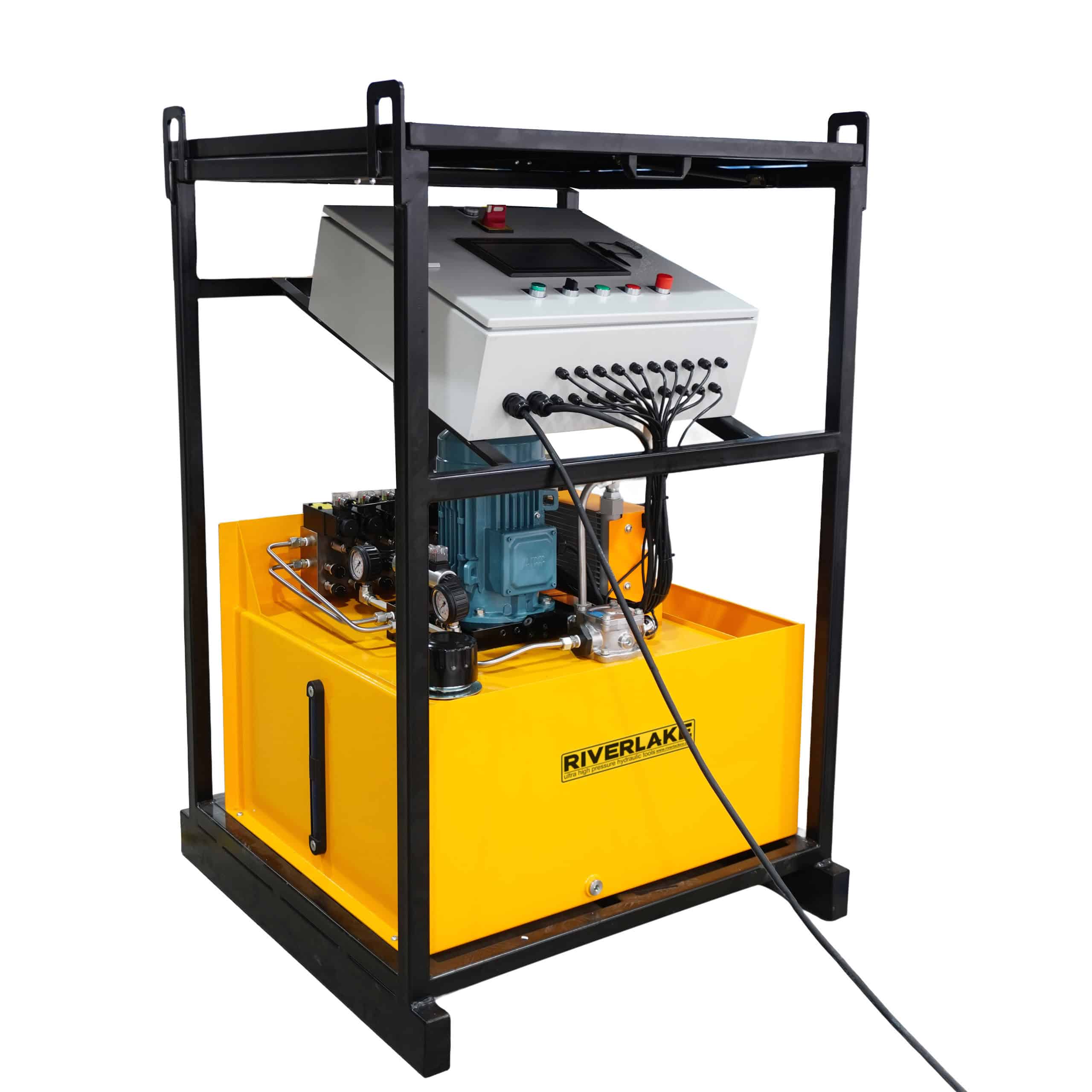

Clear Panel Interface: Features a panel-style interface with clearly labeled ports for hoses, displacement sensors, and hydraulic cylinders—simplifying setup and reducing the risk of connection errors.
-
Expandable System Capabilities: Optional multi-pump station coordination functionality allows for complex, large-scale operations with multiple units working in concert. Internet remote control capability is also available for monitoring and operation from off-site locations.
Specifications
| Maximum Operating Pressure (bar) | 700 |
| Motor Power(KW) | 4X3 |
| Usable Oil (L) | 200X3 |
| Points | 24 |
| Voltage(VAC) | 380/440/660 |
| Displacement Sensors Measure Range(mm) | 1000 |
| Sensor Cable Length(M) | 30 |
| Functions | 3 Sets 8 Point System Connected Together Or Work Individually |

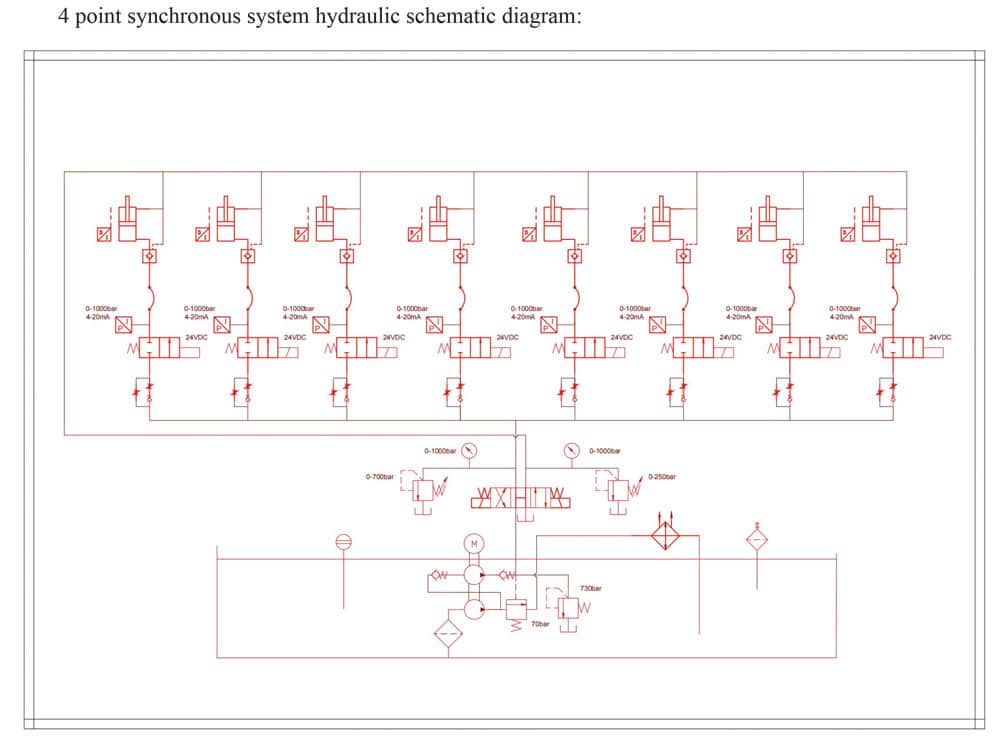

Hydraulic Diagram
Hydraulic Diagram
Series Comparison
| Model | Max Working Pressure(Mpa) | Points | Motor Power(KW) | High Pressure Oil Flow Rate(L/Min) | Voltage(VAC) | Phase | Usable Oil(L) | Displacement Sensor Range(mm) | Sensor Cable Length(M) | Function |
|---|---|---|---|---|---|---|---|---|---|---|
| HE5060LL-4 | 70 | 4 | 1.5 | 1 | 230 | 1 | 60 | 1000 | 30 | Pre-Jacking/Sync-Lifting/Sync-Lowering |
| HE7080LL-4 | 70 | 4 | 2.2 | 1.5 | 380/230 | 3 | 80 | 1000 | 30 | Pre-Jacking/Sync-Lifting/Sync-Lowering |
| HE84120LL-4 | 70 | 4 | 4 | 2.3 | 380/440/660 | 3 | 120 | 1000 | 30 | Pre-Jacking/Sync-Lifting/Sync-Lowering |
| HE97150LL-4 | 70 | 4 | 7.5 | 4.2 | 380/440/660 | 3 | 150 | 1000 | 30 | Pre-Jacking/Sync-Lifting/Sync-Lowering |
| HE84150LL-8 | 70 | 8 | 4 | 2.3 | 380/440/660 | 3 | 150 | 1000 | 30 | Pre-Jacking/Sync-Lifting/Sync-Lowering |
| HE97200LL-8 | 70 | 8 | 7.5 | 4.2 | 380/440/660 | 3 | 200 | 1000 | 30 | Pre-Jacking/Sync-Lifting/Sync-Lowering |
| HE97300LL-16 | 70 | 16 | 7.5 | 4.2 | 380/440/660 | 3 | 300 | 1000 | 30 | Pre-Jacking/Sync-Lifting/Sync-Lowering |
| HE70100LL-8-2 | 70 | 16 | 2.2X2 | 1.5X2 | 380/230 | 3 | 100X2 | 1000 | 30 | 2 Sets 8 Point System Connected Together Or Work Individually |
| HE84200LL-8-3 | 70 | 24 | 4X3 | 2.3X3 | 380/440/660 | 3 | 200X3 | 1000 | 30 | 3 Sets 8 Point System Connected Together Or Work Individually |
