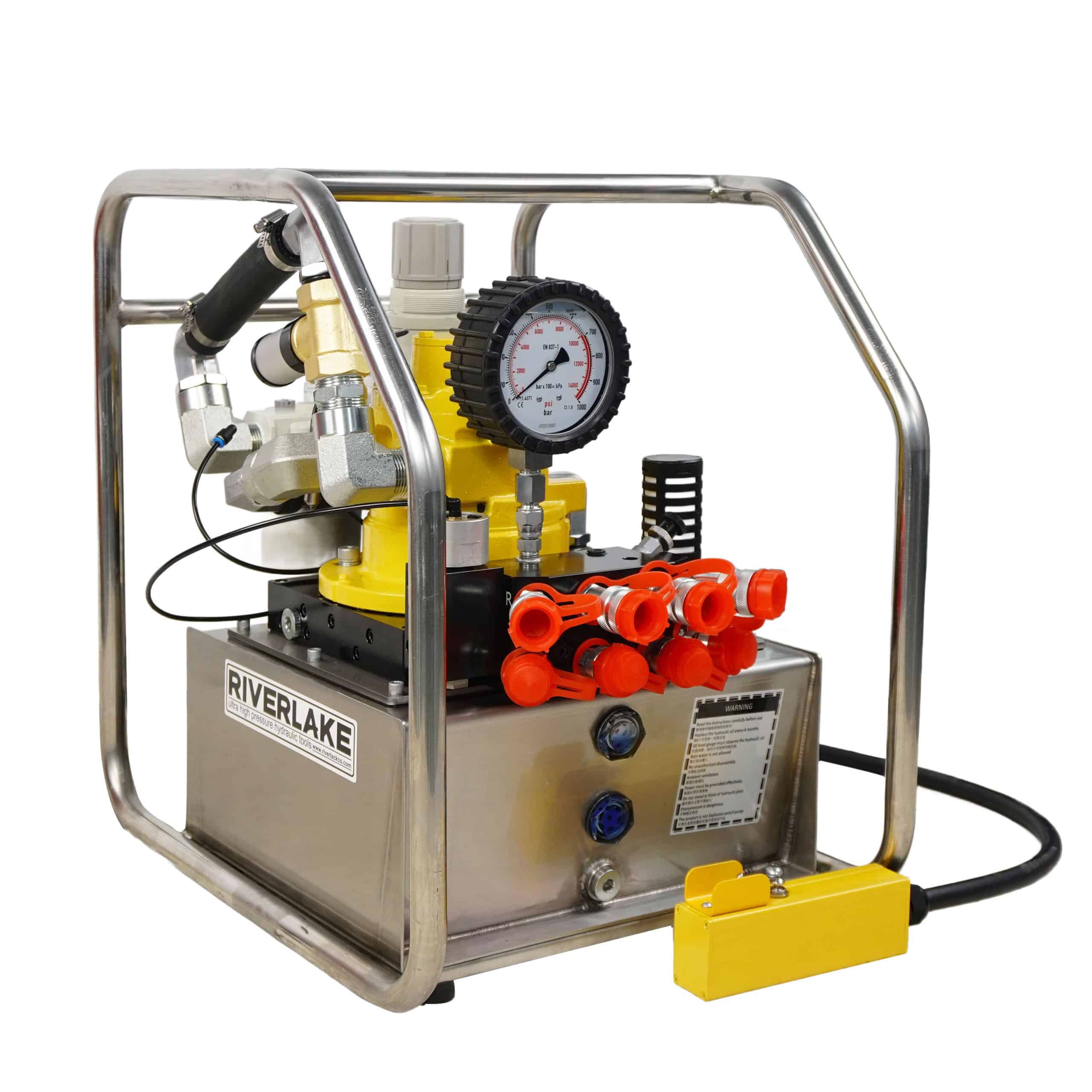

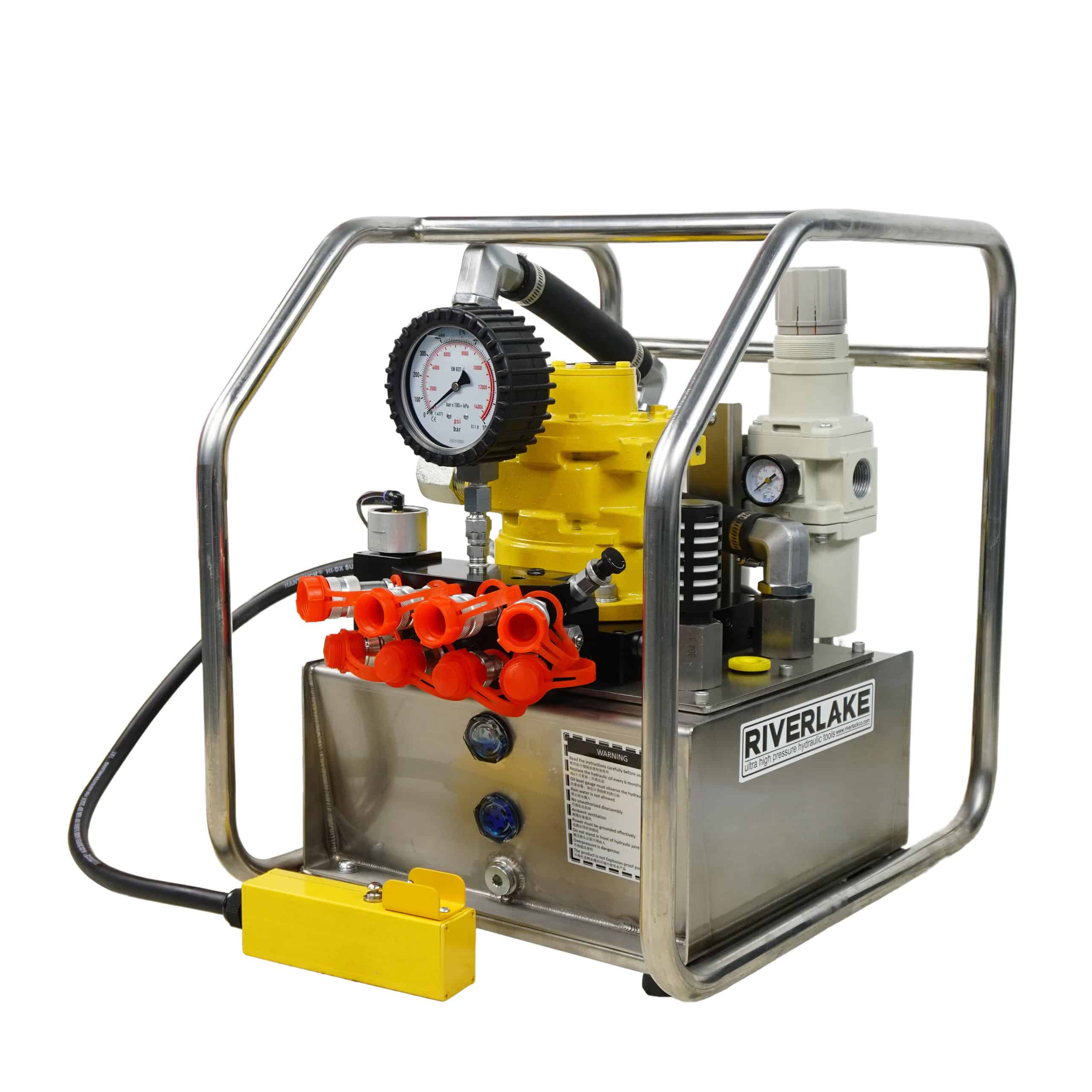

HA6TW-4,10L Usable Oil,Three Stage Pneumatic Torque Wrench Pump

Series: HA6TW-4 | Product Line: Industrial Tools

Powerful Performance & High Efficiency:

• High-Power Pneumatic Motor: Powered by a high-output air motor, the HA6TW Series delivers exceptional working efficiency, providing reliable hydraulic power for continuous operation in demanding industrial environments.

• Multi-Tool Simultaneous Operation: Standard one-to-four output configuration enables a single pump to drive up to four hydraulic torque wrenches simultaneously—significantly enhancing productivity on large-scale bolting projects and reducing overall equipment requirements.

• Integrated Air Preparation Unit: Comes standard with a three-piece air treatment unit (FRL—filter, regulator, lubricator), ensuring clean, properly regulated, and lubricated air supply for optimal pump performance and extended service life.

Engineered for Quiet & Cool Operation:

• High-Efficiency Silencer: Equipped with an advanced silencer that effectively reduces operational noise levels, creating a more comfortable work environment and meeting workplace noise control requirements.

• Submerged Air Cooling Design: Features an innovative submerged air cooling design that effectively lowers hydraulic oil temperature during extended operation, maintaining optimal fluid viscosity and ensuring consistent pump performance without the need for external cooling systems.

Operator-Friendly Design & Durability:

• Durable Pneumatic Control Handle: Supplied with a 6-meter metal pneumatic control handle featuring threaded tubing for the pneumatic control line, delivering reliable, long-lasting operation in rugged work environments.

• Tool-Free Pressure Gauge Installation: The pressure gauge is designed for quick, tool-free installation and removal, simplifying maintenance and enabling fast replacement when needed.

• Integrated Cable Management: Features a built-in cable winder for convenient and organized storage of control hoses between uses, reducing clutter and protecting lines from damage.

• Optimized Three-Stage Flow Control: The HA6TW Series incorporates three-stage flow control technology, maximizing operational efficiency by delivering high flow for fast tool advancement and reduced flow for precise torque application.

• Durable Stainless Steel Construction: The hydraulic reservoir and protective frame are constructed from stainless steel, offering exceptional corrosion resistance, durability, and protection for critical components in harsh work environments.
