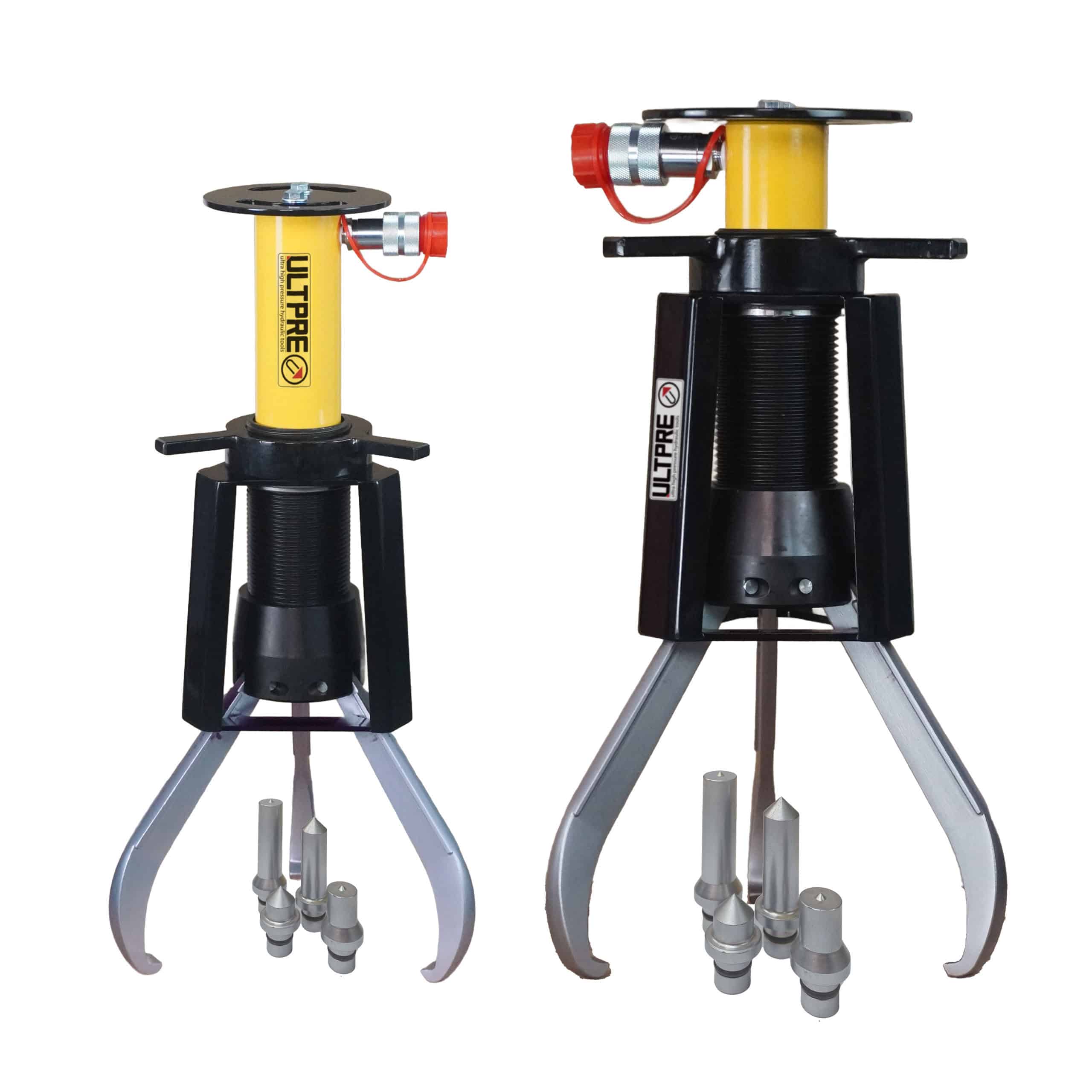

EHP-210，2 Jaw,15 Ton, Safety-Cage Hydraulic Puller
The EHP Safety-Cage Hydraulic Puller Series from RIVERLAKE revolutionizes heavy-duty component removal with robust engineering and operator-focused design. Featuring a secure cage-style jaw structure, it ensures maximum safety by preventing component ejection during high-force operations.
Description
Series: EPH | Product Line: Industrial Tools
Key Features:
-
Powerful hydraulic system enables effortless disassembly of large, stubborn parts.
-
One-person operation with enhanced efficiency for rapid pulling tasks.
-
Steel cage framework provides superior protection against flying debris.
-
Proportional control for smooth, precise force application.
Built to withstand extreme loads while prioritizing operator safety, the EHP series combines RIVERLAKE’s signature durability with intuitive functionality.
Specifications
| Maximum Operating Pressure (bar) | 700 |
| Capacity(Ton) | 15 |
| Number of Jaws | 2 |
| Spread(mm) | 25-381 |
| Max Reach(mm) | 245 |
| Stroke(mm) | 254 |
| Weight(Kg) | 20 |
Diagram
Pressure/Flow Rate Curve
Rod Kit
Lifting Disk

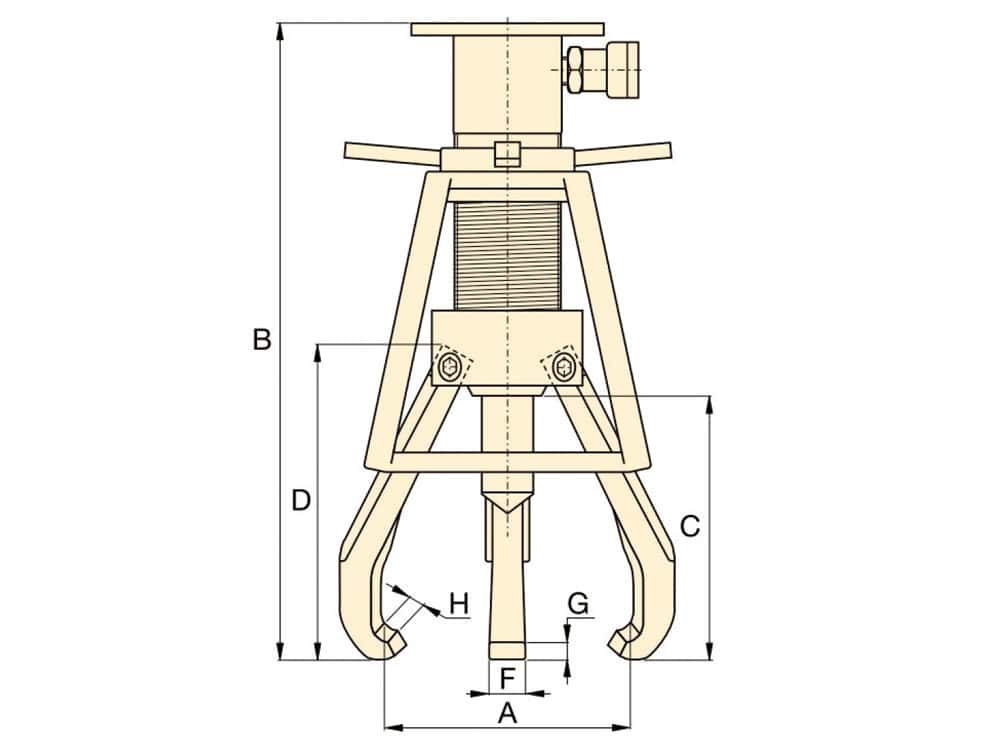

Tool Kit Specification
| Model | Capacity/Ton | Number of Jaws | Spread A/mm | Max Reach C/mm | Dimension B/mm | Dimension D/mm | Dimension E/mm | Dimension F/mm | Dimension G/mm | Hydraulic Cylinder | Stroke/mm | Weight/Kg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| EHP-208 | 10 | 2 | 19-304 | 203 | 498 | 237 | 22 | 7.4 | 6.9 | RC-106 | 152 | 12 |
| EHP-210 | 15 | 2 | 25-381 | 245 | 665 | 270 | 25 | 11.2 | 9.1 | RC-1510 | 254 | 20 |
| EHP-213 | 25 | 2 | 63-457 | 304 | 846 | 348 | 31 | 12.9 | 9.7 | RC-2514 | 362 | 43 |
| EHP-216 | 50 | 2 | 76-635 | 355 | 919 | 413 | 36 | 15 | 11.7 | RC-5013 | 336 | 107 |
| EHP-108 | 10 | 3 | 19-304 | 203 | 498 | 237 | 22 | 7.4 | 6.9 | RC-106 | 152 | 13 |
| EHP-110 | 15 | 3 | 25-381 | 245 | 665 | 270 | 25 | 11.2 | 9.1 | RC-1510 | 254 | 21 |
| EHP-113 | 25 | 3 | 63-457 | 304 | 846 | 348 | 31 | 12.9 | 9.7 | RC-2514 | 362 | 46 |
| EHP-116 | 50 | 3 | 76-635 | 355 | 919 | 413 | 36 | 15 | 11.7 | RC-5013 | 336 | 110 |

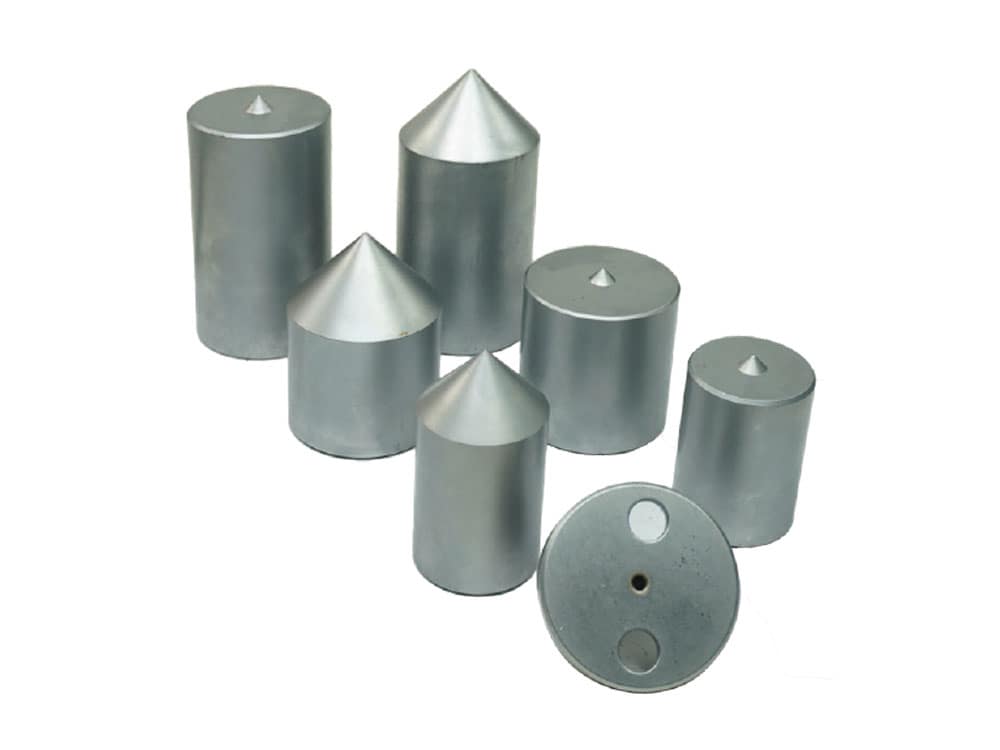

Rod Kit Specification
| Rod Kit Model | EPH-155 | EPH-257 | EPH-508 |
|---|---|---|---|
| Suitable For | EHP-208,,EHP-210,EHP-108,EHP-110 | EHP-213,EHP-113 | EHP-216,EHP-116 |
| Screw Includes | Screw Dia X Length(mm) | Screw Dia X Length(mm) | Screw Dia X Length(mm) |
| Flat Head Screw | 25X25 | 38X57 | 51X70 |
| Flat Head Screw | 25X76 | 51X57 | 70X70 |
| Flat Head Screw | * | 51X102 | 70X120 |
| Taper Lead Screw | 25X25 | 38X64 | 51X95 |
| Taper Lead Screw | 25X76 | 51X64 | 70X95 |
| Taper Lead Screw | * | 51X114 | 70X140 |
| Screw Fitting | * | * | 71X45 |

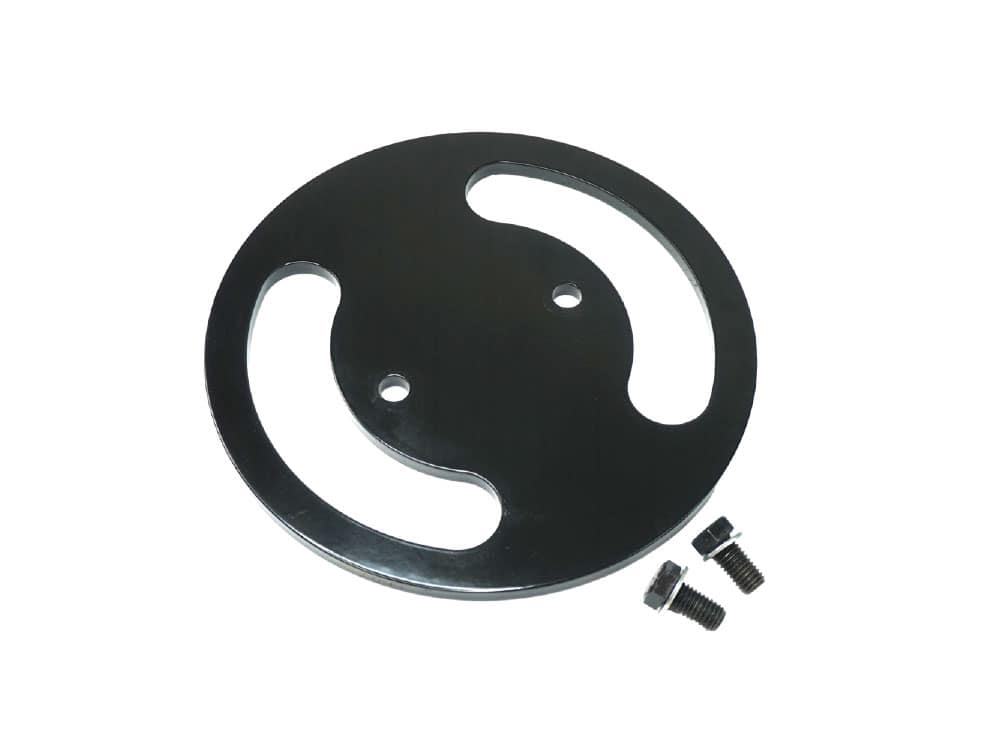

Lifting Disk Specification
| Lifting Disk Model | Puller Model | Thickness(mm) | Diameter(mm) |
|---|---|---|---|
| EHP-11052 | EHP-208 | 6 | 153 |
| EPH-11052 | EHP-210 | 6 | 153 |
| EPH-11052 | EHP-213 | 6 | 153 |
| EPH-11052 | EHP-216 | 6 | 153 |
| EPH-11352 | EHP-108 | 10 | 203 |
| EPH-11352 | EHP-110 | 10 | 203 |
| EPH-11652 | EHP-113 | 10 | 254 |
| EPH-11652 | EHP-116 | 10 | 254 |
