Description

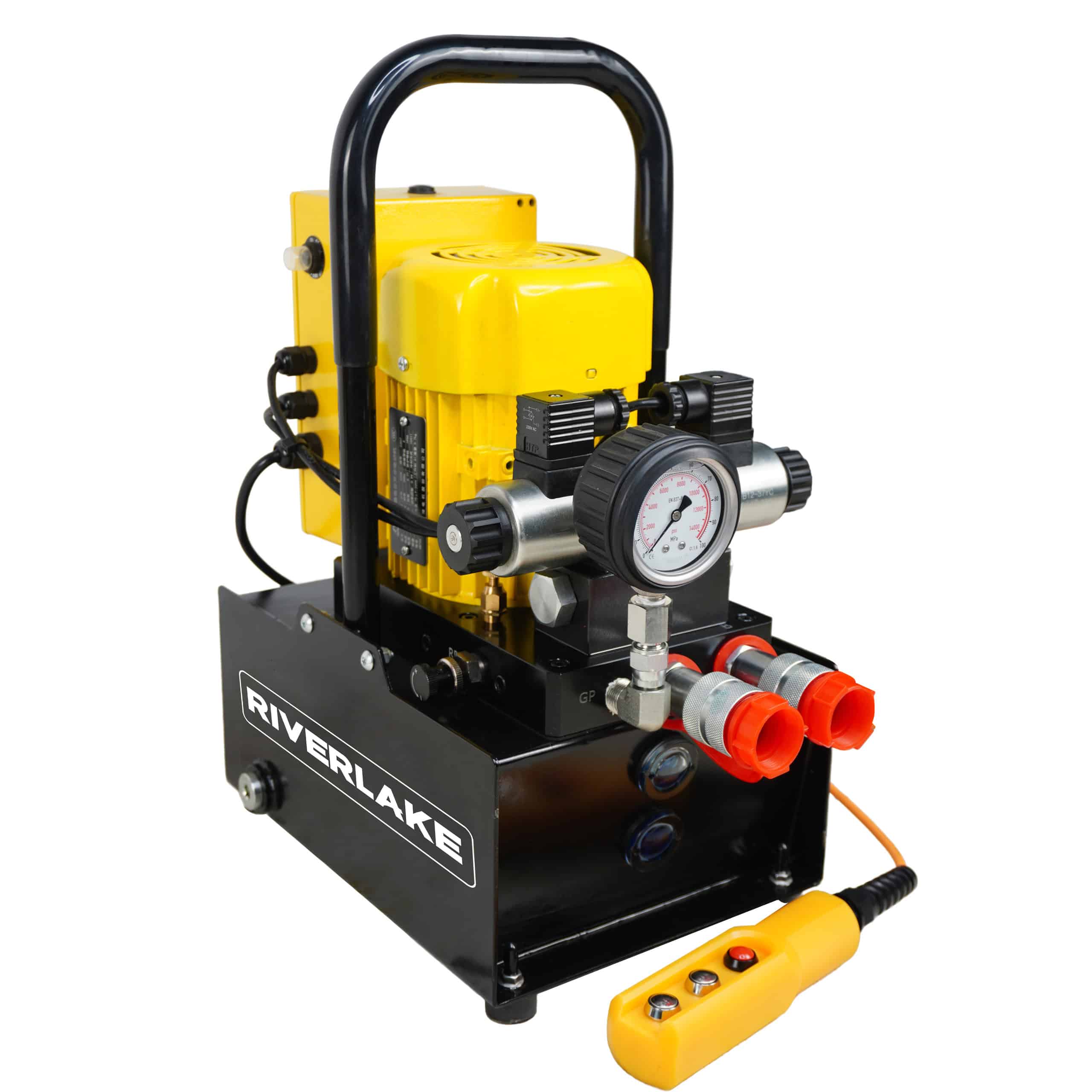

Model: HC3005EVB43
Product Lines: Industrial Tools
- Brushless motor, maintenance free, low noise
- Start-stop switch on the pump, 3 meters remote control switch, multiple operation modes
- Two-stage plunger pump, effectively improving work efficiency
- IP55 protection level
- Rubber non-slip feet
- Equipped with a thermal overload protector to effectively protect the motor
- Built-in safety valve to prevent overpressure
- Equipped with an external pressure-adjusting valve
- NPT3/8 oil outlet
Think Safety
Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!
Image Gallery
CE Certification
Specifications
| Maximum Operating Pressure (bar) | 700 |
| Pump Type | Double Acting |
| Usable Oil(L) | 5 |
| Power(KW) | 0.55 |
| Voltage(V) | 1 PH 220/115V |
| Low Pressure Flow Rate(L/min) | 3.5 |
| High Pressure Flow Rate(L/min) | 0.35 |
| Dimensions(mm) | 380X240X460 |
| Weight (kg) | 21 |
Dimensions
Series Comparison
| Model | Max Working Pressure(Mpa) | Motor Power(KW) | Low Pressure Flow Rate(L/min) | High Pressure Flow Rate(L/min) | Voltage | Usable Oil(L) | Control Valve | Oil Outlets | Weight(Kg) |
|---|---|---|---|---|---|---|---|---|---|
| HC3005MV32 | 70 | 0.55 | 3.5 | 0.35 | 1 PH 220/115V | 2L | Manual Relief Valve,Single Acting,Advance/Hold/Retract,No Leakage | Single Acting | 19 |
| HC3005MV43 | 70 | 0.55 | 3.5 | 0.35 | 1 PH 220/115V | 2L | Manual Directional Valve, Increase/Hold/Release Pressure, Double-Acting, Slightly Leakage | Double Acting | 19 |
| HC3005EVO32 | 70 | 0.55 | 3.5 | 0.35 | 1 PH 220/115V | 2L | Solenoid Directional Valve, Single-Acting, Advance/Retract | Single Acting | 19 |
| HC3005EVC32 | 70 | 0.55 | 3.5 | 0.35 | 1 PH 220/115V | 3L | Solenoid Directional Valve, Single-Acting, Advance/Hold/Retract | Single Acting | 19 |
| HC3005EVL43 | 70 | 0.55 | 3.5 | 0.35 | 1 PH 220/115V | 5L | Solenoid Directional Valve, Double-Acting, Increase/Hold/Retract, With Pilot Check Valve,No Leakage | Double Acting | 21 |
| HC3005EVB43 | 70 | 0.55 | 3.5 | 0.35 | 1 PH 220/115V | 5L | Solenoid Directional Valve, Double-Acting, Increase/Hold/Retract, With Load Lowering Valve,No Leakage | Double Acting | 21 |
