Description

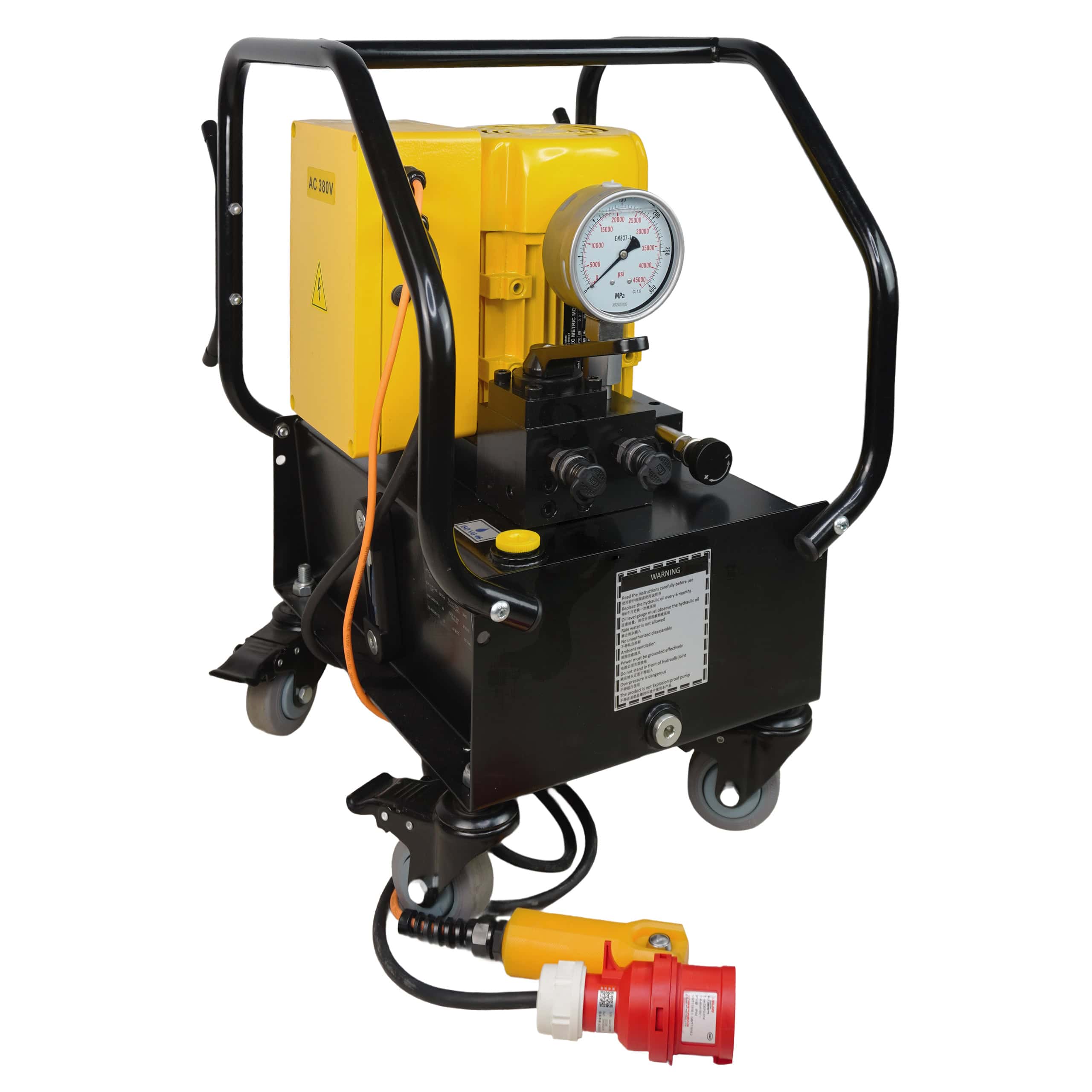

Model: EDP2000-10
Product Lines: Industrial Tools
- IEC Brushless Motor: Maintenance-free operation with industrial-grade durability.
- Intensifier-Free Direct-Drive Plunger Pump: Eliminates complexity for 50% longer service life vs. intensified pumps.
- Dual Safety System: Built-in relief valve + externally adjustable overflow valve for fail-safe pressure control.
- Forced-Air Cooling: Sustains ≤60°C oil temperature during continuous 24/7 duty cycles.
- 6m Low-Voltage Remote Handle: Safe operator control in hazardous zones.
- Micro-Leak Manual Directional Valve: Precision fluid control with minimal drift.
- P-Port Pressure Gauge: Real-time system monitoring.
- Lockable Industrial Casters: Secure mobility on rugged worksites.
- Four-Core Industrial Plug: Robust power connectivity (IP67 rated).
Think Safety
Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!
Specifications
| Maximum Operating Pressure (bar) | 2000 |
| Motor Power | 1.5KW |
| Voltage(V) | 380 |
| High-Pressure Oil Flow (L/min) | 0.5 |
| Low-Pressure Oil Flow (L/min) | 3 |
| Weight(Kg) | 48 |
CE Certification
Series Specification Comparison
| Model | Motor Power(KW) | Max Working Pressure(MPa) | Voltage(V) | High-Pressure Oil Flow (L/min) | Low-Pressure Oil Flow (L/min) | Usable Oil(L) | Weight Without Oil(Kg) |
|---|---|---|---|---|---|---|---|
| EDP2000-10 | 1.5 | 200 | 380 | 0.5 | 3 | 10 | 48 |
| EDP2000-60 | 4 | 200 | 380 | 1 | 4.8 | 60 | 112 |
