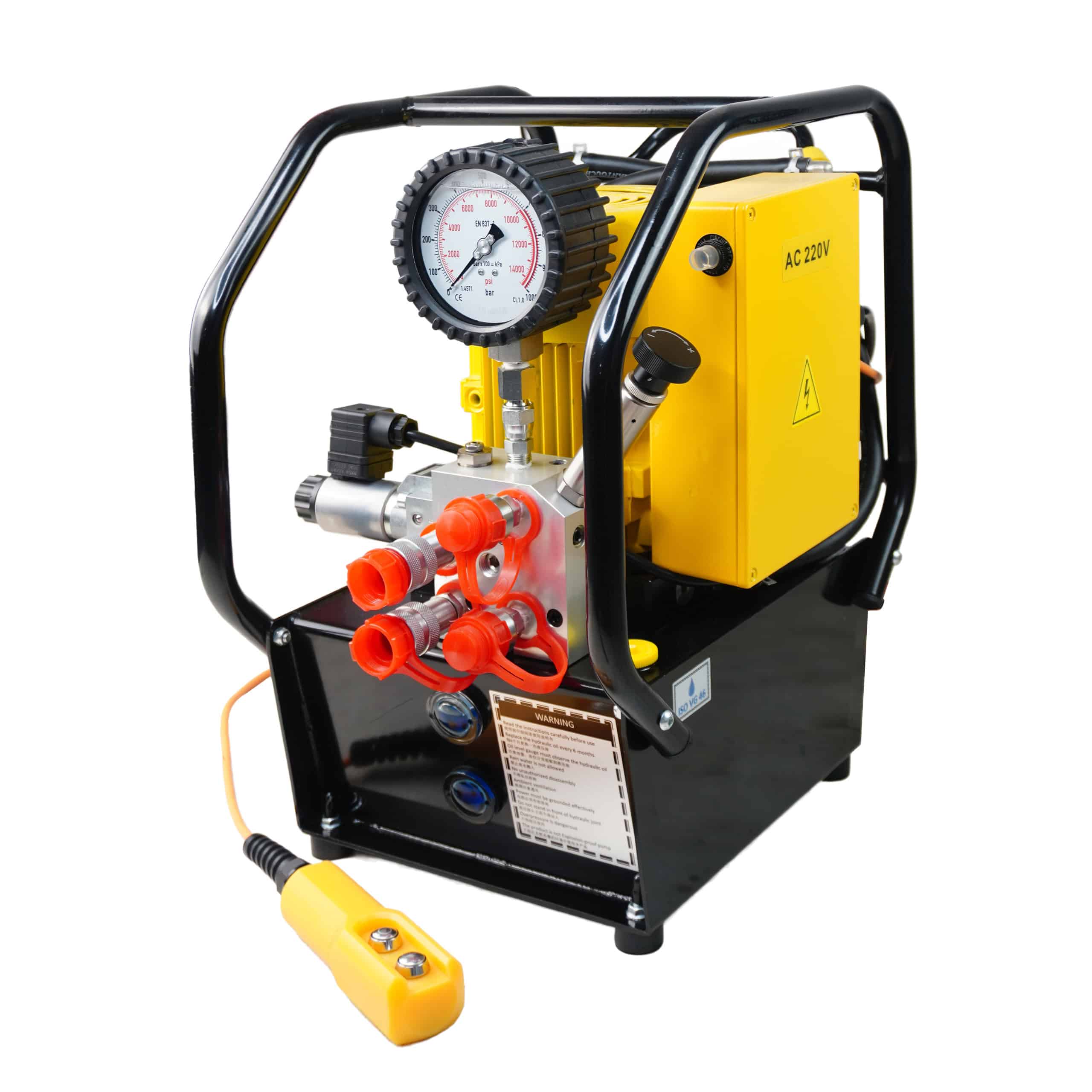

Description
Series: HETW
Product Lines: Industrial Tools
- Ultra-Quiet Brushless Motor (75 dB): Maintenance-free operation with minimal noise disruption.
- Lightweight Aluminum Oil Tank: Optimized heat dissipation and portability.
- Lockable Precision Pressure Valve: Ensures accurate, stable pressure control.
- Dual-Stage Pump System: High efficiency with rapid low-pressure filling and seamless high-pressure output.
- 6m Low-Voltage Control Handle: Safe remote operation in high-risk zones.
- High-Efficiency Air-Cooled Radiator: Sustains performance during continuous use.
- High-Visibility Oil Level Window: Real-time fluid monitoring.
- Motor Overload Protector: Prevents damage from voltage fluctuations or overheating.
- Industrial Plug & Power Cord: Ready for rugged worksite deployment.
- Integrated Protective Frame + Cable Reel: Compact, tangle-free storage and transport.
- Tool-Free Quick-Release Pressure Gauge: Hassle-free maintenance.
Ideal For: Heavy machinery, wind energy, pipeline, and infrastructure projects requiring reliability, safety, and mobility.
Think Safety
Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!
CE Certification
Specifications
| Max Working Pressure(bar) | 700 |
| High-Pressure Oil Flow (L/min) | 1 |
| Low-Pressure Oil Flow (L/min) | 9 |
| Motor Power(KW) | 1.5 |
| Oil Capacity(L) | 6 |
| Voltage | 115/230VAC |
| Weight(Kg) | 30 |
Specification
TPR= With Air Cooling, TP=Without Air Cooling.
| Model | Max Working Pressure(Mpa) | High Pressure Oil Flow (L/min) | Low Pressure Oil Flow (L/min) | Motor Power(KW) | Voltage | Oil Capacity(L) | Torque Wrench Number | Dimension(mm) | Weight Without Oil(Kg) |
|---|---|---|---|---|---|---|---|---|---|
| HE4TW-2 | 70 | 0.8 | 7 | 1.1 | 115/230VAC | 6 | 2 | 410*295*460 | 28 |
| HE5TW-2 | 70 | 1 | 9 | 1.5 | 115/230VAC | 6 | 2 | 410*295*460 | 30 |
| HE5TW-4 | 70 | 1 | 9 | 1.5 | 115/230VAC | 6 | 4 | 410*295*460 | 32 |
