Description
Model: HAP
Product Lines: Industrial Tools
- Equipped with Pneumatic TrioPneumatic triplet.
- Ball valve motor start switch, easy to start and stop.
- Manual unloading valve.
- Built-in safety valve to prevent overpressure.
- Steel oil tank, full protection frame.
- Incline pressure gauge design, easy-to-read pressure.
- 6.3mL large displacement design, effectively improving operating efficiency.
- Equipped with dual oil outlets, and strong compatibility.
- Using PEEK, FKM, and other long-life seals.
- Plate seal design, no hydraulic steel pipe, high sealing stability.
Think Safety
Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!

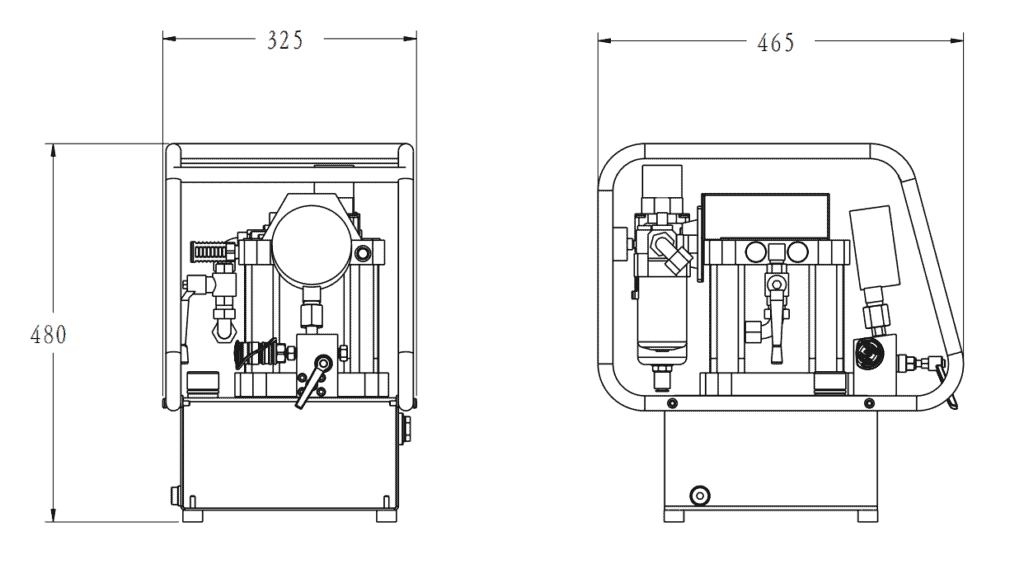

Dimension
Series Comparison
Model | Rated Working Pressure(Bar) | Pressure Boost ratio | Displacement(ml) | Usable Oil(L) | Air Source Pressure(bar) | Weight(Kg) |
---|---|---|---|---|---|---|
HAP1500 | 1500 | 250:1 | 6.3 | 5 | 3-7 | 25 |
HAP2500 | 2500 | 370:1 | 4.2 | 5 | 3-7 | 25 |
