Description

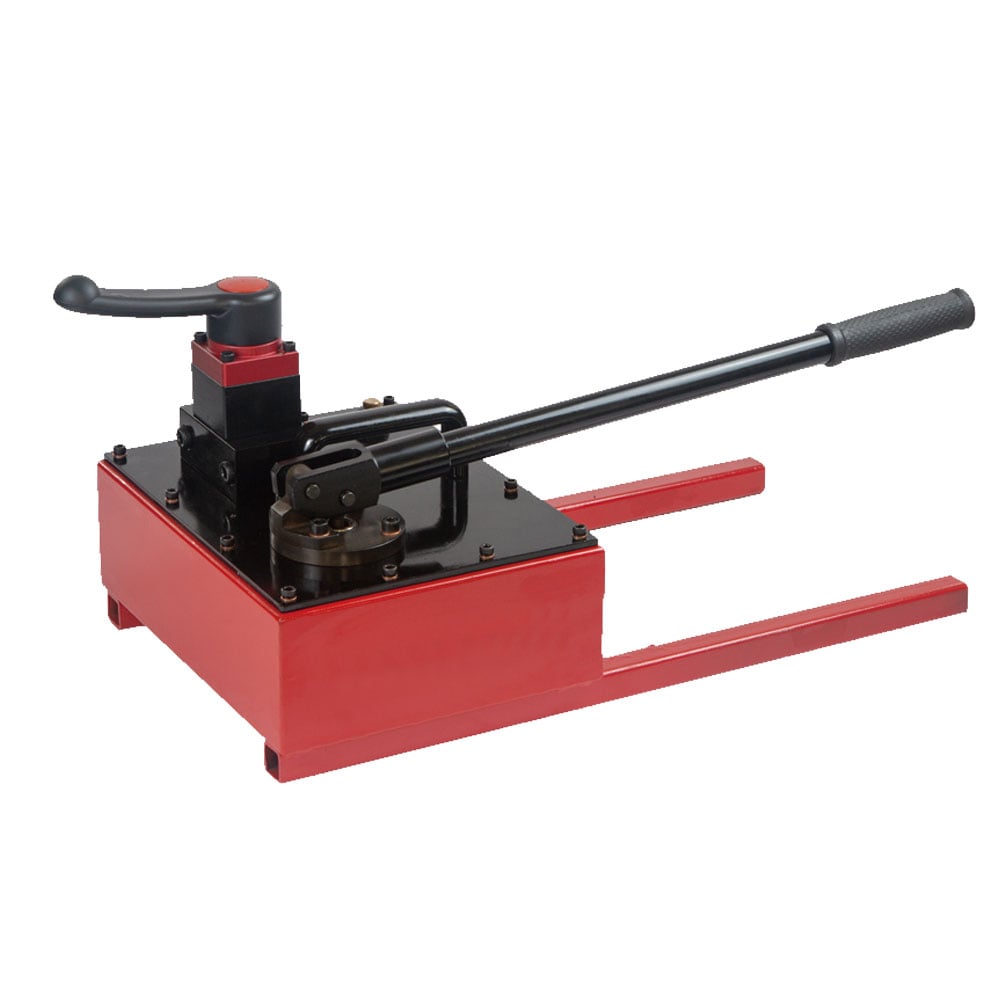

Model: P465
Series: P Series
Product Lines: Industrial Tools
- Lightweight and compact design, easy to carry
- High-strength alloy steel construction for increased durability
- Two-speed operation on all models reduces handle strokes by as much as 78% over single-speed pumps
- Lower handle effort to minimize operator fatigue
- Large oil capacities to power a wide range of cylinders or tools
- Internal pressure relief valve for overload protection
Think Safety
Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!
Specifications
Maximum Operating Pressure (bar) | 700 |
Material | Steel |
Usable Oil Capacity/cm3 | 4500 |
First Stage Pressure/bar | 25 |
Second Stage Pressure/bar | 700 |
Oil Displacement Per Stroke 1st Stage (cm3) | 125 |
Oil Displacement Per Stroke 2nd Stage (cm3) | 5.8 |
Pump Type | Double-acting, two speed |
Max handle Force(Kg) | 51 |
Weight(Kg) | 30 |

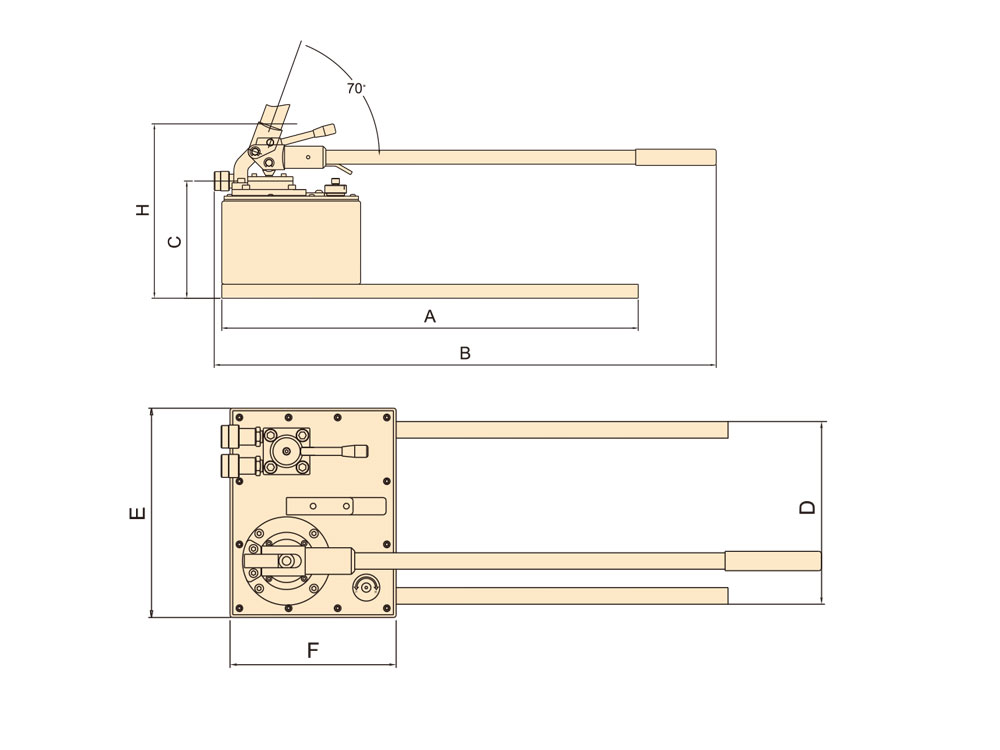

Dimensions
Dimension A/mm | 800 |
Dimension B/mm | 904 |
Dimension C/mm | 211 |
Dimension D/mm | 275 |
Dimension E/mm | 315 |
Dimension F/mm | 250 |
Dimension G/mm | * |
Dimension H/mm | 315 |
Series Comparison
Model | Usable Oil Capacity/cm3 | First Stage Pressure/bar | Second Stage Pressure/bar | Max handles Force/Kg | Oil Displacement Per Stroke 1st Stage (cm3) | Oil Displacement Per Stroke 2nd Stage (cm3) | Weight/Kg |
---|---|---|---|---|---|---|---|
P-142 | 330 | 14 | 700 | 35 | 7.8 | 0.8 | 2.2 |
P-202 | 900 | 25 | 700 | 49 | 33 | 3.3 | 6.8 |
P-204 | 900 | 25 | 700 | 49 | 33 | 3.3 | 8.8 |
P-802 | 2300 | 25 | 700 | 49 | 33 | 3.3 | 10.1 |
P-842 | 2300 | 25 | 700 | 49 | 33 | 3.3 | 11.6 |
P-460 | 4500 | 25 | 700 | 51 | 26 | 2.9 | 22.5 |
P-461 | 4500 | 25 | 700 | 51 | 26 | 2.9 | 22.5 |
P-463 | 7500 | 25 | 700 | 51 | 125 | 5.8 | 30 |
P-465 | 7500 | 25 | 700 | 51 | 125 | 5.8 | 30 |
