Description
Model: P391
Series: P Series
Product Lines: Industrial Tools
- Lightweight and compact design
- Durable glass-filled nylon reservoir and nylon encapsulated aluminum pump base for maximum corrosion resistance
- Two-speed operation on most models reduces handle strokes by as much as 78% over single-speed pumps
- Lower handle effort to minimize operator fatigue
- Handle lock and lightweight construction for easy carrying
- Large oil capacities to power a wide range of cylinders or tools
- Non-conductive fiberglass handle for operator safety
- Internal pressure relief valve for overload protection
Think Safety
Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!

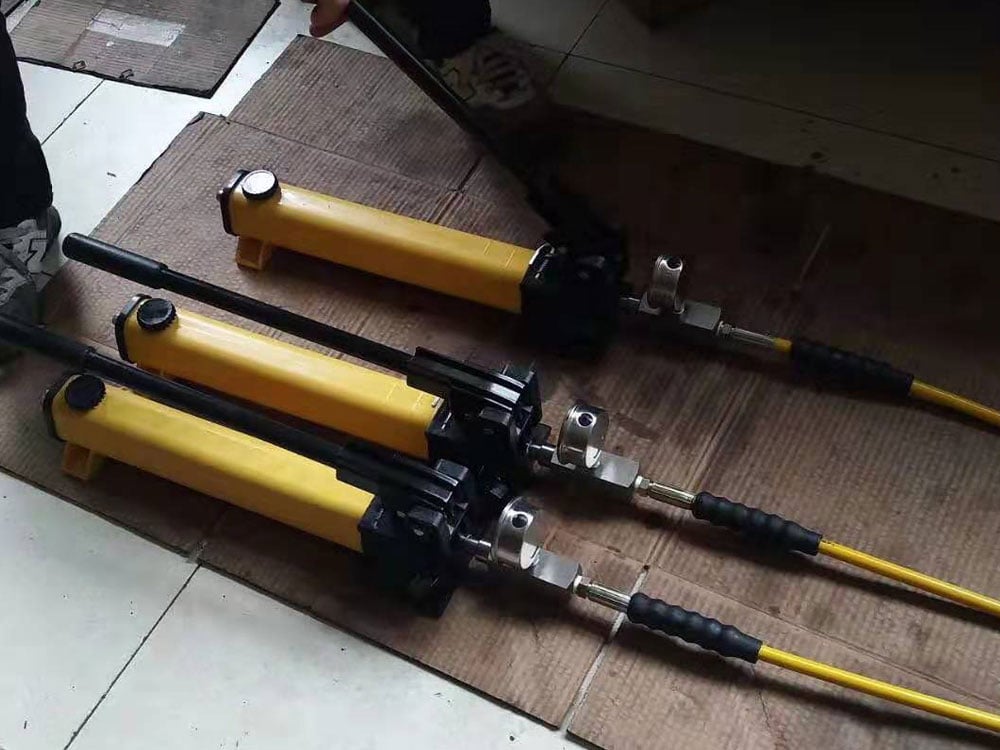

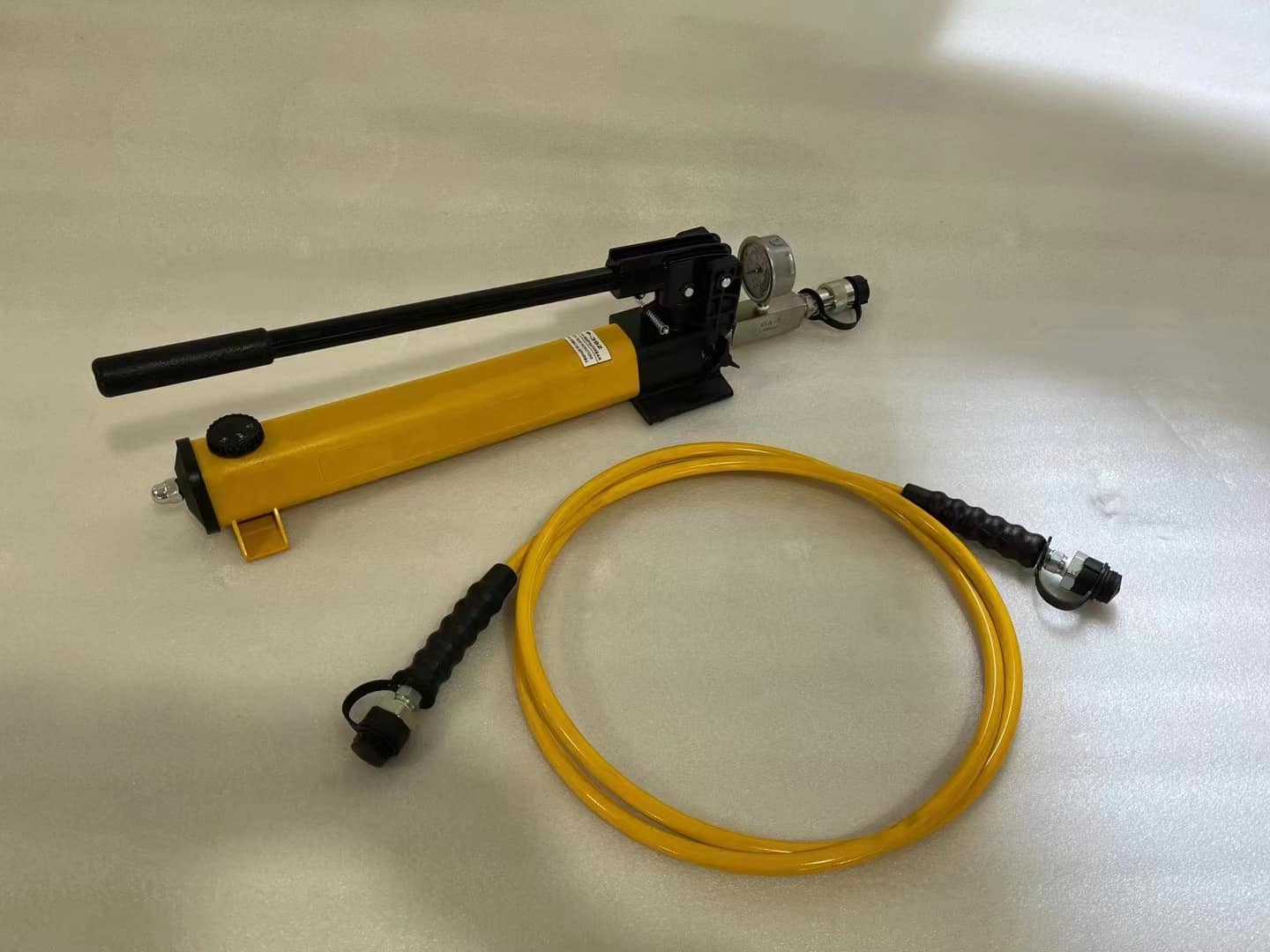

Image Gallery
CE Certification
Specifications
| Maximum Operating Pressure (bar) | 700 |
| Usable Oil Capacity/cm3 | 901 |
| First Stage Pressure/bar | 14 |
| Second Stage Pressure/bar | 700 |
| Oil Displacement Per Stroke 1st Stage (cm3) | 11.26 |
| Oil Displacement Per Stroke 2nd Stage (cm3) | 2.47 |
| Piston Stroke(mm) | 25.4 |
| Pump Type | Single-acting, two speed |
| Max handle Force(Kg) | 42 |
| Weight(Kg) | 6 |
Dimensions
| Dimension A/mm | 344 |
| Dimension B/mm | 533 |
| Dimension C/mm | 36 |
| Dimension D/mm | 99 |
| Dimension E/mm | 33 |
| Dimension G/mm | 3/8″ – 18 NPTF |
| Dimension H/mm | 522 |
| Dimension J/mm | 30 |
| Dimension L/mm | 177 |
| Dimension M/mm | 16 |
| Dimension N/mm | 120 |
Series Comparison
| Model | Usable Oil Capacity/cm3 | First Stage Pressure/bar | Second Stage Pressure/bar | Max handles Force/Kg | Oil Displacement Per Stroke 1st Stage (cm3) | Oil Displacement Per Stroke 2nd Stage (cm3) | Piston Stroke | Weight/Kg |
|---|---|---|---|---|---|---|---|---|
| P-141 | 327 | * | 700 | 32.7 | * | 0.9 | 12.7 | 2.4 |
| P-391 | 901 | 14 | 700 | 42 | 11.26 | 2.47 | 25.4 | 6 |
