Description

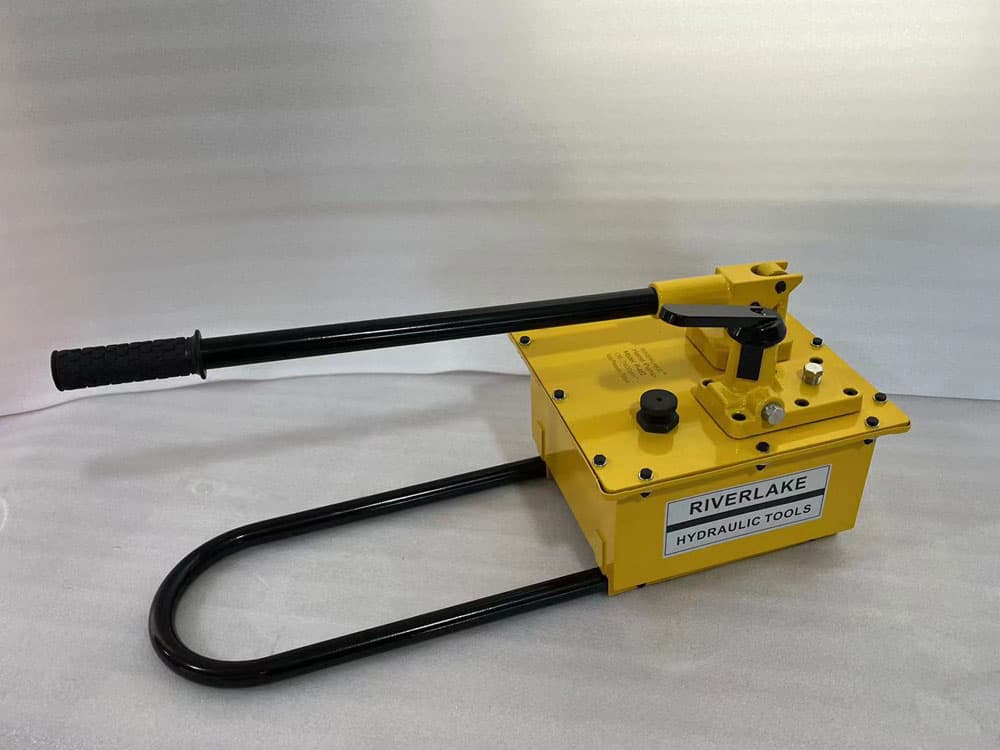

Model: P-462

Series: P Series

Product Lines: Industrial Tools

  • Lightweight and compact design
  • Lower handle effort to minimize operator fatigue
  • The two-speed operation can reduce the work intensity of the operator
  • Equipped with an external pressure relief valve, it can be used to operate single acting hydraulic cylinder
  • The internal safety valve is equipped to protect the pump from overloading
  • The oil capacity is big enough to match a wide range of hydraulic tools

Think Safety

Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!

Specifications

Maximum Operating Pressure (bar)700
Usable Oil Capacity/cm37423
First Stage Pressure(bar)14
Second Stage Pressure(bar)700
Oil Displacement Per Stroke 1st Stage (cm3)126.2
Oil Displacement Per Stroke 2nd Stage (cm3)4.75
Piston Stroke(mm)38.1
Pump TypeTwo-speed, single acting
Max handle Force(Kg)49
Weight(Kg)27

Dimensions

Dimension A/mm210
Dimension B/mm308
Dimension C/mm163
Dimension D/mm320
Dimension E/mm195
Dimension F/mm*
Dimension H/mm671
Dimension J/mm25
Dimension L/mm270
Dimension M/mm175
Dimension N/mm650
Dimension P/mm92
Dimension Q/mm*
Dimension R/mm*
Dimension S/mm80
Dimension T/mm*
p 464 1

Series Comparison

ModelUsable Oil Capacity/cm3First Stage Pressure/barSecond  Stage Pressure/barMax handles Force/KgOil Displacement Per Stroke 1st Stage (cm3)Oil Displacement Per Stroke 2nd Stage (cm3)Piston StrokeWeight/Kg
P-3926552570050152.6220.65.9

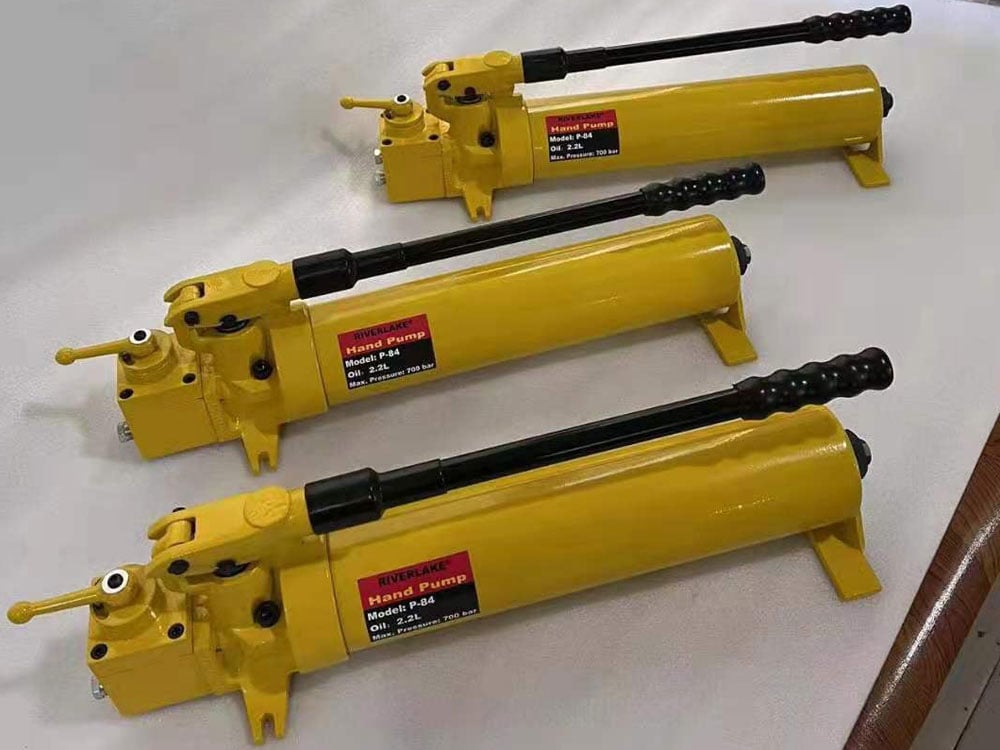

P-802200257004716.222.4625.410.9
P-842200257004716.222.4625.413.2
P-46274231470049126.24.7538.127
P-46474231470049126.24.7538.127.7
