Description

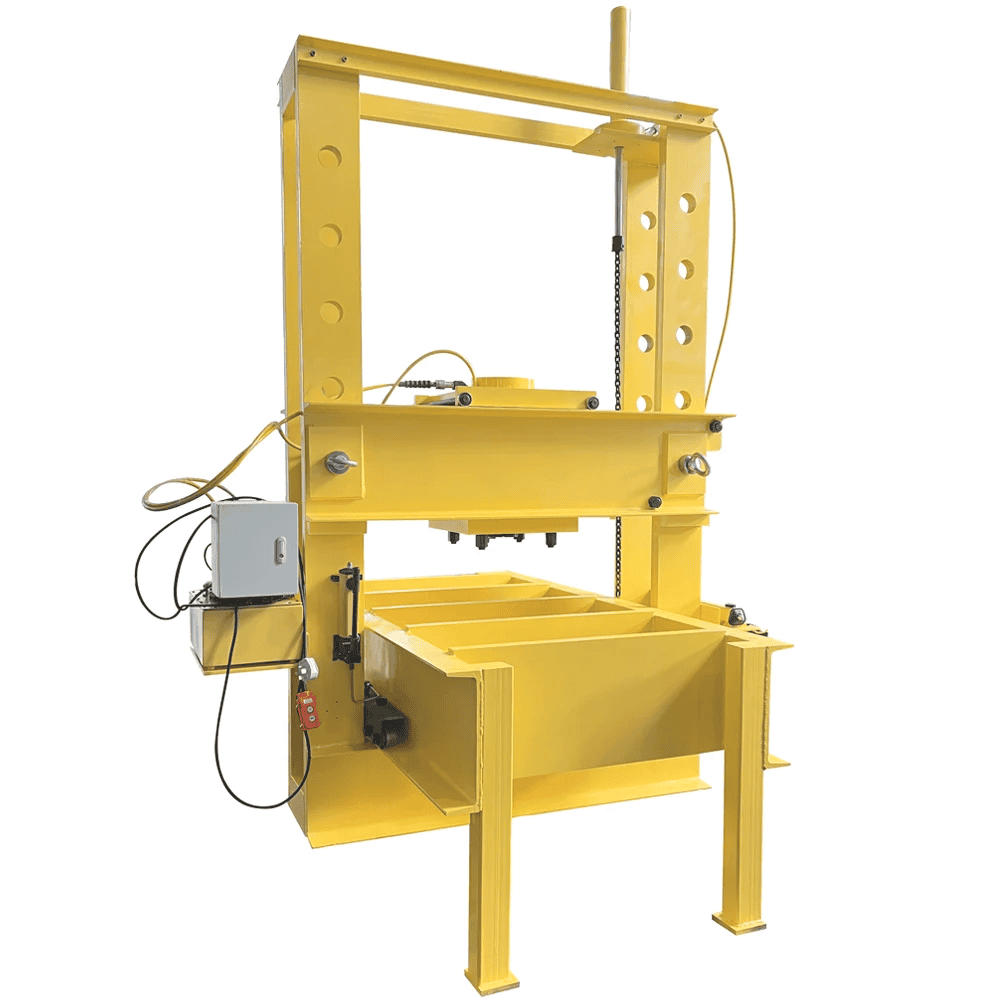

Model:BPR5075
Product Lines: Industrial Tools
Unmatched Flexibility & Precision:
- Effortless Positioning: The frame rolls smoothly on four heavy-duty steel roller bearings, allowing for easy movement across your shop floor. The integrated hydraulic clamp cylinder securely locks the entire roll-frame into position for safe, stable operation.
- Unrivaled Lateral Adjustment: Our standard roller head design allows the cylinder to be moved and locked laterally up to 300 mm left or right of center. This unparalleled flexibility enables off-center pressing and perfect alignment with your workpiece, eliminating the need to reposition heavy loads.
- Exclusive Hydra-Lift Bolster: Experience effortless, tool-free adjustment of the vertical daylight. This unique feature allows you to quickly accommodate workpieces of varying heights, drastically reducing setup time and boosting productivity.
Built for Durability & Performance:
- Superior Welded Construction: The foundation of every BPR press is a quality welded steel frame, engineered for maximum strength and a long, reliable service life under the most strenuous conditions.
- Stationary Bed Advantage: The robust, stationary bed design provides a solid foundation capable of supporting exceptionally heavy loads without compromise.
- Complete Ready-to-Work Package: Every model in the BPR Series is perfectly matched with an electric pump, double-acting cylinder, hose, and gauge. This ensures optimal performance right out of the box and provides a seamless, powerful pressing experience.
The RIVERLAKE BPR Series Roll-Frame Press is more than just a machine; it’s a complete pressing solution designed to enhance your workshop’s capabilities and drive your productivity forward.
Think Safety
Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!
Specifications
| Maximum Operating Pressure (bar) | 700 |
| Capacity Class (tonnage) | 50 |
| Maximum Vertical Daylight (mm) | 942 |
| Maximum Bed Width (mm) | 730 |
| Power Source Type | Electric |
| Pump Model Number | HE5020EV43R |
| Cylinder Model Number | RR5013 |
| Cylinder Stroke (mm) | 334 |
| Tool Feed Speed(mm/sec) | 21.06 |
| Punching Speed(mm/sec) | 2.33 |
| Weight (kg) | 917 |
Dimensions
| A(Min.)/mm | 152 |
| A(Max.)/mm | 942 |
| B/mm | 526 |
| C/mm | 971 |
| D/mm | 264 |
| E/mm | 730 |
| F/mm | 933 |
| G/mm | 127 |
| H/mm | 1420 |
| J/mm | 1626 |
| K/mm | 203 |
| L/mm | 270 |
| M/mm | 762 |
| N/mm | 2870 |
Series Comparison
| Model | Press Capacity/Ton | Cylinder | Stroke/mm | Pump | Rapid Advance Speed/(mm/sec) | Pressing Speed/(mm/sec) | Min. Vertical Daylight A/mm | Max. Vertical Daylight A/mm | B/mm | C/mm | D/mm | Max. Bed Width E/mm | F/mm | G/mm | H/mm | J/mm | K/mm | L/mm | M/mm | N/mm | Weight/Kg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BPR5075 | 50 | RR5013 | 334 | HE5020EV43R | 21.06 | 2.33 | 152 | 942 | 526 | 971 | 264 | 730 | 933 | 127 | 1420 | 1626 | 203 | 270 | 762 | 2870 | 917 |
| BPR10075 | 100 | RR10013 | 333 | HE5020EV43R | 11.25 | 1.24 | 159 | 1048 | 673 | 965 | 222 | 889 | 1143 | 146 | 1605 | 1676 | 203 | 270 | 813 | 3021 | 1767 |
| BPR20075 | 200 | RR20013 | 330 | HE5020EV43R | 8.07 | 0.89 | 279 | 1295 | 984 | 933 | 254 | 1219 | 1626 | 232 | 2150 | 2197 | 203 | 381 | 915 | 3200 | 4186 |
