HCR10002, 1000 ton Capacity, 50mm Stroke, Double-Acting, High Tonnage Hydraulic Cylinder

HCR Series Hydraulic Cylinders are double-acting which delivers a faster and more controlled return of the plunger compared to load/gravity return equivalents.riverlake High-Tonnage Cylinders are equipped with numerous special features to ensure the durability, safety, and performance needed for large-scale construction projects. Among these features are low-wear high-pressure seals, replaceable composite plunger support bearings, and a robust nitrocarburized finish on both the body and plunger.

Send us inquiry

For inquiries about our products, please email us your detailed requirements and we will be in touch within 24 hours.

Send Email

Became a distributor

Please email us your company information and we will be in touch within 24 hours.

Description

Model: HCR10002

Series: HCR

Product Lines: Industrial Tools

Double-acting for fast and controlled advance and retract
Nitrocarburized surface resists side-loading and cyclic wear
10% side-load resistance over full cylinder stroke
Weather protected, inside and out
Upper and lower replaceable bearings support the plunger throughout the stroke
Certified lifting eyes
Base mounting holes
Collar threads included on models up to 250 ton. Optional on 300 ton and higher.
Maximum working pressure up to 10,000 psi (700 bar)

Think Safety
Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!

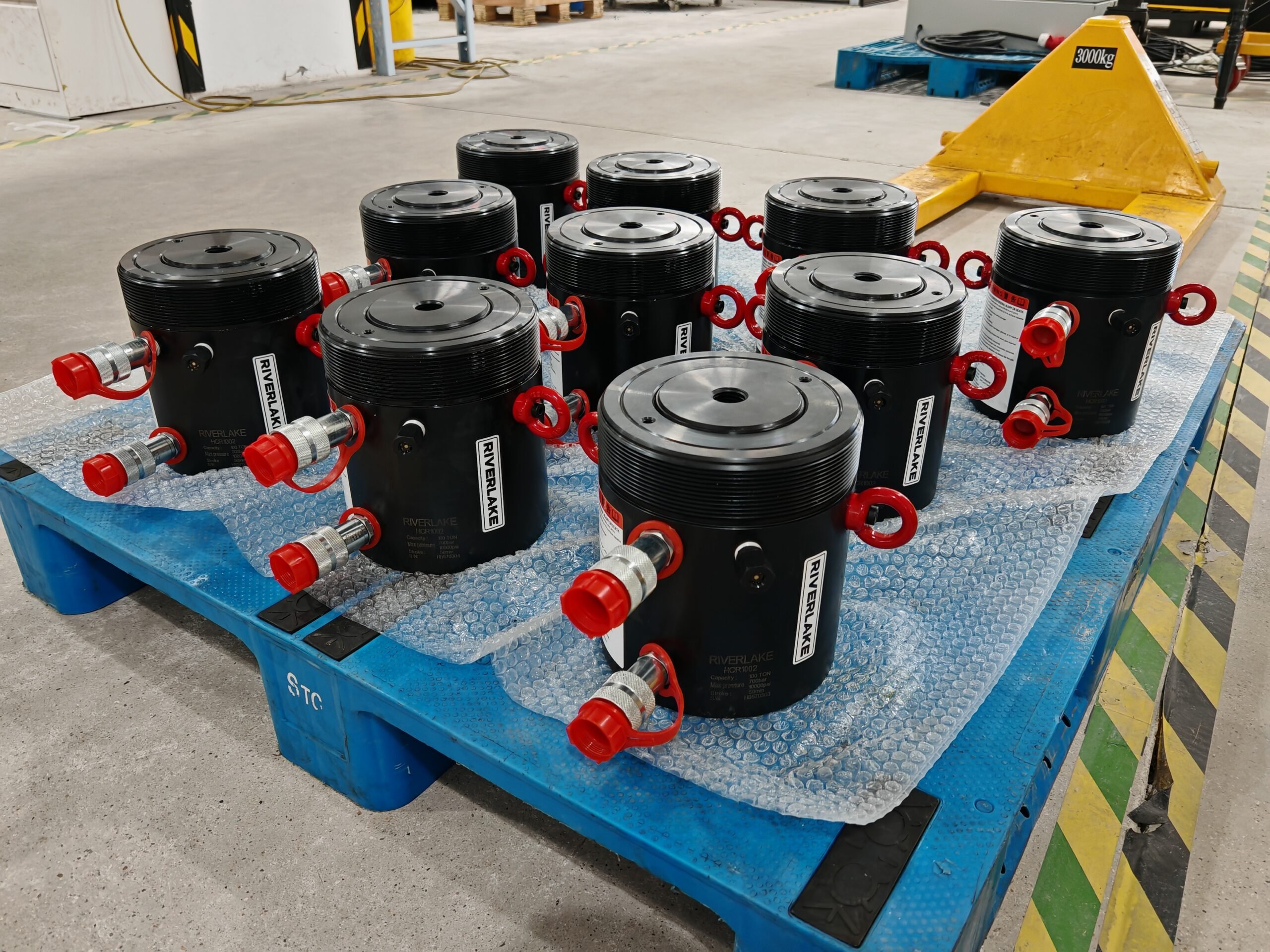

Image Gallery

CE Certification

Specifications

Maximum Operating Pressure (bar)	700
Capacity Class (tonnage)	1000
Stroke (mm)	50
Collapsed Height A (mm)	442
Extended Height B (mm)	492
Return Type	Double-Acting,Hydraulic Retraction
Cylinder Effective Area (cm²)	1520.5
Advance Oil Capacity (cm³)	7603
Retract Oil Capacity (cm³)	3063
Surface Treatment	Nitrocarburization surface treatment
Weight (kg)	843

Dimensions

Collapsed Height/mm(A)	442
Extended Height/mm(B)	492
Outside Dia/mm(D)	570
Cylinder Bore Dia/mm(E)	440
Plunger Dia/mm(F)	340
Base To Advance Port/mm(H)	114
Top To Retract Port/mm(I)	153
Standard Saddle Dia/mm(J)	249
Saddle Protri. From Plgr./mm(K)	4

Series Comparison

Model Number	Capacity/Ton	Stroke/mm	Cylinder Effective Area/cm2	Advance Oil Capacity/cm3	Retract Oil Capacity/cm3	Collapsed Height/mm(A)	Extended Height/mm(B)	Outside Dia/mm(D)	Cylinder Bore Dia/mm(E)	Plunger Dia/mm(F)	Base To Advance Port/mm(H)	Top To Retract Port/mm(I)	Standard Saddle Dia/mm(J)	Saddle Protrusion From Plunger/mm(K)	Optional Saddle Dia/mm(J1)	Saddle Collapsed Height/mm(A1)	Saddle Model	Collar Thread Size/mm(W)	Collar Thread Length/mm(X)	Bolt Circle/mm(U)	Thread Size/mm(V)	Min. Thread Depth/mm(Z)	Number of Holes	Angle From Coupler	Weight/Kg
HCR502	50	50	78.5	393	200	183	233	130	100	70	38	45	50	3	71	197	CATS50	M130X2	30	105	M12X1.75	22	2	90°	17
HCR504		100		785	401	233	333									247									21
HCR506		150		1178	601	283	433									297									25
HCR508		200		1571	801	346	546					55				360									31
HCR5010		250		1963	1001	396	646									410									34
HCR5012		300		2356	1202	446	746									460									38
HCR1002	100	50	143.1	716	361	202	252	175	135	95	38	65	75	3	71	212	CATS101	M175X3	46	150	M12X1.75	22	2	90°	34
HCR1004		100		1431	723	252	352									262									41
HCR1006		150		2147	1084	302	452									312									48
HCR1008		200		2863	1445	379	579					80				389									59
HCR10010		250		3578	1806	429	679									439									66
HCR10012		300		4294	2168	479	779									489									73
HCR1502	150	50	213.8	1069	504	220	270	215	165	120	41	70	94	3	97	239	CATS150	M215X3	55	185	M12X1.75	22	2	90°	56
HCR1504		100		2138	1007	270	370									289									67
HCR1506		150		3207	1511	320	470									339									78
HCR1508		200		4276	2015	397	597					90				416									95
HCR15010		250		5346	2518	447	697									466									106
HCR15012		300		6415	3022	497	797									516									116
HCR2002	200	50	283.5	1418	648	231	281	250	190	140	47	79	113	3	126	249	CATS200	M250X3	63	215	M12X1.75	22	3	60°	81
HCR2004		100		2835	1296	281	381									299									96
HCR2006		150		4253	1944	331	481									349									111
HCR2008		200		5671	2592	408	608					97				426									139
HCR20010		250		7088	3240	458	708									476									153
HCR20012		300		8506	3888	508	808									526									168
HCR2502	250	50	363.1	1815	680	241	291	280	215	170	53	79	140	4	175	280	CATS300	M280X3	64	245	M12X1.75	22	3	60°	107
HCR2504		100		3631	1361	291	391									330									127
HCR2506		150		5446	2041	341	491									380									146
HCR2508		200		7261	2721	431	631					104				470									184
HCR25010		250		9076	3402	481	731									520									207
HCR25012		300		10892	4082	531	831									570									227
HCR3002	300	50	433.7	2169	598	296	346	305	235	200	58	101	140	4	175	335	CATS300	M305X3	73	260	M16X2	25	3	60°	159
HCR3004		100		4337	1196	346	446									385									183
HCR3006		150		6506	1794	396	546									435									208
HCR3008		200		8675	2392	446	646									485									232
HCR30010		250		10843	2989	496	746									535									257
HCR30012		300		13012	3587	546	846									585									281
HCR4002	400	50	572.6	2863	962	321	371	350	270	220	74	111	159	4	210	369	CATS400	M350X3	83	300	M16X2	25	3	60°	227
HCR4004		100		5726	1924	371	471									419									258
HCR4006		150		8588	2886	421	571									469									289
HCR4008		200		11451	3848	471	671									519									321
HCR40010		250		14314	4811	521	771									569									352
HCR40012		300		17177	5773	571	871									619									383
HCR5002	500	50	730.6	3653	1199	344	394	400	305	250	79	121	179	4	230	392	CATS500	M400X4	90	340	M24X3	36	3	60°	320
HCR5004		100		7306	2397	394	494									442									361
HCR5006		150		10959	3596	444	594									492									402
HCR5008		200		14612	4795	494	694									542									443
HCR50010		250		18265	35994	544	794									592									484
HCR50012		300		21918	7192	594	894									642									525
HCR6002	600	50	855.3	4276	1414	352	402	430	330	270	85	121	194	4	250	405	CATS600	M430X4	100	370	M24X3	36	3	60°	379
HCR6004		100		8553	2827	402	502									455									427
HCR6006		150		12829	4241	452	602									505									474
HCR6008		200		17106	5655	502	702									555									521
HCR60010		250		21382	7069	552	802									605									568
HCR60012		300		25659	8482	602	902									655									615
HCR8002	800	50	1164.2	5821	1800	404	454	505	385	320	100	143	224	4	275	461	CATS800	M505X5	122	440	M24X3	36	3	60°	608
HCR8004		100		11642	3599	454	554									511									674
HCR8006		150		17462	5399	504	654									561									740
HCR8008		200		23283	7198	554	754									611									806
HCR80010		250		29104	8998	604	854									661									872
HCR80012		300		34925	10797	654	954									711									938
HCR10002	1000	50	1520.5	7603	3063	442	492	570	440	340	114	153	249	4	300	519	CATS1000	M570X5	137	500	M24X3	36	3	60°	843
HCR10004		100		15205	6126	492	592									569									921
HCR10006		150		22808	9189	542	692									619									1000
HCR10008		200		30411	12252	592	792									669									1079
HCR100010		250		38013	15315	642	892									719									1158
HCR100012		300		45616	18378	692	992									769									1236
