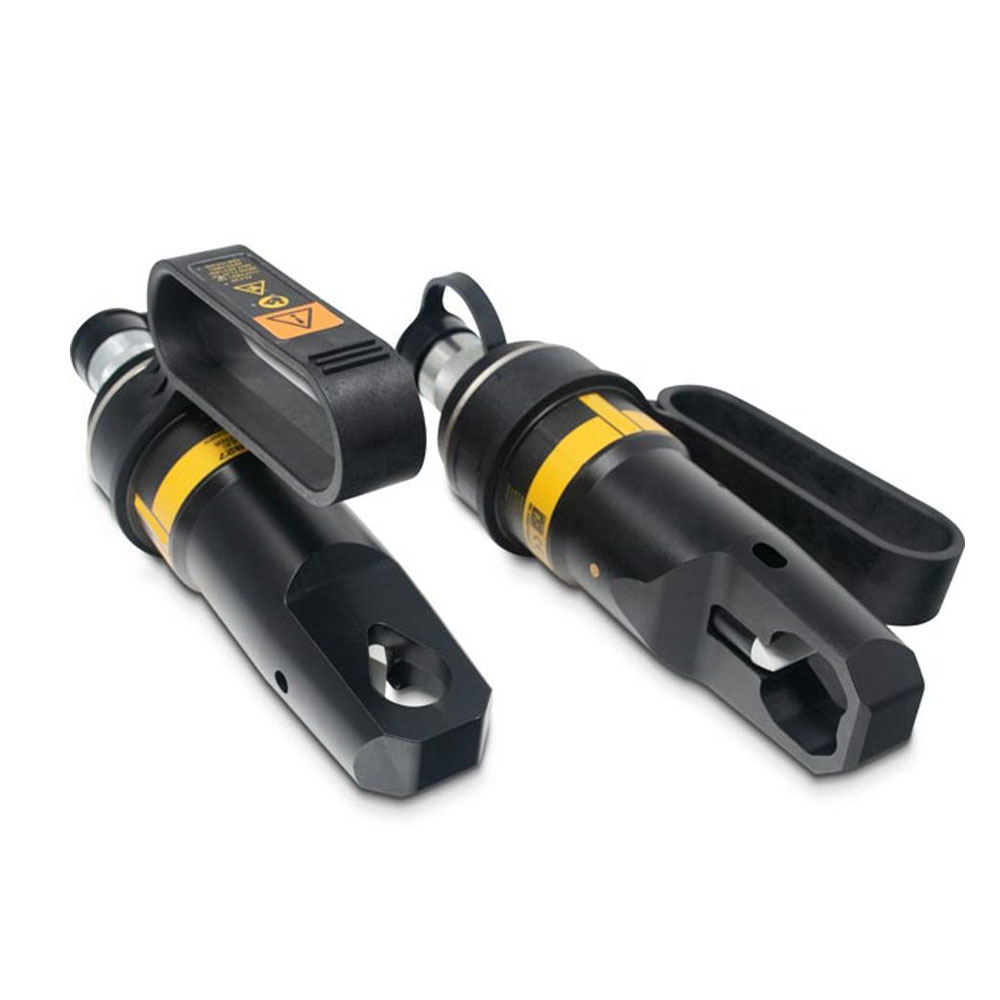

Description

Model: NSH1927

Series: NSH

Product Lines: Industrial Tools

  • Quick and easy cutting tip replacement
  • Drop-tested revolving anchor point and safety lanyard
  • Revolving composite handle for vibration and shock isolation
  • Nut Splitters include a set of hexagon keys and the following spare parts:
  • – cutting tip
  • – tip retention screw
  • – spare alignment screw
  • Standard Safety Lanyard with each nut splitter. Includes steel cable with carabiners.
  • 3/8NPT-18 female half coupler is standard
  • The maximum allowable hardness to split is ASTM A194 Gr 2H. Not to be used on square nuts or stainless steel.

Think Safety

Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!

Specifications

Max Cutting Force/Ton12
Oil Capacity/cm346
Bolt RangeM12-M18
Hexagon Nut Range/mm19-27
Replacement Blade No.NSH1927CTK
Weight (kg)3.5

Dimensions

Dimension A/mm258
Dimension B/mm213
Dimension C/mm152
Dimension D/mm81
Dimension H/mm18
Dimension N/mm11.5
Dimension S/mm24.5
Dimension T/mm26.5
Dimension W/mm53.5

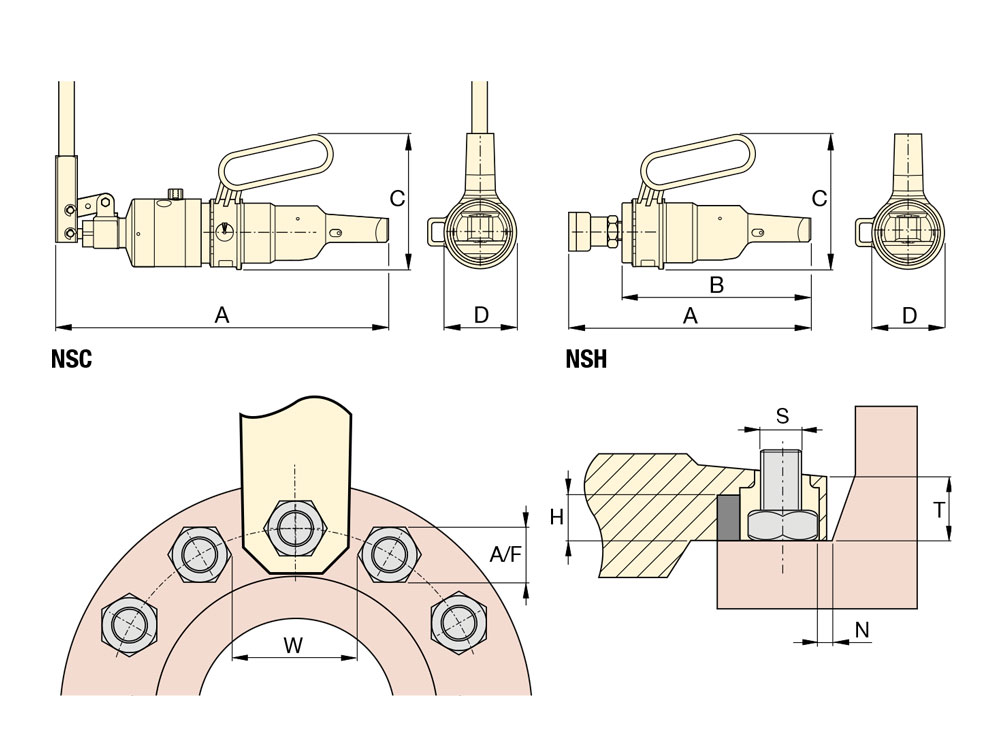

Integral Hydraulic Nut Splitters Dimension

Series Comparison

ModelMax Cutting Force/TonOil Capacity/cm3Bolt RangeHexagon Nut Range/mmReplacement Blade No.Weight/KgDimension A/mmDimension B/mmDimension C/mmDimension D/mmDimension H/mmDimension N/mmDimension S/mmDimension T/mmDimension W/mm
NSC192712*M12-M1819-27NSH1927CTK5.8353*152811811.524.526.553.5
NSC243215*M16-M2224-32NSH2432CTK6.3370*1528125926.63257.5
NSH19271246M12-M1819-27NSH1927CTK3.5258213152811811.524.526.553.5
NSH24321546M16-M2224-32NSH2432CTK42652201528125926.53257.5
NSH36462080M24-M3036-46NSH3646CTK6.9290239169933416394483.5
NSH506536230M33-M4250-65NSH5065CTK10.9377322210185452349.552108
NSH657550328M42-M4865-75NSH6575CTK24.539634522020254276165135
