Description

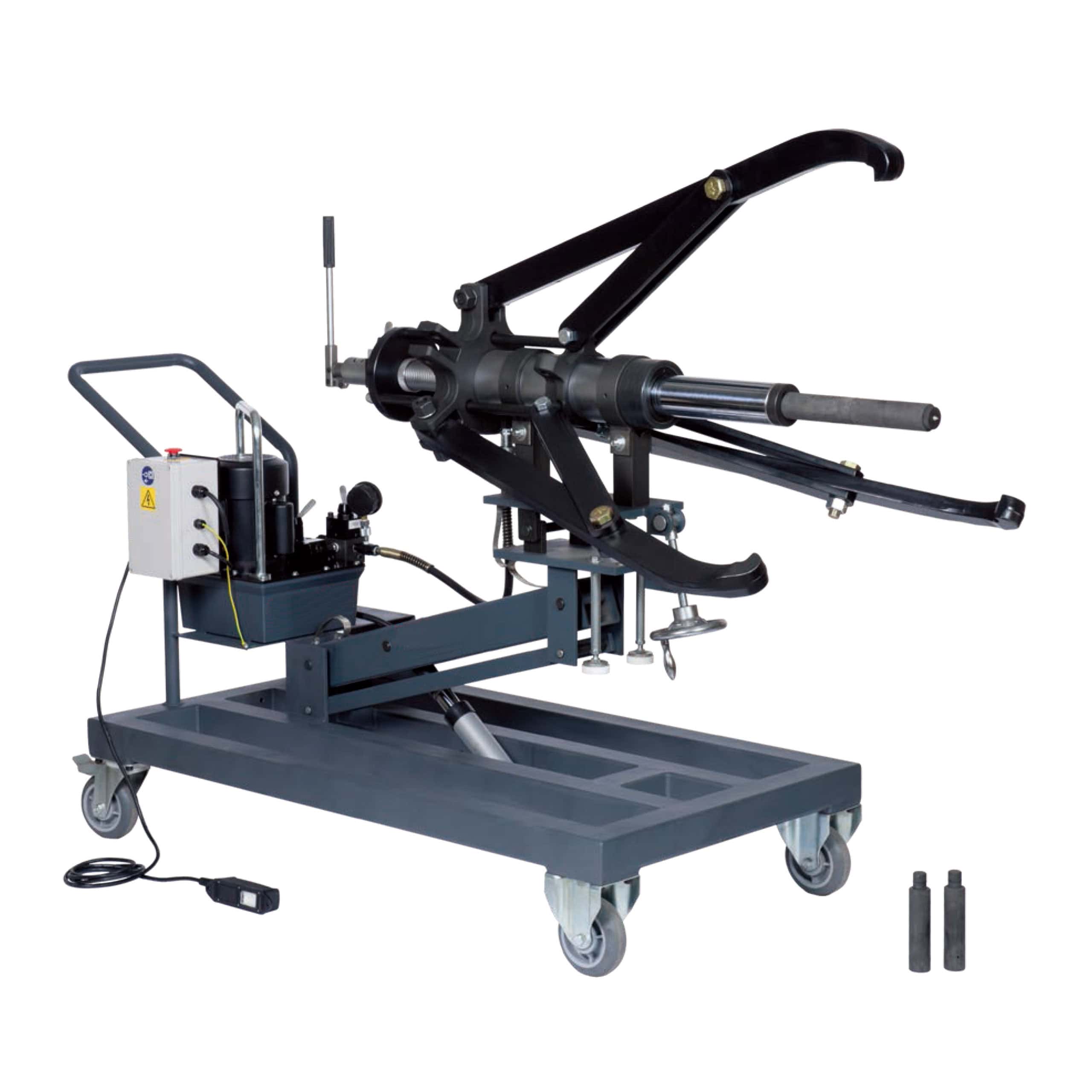

Model: HXPM50 2/3-Arm Long
Product Lines: Hydraulic Pullers
•The puller is self-centering, easy to manoeuvre and adjustable in height. The arms slide
inwards or outwards simultaneously.
•The stronger the pulling force, the tighter the jaws grip around the workpiece. Bending
or defecting is impossible.
•Integral safety release valve prevents overload and ensures that you never exceed the
maximum force.
•Remote control included.
•Double-acting cylinder for clasping, opening and closing the arms, for a safe and
secure grip on the workpiece.
•An electrohydraulic pump operates the cylinder and the height
adjustment.
•The design prevents the puller arms from slipping or defecting from behind the
workpiece.
•The mobile frame has 2 castor wheels (with brake) and 2 fxed wheels.
•A hydraulic single-acting cylinder with max. operating pressure of 700 bar (50 tons).
•The total stroke is 330 mm. Four adapters (extensions) are included, with a total length
of 620 mm.
•The HXPM 50 2/3-arm puller is easy to convert into a 2-arm or 3-arm version..The HXPM 50 2/3-arm puller is vertically adjustable by 5°.
Think Safety
Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!
Specifications
| Model | HXPM50 2/3-Arm Long |
| Maximum Operating Pressure (bar) | 700 |
| Capacity Class (tonnage) | 50 |
| Stroke (mm) | 330 |
| Spread(mm) | 200-1250 |
| Max. Shaft Length(mm) | 780 |
| Center Height(mm) | 700-1370 |
| Adapters(mm) | 2Xø40:length 155;2Xø50:length 155 |
| Dimension(mm) | 2545X800X1155 |
| Weight(KG) | 400 |
Series Comparison
| Model | Capacity/Ton | Stroke/mm | Spread Range/mm | Max. Shaft Length/mm | Center Height Adjustment Range/mm | Adapters/mm | Dimension/mm | Weight/Kg |
|---|---|---|---|---|---|---|---|---|
| HXPM50 2-Jaw | 50 | 330 | 200-1250 | 780 | 310-1045 | 2Xø40:length 155;2Xø50:length 155 | 2700X655X900 | 315 |
| HXPM50 2/3-Arm Short | 50 | 330 | 200-950 | 500 | 820-1370 | 2Xø40:length 155;2Xø50:length 155 | 2245X800X1155 | 385 |
| HXPM50 2/3-Arm Long | 50 | 330 | 200-1250 | 780 | 700-1370 | 2Xø40:length 155;2Xø50:length 155 | 2545X800X1155 | 400 |
| HXPM 100 2-Jaw | 100 | 270 | 300-1500 | 1220 | 320-790 | 2xø70:length 300;2Xø70:length 150;1Xø70:length 100;1Xø70:length 75;1Xø70:length 50. | 2915X1035X1350 | 870 |
| HXPM 100 2/3-Jaw | 100 | 270 | 300-1500 | 1220 | 820-1320 | 2xø70:length 300;2Xø70:length 150;1Xø70:length 100;1Xø70:length 75;1Xø70:length 50. | 2915X1035X1350 | 1120 |
