XLCT-2, Max Torque 2414Nm, Low Profile Hydraulic Torque Wrenches

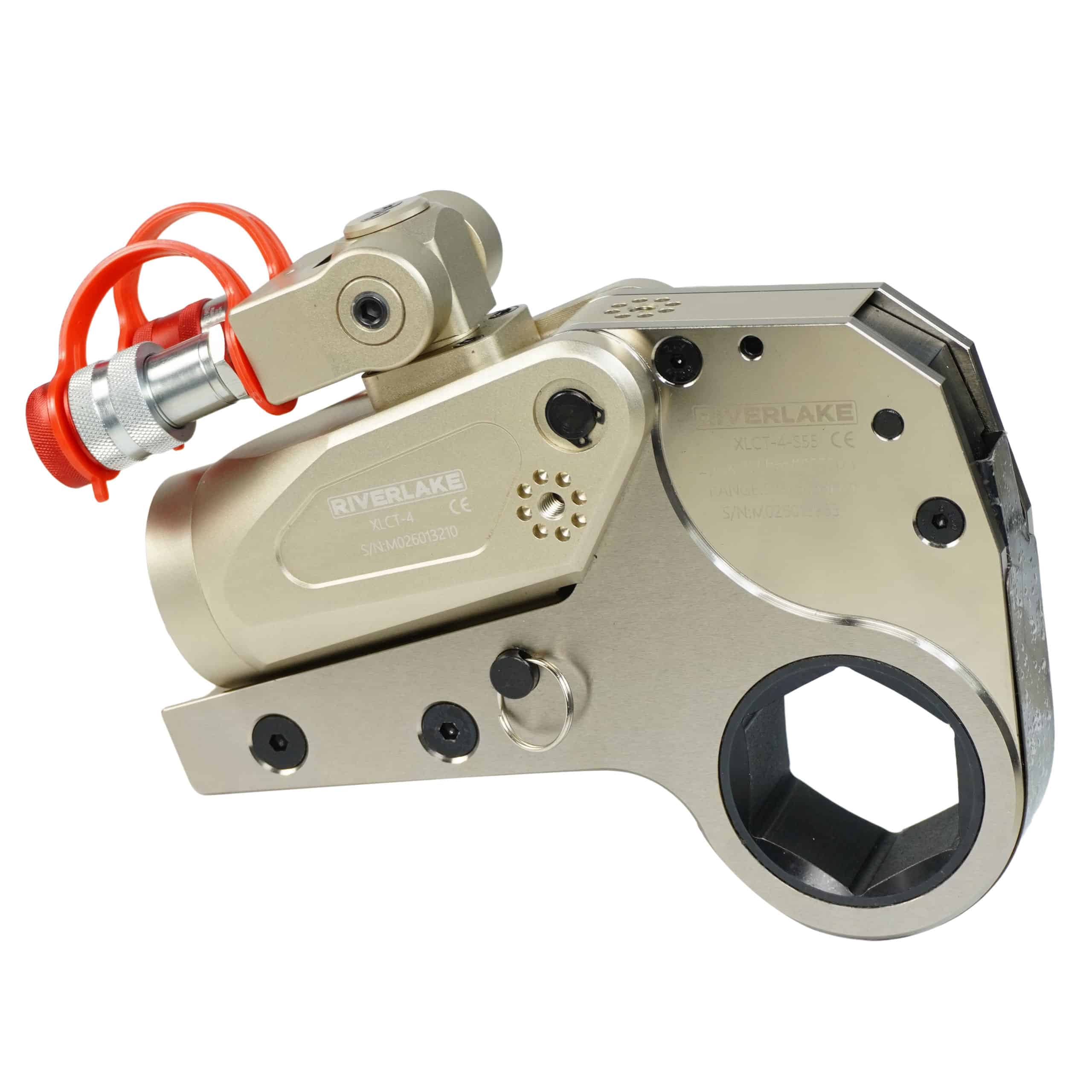

The RIVERLAKE XLCT Series sets a new standard for bolting solutions in confined spaces. Engineered as a low profile hydraulic torque wrench, this innovative series is specifically designed to excel where clearance is limited, delivering exceptional power and precision without compromising on accessibility or performance.
Description
Series: XLCT | Product Line: Industrial Tools
Engineered for Tight Spaces & Demanding Applications:
-
Comprehensive Torque Coverage: The XLCT Series comprises 5 different models, covering a wide torque range from 232 N·m to an impressive 44,593 N·m, ensuring the right tool for diverse bolting requirements.
-
Integrated Reaction Arm Design: The workhead body itself functions as a reaction arm, eliminating the need for bulky external components and allowing operation in the tightest clearances where conventional wrenches cannot fit.
-
Unrestricted Hose Positioning: Featuring a 360° × 180° rotating oil inlet, the XLCT Series offers virtually unlimited hose positioning freedom, ensuring convenient operation and adaptability in even the most challenging or restricted work environments.
-
Anti-Kickback Protection: An innovative anti-kickback pawl mechanism effectively prevents the wrench from jamming or reversing during operation, ensuring smooth, controlled performance and enhanced operator safety.
-
Maximum Application Versatility: Available with multiple workhead sizes and a comprehensive range of reducing bushings, the XLCT Series can be easily adapted to suit various bolt sizes and configurations, maximizing utility across different jobs.
-
Durable Lightweight Powerhead: The powerhead features a one-piece forged body crafted from aluminum-titanium alloy, delivering exceptional strength, toughness, and wear resistance while maintaining a remarkably lightweight profile for reduced operator fatigue.
Specifications
| Torque Wrench Model Number | XLCT-2 |
| Maximum Operating Pressure (bar) | 700 |
| Torque Range(Nm) | 232-2328/241-2414 |
| A/F Rnage(mm) | 19-55/60 |
| Drive Unit Weight(Kg) | 1.2 |
| Cassette Weight(Kg) | 1.6/1.7 |
Dimensions

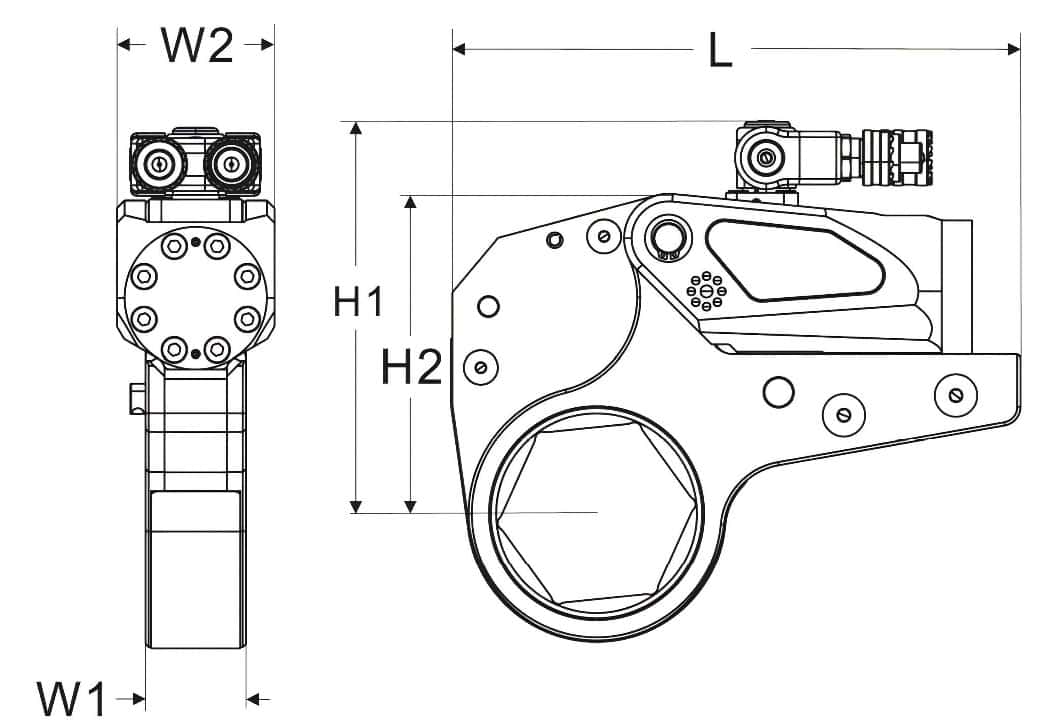

Click to enlarge image
Drive Unit Model Comparison
| Torque Wrench Drive Unit Model | Torque Range(Nm) | A/F Rnage(mm) | Dimension(mm）L | Dimension(mm）H1 | Dimension(mm）H2 | Dimension(mm）W1 | Dimension(mm）W2 | Drive Unit Weight(Kg) | Cassette Weight(Kg) |
|---|---|---|---|---|---|---|---|---|---|
| XLCT-2 | 232-2328 | 19-55 | 186 | 138 | 102 | 32 | 51 | 1.2 | 1.6 |
| 241-2414 | 60 | 186 | 141 | 105 | 32 | 51 | 1.2 | 1.7 | |
| XLCT-4 | 585-2510 | 34-36 | 245 | 177 | 136 | 42 | 66 | 2.2 | 4 |
| 585-5858 | 41-65 | 245 | 177 | 136 | 42 | 66 | 2.2 | 4.4 | |
| XLCT-8 | 647-6474 | 70-80 | 246 | 187 | 146 | 42 | 66 | 2.2 | 4.6 |
| 1094-10941 | 41-95 | 300 | 207 | 169 | 53 | 83 | 3.4 | 8 | |
| XLCT-14 | 1177-11774 | 100-105 | 301 | 216 | 178 | 53 | 83 | 3.4 | 8.4 |
| 1852-18521 | 50-117 | 361 | 239 | 204 | 64 | 99 | 5.6 | 11.6 | |
| XLCT-30 | 4188-41882 | 85-155 | 420 | 303 | 272 | 85 | 131 | 12 | 29 |
| 4459-44593 | 160-175 | 431 | 315 | 285 | 85 | 131 | 12 | 30 |
Cassette Model Comparison
| A/F/mm | Cassette Model | R | A | Cassette Model | R | A | Cassette Model | R | A | Cassette Model | R | A | Cassette Model | R | A |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 19 | XLCT-2-S19 | 27 | 16 | ||||||||||||
| 22 | XLCT-2-S22 | 27 | 14 | ||||||||||||
| 27 | XLCT-2-S27 | 27 | 11 | ||||||||||||
| 30 | XLCT-2-S30 | 29 | 12 | ||||||||||||
| 32 | XLCT-2-S32 | 29 | 11 | ||||||||||||
| 34 | XLCT-2-S34 | 31 | 11 | XLCT-4-S34 | 36 | 16 | |||||||||
| 36 | XLCT-2-S36 | 31 | 10 | XLCT-4-S36 | 36 | 15 | |||||||||
| 41 | XLCT-2-S41 | 34 | 10 | XLCT-4-S41 | 39 | 15 | XLCT-8-S41 | 46 | 22 | ||||||
| 46 | XLCT-2-S46 | 37 | 10 | XLCT-4-S46 | 42 | 15 | XLCT-8-S46 | 46 | 19 | ||||||
| 50 | XLCT-2-S50 | 40 | 11 | XLCT-4-S50 | 44 | 15 | XLCT-8-S50 | 46 | 17 | XLCT-14-S50 | 60 | 31 | |||
| 55 | XLCT-2-S55 | 43 | 11 | XLCT-4-S55 | 46 | 14 | XLCT-8-S55 | 50 | 18 | XLCT-14-S55 | 60 | 28 | |||
| 60 | XLCT-2-S60 | 46 | 11 | XLCT-4-S60 | 50 | 15 | XLCT-8-S60 | 52 | 17 | XLCT-14-S60 | 60 | 25 | |||
| 65 | XLCT-4-S65 | 53 | 15 | XLCT-8-S65 | 55 | 17 | XLCT-14-S65 | 60 | 22 | ||||||
| 70 | XLCT-4-S70 | 56 | 15 | XLCT-8-S70 | 58 | 17 | XLCT-14-S70 | 60 | 19 | ||||||
| 75 | XLCT-4-S75 | 59 | 15 | XLCT-8-S75 | 60 | 17 | XLCT-14-S75 | 63 | 19 | ||||||
| 80 | XLCT-4-S80 | 61 | 15 | XLCT-8-S80 | 63 | 16 | XLCT-14-S80 | 66 | 19 | ||||||
| 85 | XLCT-8-S85 | 66 | 16 | XLCT-14-S85 | 69 | 19 | XLCT-30-S85 | 78 | 28 | ||||||
| 90 | XLCT-8-S90 | 69 | 17 | XLCT-14-S90 | 72 | 20 | XLCT-30-S90 | 78 | 27 | ||||||
| 95 | XLCT-8-S95 | 71 | 16 | XLCT-14-S95 | 74 | 19 | XLCT-30-S95 | 83 | 28 | ||||||
| 100 | XLCT-8-S100 | 75 | 17 | XLCT-14-S100 | 77 | 19 | XLCT-30-S100 | 83 | 25 | ||||||
| 105 | XLCT-8-S105 | 78 | 17 | XLCT-14-S105 | 80 | 19 | XLCT-30-S105 | 89 | 28 | ||||||
| 110 | XLCT-14-S110 | 83 | 19 | XLCT-30-S110 | 89 | 25 | |||||||||
| 115 | XLCT-14-S115 | 87 | 20 | XLCT-30-S115 | 95 | 28 | |||||||||
| 117 | XLCT-14-S117 | 87 | 19 | XLCT-30-S117 | 95 | 27 | |||||||||
| 125 | XLCT-30-S125 | 101 | 29 | ||||||||||||
| 130 | XLCT-30-S130 | 101 | 26 | ||||||||||||
| 135 | XLCT-30-S135 | 104 | 26 | ||||||||||||
| 140 | XLCT-30-S140 | 110 | 29 | ||||||||||||
| 145 | XLCT-30-S145 | 110 | 26 | ||||||||||||
| 150 | XLCT-30-S150 | 116 | 29 | ||||||||||||
| 155 | XLCT-30-S155 | 116 | 26 | ||||||||||||
| 160 | XLCT-30-S160 | 128 | 36 | ||||||||||||
| 165 | XLCT-30-S165 | 128 | 33 | ||||||||||||
| 170 | XLCT-30-S170 | 128 | 30 | ||||||||||||
| 175 | XLCT-30-S175 | 128 | 27 |
