STF14H, 14 Ton, Hydraulic Flange Spreader Set, 80mm Maximum Spread

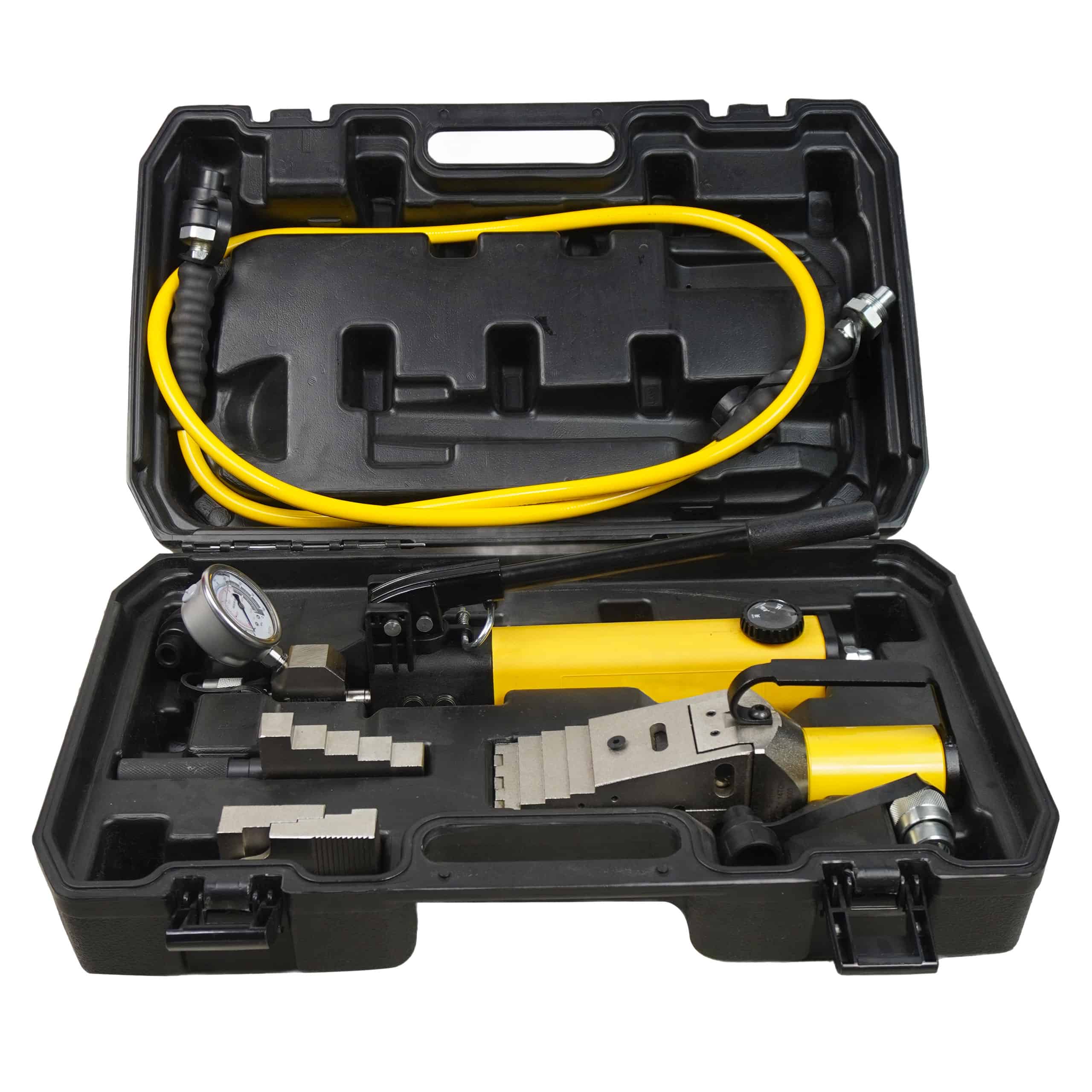

The RIVERLAKE STF14H is a complete, ready‑to‑use 14‑ton hydraulic flange spreader tool kit, engineered for safe, controlled, and efficient separation of pipe flanges during gasket replacement, valve maintenance, and pipeline repair. This “one‑pump‑to‑one‑spreader” configuration combines the field‑proven FSH14 spreader head with a high‑quality manual pump, angled gauge adaptor, and durable hydraulic hose – all packaged for immediate deployment.
Description
Model: STF14H | Product Line: Industrial Tools
Kit Components

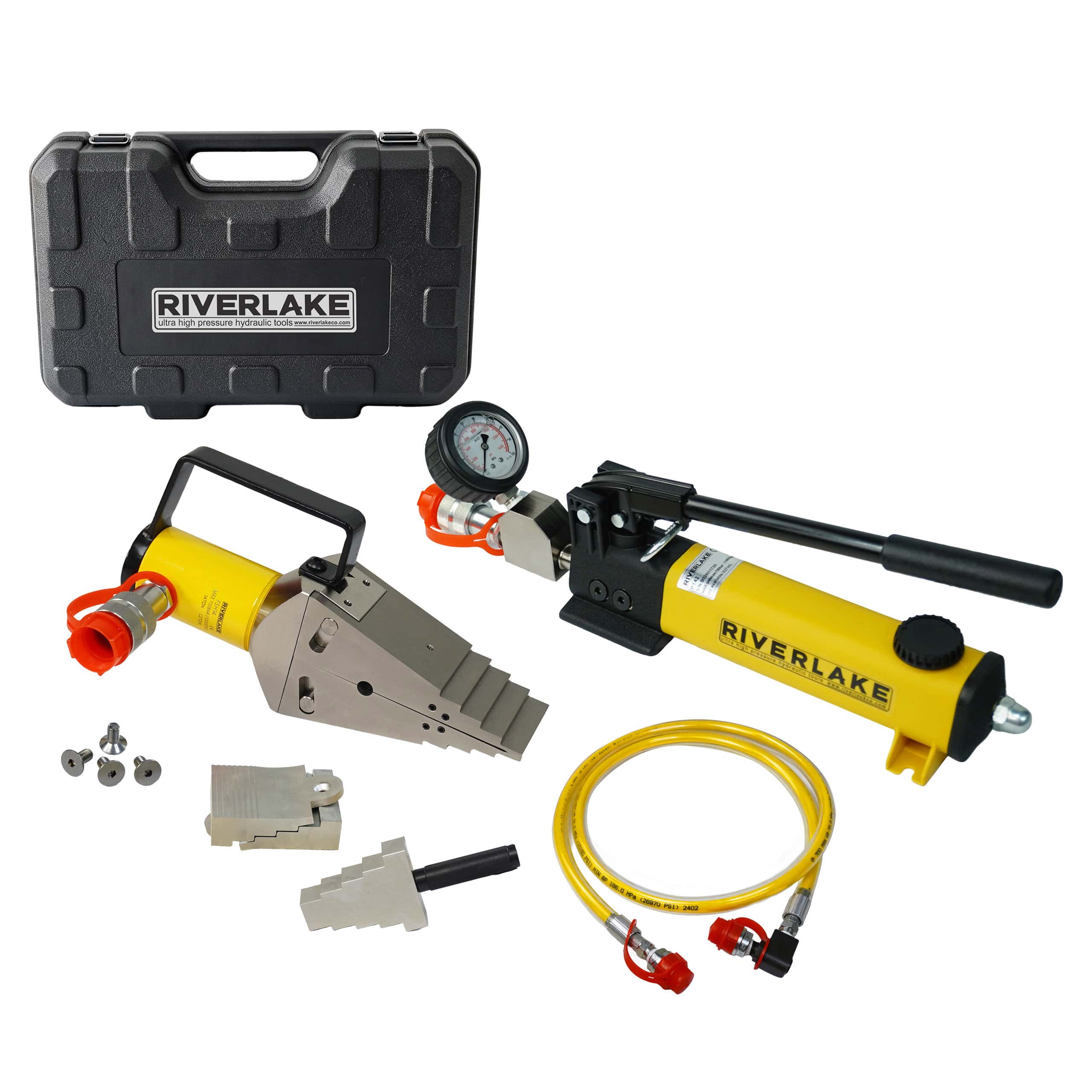

The STF14H kit includes the following precision‑matched components:
-
FSH14 – 14 Ton Hydraulic Flange Spreader – Features a unique interlocking wedge design that eliminates first‑step bending and the risk of slipping out of the joint. Requires only a 6 mm initial gap for operation. Few moving parts ensure durability and low maintenance. Includes a single‑acting cylinder and an SB1 safety block for mechanical gap locking.
-
P142 Manual Hand Pump – A two‑speed, 10,000 psi (700 bar) manual pump with large oil reservoir and ergonomic handle. Delivers high flow for rapid tool advance and low flow for precise, controlled spreading. Built‑in safety valve provides overpressure protection.
-
GA45GC – 45° Angled Gauge Adaptor Assembly – Allows convenient, easy‑reading pressure gauge positioning at a 45° angle – ideal for confined spaces or awkward work orientations. Enables the operator to monitor hydraulic pressure and spreading force in real time.
-
HSP700-2‑MM – 2 Meter Hydraulic Hose – High‑pressure hose rated to 700 bar (10,000 psi) with quick couplers on both ends for fast, leak‑free connection between pump and spreader. Provides remote operation capability, keeping the operator at a safe distance from the flange
Specifications
| Model | STF14H |
| Maximum Operating Pressure (bar) | 700 |
| Maximum Spreading Force(Ton) | 14 |
| Tip Clearance(mm) | 6 |
| Maximum Spread(mm) | 80 |
| Oil Capacity(cm³) | 78 |
| Tool Kit Weight(Kg) | 18.1 |
