S80,A/F 80mm,Back Up Wrench

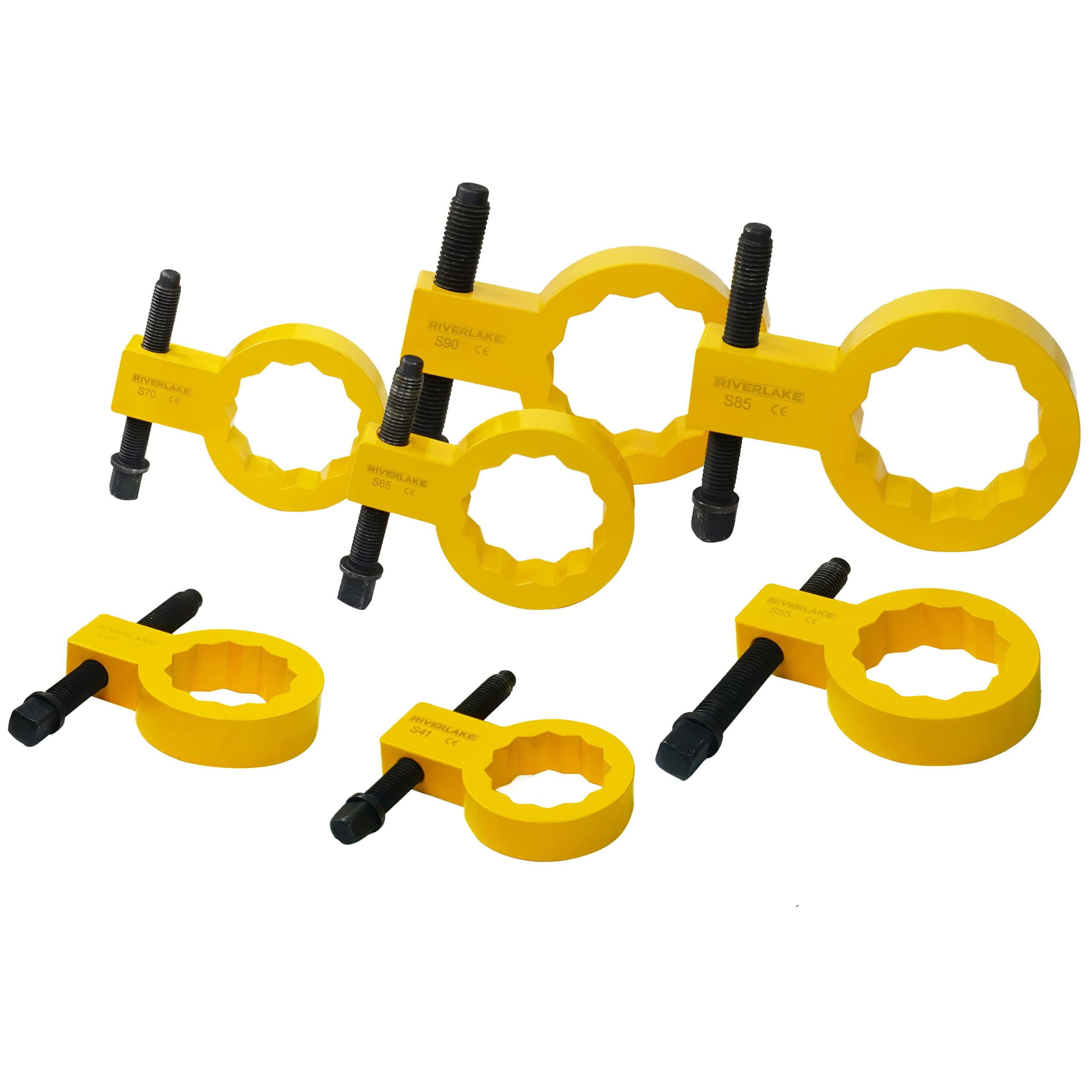

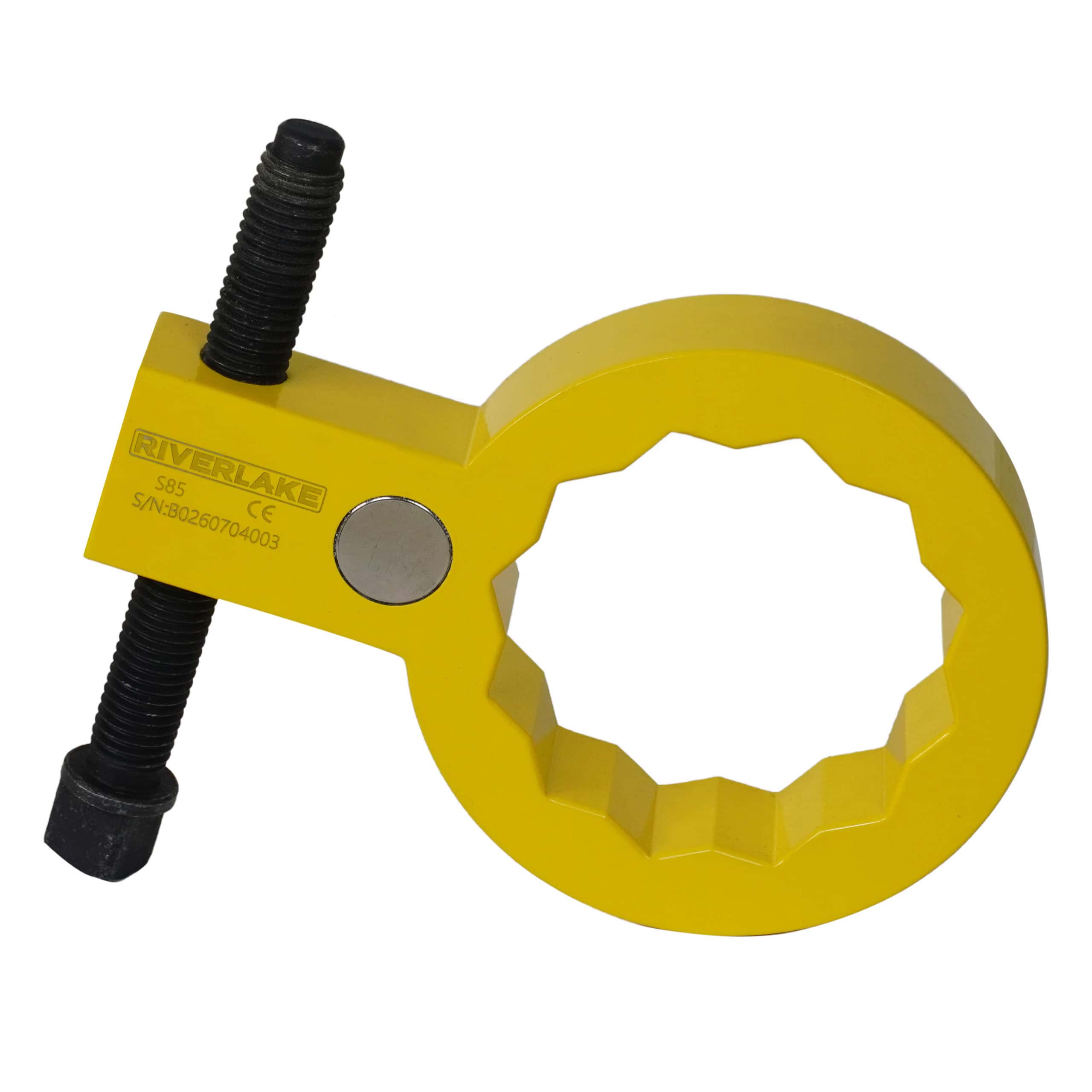

Designed to provide reliable counter-torque during bolting operations, the RIVERLAKE S Series Back Up Wrench delivers exceptional strength, durability, and adaptability. It is precision‑machined from high‑grade alloy steel to withstand demanding industrial environments and high‑torque applications.
PRICE ON REQUEST
Features
Description
Designed to provide reliable counter-torque during bolting operations, the RIVERLAKE S Series Back Up Wrench delivers exceptional strength, durability, and adaptability. It is precision‑machined from high‑grade alloy steel to withstand demanding industrial environments and high‑torque applications.
Specifications
Specifications
| Torque Wrench Model Number | S80 |
| A/F Size Metric(mm) | 80 |
| A/F Size Imperial（inch） | 3-1/8” |
| Max Torque(Nm) | 9491 |
| Max Torque(Ft.lbs) | 7000 |

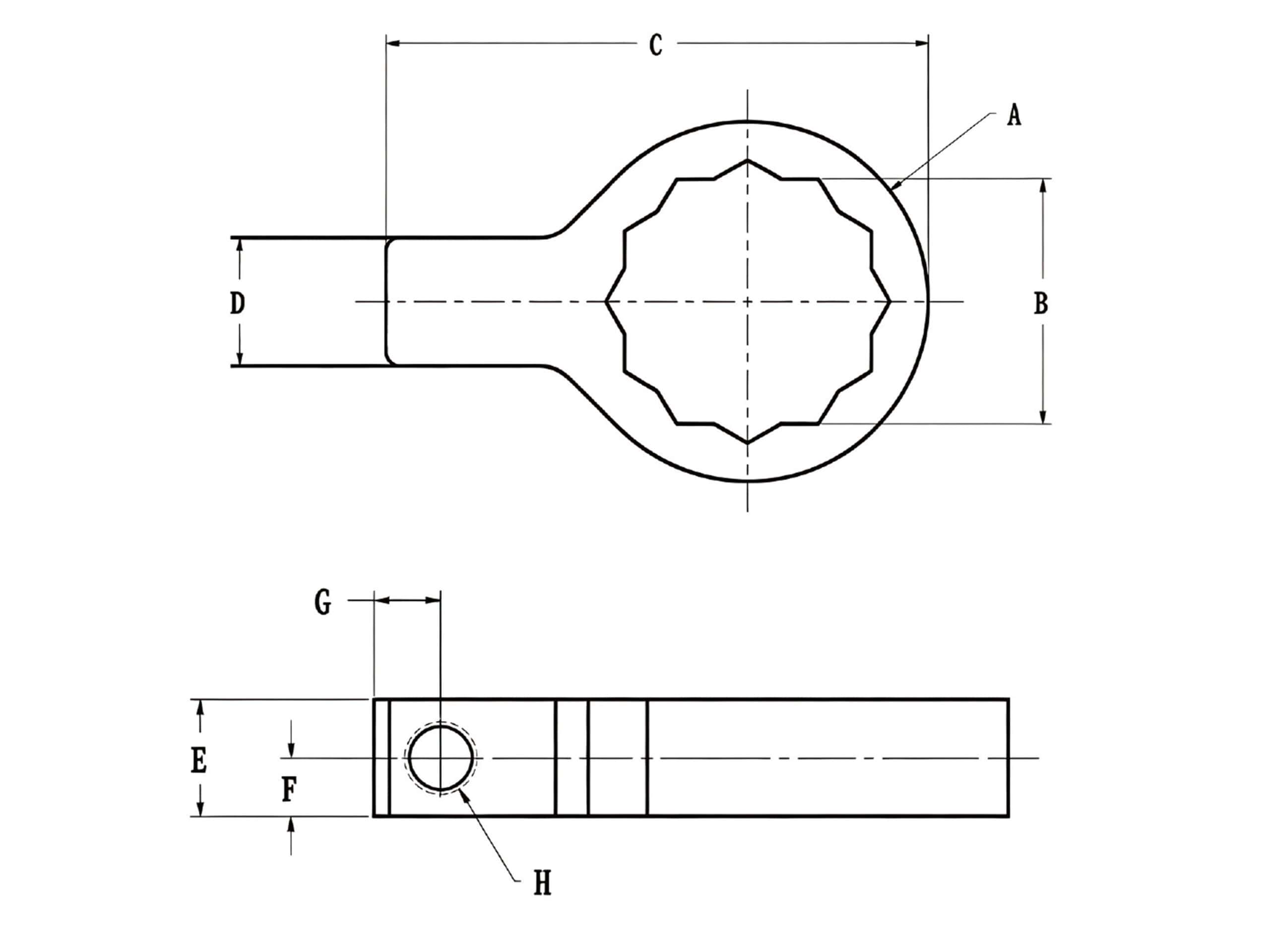

Dimensions
Click to enlarge image
Series Comparison
Series Comparison
| Model | A/F Size(mm) | A/F Size(inch) | Max Torque(Nm) | Max Torque(Ft.lbs) | A/mm | B/mm | C/mm | D/mm | E/mm | F/mm | G/mm | H/mm |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S30 | 30 | 1-3/16” | 3254 | 2400 | 50 | 30.2 | 85 | 30 | 18 | 9 | 15 | M12 |
| S36 | 36 | 1-7/16” | 3390 | 2500 | 58 | 36.2 | 90 | 30 | 18 | 9 | 15 | M12 |
| S41 | 41 | 1-5/8” | 4745 | 3500 | 64 | 41.2 | 99 | 30 | 19 | 9.5 | 15 | M12 |
| S46 | 46 | 1-13/16” | 4745 | 3500 | 74 | 46.2 | 107 | 30 | 24 | 12 | 15 | M14 |
| S50 | 50 | 2” | 5559 | 4100 | 80 | 50.2 | 115 | 30 | 24 | 12 | 15 | M14 |
| S55 | 55 | 2-3/16” | 5694 | 4200 | 85 | 55.2 | 122.5 | 30 | 24 | 12 | 15 | M14 |
| S57 | 57 | 2-1/4” | 5830 | 4300 | 92 | 60.2 | 131 | 34 | 24 | 12 | 15 | M14 |
| S60 | 60 | 2-3/8” | 5830 | 4300 | 100 | 65.2 | 145 | 34 | 29 | 14.5 | 16 | M16 |
| S65 | 65 | 2-9/16” | 6169 | 4500 | 106 | 70.3 | 158 | 40 | 29 | 14.5 | 16 | M16 |
| S70 | 70 | 2-3/4” | 7592 | 5600 | 115 | 75.3 | 167.5 | 40 | 29 | 14.5 | 16 | M16 |
| S75 | 75 | 2-15/16” | 8542 | 6300 | 125 | 80.4 | 182.5 | 44 | 34 | 17 | 20 | M18 |
| S80 | 80 | 3-1/8” | 9491 | 7000 | 130 | 85.4 | 195 | 44 | 34 | 17 | 20 | M18 |
| S85 | 85 | 3-3/8” | 9762 | 7200 | 135 | 90.4 | 202.5 | 50 | 39 | 19.5 | 22 | M24 |
| S90 | 90 | 3-9/16” | 9897 | 7300 | 140 | 95.4 | 210 | 50 | 39 | 19.5 | 22 | M24 |
| S95 | 95 | 3-3/4” | 12202 | 9000 | 145 | 95.4 | 220 | 50 | 39 | 19.5 | 22 | M24 |
| S100 | 100 | 3-15/16” | 32539 | 24000 | 152 | 100.4 | 230 | 55 | 44 | 22 | 25 | M27 |
| S105 | 105 | 4-1/8” | 32539 | 24000 | 160 | 105.4 | 245 | 55 | 44 | 22 | 25 | M27 |
| S110 | 110 | 4-5/16” | 32539 | 24000 | 168 | 110.4 | 255 | 55 | 44 | 22 | 25 | M27 |
| S115 | 115 | 4-1/2” | 33895 | 25000 | 175 | 115.5 | 270 | 55 | 44 | 22 | 25 | M27 |
| S120 | 120 | 4-3/4” | 36607 | 27000 | 180 | 120.5 | 280 | 60 | 49 | 24.5 | 28 | M30 |
| S130 | 130 | 5-1/8” | 36607 | 27000 | 192 | 130.5 | 300 | 60 | 49 | 24.5 | 28 | M30 |
| S135 | 135 | 5-5/16” | 36607 | 27000 | 198 | 135.5 | 315 | 60 | 49 | 24.5 | 28 | M30 |
| S145 | 145 | 5-11/16” | 37962 | 28000 | 210 | 145.5 | 335 | 60 | 54 | 27 | 28 | M30 |
