OSC32, 32 Points, Satellite Type Synchronization Lifting System

Series:OSC | Product Line: Industrial Tools

Distributed Architecture for Maximum Flexibility:

• Electrical Connections Replace Hydraulic Hoses: The 16/32-point control cabinet connects to individual sub-pump stations via power and communication cables, eliminating the need for long hydraulic hose runs. This design overcomes traditional limitations where hydraulic hoses are typically restricted to 30 meters to avoid pressure drop—cables can extend significantly longer without performance degradation.

• Dual-Purpose Sub-Pump Stations: Each sub-pump station can function as an independent hydraulic pump when not part of a synchronized system, complete with a remote control handle. This modular approach maximizes equipment utilization, allowing components to serve multiple roles across different projects—delivering superior long-term cost efficiency.

Integrated Hardware & Smart Functionality:

• Comprehensive Onboard Instrumentation: Each pump station comes standard with displacement sensors, pressure sensors, and integrated storage compartments—ensuring all necessary components are readily available and protected during transport and storage.

• Large-Format Touchscreen Interface: Features a 16 to 22-inch large touchscreen display, providing clear visualization and intuitive control over complex multi-point lifting operations.

• Advanced Control Software: Includes comprehensive programming for synchronous lifting, synchronous lowering, and pressure sensor-based weighing analysis—enabling precise load monitoring and distribution control throughout the operation.

Extended Reach & Unlimited Scalability:

• Long-Distance Connectivity: Standard configuration includes 50-meter power and communication cables, with optional extensions available up to 100 meters—providing ample reach for large-scale projects without compromising signal integrity or control precision.

• Massive System Expansion: Multiple OCS systems can be combined to achieve synchronized control of up to 128 lifting points—offering virtually unlimited scalability for the most complex and demanding heavy lifting projects.

Function Introduction

1. You can click any point to control

2. The pressure value, tonnage value, absolute displacement value and relative displacement value of each point are displayed in real time

3. Manually input the X, Y coordinate values of each control point

4. Manual control: manual lifting / manual lowering

5. Pre-lifting: set the low pressure, and the cylinder will automatically stop when it reaches the set pressure value after starting, effectively contacting the load without moving the load

6. Automatic control: after setting the target position, automatically perform synchronous lifting / synchronous lowering

7. Weighing analysis: total tonnage calculation, automatic center of gravity analysis

8. Other functions: pressure, displacement signal loss alarm, overpressure alarm, stroke tolerance alarm, etc.

OSC32:

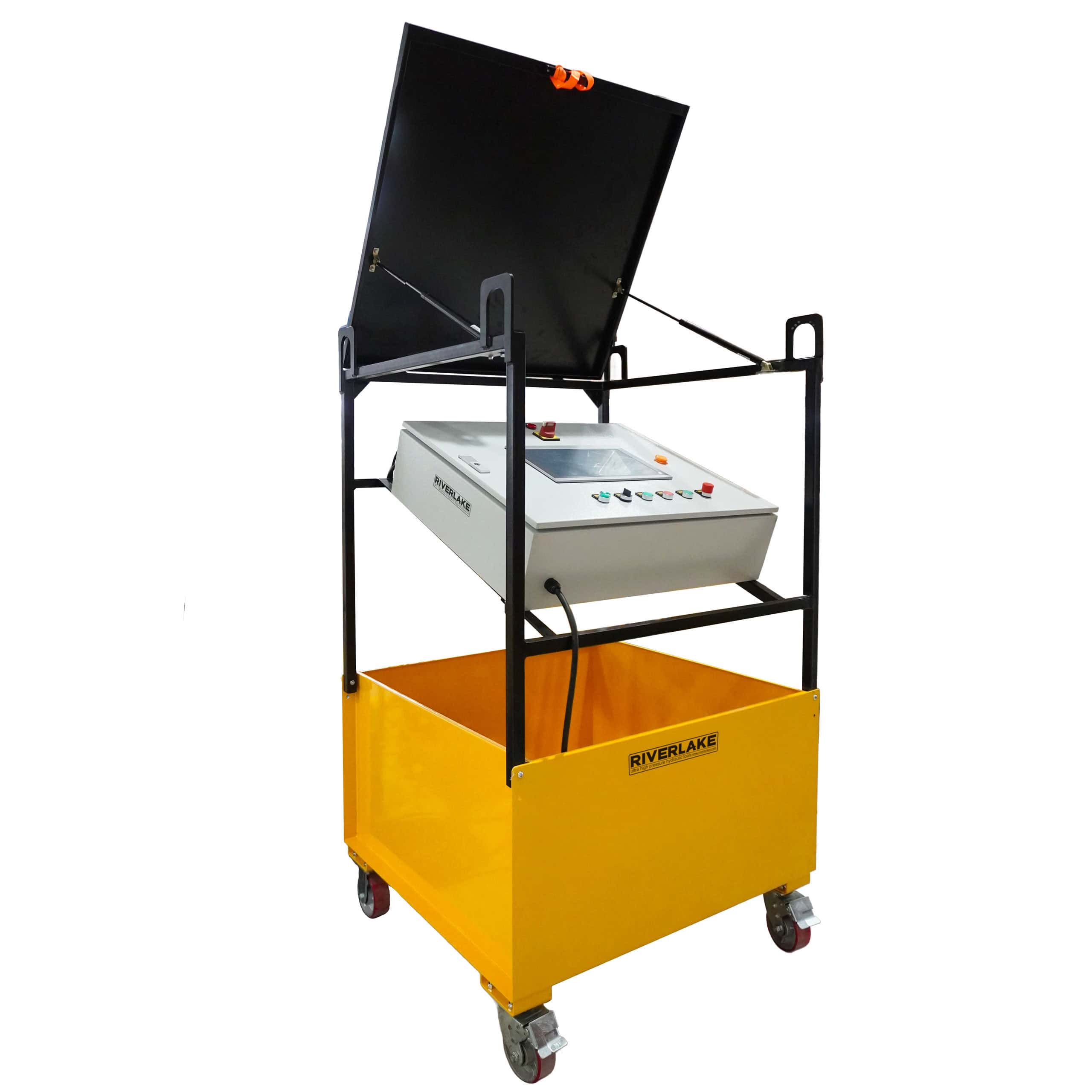

OSC-32 Control Cabinet X 1PC

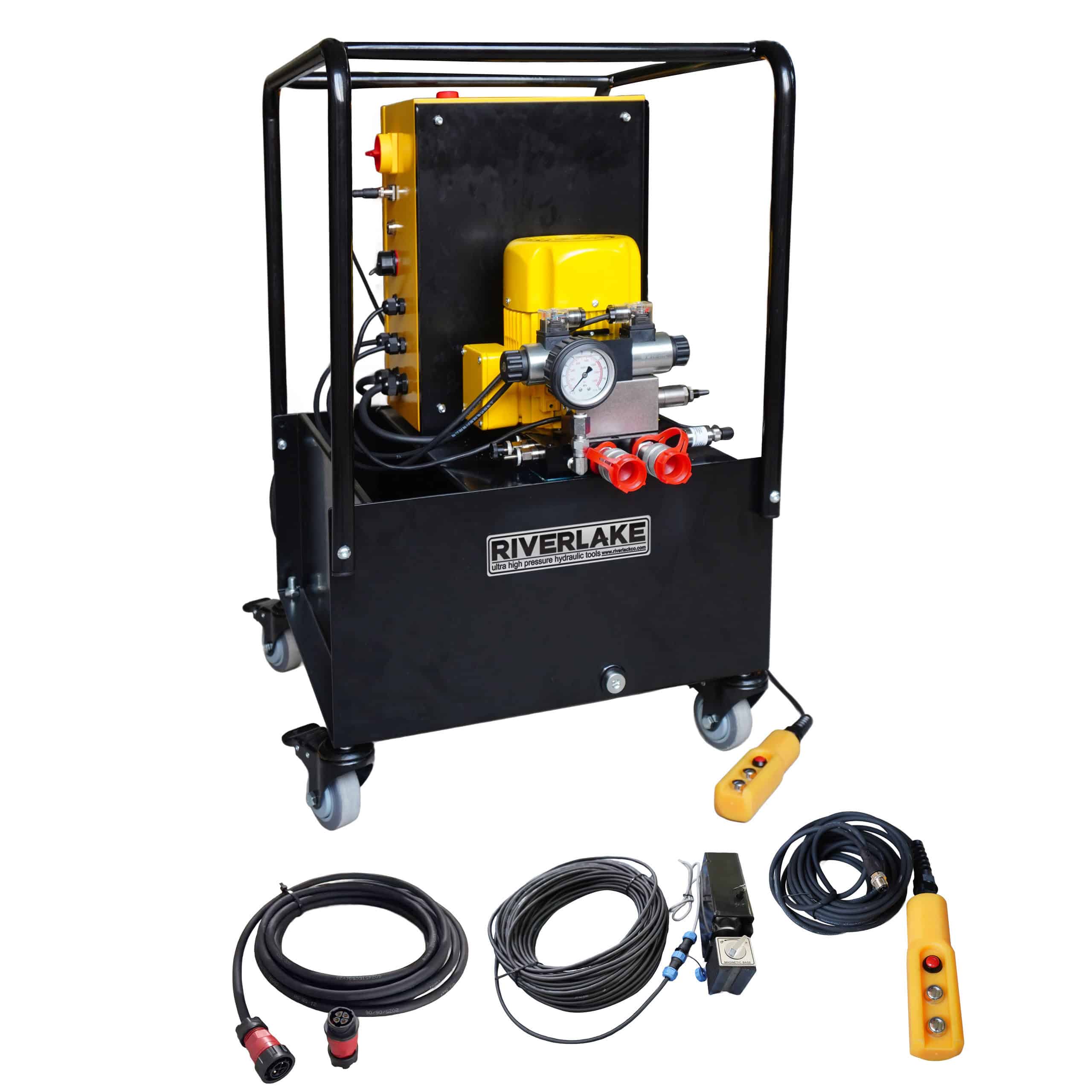

OSC-3030EVB43R Pump Station X 32PCS

OSC-PC-50/100 Power Cables X 32PCS

OSC-SC-50/100 Communication Cable X 32PCS
