HSP700 Series,10,000 psi (700 bar), Hydraulic Hose

Engineered for extreme industrial applications, the RIVERLAKE HSP700 Series delivers uncompromising reliability at 70MPa working pressure. These hoses combine minimal expansion, superior durability, and smart protection systems to maximize efficiency and safety in critical hydraulic circuits.

PRICE ON REQUEST
Download Catalogue

Key Features:

  • Ultra-High Pressure Resilience: Rated for 70MPa continuous operation

  • Precision Fluid Transfer: Low volumetric expansion under load ensures system efficiency and responsive control.

  • Intelligent Protection:

    • <10m Hoses: Rigid PC anti-burst sleeves resist abrasion and impact.

    • ≥10m Hoses: Corrugated rubber grip handles prevent kinking and surface damage.

Order Rules:

Model :HSP700PC-B-FM

HSP700= 700Bar Hydraulic Hose

PC=PC Burst Sleeve

B=Length

M=Male Quick Coupler

F=Female Quick Coupler

ModelImageRated Working PressureWith PC Burst SleeveLengthIDODSafety FactorInner LayerReinforcement LayerExternal LayerConnections

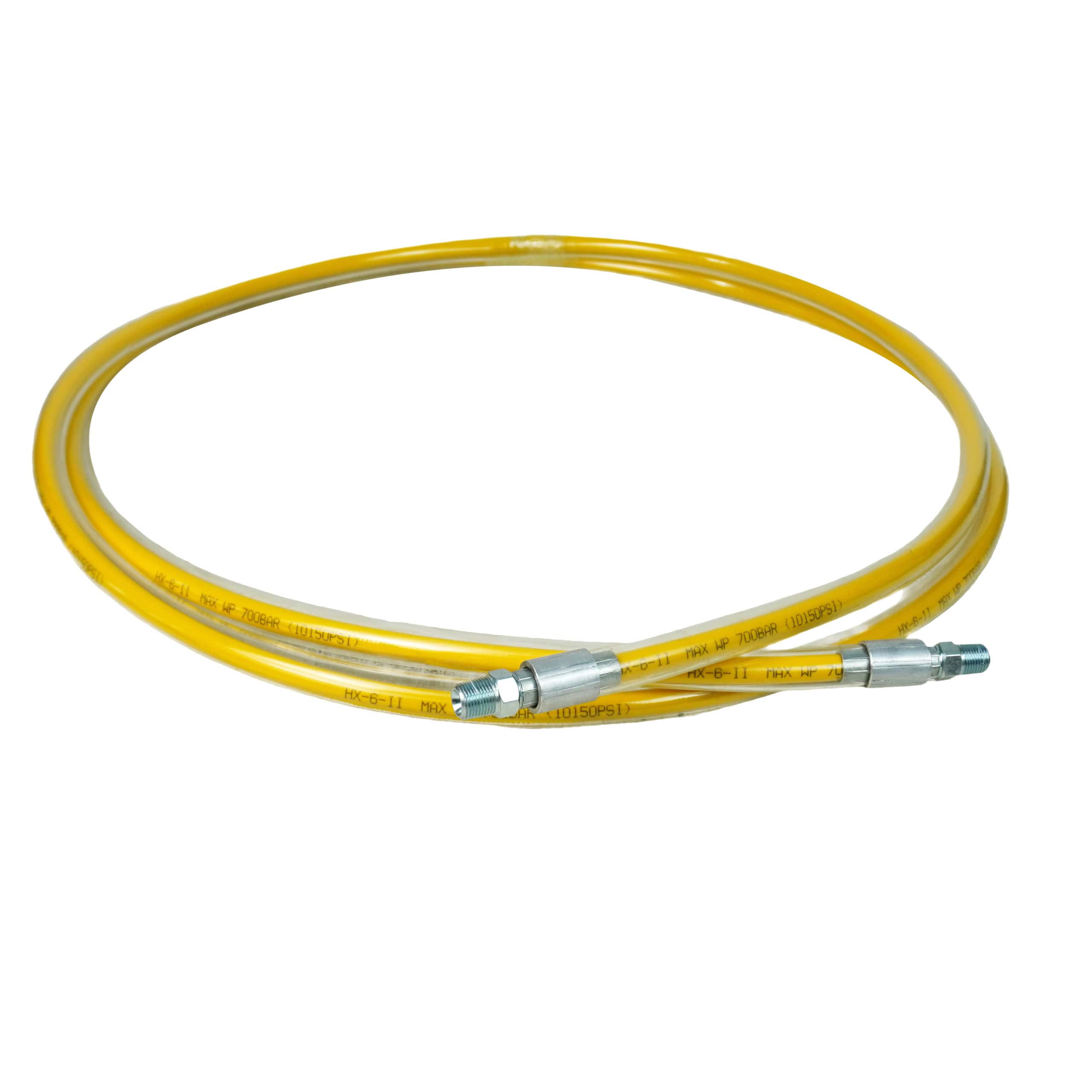

HSP700PC-170MPaYes1m6mm13.2mm2nylonHigh-strength tensile steel wirePolyurethaneBoth End NPT3/8 Thread

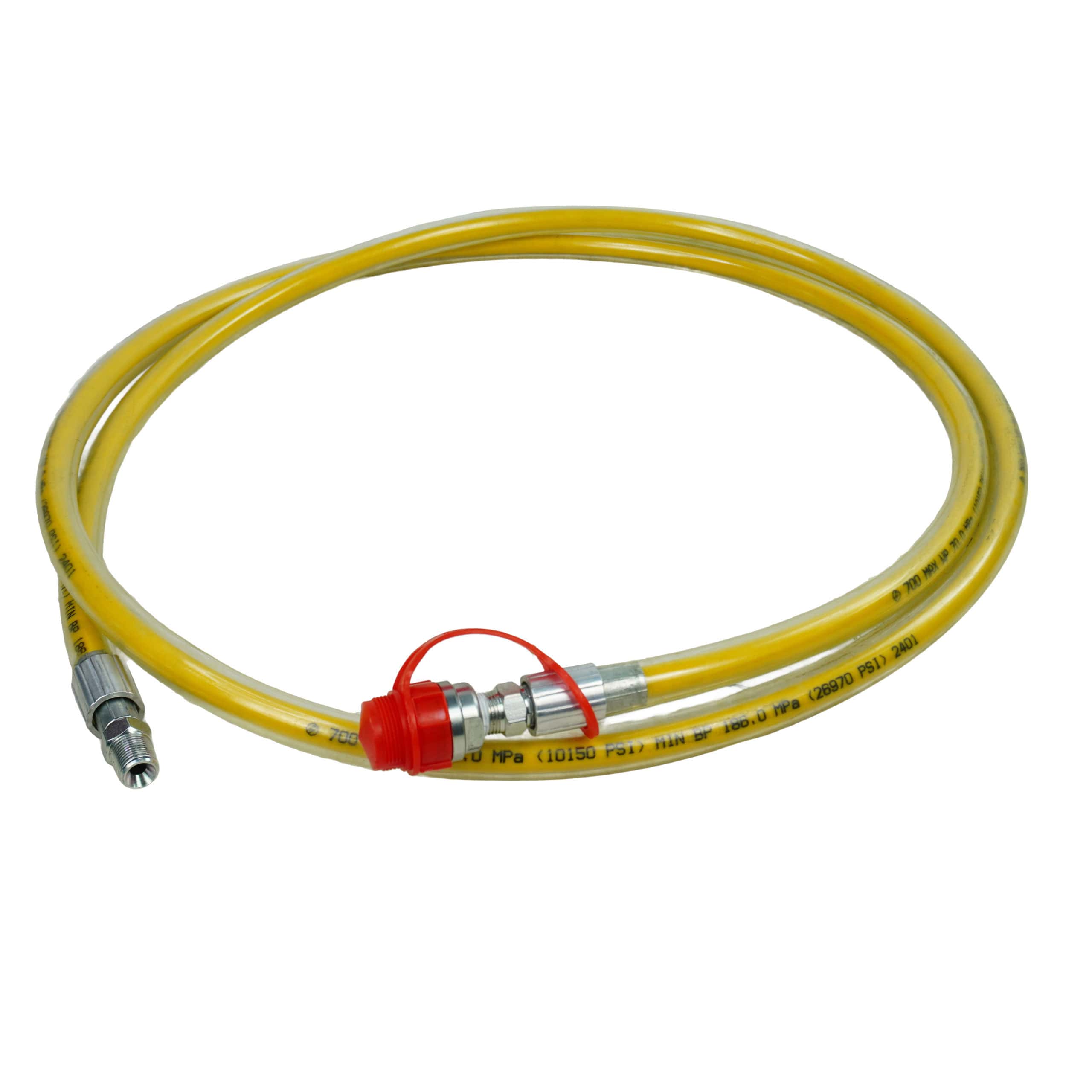

HSP700PC-1-M70MPaYes1m6mm13.2mm2nylonHigh-strength tensile steel wirePolyurethaneOne End NPT3/8 Male Coupler,Another End NPT3/8 Thread

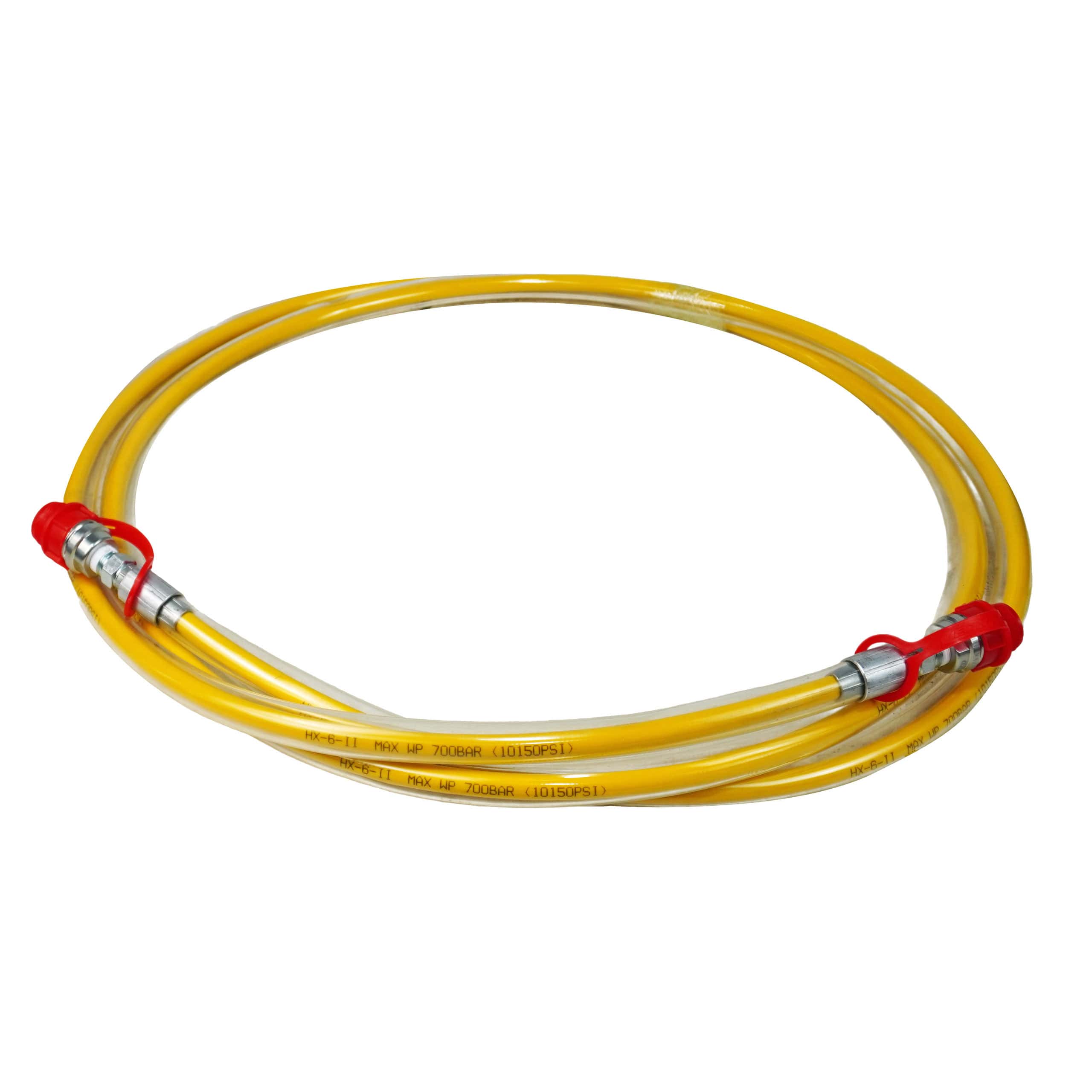

HSP700PC-1-MM70MPaYes1m6mm13.2mm2nylonHigh-strength tensile steel wirePolyurethaneBoth End NPT3/8 Male Coupler
HSP700PC-370MPaYes3m6mm13.2mm2nylonHigh-strength tensile steel wirePolyurethaneBoth End NPT3/8 Thread
HSP700PC-3-M70MPaYes3m6mm13.2mm2nylonHigh-strength tensile steel wirePolyurethaneOne End NPT3/8 Male Coupler,Another End NPT3/8 Thread
HSP700PC-3-MM70MPaYes3m6mm13.2mm2nylonHigh-strength tensile steel wirePolyurethaneBoth End NPT3/8 Male Coupler
HSP700PC-670MPaYes6m6mm13.2mm2nylonHigh-strength tensile steel wirePolyurethaneBoth End NPT3/8 Thread
HSP700PC-6-M70MPaYes6m6mm13.2mm2nylonHigh-strength tensile steel wirePolyurethaneOne End NPT3/8 Male Coupler,Another End NPT3/8 Thread
HSP700PC-6-MM70MPaYes6m6mm13.2mm2nylonHigh-strength tensile steel wirePolyurethaneBoth End NPT3/8 Male Coupler
HSP700PC-1070MPaYes10m6mm13.2mm2nylonHigh-strength tensile steel wirePolyurethaneBoth End NPT3/8 Thread
HSP700PC-10-M70MPaYes10m6mm13.2mm2nylonHigh-strength tensile steel wirePolyurethaneOne End NPT3/8 Male Coupler,Another End NPT3/8 Thread
HSP700PC-10-MM70MPaYes10m6mm13.2mm2nylonHigh-strength tensile steel wirePolyurethaneBoth End NPT3/8 Male Coupler

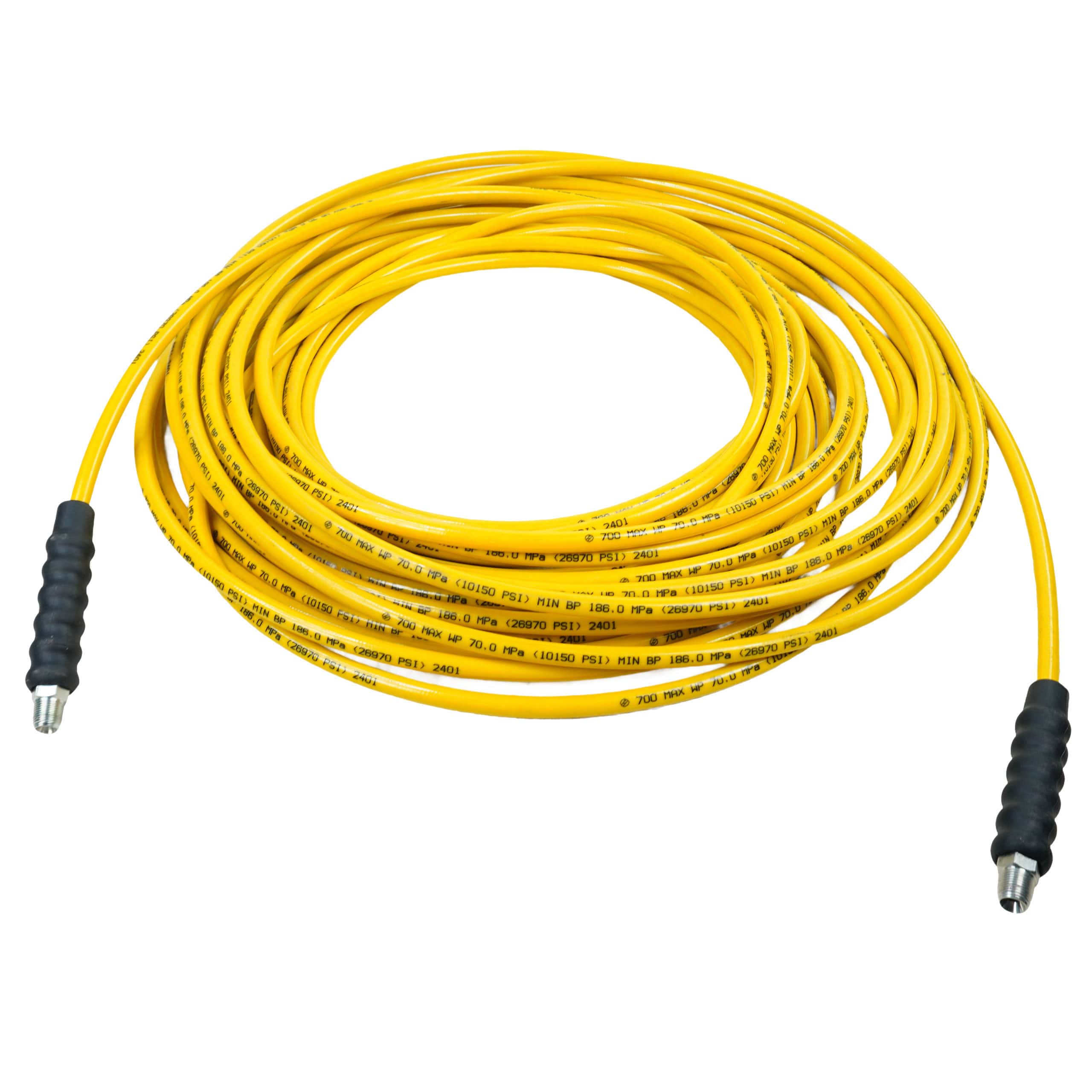

HSP700-2070MPaNO20m6mm13.2mm2nylonHigh-strength tensile steel wirePolyurethaneBoth End NPT3/8 Thread

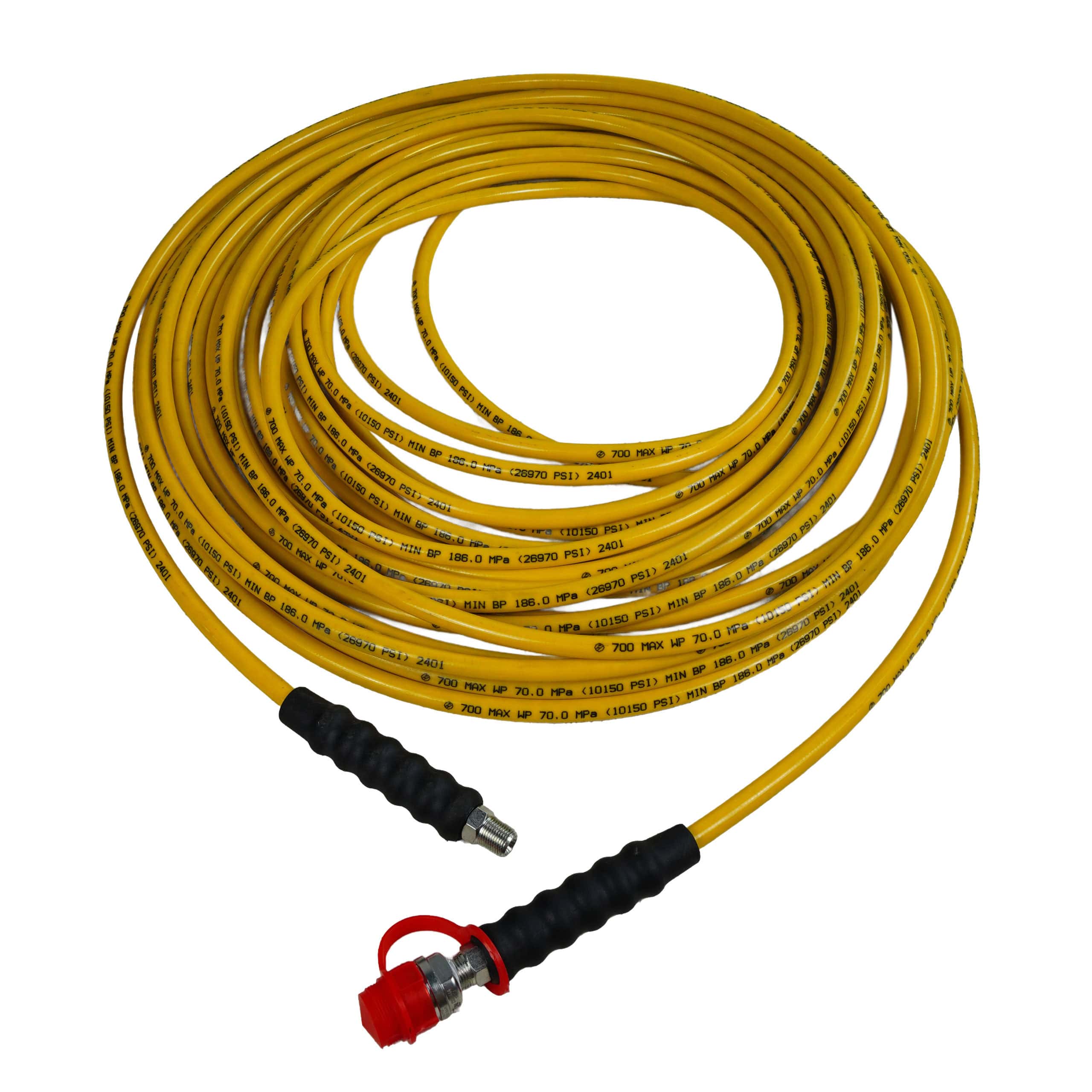

HSP700-20-M70MPaNO20m6mm13.2mm2nylonHigh-strength tensile steel wirePolyurethaneOne End NPT3/8 Male Coupler,Another End NPT3/8 Thread

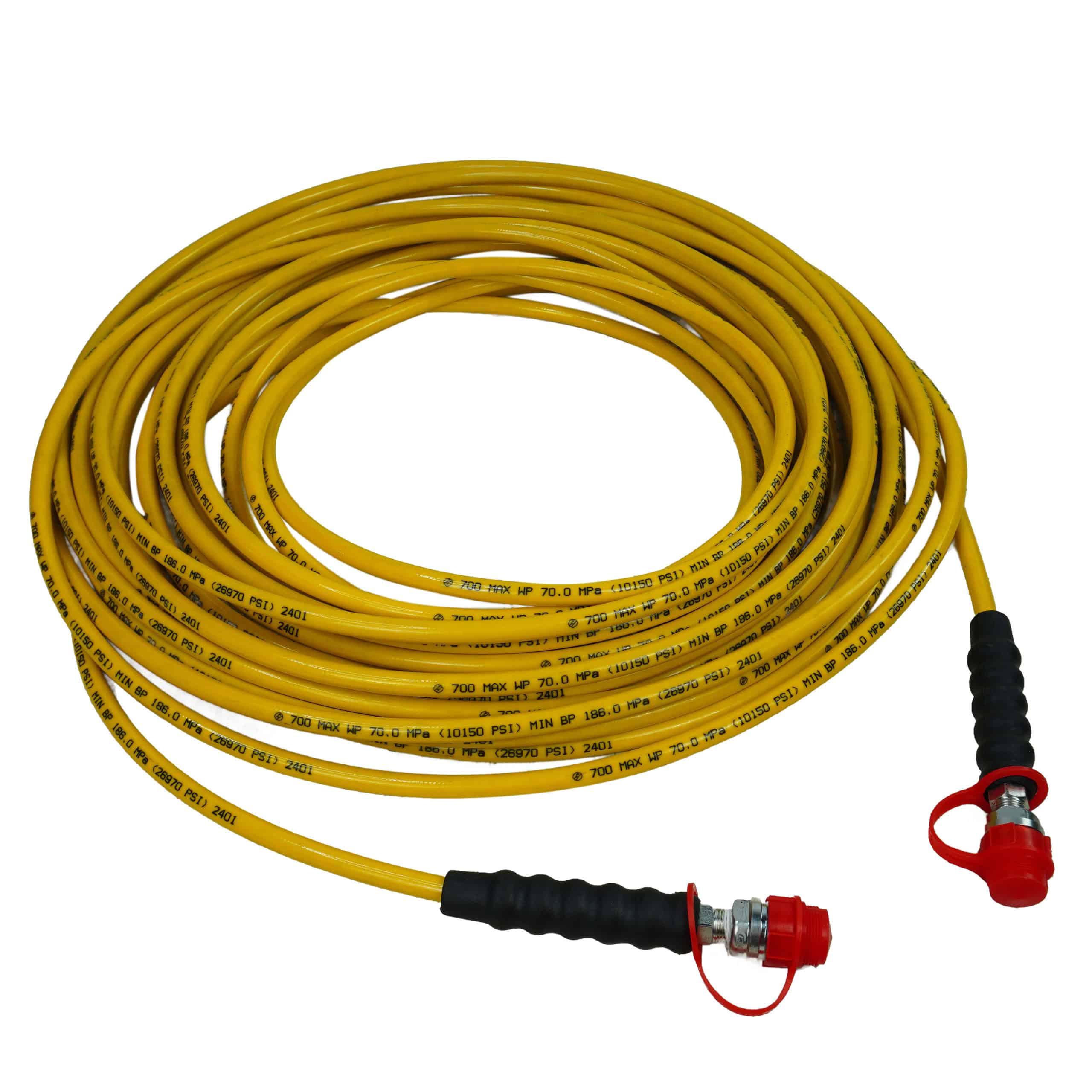

HSP700-20-MM70MPaNO20m6mm13.2mm2nylonHigh-strength tensile steel wirePolyurethaneBoth End NPT3/8 Male Coupler
HSP700-3070MPaNO30m6mm13.2mm2nylonHigh-strength tensile steel wirePolyurethaneBoth End NPT3/8 Thread
HSP700-30-M70MPaNO30m6mm13.2mm2nylonHigh-strength tensile steel wirePolyurethaneOne End NPT3/8 Male Coupler,Another End NPT3/8 Thread
HSP700-30-MM70MPaNO30m6mm13.2mm2nylonHigh-strength tensile steel wirePolyurethaneBoth End NPT3/8 Male Coupler
