HSP2500 Series,250MPa Ultra High Pressure Hydraulic Hose
Engineered for the most extreme industrial applications, the RIVERLAKE HSP2500 Series redefines hydraulic reliability with a groundbreaking 250MPa working pressure rating. These hoses deliver unparalleled precision, safety, and durability for mission-critical systems where failure is not an option.
Description
Key Features:
-
Industry-Leading Pressure Capacity: Certified for 250MPa continuous operation – the highest standard for hydraulic torque systems, mega-presses, and heavy-duty tensioners.
-
Zero-Efficiency Loss: Ultra-low volumetric expansion (<1.0% @250MPa) maximizes system response and energy transfer accuracy.
-
Intelligent Armor System:
-
<10m Hoses: Rigid PC anti-burst sleeves prevent abrasion and explosive failures.
-
≥10m Hoses: Corrugated rubber grip handles eliminate kinking and impact damage.
-
-
Multi-Layer Safety: 2.5 burst pressure safety factor with reinforced steel braiding and anti-permeation lining.
Order Rules:

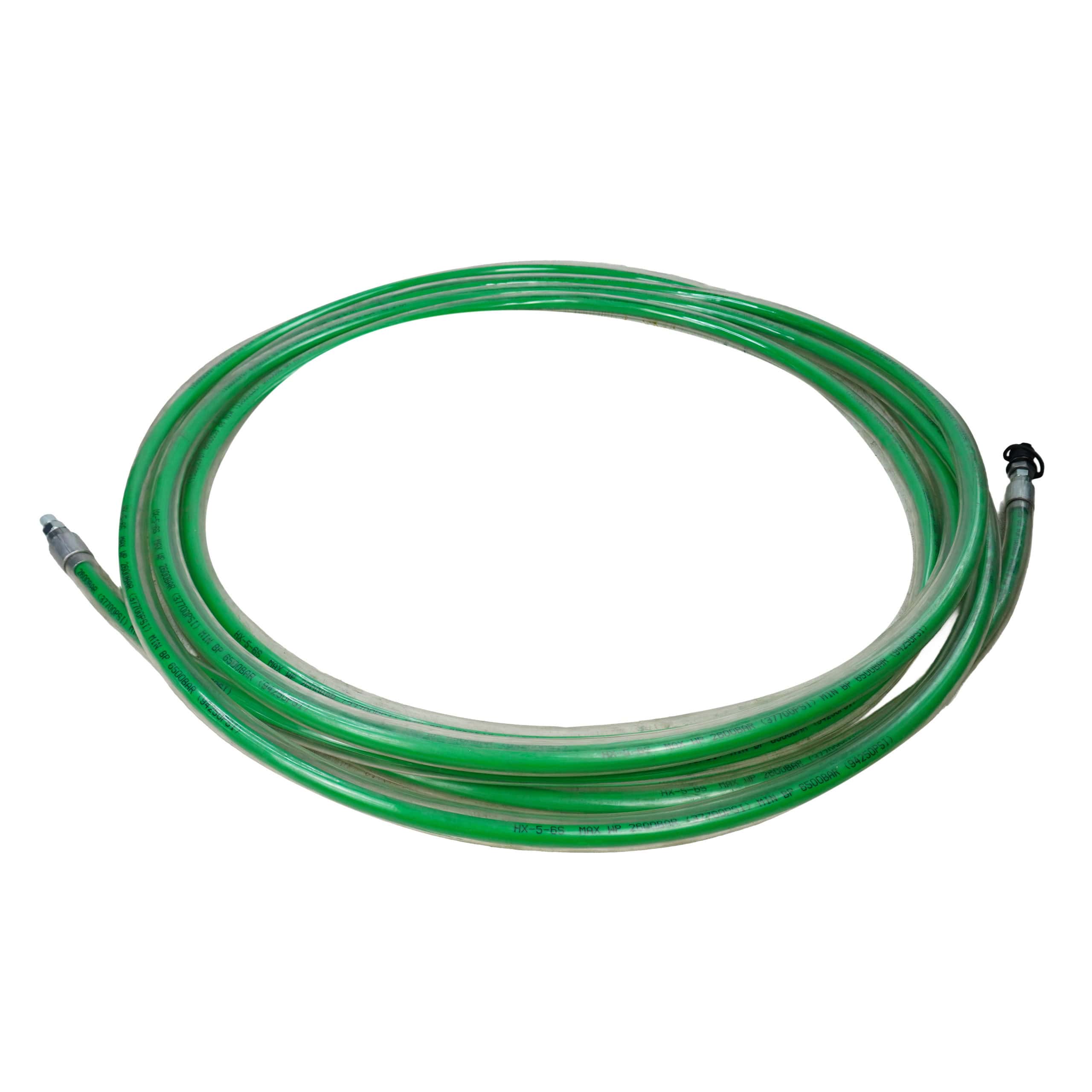

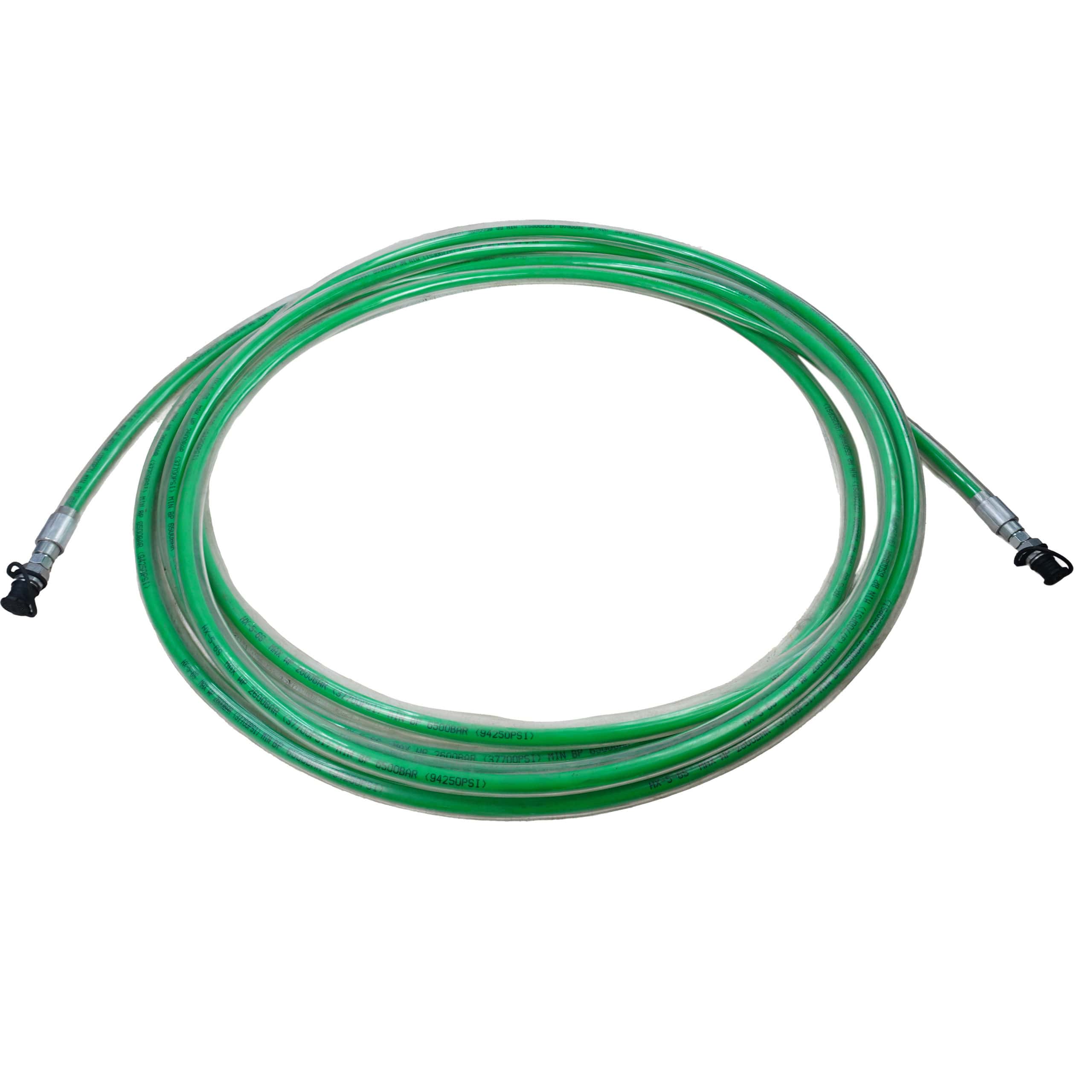

HSP2500PC-B-FM
HSP2500=2500Bar Hydraulic Hose
PC=PC Burst Sleeve
B=Length
F=Female CEJN 125 Quick Coupler
M=Male CEJN 125 Quick Coupler
Specification
| Model | Rated Working Pressure | With PC Burst Sleeve | Length | ID | OD | Safety Factor | Inner Layer | Reinforcement Layer | External Layer | Connections |
|---|---|---|---|---|---|---|---|---|---|---|

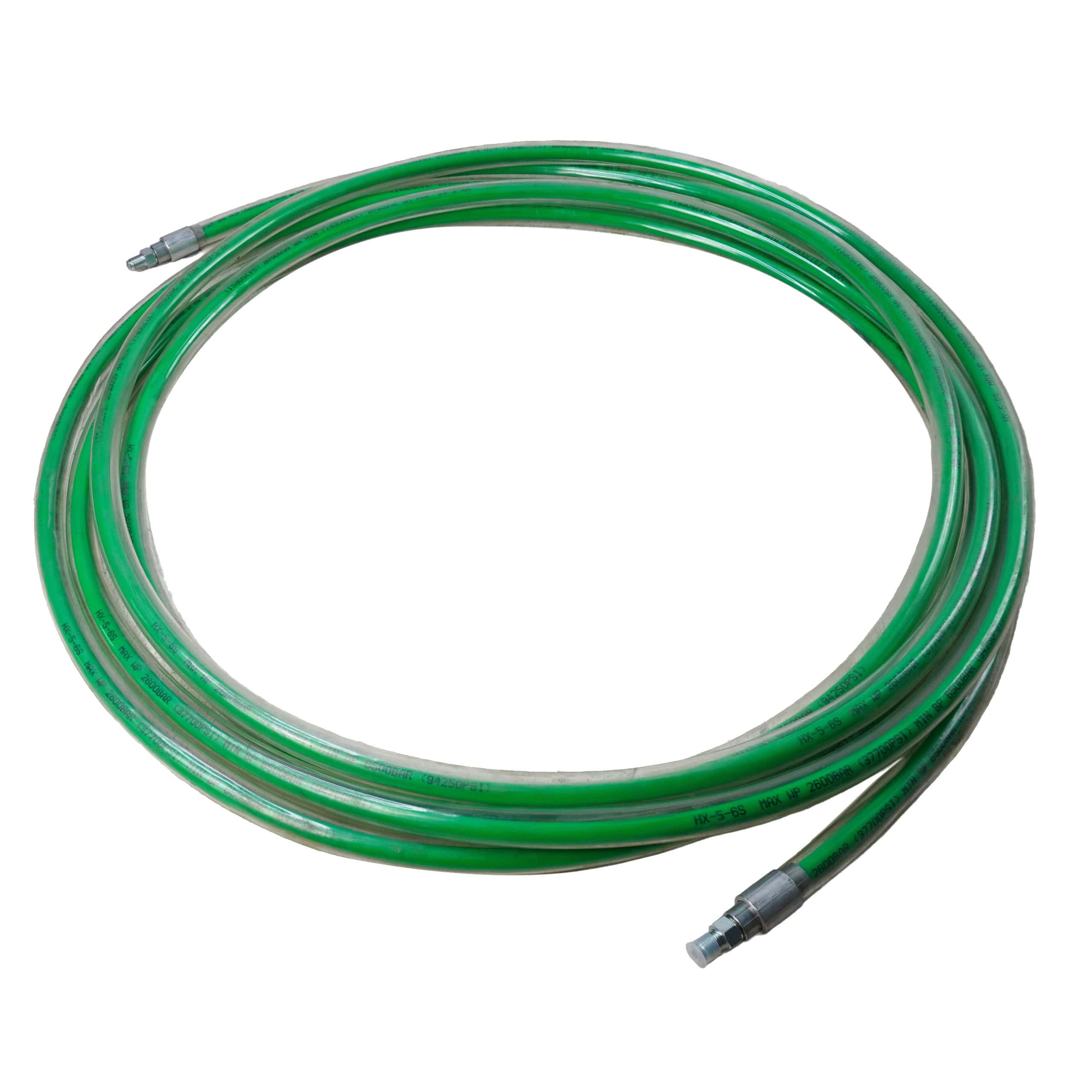

| HSP2500PC-3 | 250MPa | Yes | 3m | 5mm | 13.8mm | 2.5 | Polyoxymethylene | High-strength tensile steel wire | nylon | Both End G1/4 Thread |

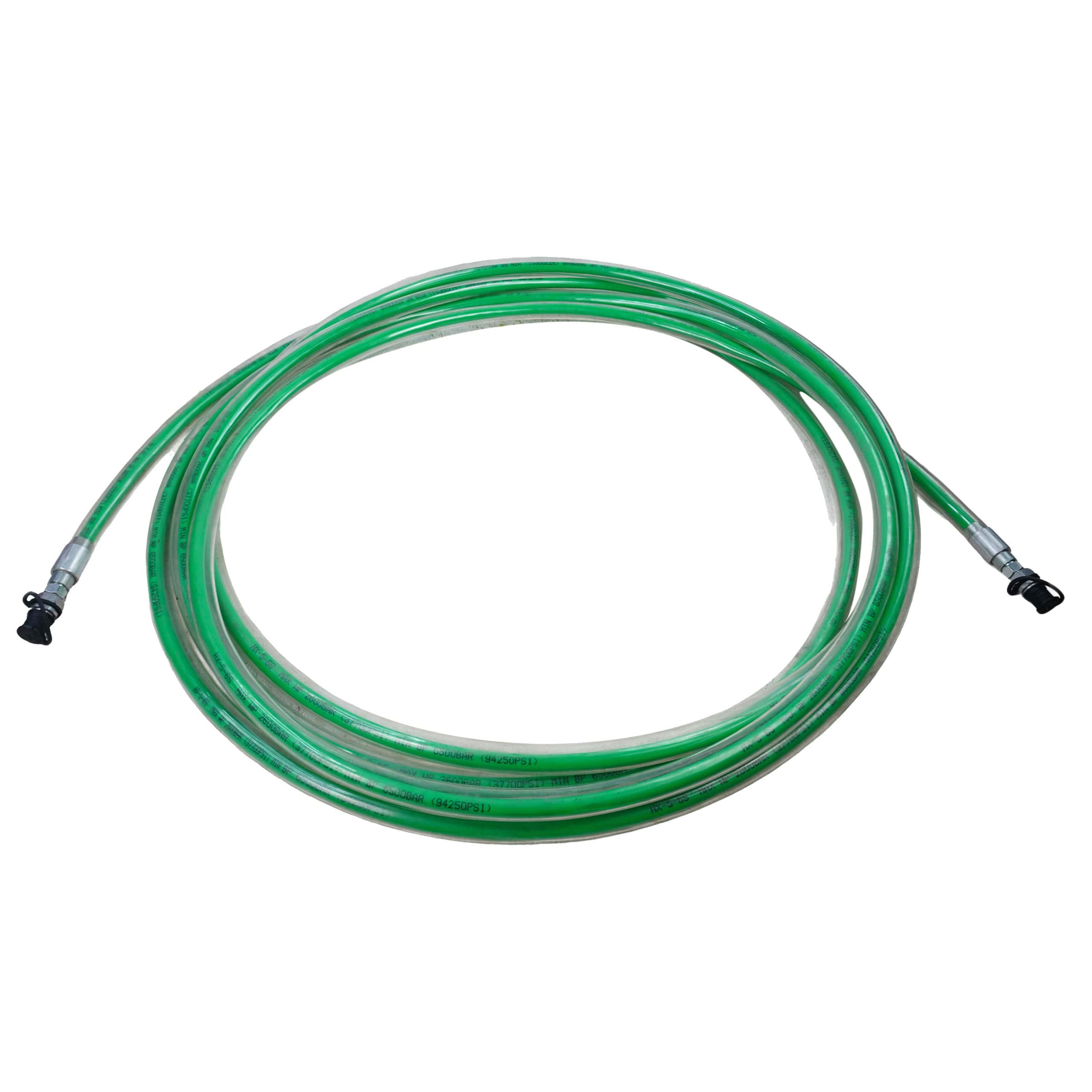

| HSP2500PC-3-MM | 250MPa | Yes | 3m | 5mm | 13.8mm | 2.5 | Polyoxymethylene | High-strength tensile steel wire | nylon | Both End CEJN 125 Male Coupler |
| HSP2500PC-3-FF | 250MPa | Yes | 3m | 5mm | 13.8mm | 2.5 | Polyoxymethylene | High-strength tensile steel wire | nylon | Both End CEJN 125 Female Coupler |
| HSP2500PC-3-MF | 250MPa | Yes | 3m | 5mm | 13.8mm | 2.5 | Polyoxymethylene | High-strength tensile steel wire | nylon | One End CEJN 125 Male Coupler,Another End CEJN 125 Female Coupler |
| HSP2500PC-6 | 250MPa | Yes | 6m | 5mm | 13.8mm | 2.5 | Polyoxymethylene | High-strength tensile steel wire | nylon | Both End G1/4 Thread |
| HSP2500PC-6-MM | 250MPa | Yes | 6m | 5mm | 13.8mm | 2.5 | Polyoxymethylene | High-strength tensile steel wire | nylon | Both End CEJN 125 Male Coupler |
| HSP2500PC-6-FF | 250MPa | Yes | 6m | 5mm | 13.8mm | 2.5 | Polyoxymethylene | High-strength tensile steel wire | nylon | Both End CEJN 125 Female Coupler |
| HSP2500PC-6-MF | 250MPa | Yes | 6m | 5mm | 13.8mm | 2.5 | Polyoxymethylene | High-strength tensile steel wire | nylon | One End CEJN 125 Male Coupler,Another End CEJN 125 Female Coupler |
| HSP2500PC-10 | 250MPa | Yes | 10m | 5mm | 13.8mm | 2.5 | Polyoxymethylene | High-strength tensile steel wire | nylon | Both End G1/4 Thread |
| HSP2500PC-10-MM | 250MPa | Yes | 10m | 5mm | 13.8mm | 2.5 | Polyoxymethylene | High-strength tensile steel wire | nylon | Both End CEJN 125 Male Coupler |
| HSP2500PC-10-FF | 250MPa | Yes | 10m | 5mm | 13.8mm | 2.5 | Polyoxymethylene | High-strength tensile steel wire | nylon | Both End CEJN 125 Female Coupler |
| HSP2500PC-10MF | 250MPa | Yes | 10m | 5mm | 13.8mm | 2.5 | Polyoxymethylene | High-strength tensile steel wire | nylon | One End CEJN 125 Male Coupler,Another End CEJN 125 Female Coupler |
