HSP1800 Series,180MPa Ultra High Pressure Hydraulic Hose
Engineered for extreme industrial applications, the RIVERLAKE HSP1800 Series delivers uncompromising reliability at 180MPa working pressure – setting a new standard for critical hydraulic systems. Combining minimal expansion, maximum safety, and intelligent protection, these hoses ensure peak efficiency in the most demanding environments.
Description
Key Features:
-
Ultra-High Pressure Resilience: Rated for 180MPa continuous operation – ideal for mega-ton presses, hydraulic breakers, and heavy-duty tensioners.
-
Precision Fluid Control: Ultra-low volumetric expansion (<1.2% @180MPa) maximizes system responsiveness and energy transfer.
-
Smart Armor System:
-
<10m Hoses: Rigid PC anti-burst sleeves prevent abrasion and explosive failures.
-
≥10m Hoses: Corrugated rubber grip handles resist kinking and impact damage.
-
-
Zero-Permeability Design: Multi-layer steel braiding eliminates fluid diffusion at extreme pressures.
Order Rules:

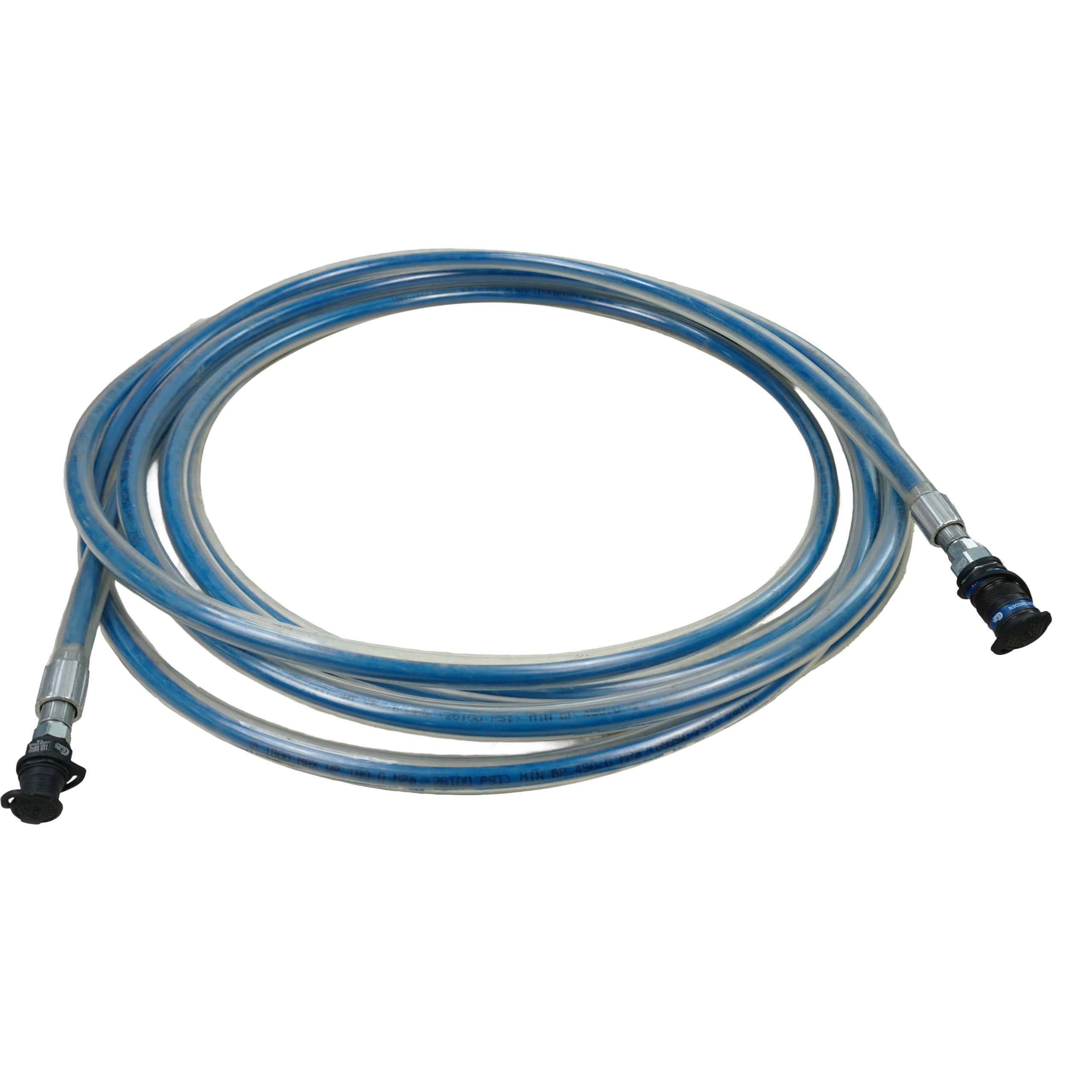

HSP1800PC-B-FM
HSP1800=1800Bar Hydraulic Hose
PC=PC Burst Sleeve
B=Length
F=Female CEJN 116 Quick Coupler
M=Male CEJN 116 Quick Coupler
Specification
| Model | Rated Working Pressure | With PC Burst Sleeve | Length | ID | OD | Safety Factor | Inner Layer | Reinforcement Layer | External Layer | Connections |
|---|---|---|---|---|---|---|---|---|---|---|

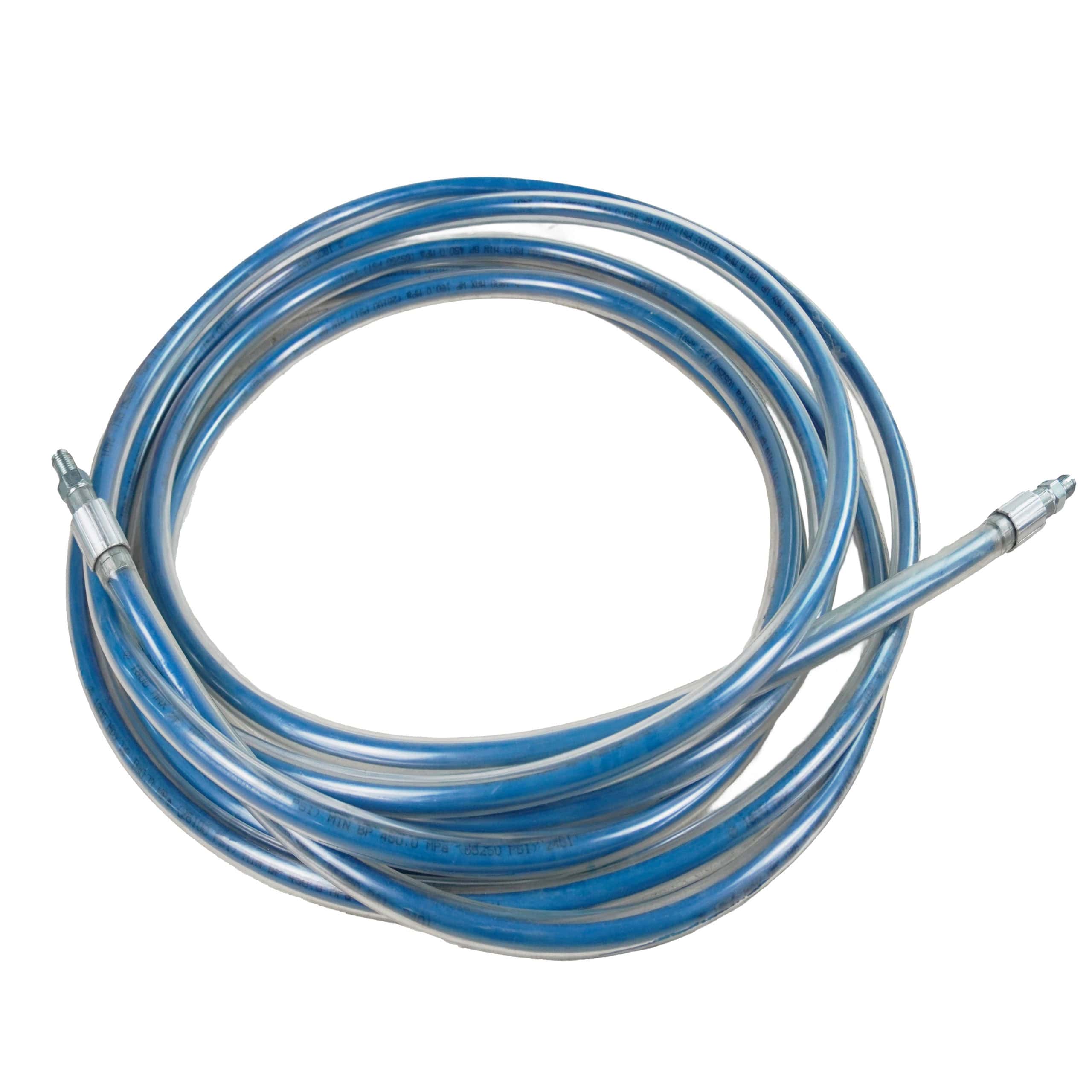

| HSP1800PC-3 | 180MPa | Yes | 3m | 5mm | 14.2mm | 2.5 | nylon | High-strength tensile steel wire | Polyurethane | Both End G1/4 Thread |

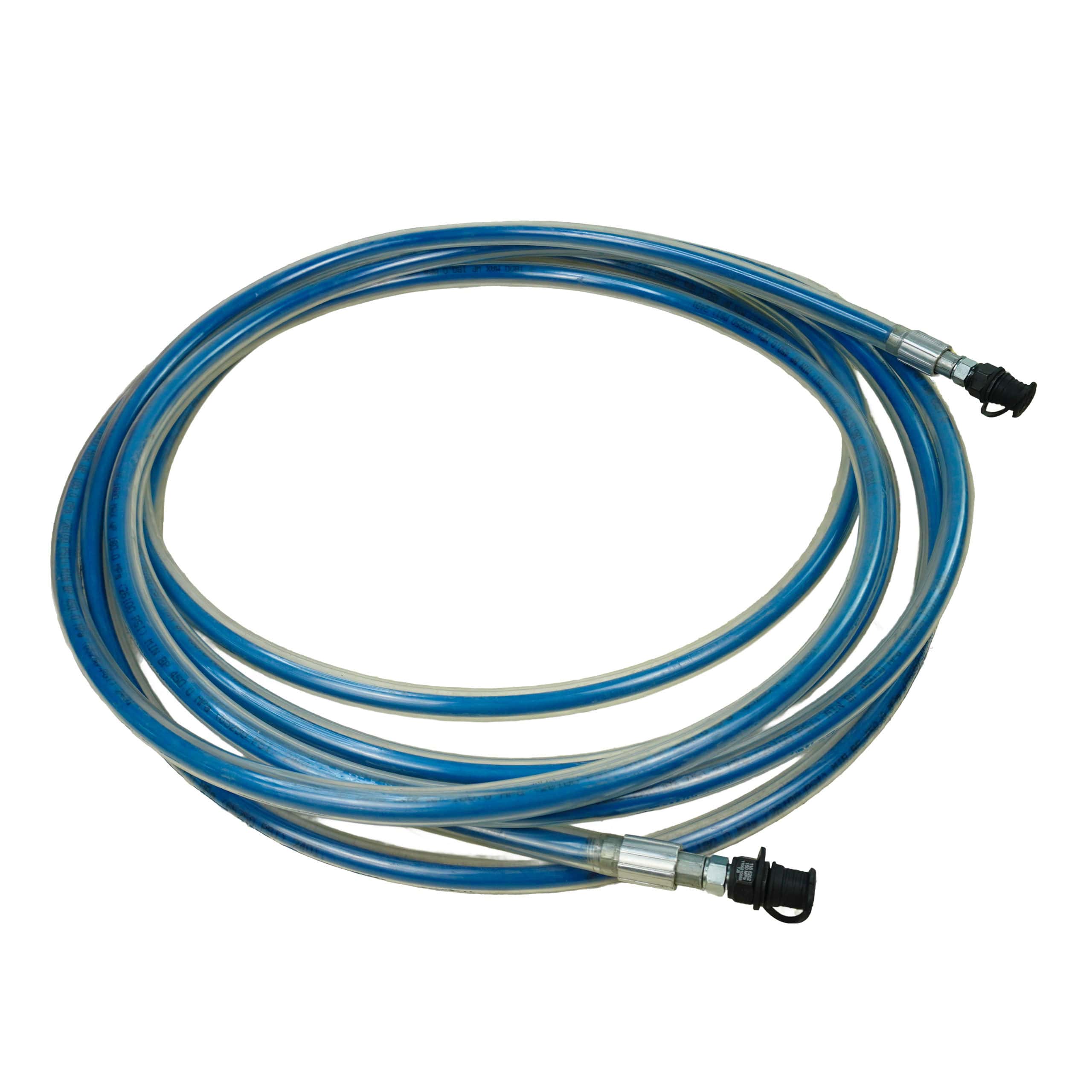

| HSP1800PC-3-MM | 180MPa | Yes | 3m | 5mm | 14.2mm | 2.5 | nylon | High-strength tensile steel wire | Polyurethane | Both End CEJN 116 Male Coupler |
| HSP1800PC-3-FF | 180MPa | Yes | 3m | 5mm | 14.2mm | 2.5 | nylon | High-strength tensile steel wire | Polyurethane | Both End CEJN 116 Female Coupler |
| HSP1800PC-3-MF | 180MPa | Yes | 3m | 5mm | 14.2mm | 2.5 | nylon | High-strength tensile steel wire | Polyurethane | One End CEJN 116 Male Coupler,Another End CEJN 116 Female Coupler |
| HSP1800PC-6 | 180MPa | Yes | 6m | 5mm | 14.2mm | 2.5 | nylon | High-strength tensile steel wire | Polyurethane | Both End G1/4 Thread |
| HSP1800PC-6-MM | 180MPa | Yes | 6m | 5mm | 14.2mm | 2.5 | nylon | High-strength tensile steel wire | Polyurethane | Both End CEJN 116 Male Coupler |
| HSP1800PC-6-FF | 180MPa | Yes | 6m | 5mm | 14.2mm | 2.5 | nylon | High-strength tensile steel wire | Polyurethane | Both End CEJN 116 Female Coupler |
| HSP1800PC-6-MF | 180MPa | Yes | 6m | 5mm | 14.2mm | 2.5 | nylon | High-strength tensile steel wire | Polyurethane | One End CEJN 116 Male Coupler,Another End CEJN 116 Female Coupler |
| HSP1800PC-10 | 180MPa | Yes | 10m | 5mm | 14.2mm | 2.5 | nylon | High-strength tensile steel wire | Polyurethane | Both End G1/4 Thread |
| HSP1800PC-10-MM | 180MPa | Yes | 10m | 5mm | 14.2mm | 2.5 | nylon | High-strength tensile steel wire | Polyurethane | Both End CEJN 116 Male Coupler |
| HSP1800PC-10-FF | 180MPa | Yes | 10m | 5mm | 14.2mm | 2 | nylon | High-strength tensile steel wire | Polyurethane | Both End CEJN 116 Female Coupler |
| HSP1800PC-10MF | 180MPa | Yes | 10m | 5mm | 14.2mm | 2 | nylon | High-strength tensile steel wire | Polyurethane | One End CEJN 116 Male Coupler,Another End CEJN 116 Female Coupler |
