Overview

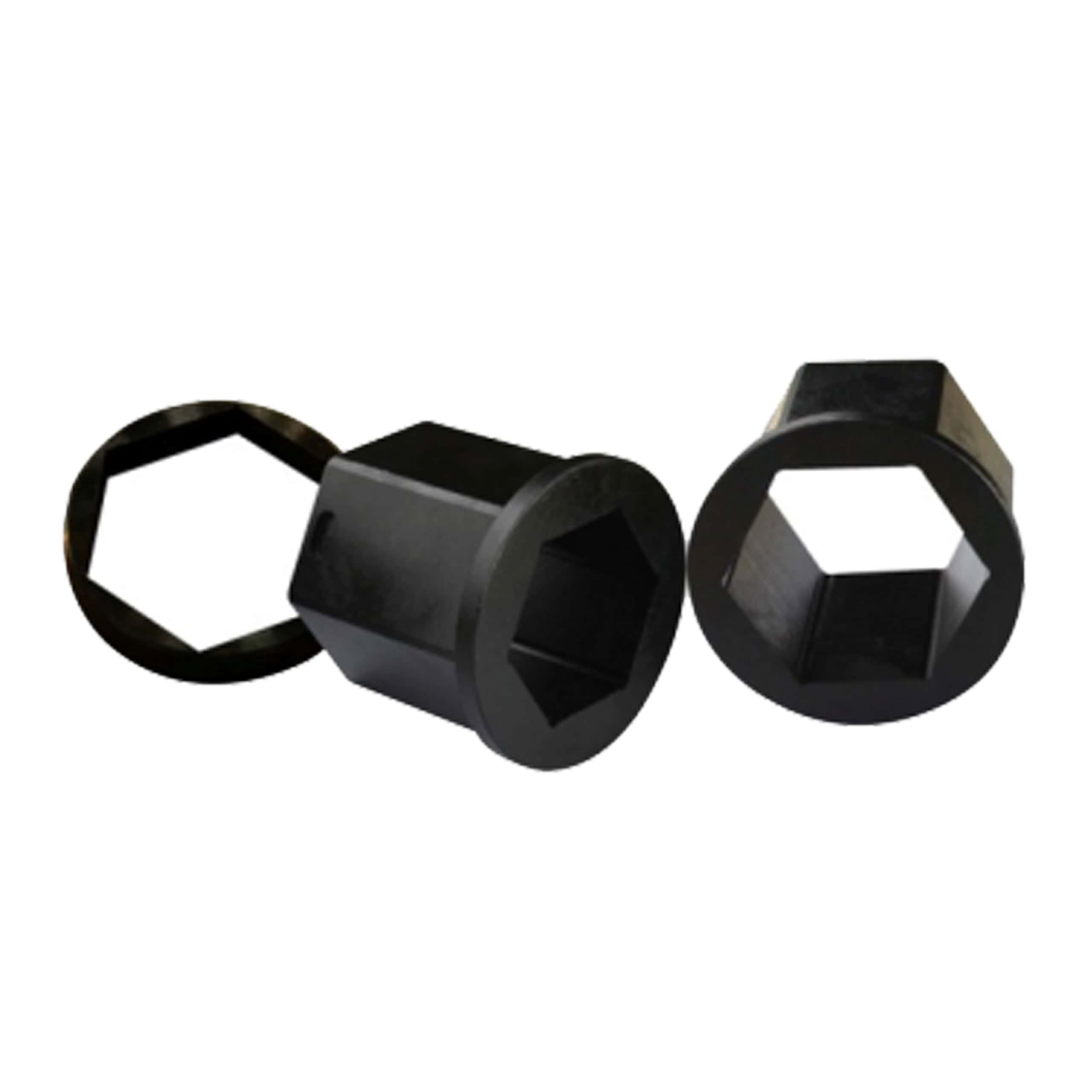

Hex Reducer

Engineered for the most demanding industrial applications, the HEXAGON REDUCER redefines power transmission with its unique combination of robust strength, exceptional precision, and unparalleled durability.

PRICE ON REQUEST

Features

Description

Series: XLCT | Product Line: Industrial Tools

Key Features:

Aerospace-Grade Material: Forged from high-strength alloy steel for extreme load resistance and crack prevention.
German Precision Manufacturing: Complies with DIN industrial standards for dimensional accuracy and fit.
Unbreakable Endurance: Standard heat treatment process guarantees lifetime performance – backed by a lifetime warranty.
Metric System Ready: Comprehensive range of metric sockets for global industrial compatibility.

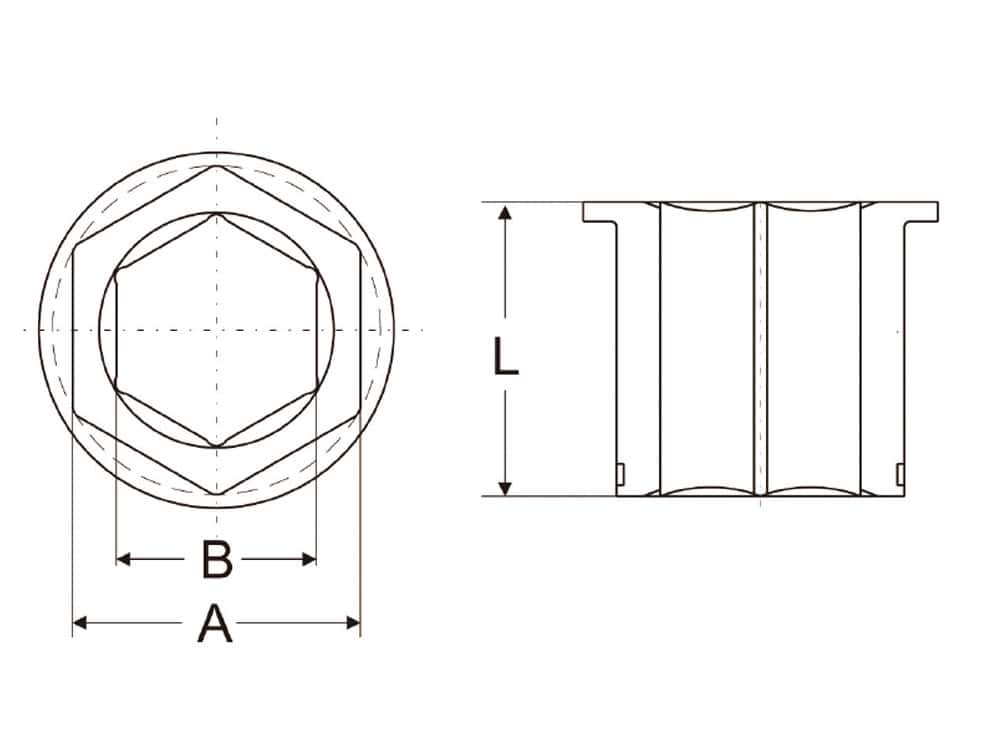

Dimensions

Click to enlarge image

Series Comparison

Model	A (mm)	B (mm)	L (mm)	Model	A (mm)	B (mm)	L (mm)	Model	A (mm)	B (mm)	L (mm)	Model	A (mm)	B (mm)	L (mm)	Model	A (mm)	B (mm)	L (mm)
XLCT2-32-27	32	27	50	XLCT3-65-60	65	60	54	XLCT8-60-46	60	46	71	XLCT14-100-90	100	90	82	XLCT30-85-75	85	75	103
XLCT2-36-27	36	27	50	XLCT3-70-60	70	60	54	XLCT8-60-50	60	50	71	XLCT14-105-90	105	90	82	XLCT30-90-75	90	75	103
XLCT2-36-30	36	30	50	XLCT3-70-65	70	65	54	XLCT8-65-50	65	50	71	XLCT14-105-95	105	95	82	XLCT30-90-80	90	80	103
XLCT2-41-30	41	30	50	XLCT4-32-27	32	27	60	XLCT8-65-55	65	55	71	XLCT14-110-95	110	95	82	XLCT30-95-80	95	80	103
XLCT2-41-32	41	32	50	XLCT4-36-27	36	27	60	XLCT8-70-55	70	55	71	XLCT14-110-100	110	100	82	XLCT30-95-85	95	85	103
XLCT2-46-32	46	32	50	XLCT4-36-30	36	30	60	XLCT8-70-60	70	60	71	XLCT14-117-100	115	100	82	XLCT30-100-85	85	85	103
XLCT2-46-36	46	36	50	XLCT4-41-30	41	30	60	XLCT8-75-60	75	60	71	XLCT14-117-105	115	105	82	XLCT30-100-90	100	90	103
XLCT2-50-36	50	36	50	XLCT4-41-32	41	32	60	XLCT8-75-65	75	65	71	XLCT22-75-65	75	65	92	XLCT30-105-90	105	90	103
XLCT2-50-41	50	41	50	XLCT4-46-32	46	32	60	XLCT8-80-65	80	65	71	XLCT22-80-65	80	65	92	XLCT30-105-95	105	95	103
XLCT2-55-46	45	45	50	XLCT4-46-36	46	36	60	XLCT8-80-70	80	70	71	XLCT22-80-70	80	70	92	XLCT30-110-95	110	95	103
XLCT2-55-50	55	50	50	XLCT4-50-36	50	36	60	XLCT8-85-70	85	70	71	XLCT22-85-70	85	70	92	XLCT30-110-100	110	100	103
XLCT2-60-50	60	50	50	XLCT4-50-41	50	41	60	XLCT8-85-75	85	75	71	XLCT22-85-75	85	75	92	XLCT30-117-100	117	100	103
XLCT2-60-55	60	55	50	XLCT4-55-41	55	41	60	XLCT8-90-75	90	75	71	XLCT22-90-75	90	75	92	XLCT30-117-105	117	105	103
XLCT3-36-27	36	27	54	XLCT4-55-46	55	46	60	XLCT8-90-80	90	80	71	XLCT22-90-80	90	80	92	XLCT30-120-110	120	110	103
XLCT3-36-30	36	30	54	XLCT4-60-46	60	46	60	XLCT8-95-80	95	80	71	XLCT22-95-80	95	80	92	XLCT30-120-115	120	115	103
XLCT3-41-30	41	30	54	XLCT4-60-50	60	50	60	XLCT8-95-85	95	85	71	XLCT22-95-85	95	85	92	XLCT30-130-117	117	117	103
XLCT3-41-32	41	32	54	XLCT4-65-50	65	50	60	XLCT14-75-65	75	65	82	XLCT22-100-85	100	85	92	XLCT30-130-120	130	120	103
XLCT3-46-36	46	36	54	XLCT4-65-55	65	55	60	XLCT14-80-65	80	65	82	XLCT22-100-90	100	90	92	XLCT30-135-120	120	120	103
XLCT3-46-41	46	41	54	XLCT4-70-55	70	55	60	XLCT14-80-70	80	70	82	XLCT22-105-90	105	90	92	XLCT30-135-125	125	125	103
XLCT3-50-41	50	41	54	XLCT4-70-60	70	60	60	XLCT14-85-70	85	70	82	XLCT22-105-95	105	95	92	XLCT30-140-125	125	125	103
XLCT3-50-46	50	46	54	XLCT4-75-60	75	60	60	XLCT14-85-75	85	75	82	XLCT22-117-105	117	105	92	XLCT30-140-130	130	130	103
XLCT3-55-46	55	46	54	XLCT4-75-65	75	65	60	XLCT14-90-75	90	75	82	XLCT22-117-110	117	110	92	XLCT30-145-130	130	130	103
XLCT3-55-50	55	50	54	XLCT4-80-65	80	65	60	XLCT14-90-80	90	80	82	XLCT22-130-110	130	110	92	XLCT30-145-135	135	135	103
XLCT3-60-50	60	50	54	XLCT4-80-70	80	70	60	XLCT14-95-80	95	80	82	XLCT22-130-120	130	120	92	XLCT30-150-135	135	135	103
XLCT3-60-55	60	55	54	XLCT4-85-55	55	41	71	XLCT14-95-85	95	85	82	XLCT22-135-120	135	120	92	XLCT30-150-140	140	140	103
XLCT3-65-55	65	55	54	XLCT8-55-46	55	46	71	XLCT14-100-85	100	85	82	XLCT22-135-125	135	125	92	XLCT30-155-145	155	145	103
