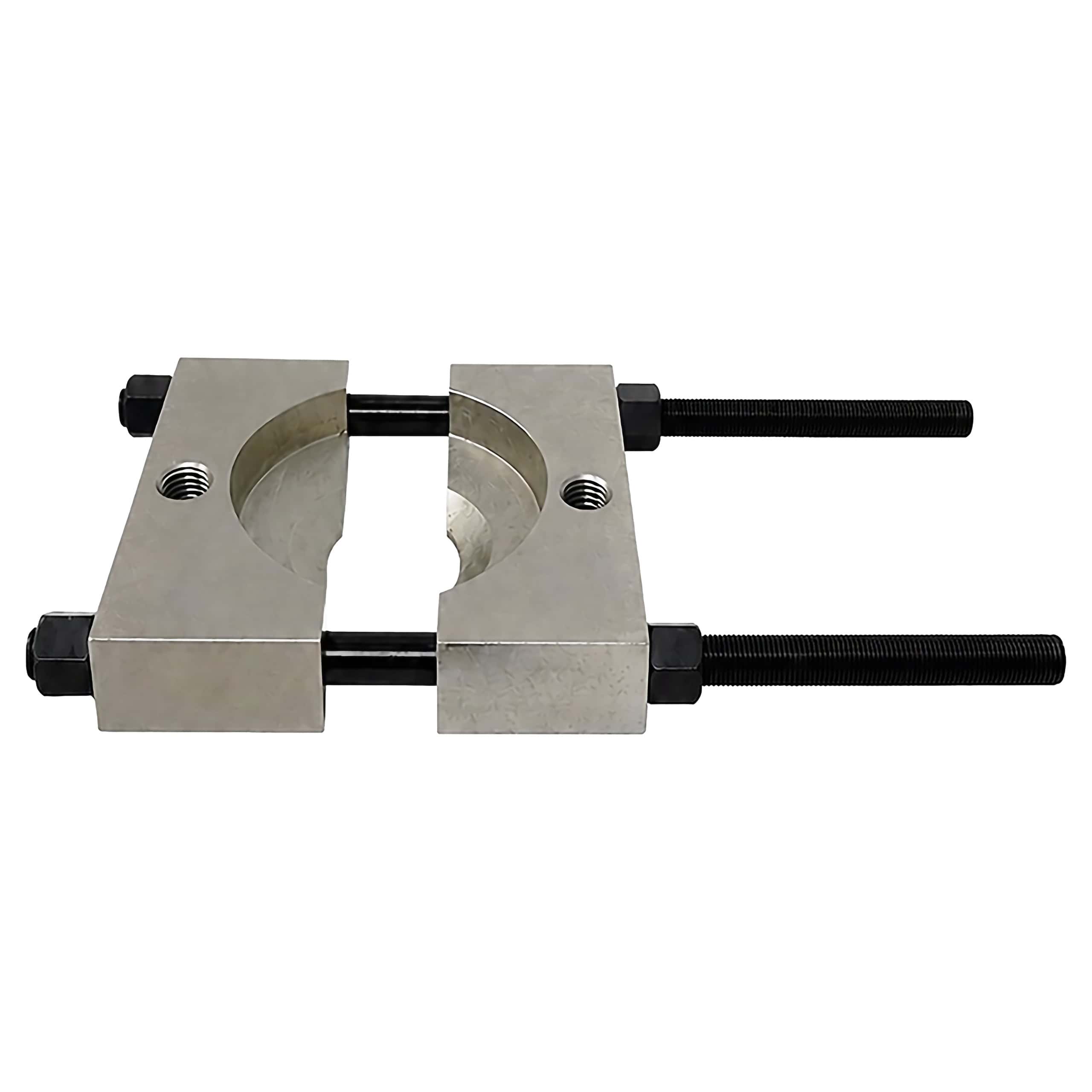

BHP382, 30 Ton, Bearing Separator
The RIVERLAKE BHP Series Bearing Separator is a precision-engineered tool designed for removing bearings, gears, and other closely fitted components in confined spaces. When clearance limitations prevent the direct application of standard grip puller arms, the BHP Series provides a reliable and efficient solution.
PRICE ON REQUEST
Features
Description
Series: BHP | Product Line: Industrial Tools
-
Wedge-Shaped Edges for Confined AccessThe Bearing Separator features specially designed wedge-shaped edges that allow the user to position the puller behind hard-to-reach bearings, gears, and other components. This design is ideal for applications where limited clearance prevents the direct use of grip puller arms.
-
Versatile CompatibilityThe BHP Series Bearing Separator can be used in conjunction with either a Cross Bearing Puller or a Grip Puller, offering flexible setup options to suit different job requirements and existing tool inventories.
-
Rated Pulling CapacityThe Bearing Separator is rated at 50% of the puller’s total rated capacity, ensuring safe, balanced, and effective force transmission during separation operations.
Specifications
Specifications
| Capacity(Ton) | 30 |
| Max. Spread/mm | 245 |
| Min. Spread/mm | 17 |
| Width/mm | 292 |
| Center Screw Thread | 1”-14UNS |
Series Comparison
Tool Kit Specification
| Puller Set Model | Capacity/Ton | Min. Spread/mm | Max. Spread/mm | Width/mm | Center Screw Thread |
|---|---|---|---|---|---|
| BHP181 | 12 | 25 | 104 | 126 | 5/8”-18UNF |
| BHP282 | 20 | 9 | 130 | 150 | 3/4”-18UNF |
| BHP382 | 30 | 17 | 245 | 292 | 1”-14UNS |
| BHP582 | 50 | 17 | 245 | 292 | 1 1/4”-12UNF |
