BHP3751G, 30 Ton, Hydraulic Master Puller Set With Hand Pump
The RIVERLAKE BHP Series Hydraulic Master Puller Set is a comprehensive, hand-pump-operated pulling solution designed for professional maintenance teams, industrial workshops, and field service technicians who demand reliability, versatility, and efficiency. Engineered with high-quality forged steel components and a complete hydraulic system, the BHP Series transforms challenging bearing and gear removal tasks into fast, controlled, and safe operations.
Description
Series: BHP | Product Line: Industrial Tools

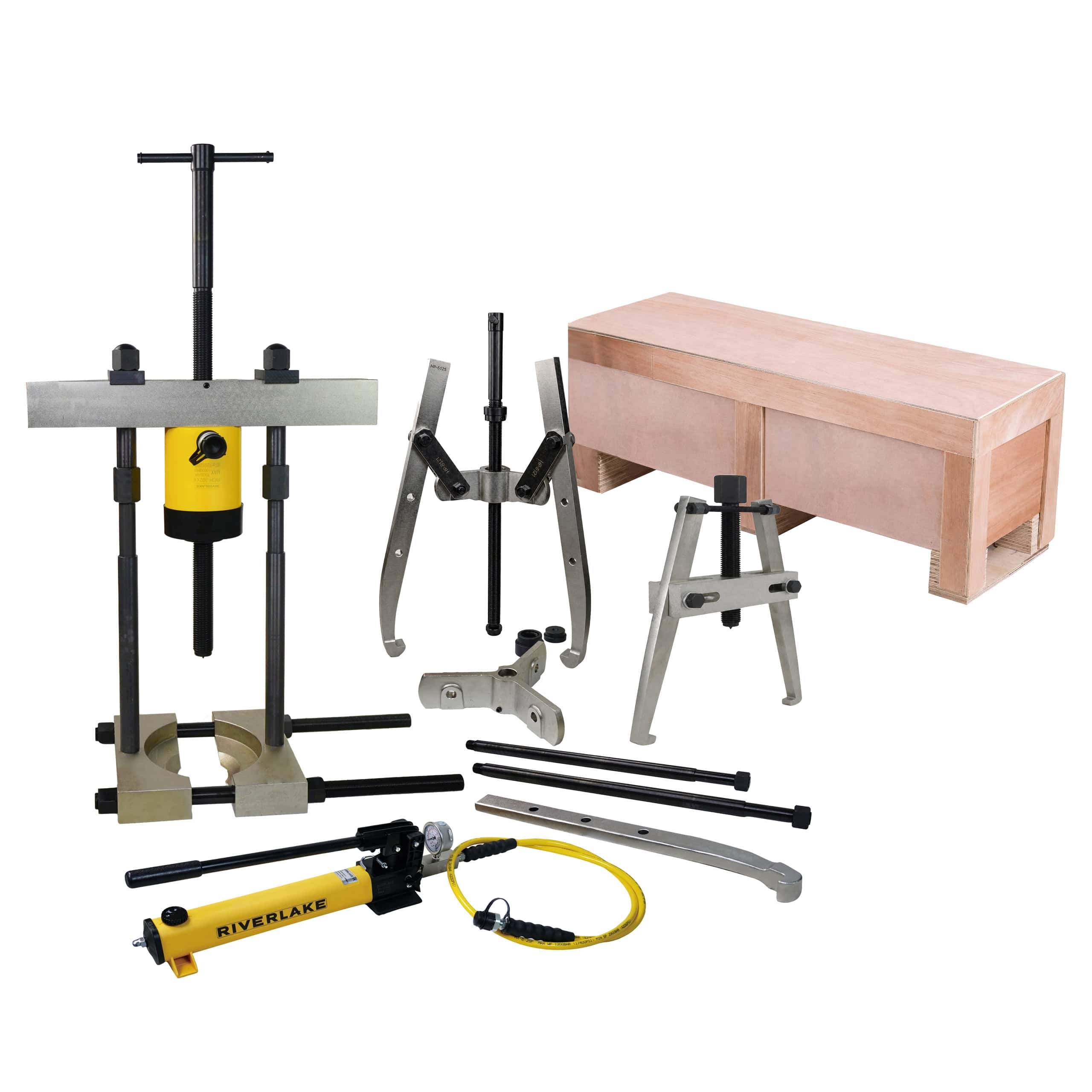

• Supplied with a full hydraulic set including pump, hose, cylinder,gauge, gauge adaptor and wooden case
• High-quality, forged steel components provide superior reliability and service
• Sets include speed crank and adjusting screw for fast contact to work before hydraulics are applied
• All Master Puller Sets include a Grip Puller, a Cross Bearing Puller,a Bearing Cup Puller and a Bearing Separator, which can be ordered separately
Specifications
| Maximum Operating Pressure (bar) | 700 |
| Capacity(Ton) | 30 |
| Hand Pump Model | P392 |
| Cylinder | RCH302 |
| Saddle | HP3015 |
| Hydraulic Hose | HSP700-2-M |
| Gauge Adapter | GA3 |
| Pressure Gauge | HG100-100 |
| Grip Puller Model | BHP352 |
| Cross Bearing Puller Model | BHP362 |
| Bearing Cup Puller Model | BHP380 |
| Bearing Separator Model | BHP382 |
| Tool Case | Wooden Case |
| Tool Set Weight(Kg) | 172 |
Tool Kit Specification
| Puller Set Model | Capacity/Ton | Hand Pump | Hydraulic Cylinder | Saddle | Hydraulic Hose | Pressure Gauge | Gauge Adapter | Grip Puller | Cross Bearing Puller | Bearing Cup Puller | Bearing Separator | Tool Case | Weight/Kg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BHP1752 | 12 | P142 | RCH1211 | * | HSP700-2-M | HG100-60 | GA3 | BHP1762 | BHP1772 | BHP180 | BHP181 | Wooden Case | 37 |
| BHP2751G | 20 | P392 | RCH202 | HP2015 | HSP700-2-M | HG100-100 | GA3 | BHP252 | BHP262 | BHP280 | BHP282 | Wooden Case | 90 |
| BHP3751G | 30 | P392 | RCH302 | HP3015 | HSP700-2-M | HG100-100 | GA3 | BHP352 | BHP362 | BHP380 | BHP382 | Wooden Case | 172 |
| BHP5751G | 50 | P80 | RCH603 | HP5016 | HSP700-2-M | HG100-100 | GA3 | BHP552 | BHP562 | BHP580 | BHP582 | Wooden Case | 298 |
