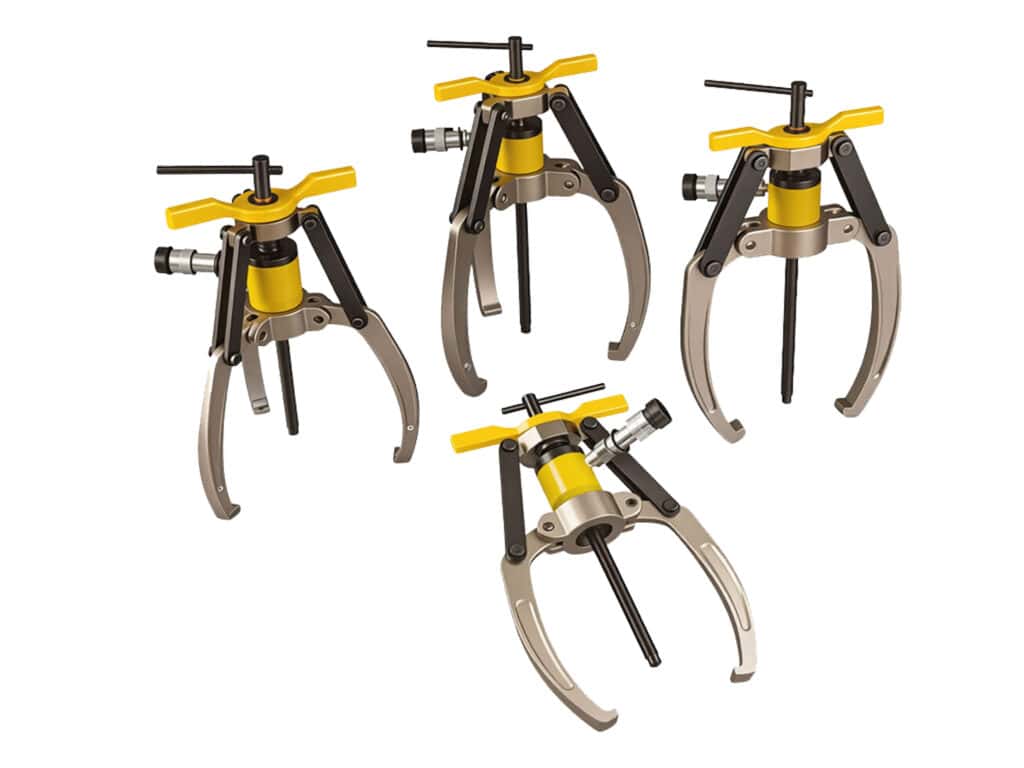

  • BHP Series,Hydraulic Grip Puller Set With Hand Pump
  • BHP Series,Hydraulic Grip Puller Set With Hand Pump

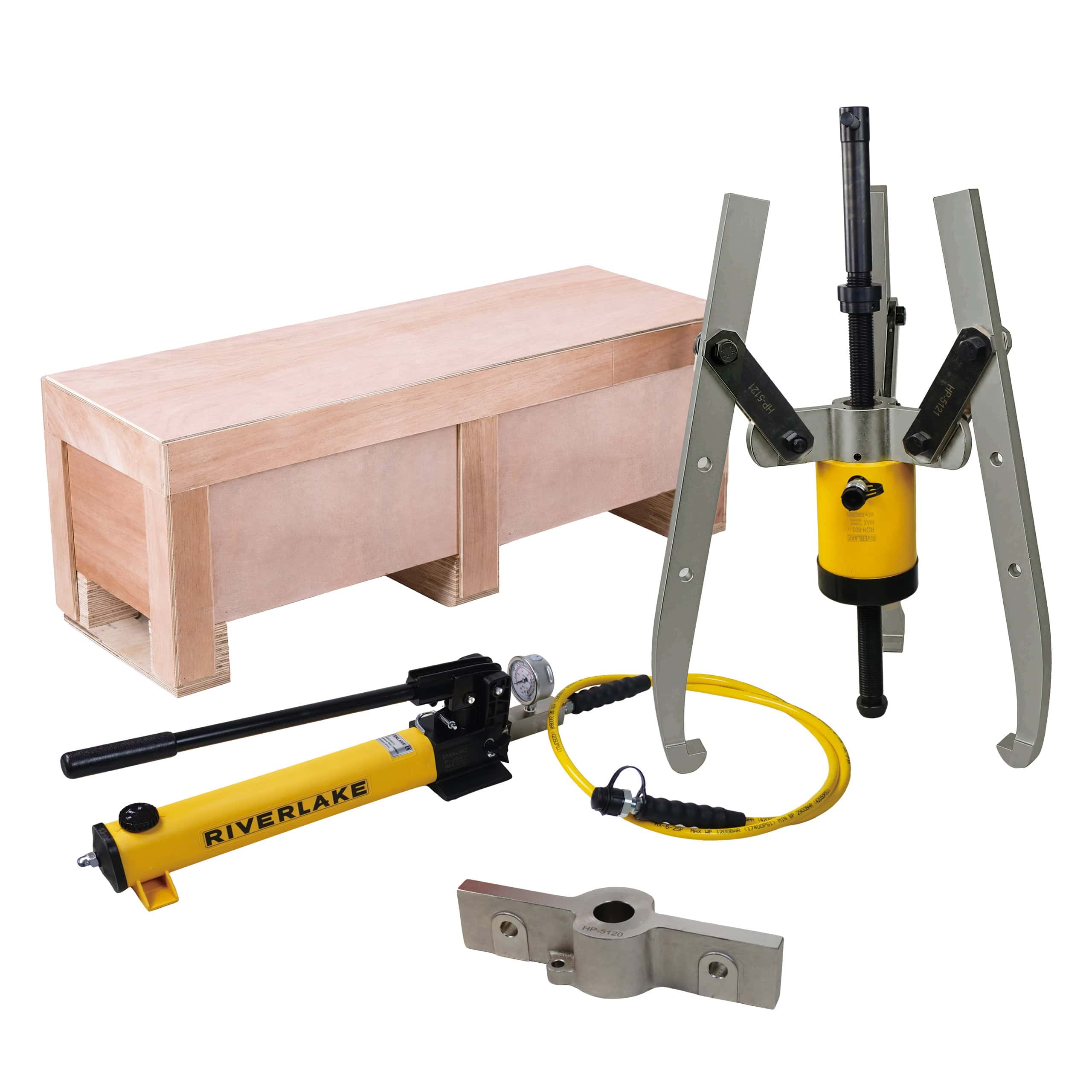

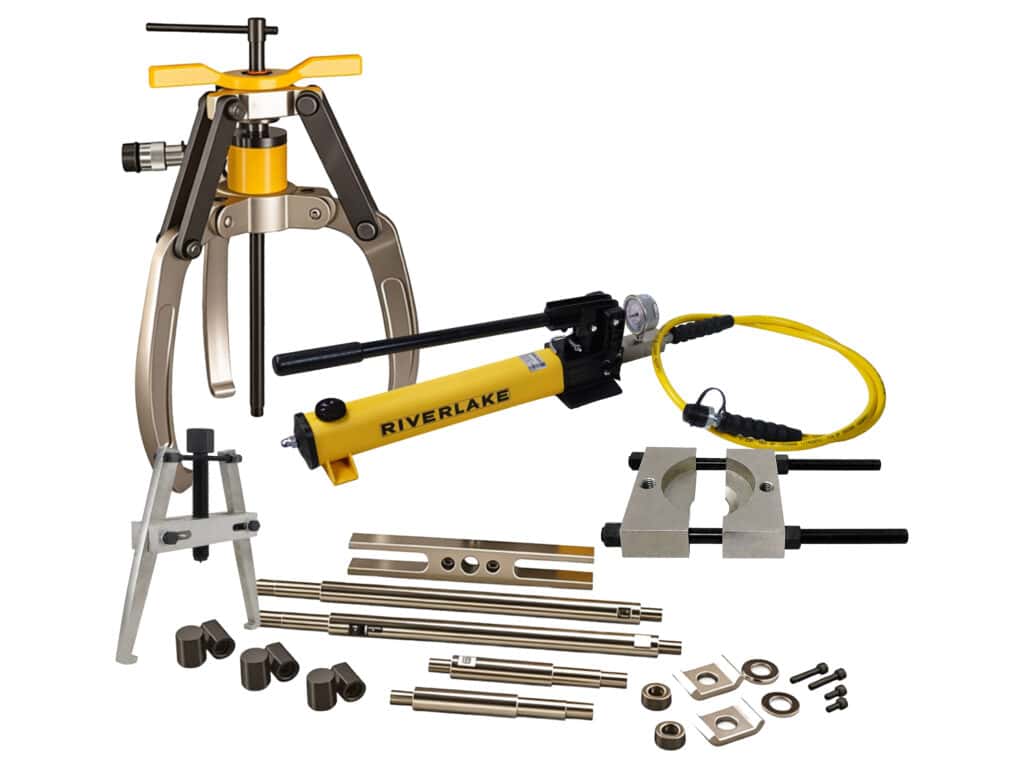

BHP152, 12 Ton, Hydraulic Grip Puller Set With Hand Pump

The RIVERLAKE BHP Series Hydraulic Grip Puller Set delivers professional-grade pulling performance in a compact, hand-pump-operated package. Engineered for workshops, maintenance crews, and field technicians, the BHP Series combines precise hydraulic control with rugged forged steel construction to handle a wide range of bearing, gear, and pulley removal tasks—quickly, efficiently, and safely.

PRICE ON REQUEST
Download Catalogue

Series: BHP | Product Line: Industrial Tools

• Precise hydraulic control allows fast, efficient and safe pulling

• High-quality, forged steel components provide superior reliability and service

• Available with and without full hydraulic set.

Maximum Operating Pressure (bar)700
Capacity(Ton)12
Hand Pump ModelP142
CylinderRCH1211
Hydraulic HoseHSP700-2-M
Gauge AdapterGA3
Pressure GaugeHG100-60
Grip Puller ModelBHP1762
Two Jaw Max. Spread(mm) 249
Three Jaw Max. Spread(mm) 249
Two Jaw Max. Reach(mm) 252
Three Jaw Max. Reach(mm) 252
Jaw Thickness(mm)15
Jaw Width(mm)23
Adjusting Screw Thread¾” – 16 UNF
Adjusting Screw Length400
Tool CaseWooden Case
Tool Set Weight(Kg)22
Puller Set ModelCapacity/TonHand PumpHydraulic CylinderSaddleHydraulic HosePressure GaugeGauge AdapterGrip PullerTwo Jaw Max. Spread/mmThreeJaw Max. Spread/mmTwo Jaw Max. Reach/mmThreeJaw Max. Reach/mmJaw Thickness/mmJaw Width/mmAdjusting Screw ThreadAdjusting Screw Length/mmTool CaseWeight/Kg
BHP15212P142RCH1211*HSP700-2-MHG100-60GA3BHP176224924925225215233/4”-16UNF400Wooden Case22
BHP251G20P392RCH202HP2015HSP700-2-MHG100-100GA3BHP176240049930030020271”-8UNC670Wooden Case56
BHP351G30P392RCH302HP3015HSP700-2-MHG100-100GA3BHP176259380038738724381 1/4”-7UNC790Wooden Case91
BHP551G50P80RCH603HP5016HSP700-2-MHG100-100GA3BHP1762899110070070030391 5/8”-5.5UNS975Wooden Case160
