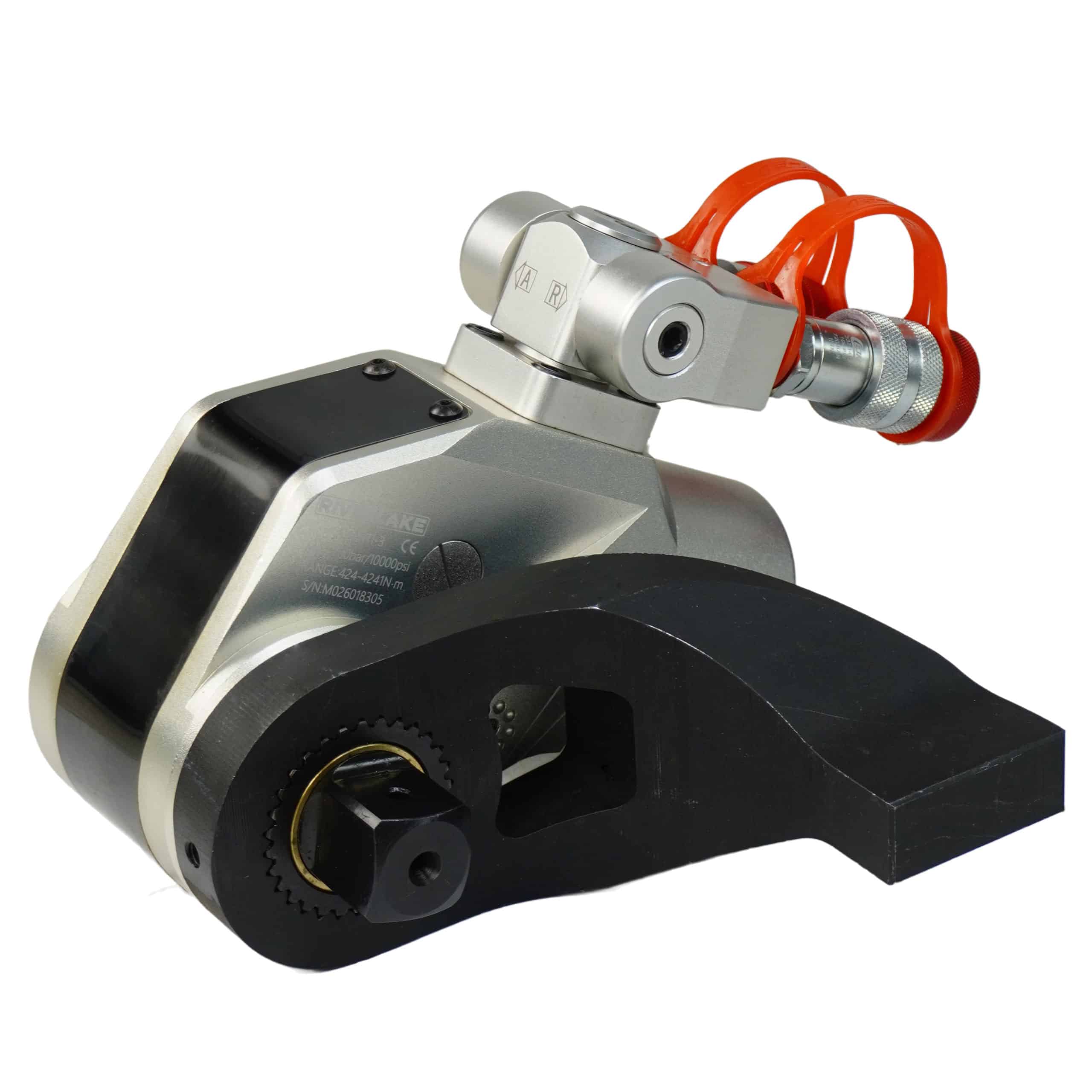

AVANTI10, 1592-15921Nm, 1-1/2” Square Drive Hydraulic Torque Wrenches
The RIVERLAKE AVANTI Series represents a breakthrough in compact, high-performance hydraulic torque technology. Designed for precision bolting in space-constrained environments, this series combines advanced materials with innovative engineering to deliver exceptional strength, accuracy, and maneuverability across a wide spectrum of industrial fastening applications.
Description
Series: AVANTI | Product Line: Industrial Tools
-
Advanced Lightweight Construction: Featuring a one-piece forged body crafted from aluminum-titanium alloy, the AVANTI Series offers exceptional strength and toughness while maintaining a remarkably lightweight profile for ease of handling and reduced operator fatigue.
-
Innovative Coaxial Spline Design: The drive square features a coaxial double-spline design with a pre-positioned reaction arm that integrates with the drive shaft along the bolt axis. This innovative configuration allows for 360° rotation, ensuring perfect alignment and optimal clearance in confined work spaces.
-
Comprehensive Torque Range: The AVANTI Series comprises 6 models, covering a versatile torque range from 151 N·m to 15,921 N·m, providing precise solutions for various bolting requirements from medium-duty maintenance to heavy industrial assembly.
-
Unrestricted Hose Positioning: Equipped with a 360° × 180° rotating oil inlet, the series offers virtually unlimited hose positioning freedom, ensuring convenient operation and adaptability in even the most challenging or restricted work environments.
Specifications
| Torque Wrench Model Number | AVANTI10 |
| Maximum Operating Pressure (bar) | 700 |
| Torque Range(Nm) | 1592-15921 |
| Square Drive | 1-1/2” |
| Weight(Kg) | 13.3 |

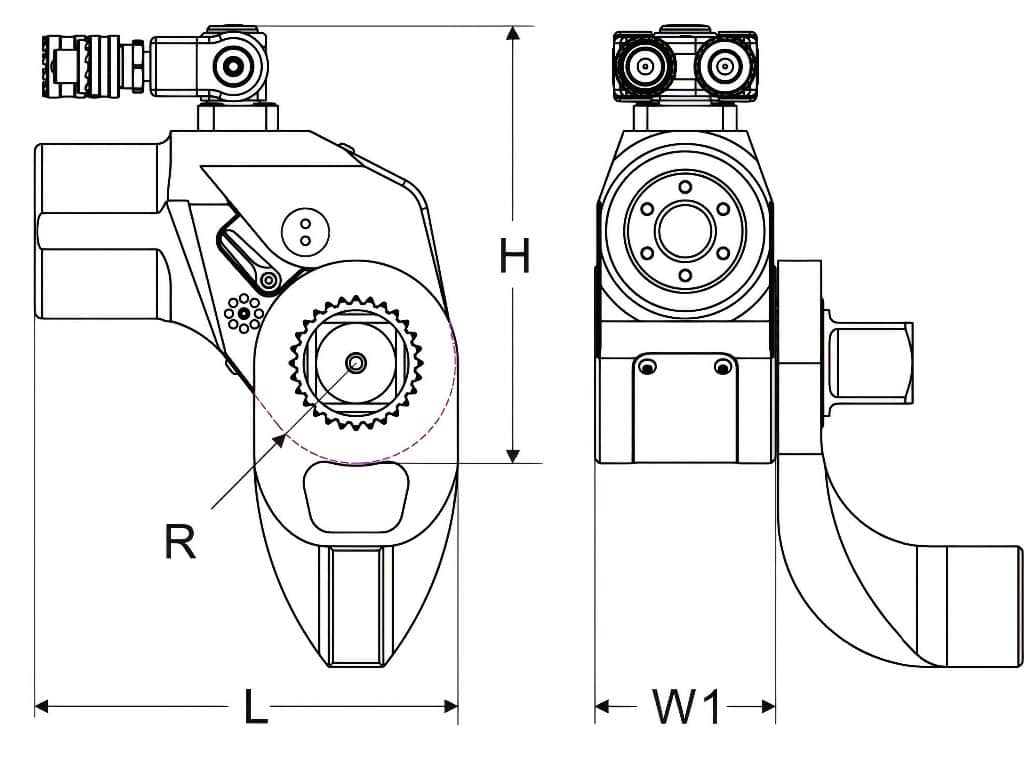

Dimensions
Click to enlarge image
Series Comparison
| Torque Wrench Model Number | Torque Range(Nm) | Square Drive Size(inch) | Dimension(mm）L | Dimension(mm）H | Dimension(mm）R | Dimension(mm）W1 | Weight(Kg) |
|---|---|---|---|---|---|---|---|
| AVANTI.7 | 151-1058 | 3/4” | 111 | 120 | 25.4 | 46 | 1.4 |
| AVANTI1 | 249-1741 | 3/4” | 128 | 140.8 | 28.6 | 55.2 | 2 |
| AVANTI3 | 424-4241 | 1” | 165.8 | 180 | 38.1 | 73.7 | 4.3 |
| AVANTI5 | 737-7370 | 1-1/2” | 202 | 206.5 | 47.3 | 86 | 7.1 |
| AVANTI8 | 1052-10521 | 1-1/2” | 224 | 227.8 | 52.3 | 100.5 | 9.4 |
| AVANTI10 | 1592-15921 | 1-1/2” | 251.7 | 248.1 | 60.1 | 110.5 | 13.3 |
