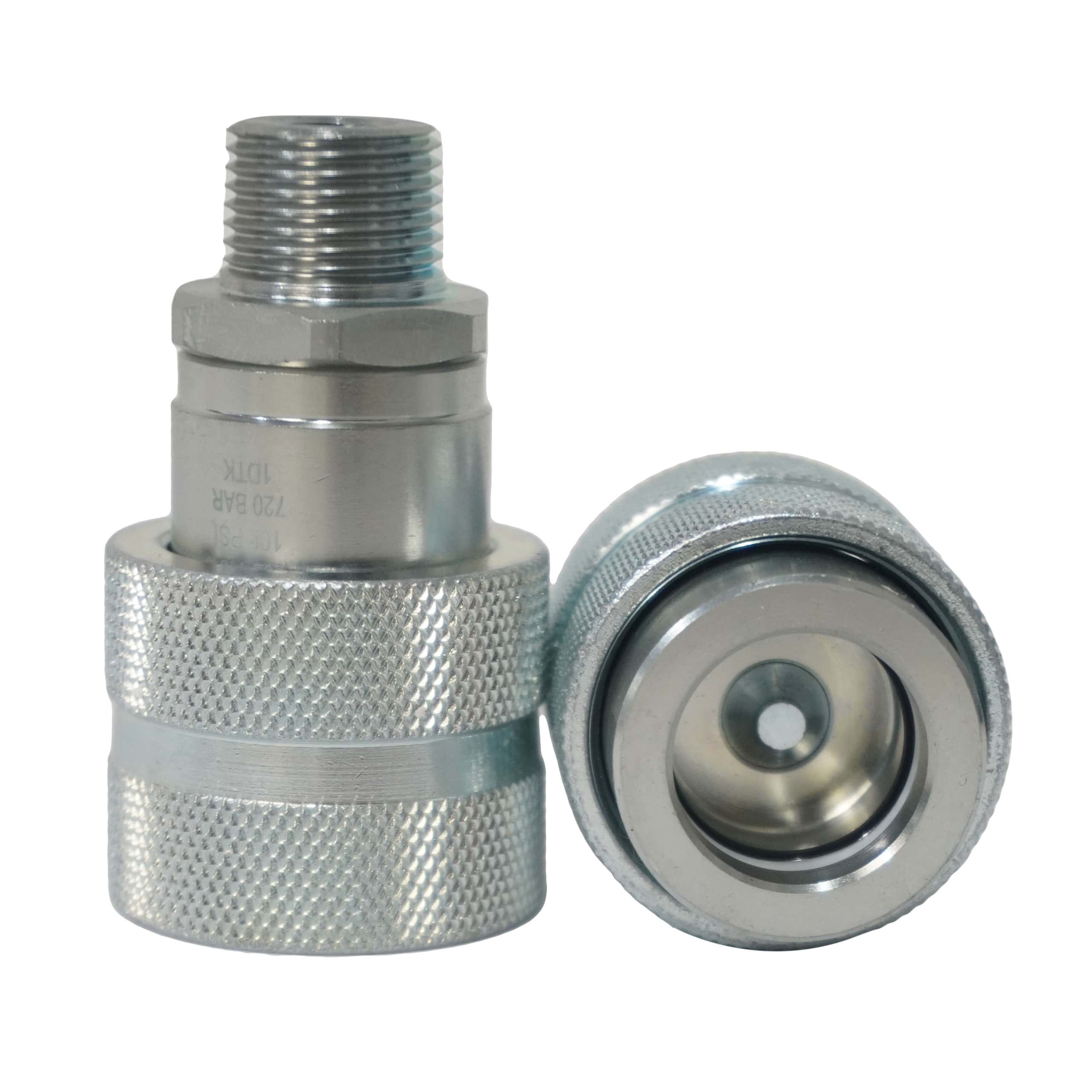

102321494,70MPa，NPT 3/8-18, Conical Type,Female Hydraulic Quick Coupler
RIVERLAKE specializes in manufacturing premium hydraulic quick couplings engineered to withstand extreme pressures and demanding industrial environments. Our product line is categorized by maximum working pressure: 70MPa, 100MPa, 150MPa, and 250MPa, ensuring optimal compatibility with diverse hydraulic systems across industries.
PRICE ON REQUEST
Diagram

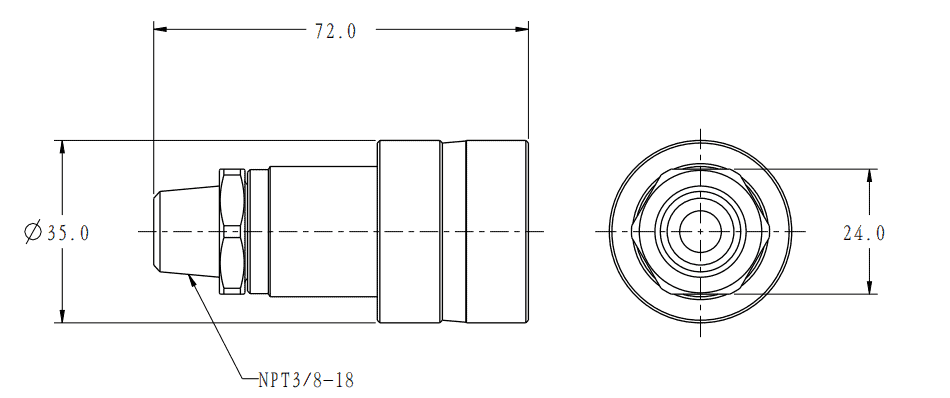

Dimension Drawing
Specifications
Specifications
| Maximum Operating Pressure (bar) | 720 |
| Diameter(mm) | Conical 10mm |
| Type: | Female |
| Flow Rate(L/Min) | 35 |
| Thread | NPT 3/8-18 |
| Weight(g) | 212 |
Downloads
Downloads
| – | File Name | File Type |
|---|---|---|
 | 液压附件图册 | 中文 |
| Hydraulic Accessories Brochure | English |
