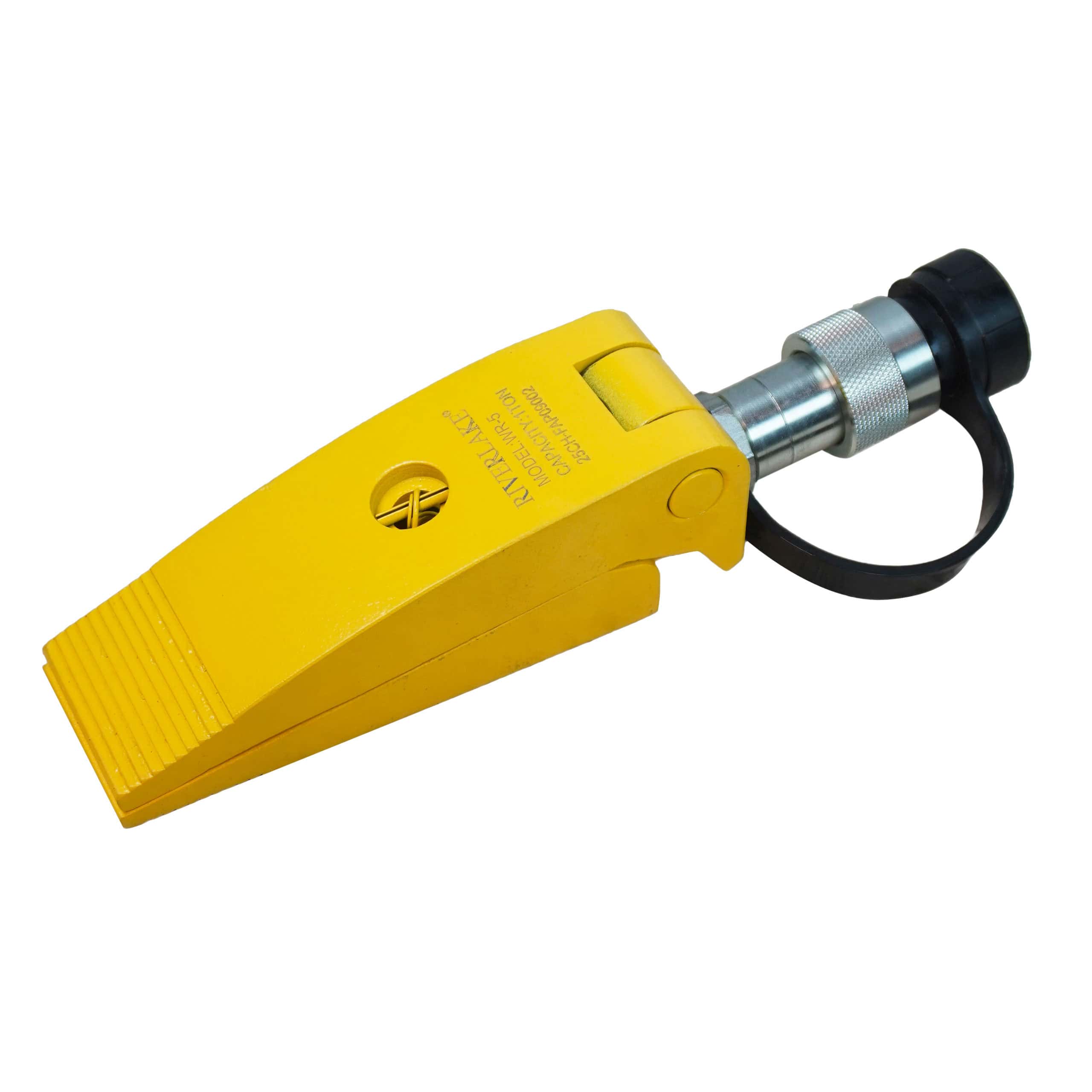

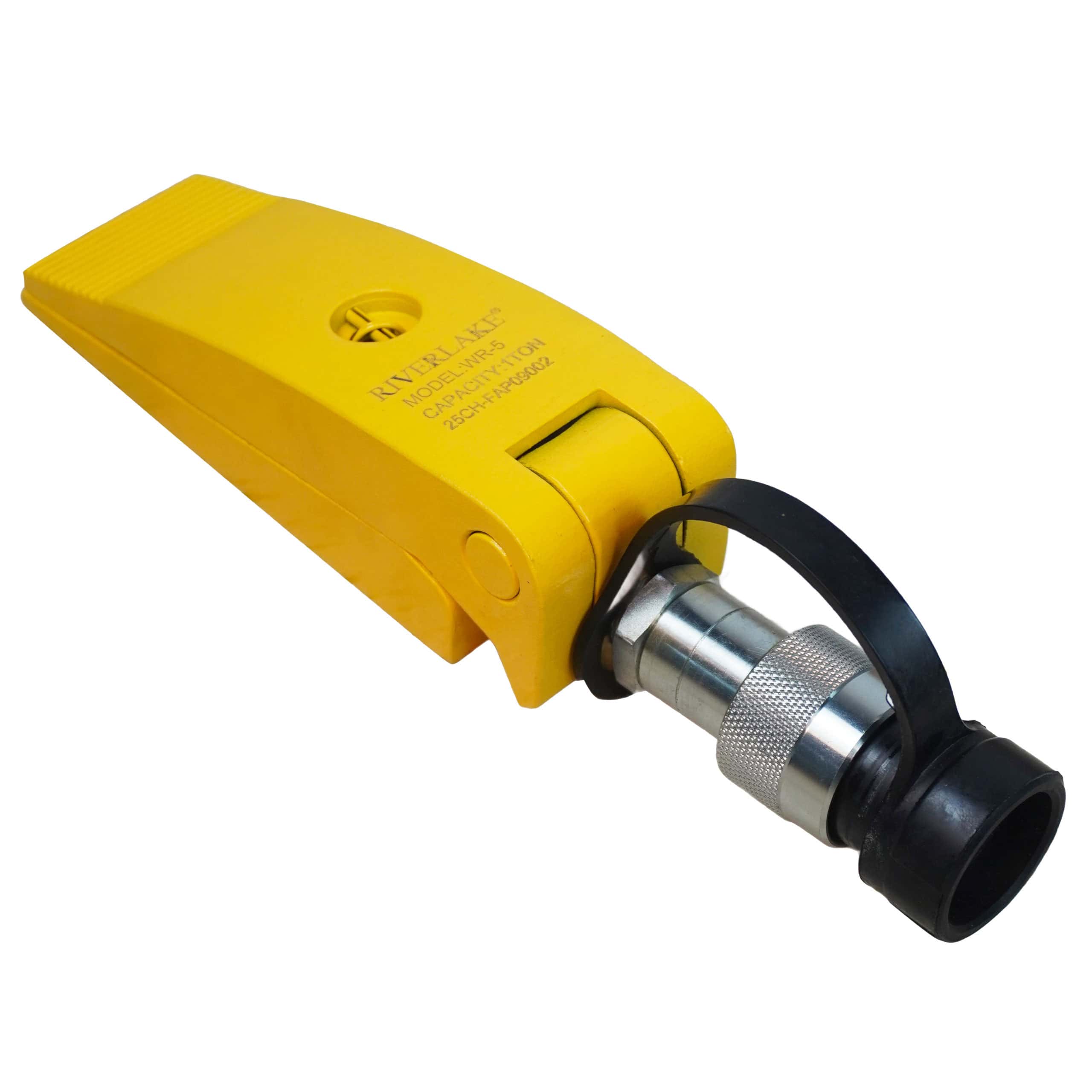

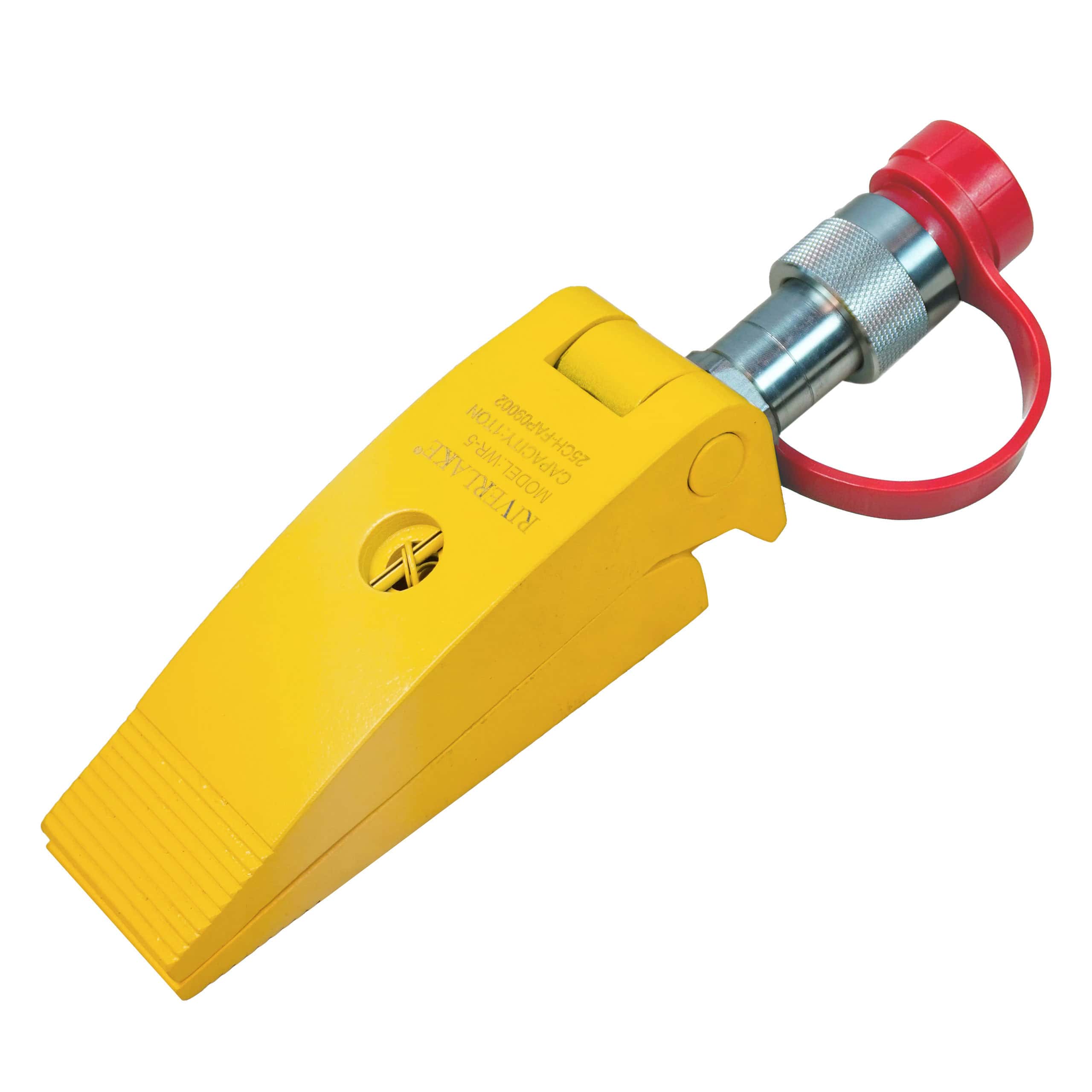

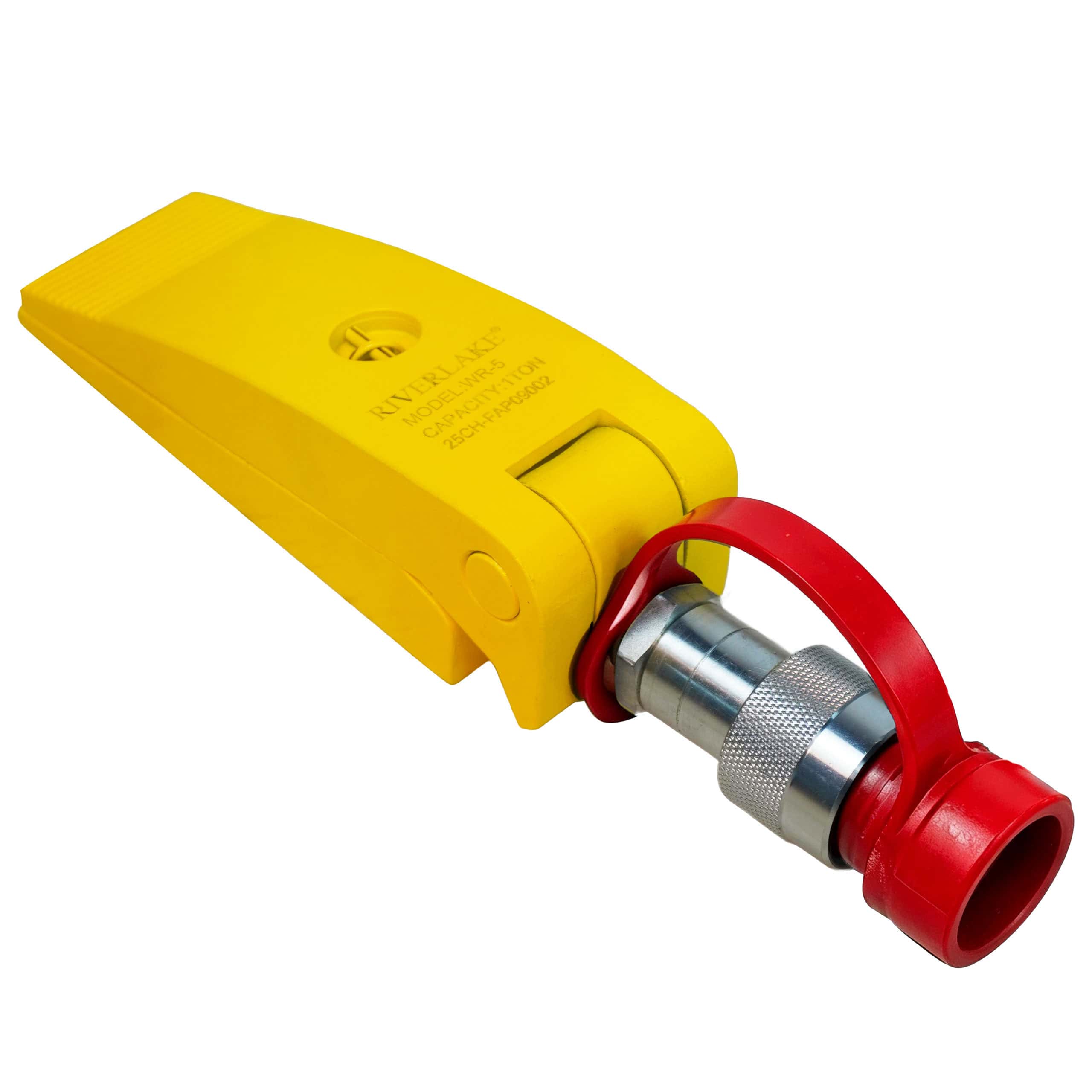

WR5, 1 Ton, Hydraulic Wedgie and Spread Cylinder, 94mm Maximum Spread
When you need a compact hydraulic wedge spreader for the tightest spaces, the RIVERLAKE WR5 is the optimum choice. This single‑acting tool delivers powerful hydraulic force to expand up to 94 mm, then retracts automatically with a reliable spring‑return system – all in a lightweight, easy‑to‑position package.
Description
Series: WR5 | Product Line: Industrial Tools
Designed for Confined Access: The WR5’s slim wedge tip slides into narrow gaps where larger spreaders cannot fit. Once positioned, hydraulic pressure drives the wedge forward, generating up to 1 ton (2,000 lb) of spreading force to separate flanges, lift components, or create working clearance.

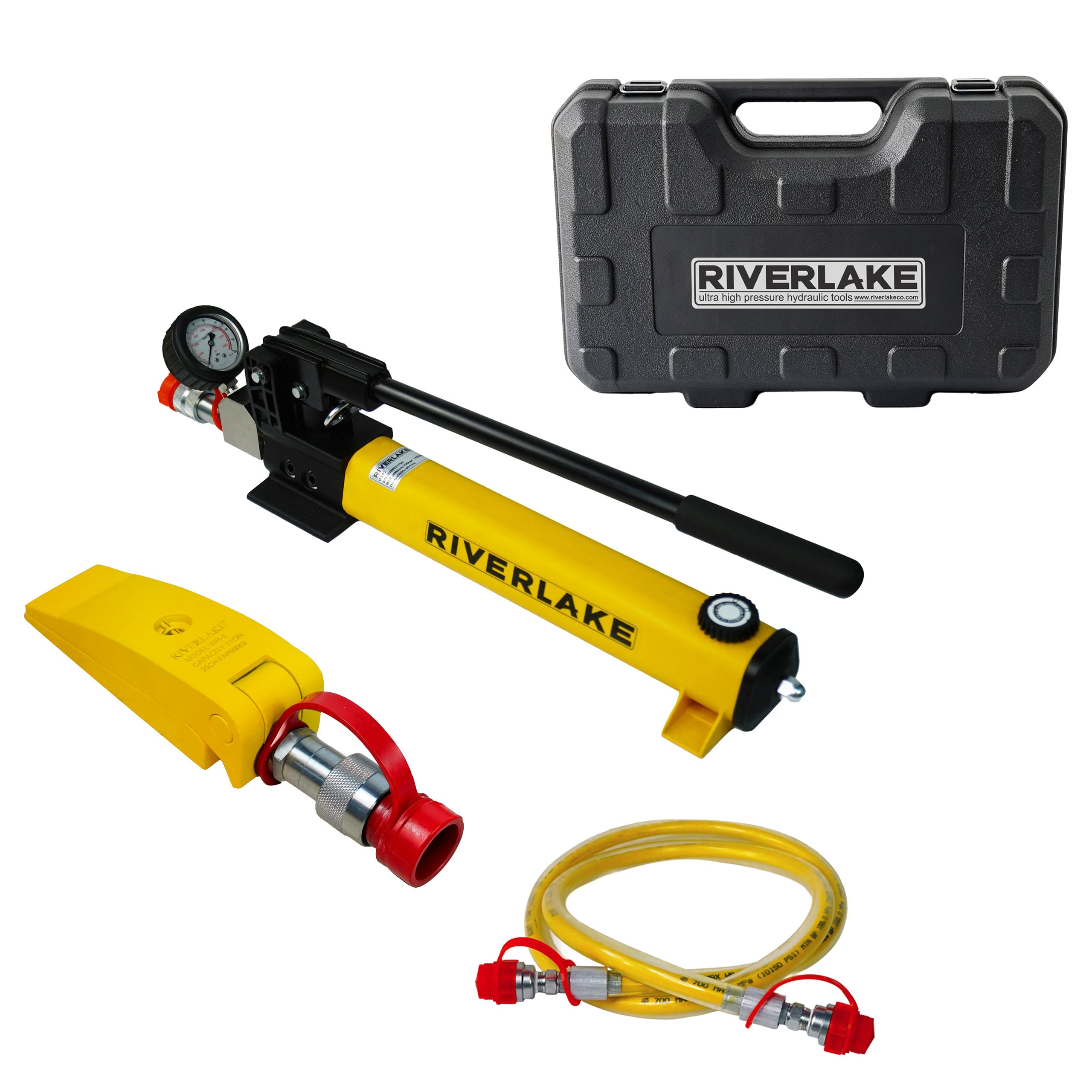

Controlled, Safe Operation: The single‑acting, spring‑return design simplifies use with any standard 10,000 psi (700 bar) hydraulic hand pump. Extend the cylinder under pressure to achieve the desired spread (maximum 94 mm), then release pressure – the internal spring automatically retracts the wedge, resetting the tool for the next operation.
Key Features:
-
Maximum spreading force – 1 ton (2,000 lb / 9 kN)
-
Maximum spread – 94 mm (3.7 inches)
-
Single‑acting, spring return – No external retraction required
-
Ultra‑compact wedge tip – Fits into minimal initial gaps
-
Lightweight and portable – Ideal for overhead, confined, or remote work
-
Durable construction – Corrosion‑protected materials for harsh environments
Dimensions

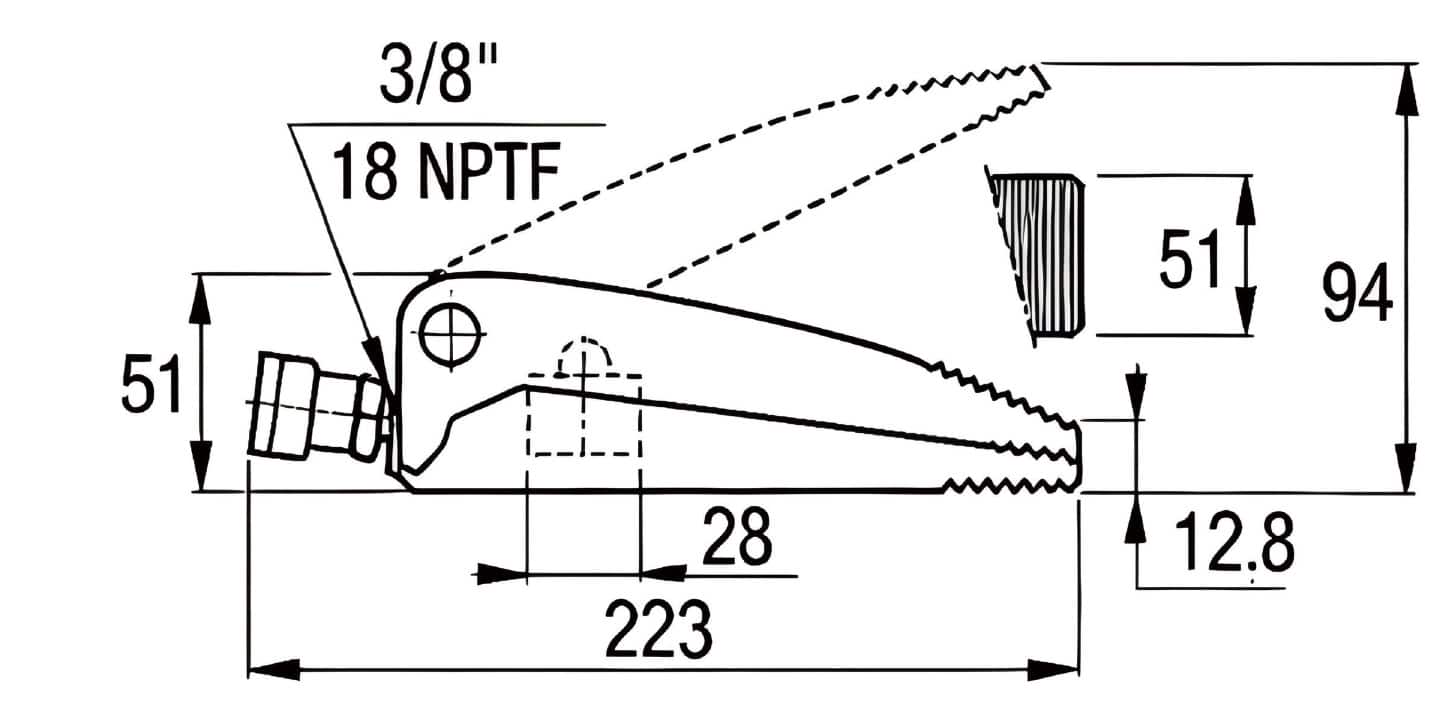

Drawing
Specifications
| Model | WR5 |
| Maximum Operating Pressure (bar) | 700 |
| Maximum Spreading Force(Ton) | 1 |
| Tip Clearance(mm) | 12.8 |
| Maximum Spread(mm) | 94 |
| Oil Capacity(cm³) | 10 |
| Tool Kit Weight(Kg) | 2.3 |
