SWi5TI-S, 7.7 Ton, Integral Hydraulic Flange Spreader Set, 101mm Maximum Spread
The RIVERLAKE SWi5TI-S is a self-contained, integral hydraulic flange spreader set designed for safe, efficient, and portable flange separation. Unlike conventional spreaders that require external pumps and hoses, the SWi5TI-S combines the spreading head and a manual hydraulic pump into a single, compact unit—eliminating the need for separate power sources, hoses, or couplings. This all-in-one design delivers immediate, controlled spreading force wherever it is needed.
Description
Series: SWI | Product Line: Industrial Tools
Integrated, Ready-to-Use Design: The built-in manual pump allows one-handed operation without external connections. Simply position the spreader tips, operate the pump handle, and watch the flange gap open smoothly. A removable handle improves access in tight spaces, while the revolving handle supports both horizontal and vertical spreading orientations. The set is practical, portable, and lightweight, making it ideal for maintenance rounds, remote locations, and overhead work.
Operator Safety as Standard: The SWi5TI-S is engineered with no finger pinch-points, significantly reducing hand injury risks. Increased step-depth on the upper steps ensures secure engagement with flange faces, while a 1.0-meter safety lanyard prevents accidental drops when working at height or over open structures.
Durable & Field-Ready Construction: Key load-bearing components are forged for exceptional strength and reliability. Narrow jaw teeth improve tool wear, extending service life even on rough or corroded flanges. The spreader can be rapidly disassembled and assembled for cleaning, inspection, or parts replacement—minimizing downtime.

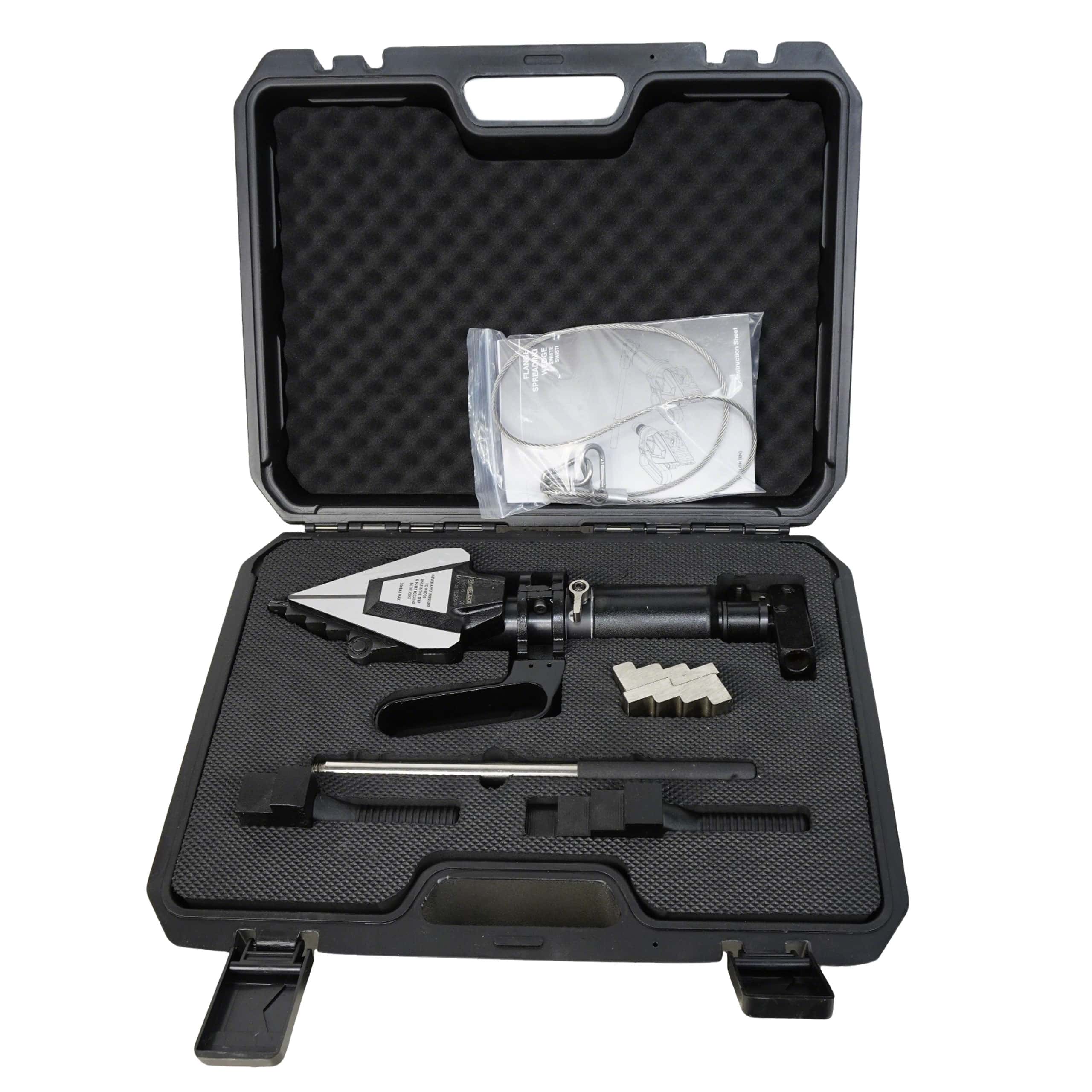

Complete Set for Convenience: Supplied as a set, the SWi5TI-S includes the integral hydraulic spreader, safety lanyard, and a durable carrying case (or designated storage) to keep components organized and protected during transport.

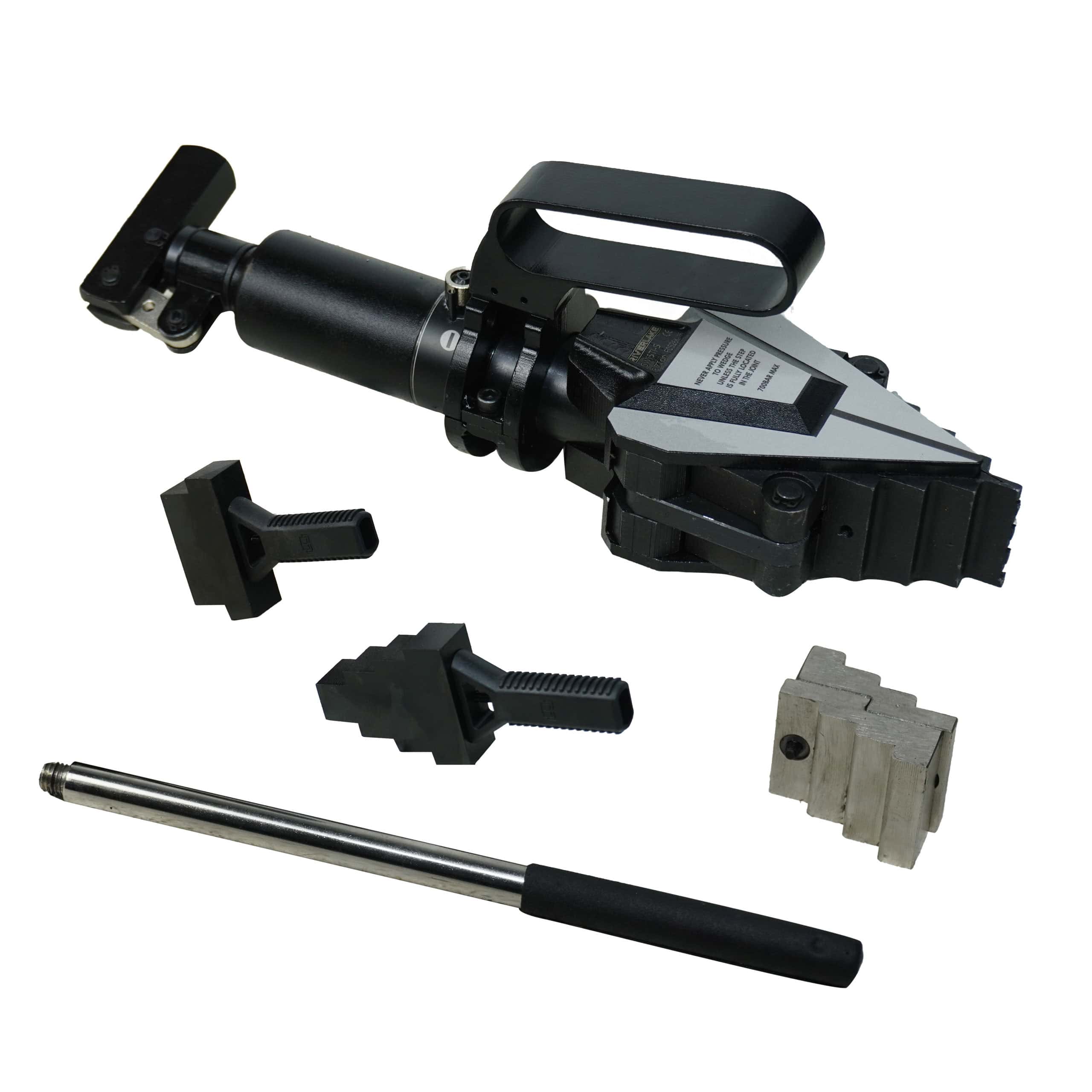

SWI5TI-S Tool Set Includes:
- 1 x SWi5TI Flange Spreading Tool
- 1 x Standard Safety Block
- 1 x Lanyard
- 1 x Molded Plastic Carry Case with protective foam inserts
Specifications
| Maximum Operating Pressure (bar) | 700 |
| First Step Spreading Force(Ton) | 6.3 |
| 4Th Step (Maximum)Spreading Force(Ton) | 7.7 |
| Spreading Distance Using Only 1ST Step(mm) | 4-29 |
| Spreading Distance Using 4 Steps,Without Stepped Blocks(mm) | 4-79 |
| Spreading Distance Using 2 Steps,With Stepped Blocks(mm) | 56-101 |
| Flange Dimensions Minimum Access Gap A(mm) | 4 |
| Jaw Width(mm) | 50 |
| Tool Kit Weight(Kg) | 10.5 |
Dimensions
Drawing
Series Comparision Table
| Model | Type | Maximum Operating Pressure (bar) | First Step Spreading Force(Ton) | 4Th Step (Maximum)Spreading Force(Ton) | Spreading Distance Using Only 1ST Step(mm) | Spreading Distance Using 4 Steps,Without Stepped Blocks(mm) | Spreading Distance Using 2 Steps,With Stepped Blocks(mm) | Flange Dimensions Minimum Access Gap A(mm) | Jaw Width(mm) | Tool Kit Weight(Kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| SWI5TE-S | Split Hydraulic | 700 | 6.3 | 7.7 | 4 to 29 | 4 to 79 | 56 to 101 | 4 | 50 | 8.7 |
| SWI5TE-T | Split Hydraulic | 700 | 6.3 | 7.7 | 4 to 29 | 4 to 79 | 56 to 101 | 4 | 50 | 14.4 |
| SWI5TI-S | Integral Hydraulic | 700 | 6.3 | 7.7 | 4 to 29 | 4 to 79 | 56 to 101 | 4 | 50 | 10.5 |
| SWI1214TMSTDSPB | Mechanical | * | 12 | 14 | 6 to 40 | 6 to 87.5 | 48.5 to 103.5 | 6 | 60 | 13 |
| SWI2025TEMINSPB | Split Hydraulic | 700 | 20 | 24 | 6 to 40 | 6 to 87.5 | 48.5 to 103.5 | 6 | 60 | 11.6 |
| SWI2025TESTDSPB | Split Hydraulic | 700 | 20 | 24 | 6 to 40 | 6 to 87.5 | 48.5 to 103.5 | 6 | 60 | 20.7 |
| SWI2025TEMAXSPB | Split Hydraulic | 700 | 20 | 24 | 6 to 40 | 6 to 87.5 | 48.5 to 103.5 | 6 | 60 | 33 |
| SWI2025TISTDSPB | Integral Hydraulic | 700 | 20 | 24 | 6 to 40 | 6 to 87.5 | 48.5 to 103.5 | 6 | 60 | 13.8 |
