SWi5TE-T, 7.7 Ton, Hydraulic Flange Spreader Twin Set, 101mm Maximum Spread
The RIVERLAKE SWi5TE-T is a practical, portable, and lightweight hydraulic flange spreader designed for fast, safe, and efficient flange separation in pipe maintenance operations. Engineered with operator safety and ease of use as top priorities, this tool eliminates the hazards of makeshift spreading methods while delivering reliable performance in confined or awkward work positions.
Description
Series: SWI | Product Line: Industrial Tools
Portable & User-Friendly Design: The SWi5TE-T features a compact, lightweight construction that allows easy transport and one-handed operation. A revolving handle supports both horizontal and vertical spreading orientations, adapting to flange positions without repositioning the entire tool. The removable handle further improves access in tight spaces, allowing the spreader to be inserted and operated where conventional tools cannot fit.
Enhanced Safety Features: Operator protection is built into every aspect of the design. The tool has no finger pinch-points, significantly reducing the risk of hand injuries during operation. Increased step-depth on the upper steps provides more secure engagement with flange faces, minimizing the chance of slippage. A 1.0-meter safety lanyard is included to prevent accidental drops when working at height or over open structures.
Durable & Reliable Construction: Key load-bearing components are forged for exceptional strength and reliability under high stress. Narrow jaw teeth are engineered to reduce tool wear and extend service life, even after repeated use on rough or corroded flange surfaces. The spreader can be rapidly disassembled and assembled for cleaning, inspection, or parts replacement—minimizing downtime and simplifying maintenance.
Application & Compatibility: The SWi5TE-T is ideal for gasket replacement, flange inspection, and maintenance tasks in petrochemical plants, power generation facilities, offshore platforms, and pipeline construction. Its hydraulic operation provides controlled, powerful spreading force without the need for striking or prying, protecting flange faces and bolt holes from damage.

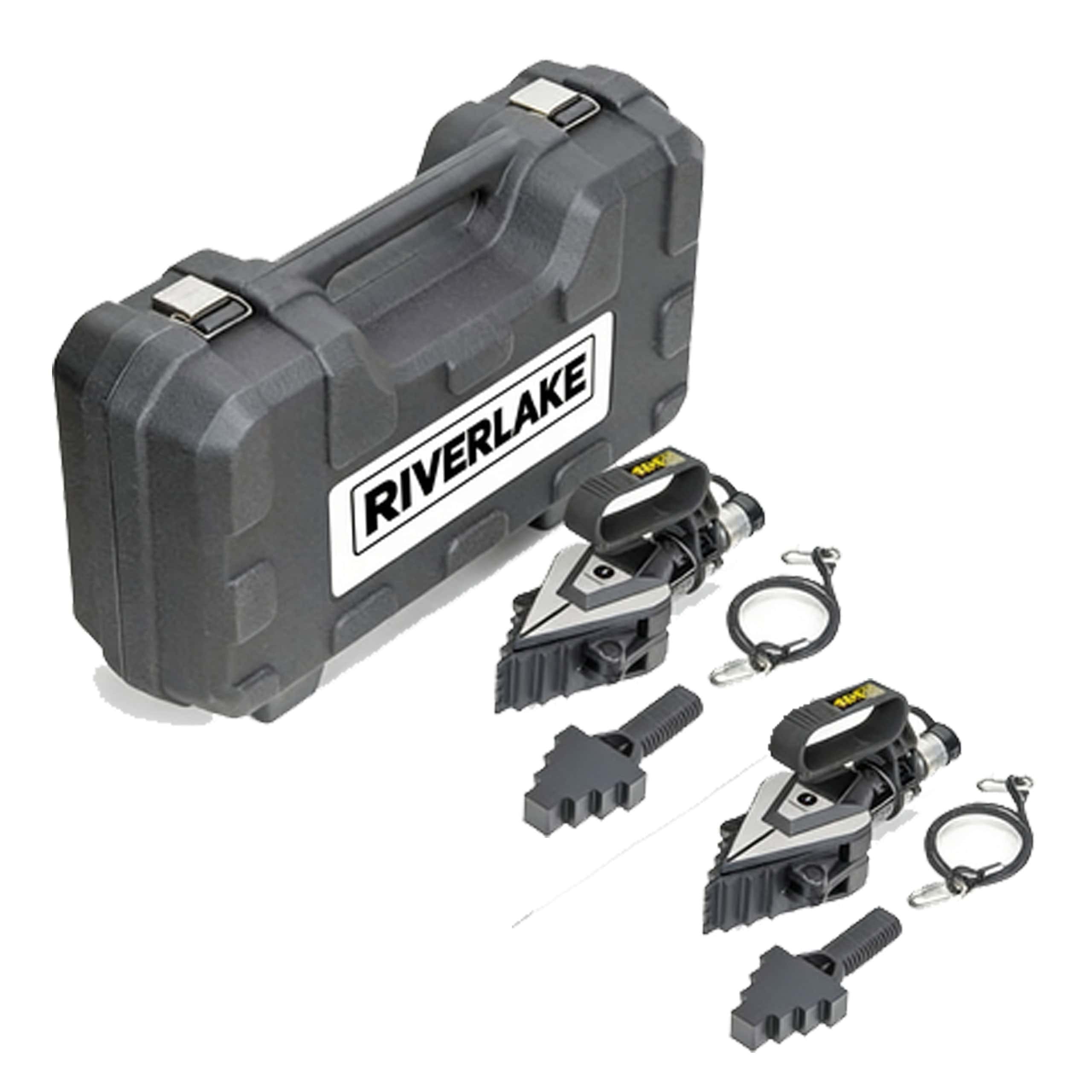

SWi5TE-T Tool Kit Including:
2 x SWi5TE Flange Spreader Wedgehead
2 x 10,000 psi Hydraulic Cylinder
2 x Safety Block
2 x Lanyard
1 x Plastici Tool Case
Specifications
| Maximum Operating Pressure (bar) | 700 |
| First Step Spreading Force(Ton) | 6.3 |
| 4Th Step (Maximum)Spreading Force(Ton) | 7.7 |
| Spreading Distance Using Only 1ST Step(mm) | 4-29 |
| Spreading Distance Using 4 Steps,Without Stepped Blocks(mm) | 4-79 |
| Spreading Distance Using 2 Steps,With Stepped Blocks(mm) | 56-101 |
| Flange Dimensions Minimum Access Gap A(mm) | 4 |
| Jaw Width(mm) | 50 |
| Tool Kit Weight(Kg) | 14.4 |
Dimensions
Drawing
Series Comparision Table
| Model | Type | Maximum Operating Pressure (bar) | First Step Spreading Force(Ton) | 4Th Step (Maximum)Spreading Force(Ton) | Spreading Distance Using Only 1ST Step(mm) | Spreading Distance Using 4 Steps,Without Stepped Blocks(mm) | Spreading Distance Using 2 Steps,With Stepped Blocks(mm) | Flange Dimensions Minimum Access Gap A(mm) | Jaw Width(mm) | Tool Kit Weight(Kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| SWI5TE-S | Split Hydraulic | 700 | 6.3 | 7.7 | 4 to 29 | 4 to 79 | 56 to 101 | 4 | 50 | 8.7 |
| SWI5TE-T | Split Hydraulic | 700 | 6.3 | 7.7 | 4 to 29 | 4 to 79 | 56 to 101 | 4 | 50 | 14.4 |
| SWI5TI-S | Integral Hydraulic | 700 | 6.3 | 7.7 | 4 to 29 | 4 to 79 | 56 to 101 | 4 | 50 | 10.5 |
| SWI1214TMSTDSPB | Mechanical | * | 12 | 14 | 6 to 40 | 6 to 87.5 | 48.5 to 103.5 | 6 | 60 | 13 |
| SWI2025TEMINSPB | Split Hydraulic | 700 | 20 | 24 | 6 to 40 | 6 to 87.5 | 48.5 to 103.5 | 6 | 60 | 11.6 |
| SWI2025TESTDSPB | Split Hydraulic | 700 | 20 | 24 | 6 to 40 | 6 to 87.5 | 48.5 to 103.5 | 6 | 60 | 20.7 |
| SWI2025TEMAXSPB | Split Hydraulic | 700 | 20 | 24 | 6 to 40 | 6 to 87.5 | 48.5 to 103.5 | 6 | 60 | 33 |
| SWI2025TISTDSPB | Integral Hydraulic | 700 | 20 | 24 | 6 to 40 | 6 to 87.5 | 48.5 to 103.5 | 6 | 60 | 13.8 |
