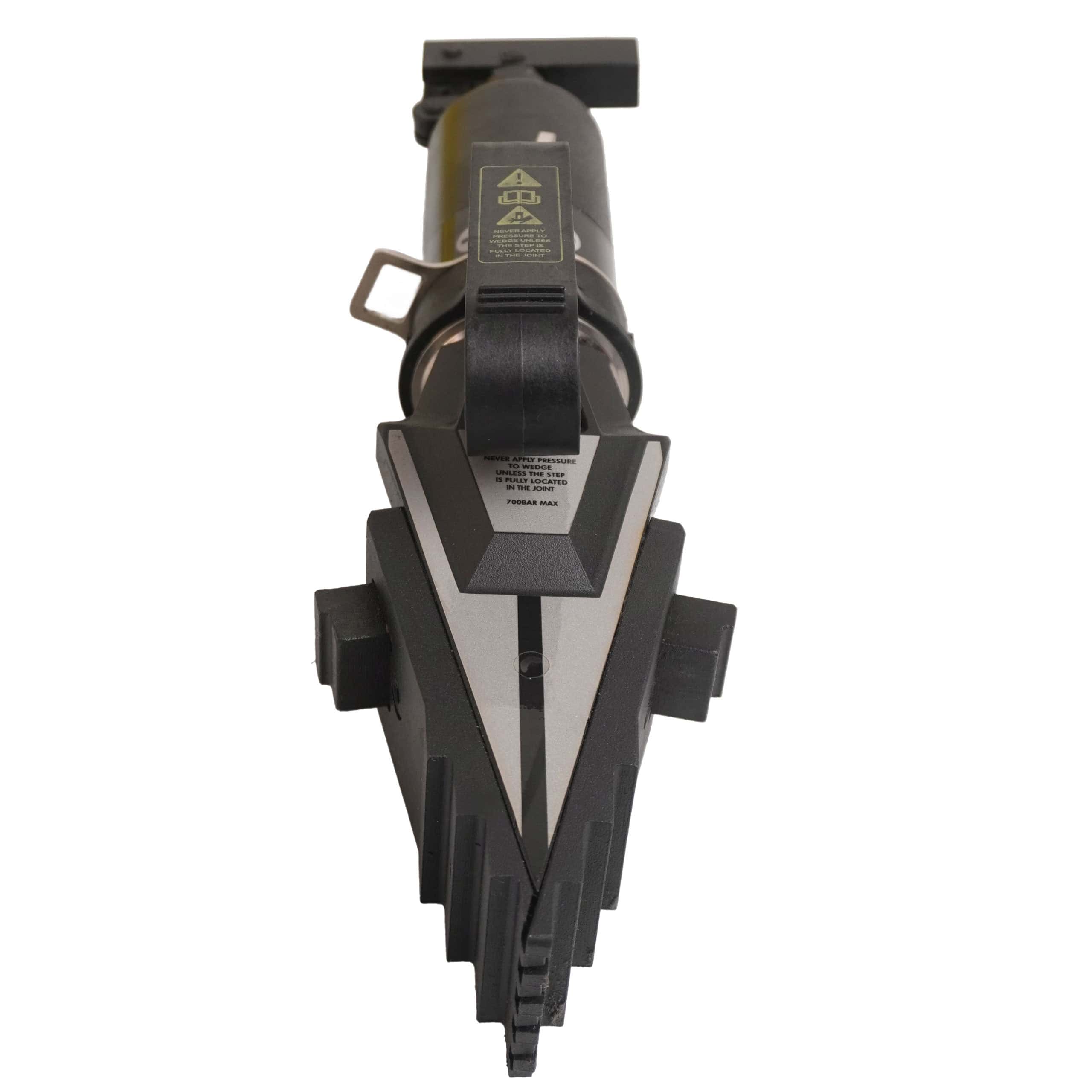

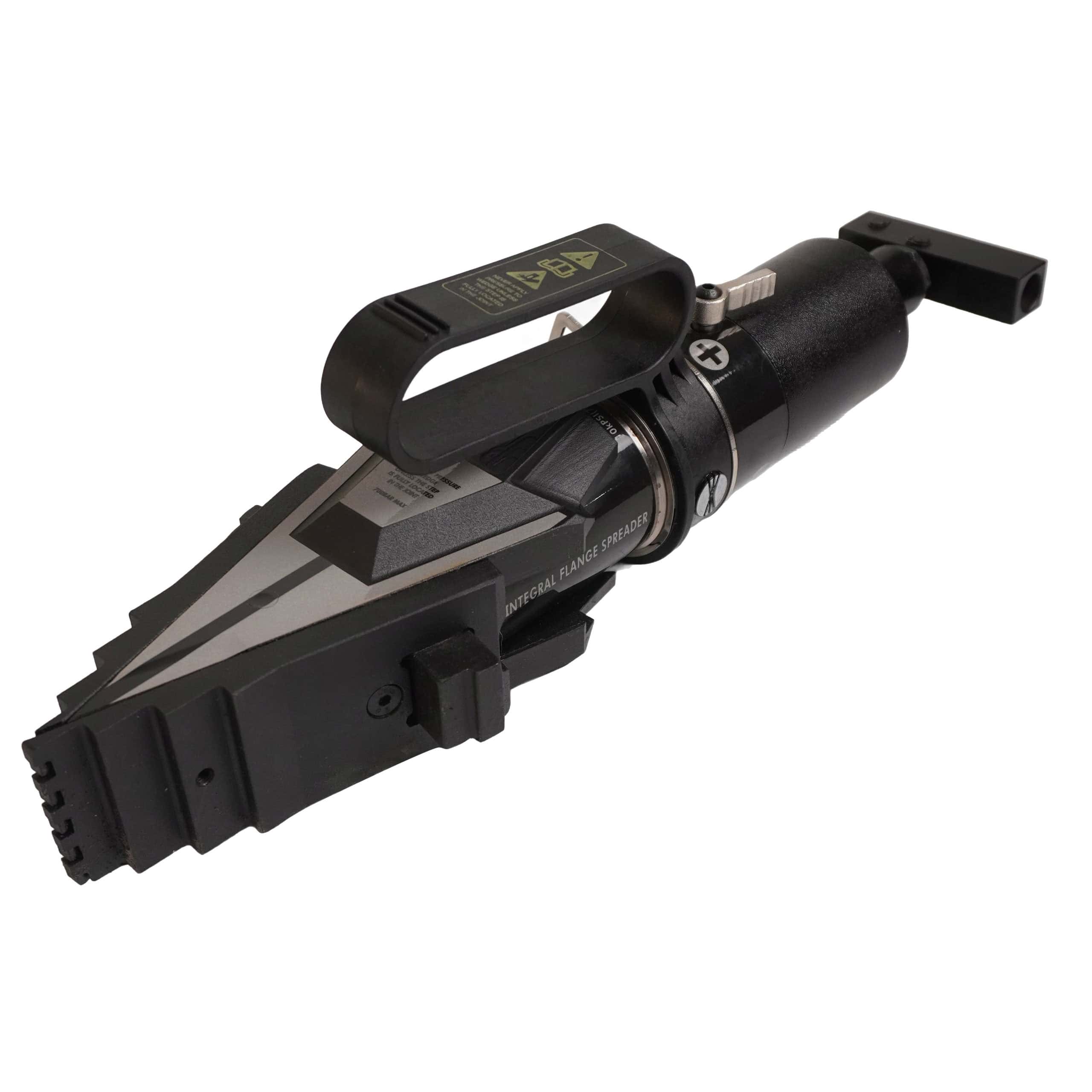

SWI2025TISTDSPB, 24 Ton, Integral Hydraulic Flange Spreader Standard Set, 103.5mm Maximum Spread
The RIVERLAKE SWI2025TI is a practical, portable, and lightweight integral hydraulic flange spreader that combines the spreading head and a manual hydraulic pump into a single, self-contained unit. With no need for external pumps, hoses, or couplings, this all-in-one tool delivers immediate, controlled spreading force wherever flange separation is required—making it ideal for maintenance rounds, remote locations, overhead work, and quick emergency repairs.
Description
Series: SWI | Product Line: Industrial Tools
Integrated, Ready-to-Use Design: The built-in manual pump allows one-handed operation without external connections. Simply position the spreader tips, operate the pump handle, and watch the flange gap open smoothly. A removable handle improves access in tight spaces, while the revolving handle supports both horizontal and vertical spreading orientations, adapting to flange positions without repositioning the tool.
Operator Safety as Standard: The SWI2025TI is engineered with no finger pinch-points, significantly reducing hand injury risks. Increased step-depth on the upper steps ensures secure engagement with flange faces, minimizing slippage. A 1.0-meter safety lanyard prevents accidental drops when working at height or over open structures.
Durable & Field-Ready Construction: Key load-bearing components are forged for exceptional strength and long-term reliability under repeated use. Narrow jaw teeth improve tool wear, extending service life even on rough, corroded, or painted flange surfaces. The spreader can be rapidly disassembled and assembled for cleaning, inspection, or parts replacement—minimizing downtime and simplifying maintenance.
Compact & Lightweight: The practical, portable design reduces operator fatigue and allows easy transport in tool bags or small carrying cases. The self-contained hydraulic system eliminates hose management and leak points, enhancing efficiency and safety on every job.

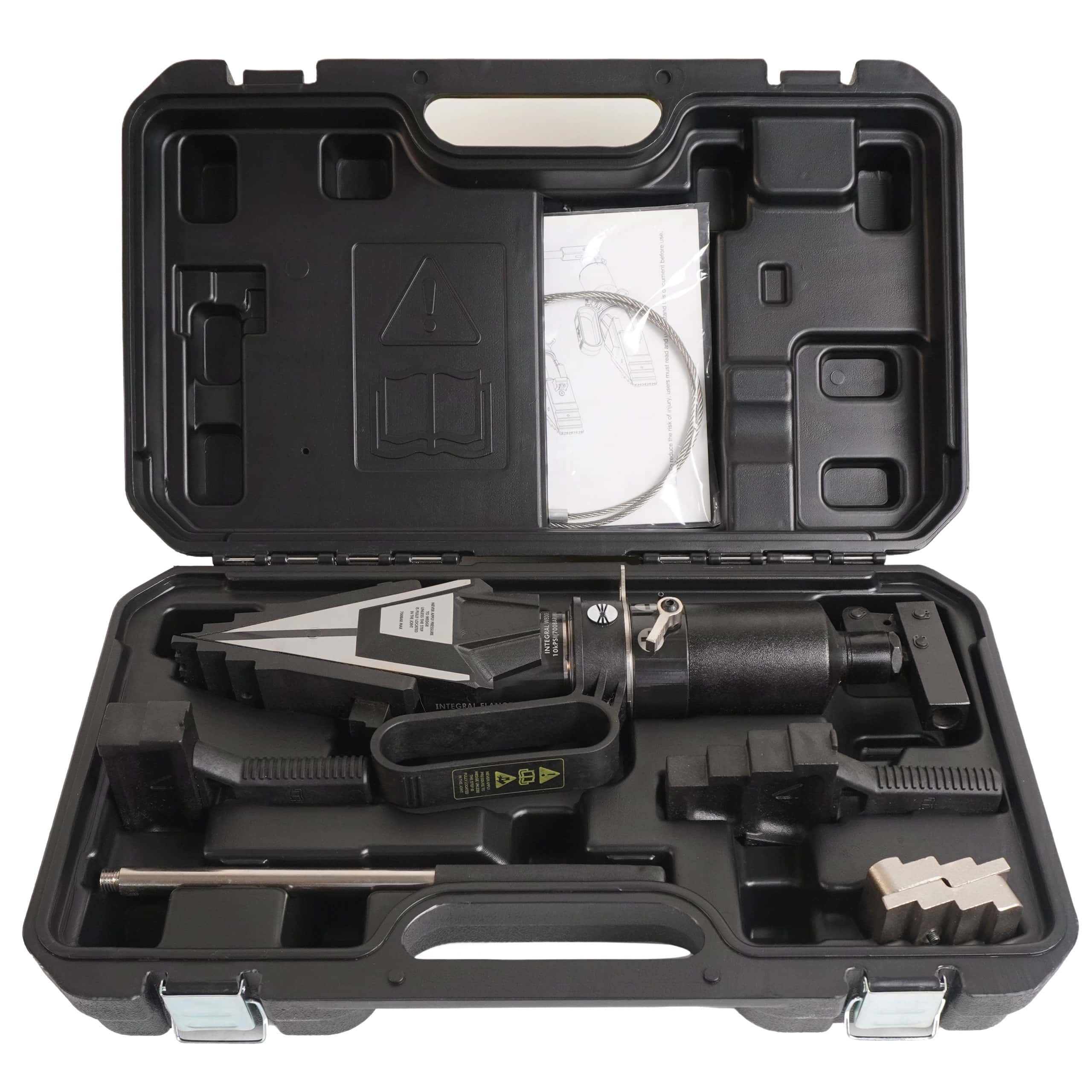

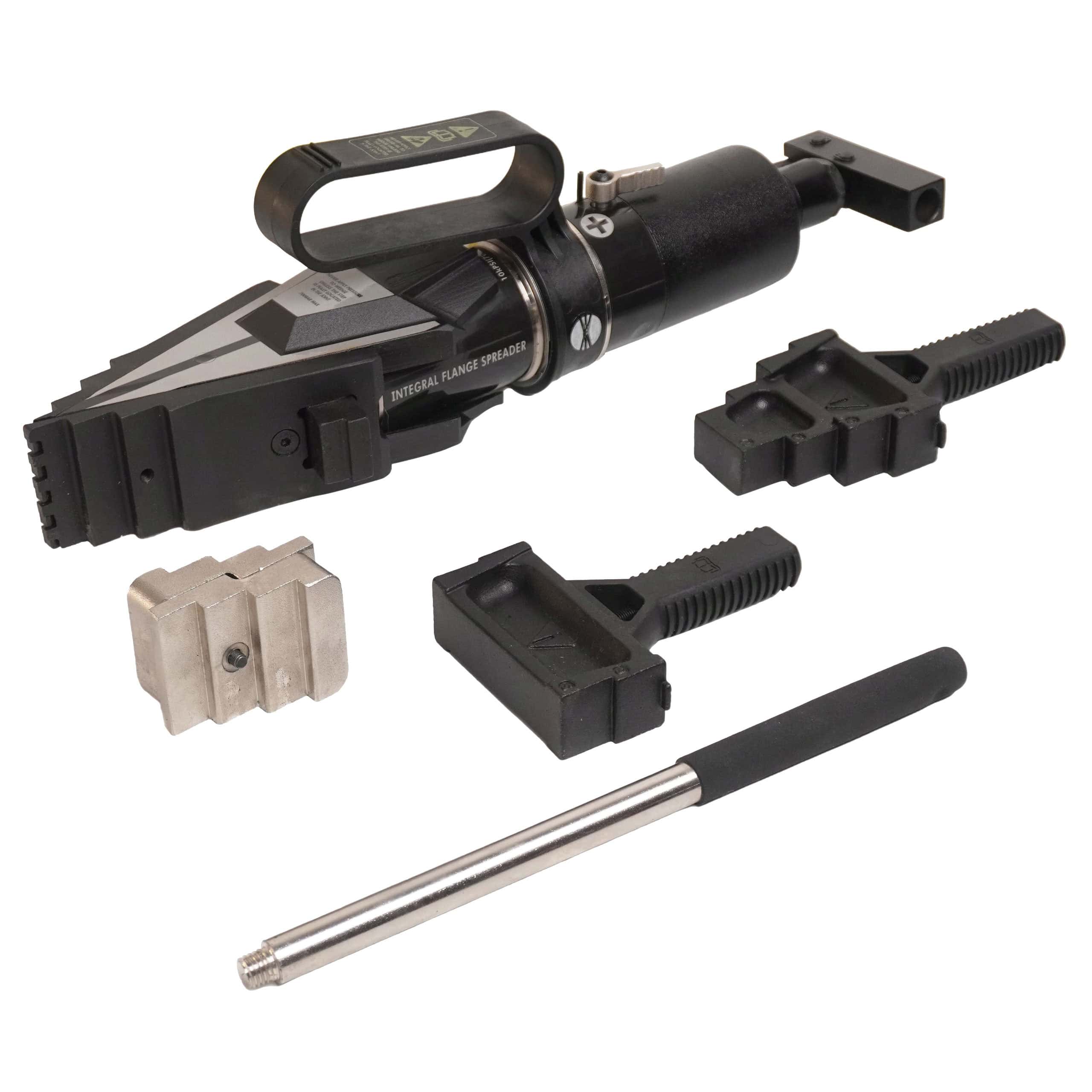

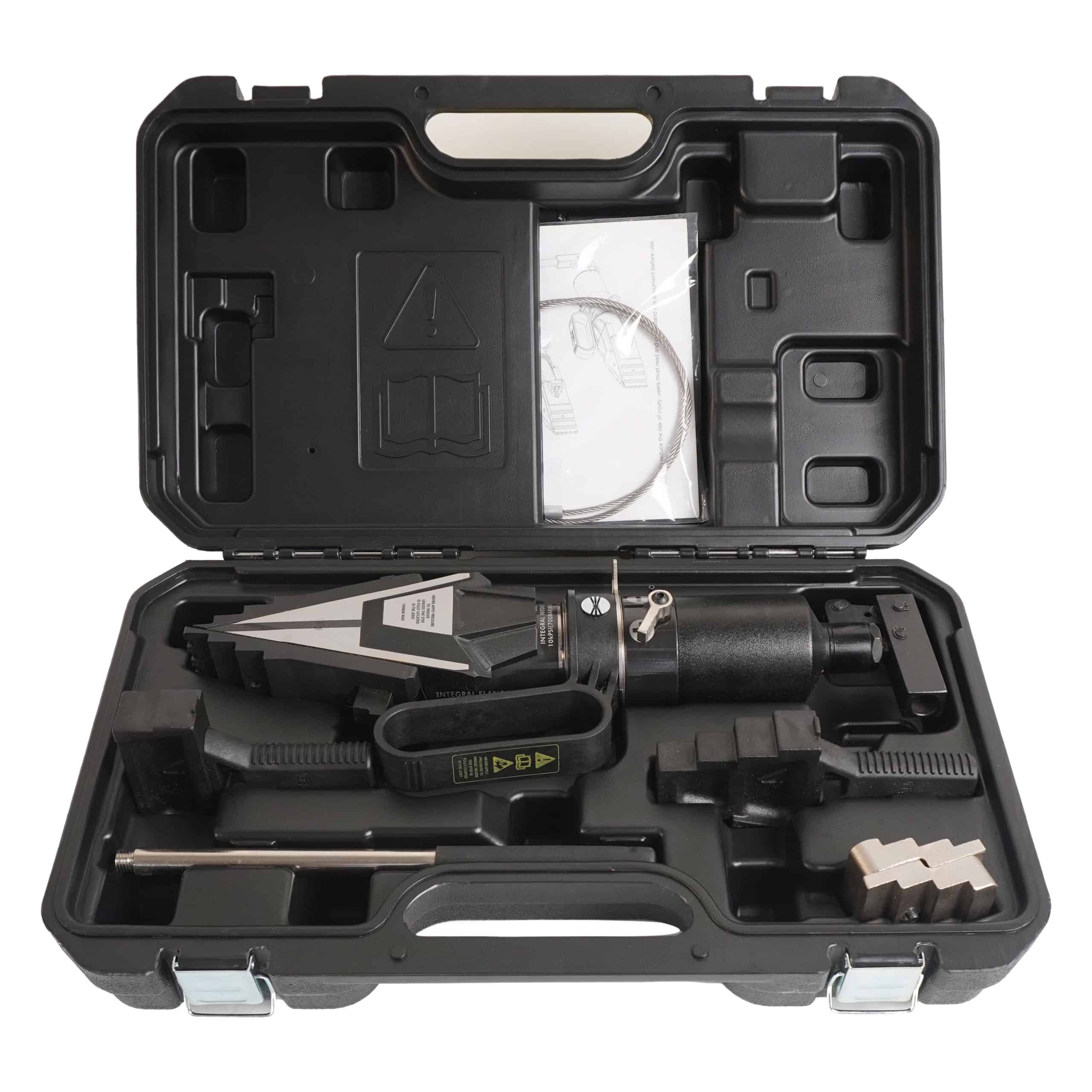

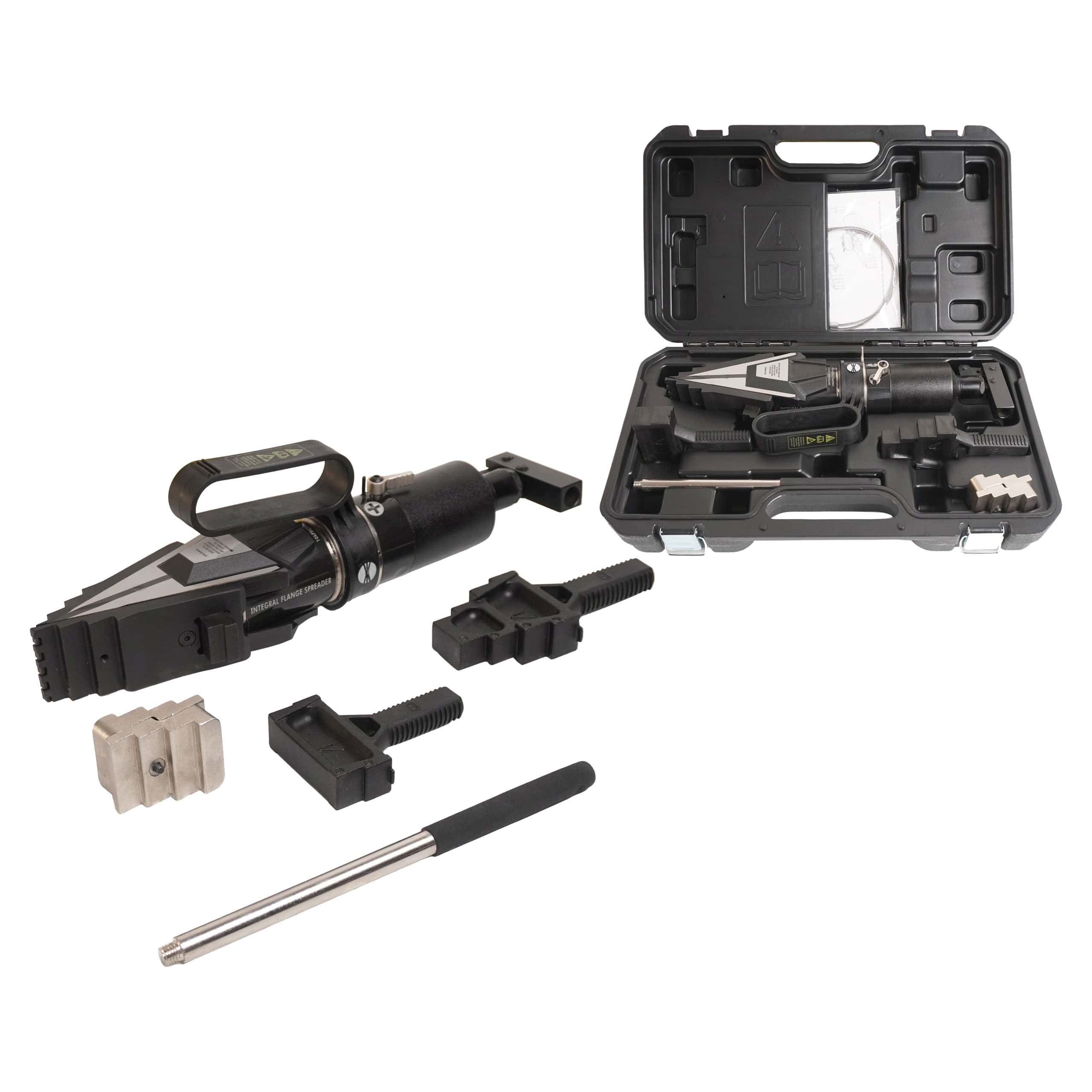

SWI2025TISTDSPB Set Includes
- 1 x SWi20/25TI Flange Spreader Wedgehead
- 1 x 10,000 psi (700 bar) Integral Hydraulic Pump/Cylinder
- 1 x Set of Safety Blocks
- 1 x Pair of Stepped Blocks
- 1 x Lanyard
- 1 x Hex Key
- 1 x Carry-Strap
- 1 x Plastici Tool Case
Specifications
| Maximum Operating Pressure (bar) | 700 |
| First Step Spreading Force(Ton) | 20 |
| 4Th Step (Maximum)Spreading Force(Ton) | 24 |
| Spreading Distance Using Only 1ST Step(mm) | 6-40 |
| Spreading Distance Using 4 Steps,Without Stepped Blocks(mm) | 6-87.5 |
| Spreading Distance Using 2 Steps,With Stepped Blocks(mm) | 48.5-103.5 |
| Flange Dimensions Minimum Access Gap A(mm) | 6 |
| Jaw Width(mm) | 60 |
| Tool Kit Weight(Kg) | 13.8 |
Dimensions
Drawing
Series Comparision Table
| Model | Type | Maximum Operating Pressure (bar) | First Step Spreading Force(Ton) | 4Th Step (Maximum)Spreading Force(Ton) | Spreading Distance Using Only 1ST Step(mm) | Spreading Distance Using 4 Steps,Without Stepped Blocks(mm) | Spreading Distance Using 2 Steps,With Stepped Blocks(mm) | Flange Dimensions Minimum Access Gap A(mm) | Jaw Width(mm) | Tool Kit Weight(Kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| SWI5TE-S | Split Hydraulic | 700 | 6.3 | 7.7 | 4 to 29 | 4 to 79 | 56 to 101 | 4 | 50 | 8.7 |
| SWI5TE-T | Split Hydraulic | 700 | 6.3 | 7.7 | 4 to 29 | 4 to 79 | 56 to 101 | 4 | 50 | 14.4 |
| SWI5TI-S | Integral Hydraulic | 700 | 6.3 | 7.7 | 4 to 29 | 4 to 79 | 56 to 101 | 4 | 50 | 10.5 |
| SWI1214TMSTDSPB | Mechanical | * | 12 | 14 | 6 to 40 | 6 to 87.5 | 48.5 to 103.5 | 6 | 60 | 13 |
| SWI2025TEMINSPB | Split Hydraulic | 700 | 20 | 24 | 6 to 40 | 6 to 87.5 | 48.5 to 103.5 | 6 | 60 | 11.6 |
| SWI2025TESTDSPB | Split Hydraulic | 700 | 20 | 24 | 6 to 40 | 6 to 87.5 | 48.5 to 103.5 | 6 | 60 | 20.7 |
| SWI2025TEMAXSPB | Split Hydraulic | 700 | 20 | 24 | 6 to 40 | 6 to 87.5 | 48.5 to 103.5 | 6 | 60 | 33 |
| SWI2025TISTDSPB | Integral Hydraulic | 700 | 20 | 24 | 6 to 40 | 6 to 87.5 | 48.5 to 103.5 | 6 | 60 | 13.8 |
