SWI2025TEMAXSPB, 24 Ton, Hydraulic Flange Spreader Maxi Set, 103.5mm Maximum Spread
The RIVERLAKE SWI2025TE is a practical, portable, and lightweight hydraulic flange spreader set designed for safe, efficient flange separation in pipe maintenance and repair operations. Engineered for use with an external hydraulic pump (manual, electric, or pneumatic), this tool delivers powerful, controlled spreading force while prioritizing operator safety and ease of handling.
Description
Series: SWI | Product Line: Industrial Tools
User-Friendly Design for Confined Spaces: The SWI2025TE features a revolving handle that supports both horizontal and vertical spreading orientations, allowing the tool to adapt to flange positions without repositioning. The removable handle improves access in tight or obstructed work areas, enabling insertion and operation where conventional spreaders cannot fit. The compact, lightweight construction reduces operator fatigue during extended use.
Comprehensive Safety Features: Operator protection is built into every detail. The tool has no finger pinch-points, significantly reducing the risk of hand injuries. Increased step-depth on the upper steps ensures secure engagement with flange faces, minimizing slippage. A 1.0-meter safety lanyard is included to prevent accidental drops when working at height or over open structures.
Durable, Field-Ready Construction: Key load-bearing components are forged for exceptional strength and long-term reliability under high-stress conditions. Narrow jaw teeth are designed to improve tool wear, extending service life even after repeated use on rough, corroded, or painted flange surfaces. The spreader can be rapidly disassembled and assembled for cleaning, inspection, or parts replacement—reducing downtime and simplifying maintenance.
Complete Set for Convenience: Supplied as a set, the SWI2025TE includes the hydraulic flange spreader, safety lanyard, and a durable carrying case (or designated storage) to keep components organized and protected during transport. The set requires connection to a separate hydraulic pump and hose (available from RIVERLAKE) for operation.

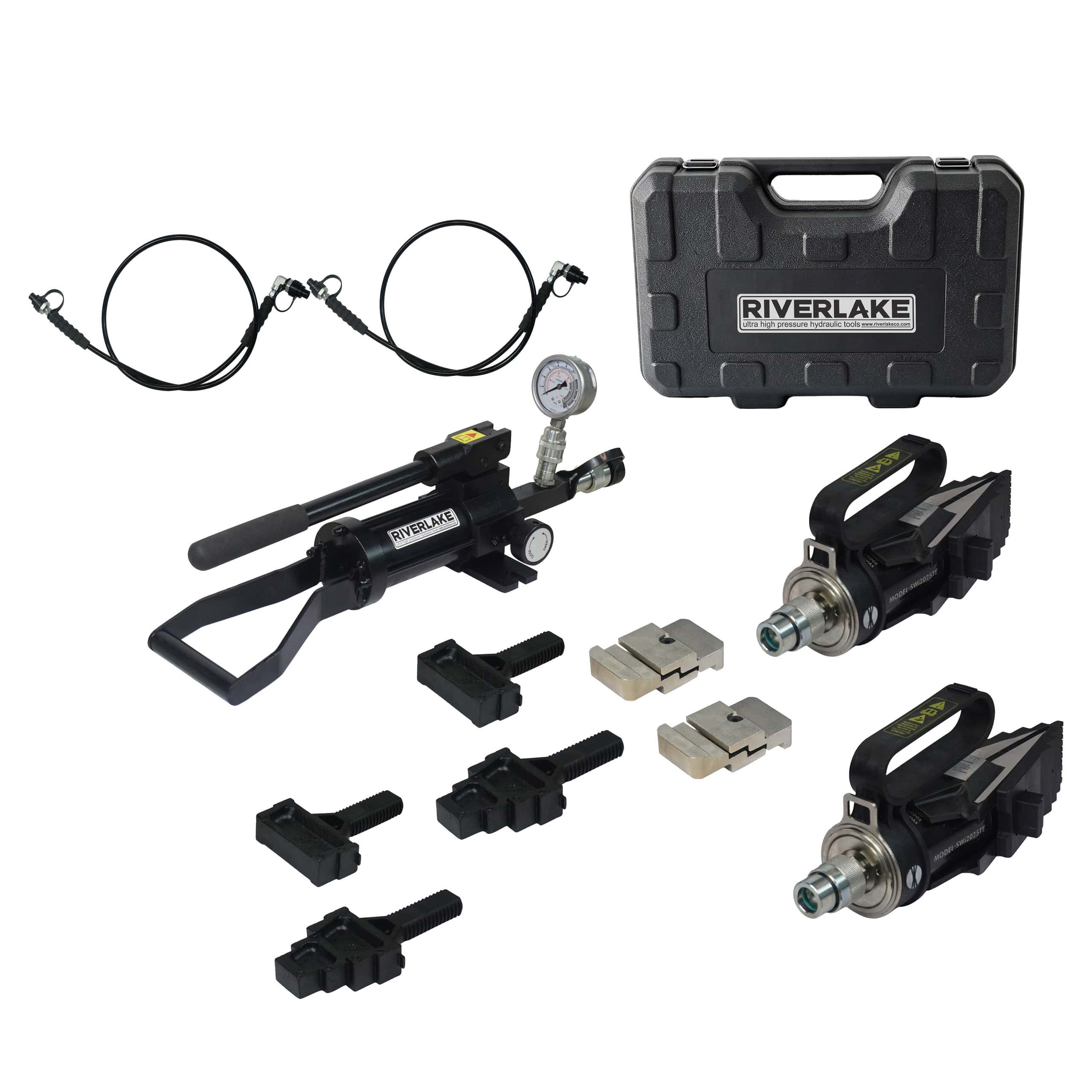

SWI2025TEMAXSPB Standard Set Includes:
- 2 x SWi20/25TE Flange Spreader Wedgehead
- 2 x 10,000 psi Hydraulic Cylinder
- 2 x Safety Block
- 2 x Lanyard
- 2 x 1 x 10,000 psi (700 bar) Hydraulic Hose, 78.8″ (2 m) with 90 degree elbow
- 1 x 10,000 psi (700 bar) HP550D Twin-Port Sealed Hand Pump with Gauge)
- 1 x Plastic Tool Case
Specifications
| Maximum Operating Pressure (bar) | 700 |
| First Step Spreading Force(Ton) | 20 |
| 4Th Step (Maximum)Spreading Force(Ton) | 24 |
| Spreading Distance Using Only 1ST Step(mm) | 6-40 |
| Spreading Distance Using 4 Steps,Without Stepped Blocks(mm) | 6-87.5 |
| Spreading Distance Using 2 Steps,With Stepped Blocks(mm) | 48.5-103.5 |
| Flange Dimensions Minimum Access Gap A(mm) | 6 |
| Jaw Width(mm) | 60 |
| Tool Kit Weight(Kg) | 33 |
Dimensions
Drawing
Series Comparision Table
| Model | Type | Maximum Operating Pressure (bar) | First Step Spreading Force(Ton) | 4Th Step (Maximum)Spreading Force(Ton) | Spreading Distance Using Only 1ST Step(mm) | Spreading Distance Using 4 Steps,Without Stepped Blocks(mm) | Spreading Distance Using 2 Steps,With Stepped Blocks(mm) | Flange Dimensions Minimum Access Gap A(mm) | Jaw Width(mm) | Tool Kit Weight(Kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| SWI5TE-S | Split Hydraulic | 700 | 6.3 | 7.7 | 4 to 29 | 4 to 79 | 56 to 101 | 4 | 50 | 8.7 |
| SWI5TE-T | Split Hydraulic | 700 | 6.3 | 7.7 | 4 to 29 | 4 to 79 | 56 to 101 | 4 | 50 | 14.4 |
| SWI5TI-S | Integral Hydraulic | 700 | 6.3 | 7.7 | 4 to 29 | 4 to 79 | 56 to 101 | 4 | 50 | 10.5 |
| SWI1214TMSTDSPB | Mechanical | * | 12 | 14 | 6 to 40 | 6 to 87.5 | 48.5 to 103.5 | 6 | 60 | 13 |
| SWI2025TEMINSPB | Split Hydraulic | 700 | 20 | 24 | 6 to 40 | 6 to 87.5 | 48.5 to 103.5 | 6 | 60 | 11.6 |
| SWI2025TESTDSPB | Split Hydraulic | 700 | 20 | 24 | 6 to 40 | 6 to 87.5 | 48.5 to 103.5 | 6 | 60 | 20.7 |
| SWI2025TEMAXSPB | Split Hydraulic | 700 | 20 | 24 | 6 to 40 | 6 to 87.5 | 48.5 to 103.5 | 6 | 60 | 33 |
| SWI2025TISTDSPB | Integral Hydraulic | 700 | 20 | 24 | 6 to 40 | 6 to 87.5 | 48.5 to 103.5 | 6 | 60 | 13.8 |
