SWI1214TMSTDSPB, 14 Ton, Mechanical Flange Spreader Set, 103.5mm Maximum Spread

 Series: SWI | Product Line: Industrial Tools

Simple, Mechanical Operation: The SWI1214TMSTDSPB uses a robust mechanical screw or wedge mechanism to generate controlled spreading force. By rotating the revolving handle, operators can gradually open flange gaps with precision and without the risk of sudden movement. The removable handle improves access in confined spaces, while the revolving design supports both horizontal and vertical spreading orientations—adapting to flange positions without repositioning the entire tool.

Operator Safety First: The tool is engineered with no finger pinch-points, significantly reducing hand injury risks during operation. Increased step-depth on the upper steps ensures secure engagement with flange faces, minimizing the chance of slippage. A 1.0-meter safety lanyard is included to prevent accidental drops when working at height or over open structures.

Built for Strength & Reliability: Key load-bearing components are forged for exceptional strength and long-term reliability under repeated use. Narrow jaw teeth improve tool wear, extending service life even on rough, corroded, or painted flange surfaces. The spreader can be rapidly disassembled and assembled for cleaning, inspection, or parts replacement—reducing downtime and simplifying maintenance.

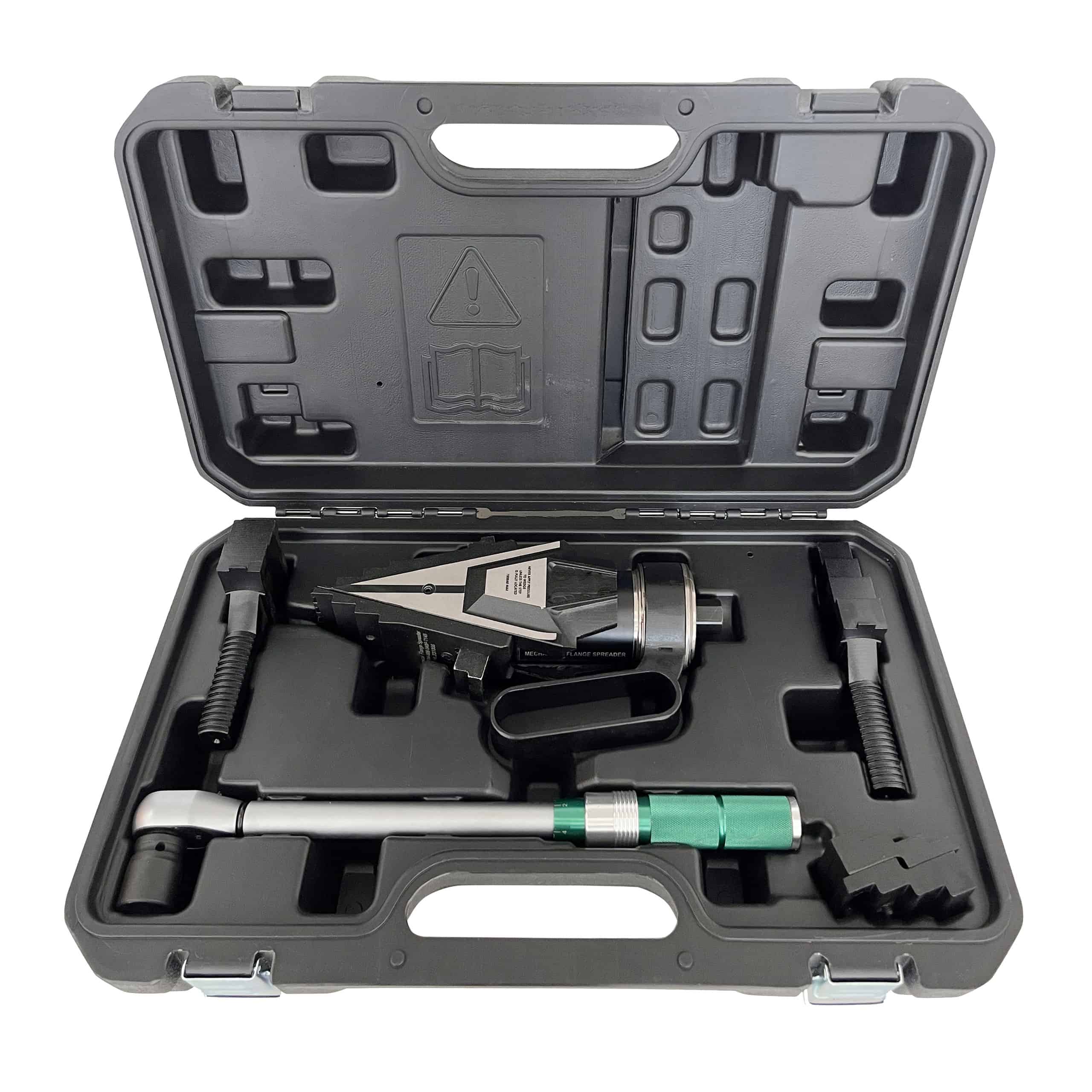

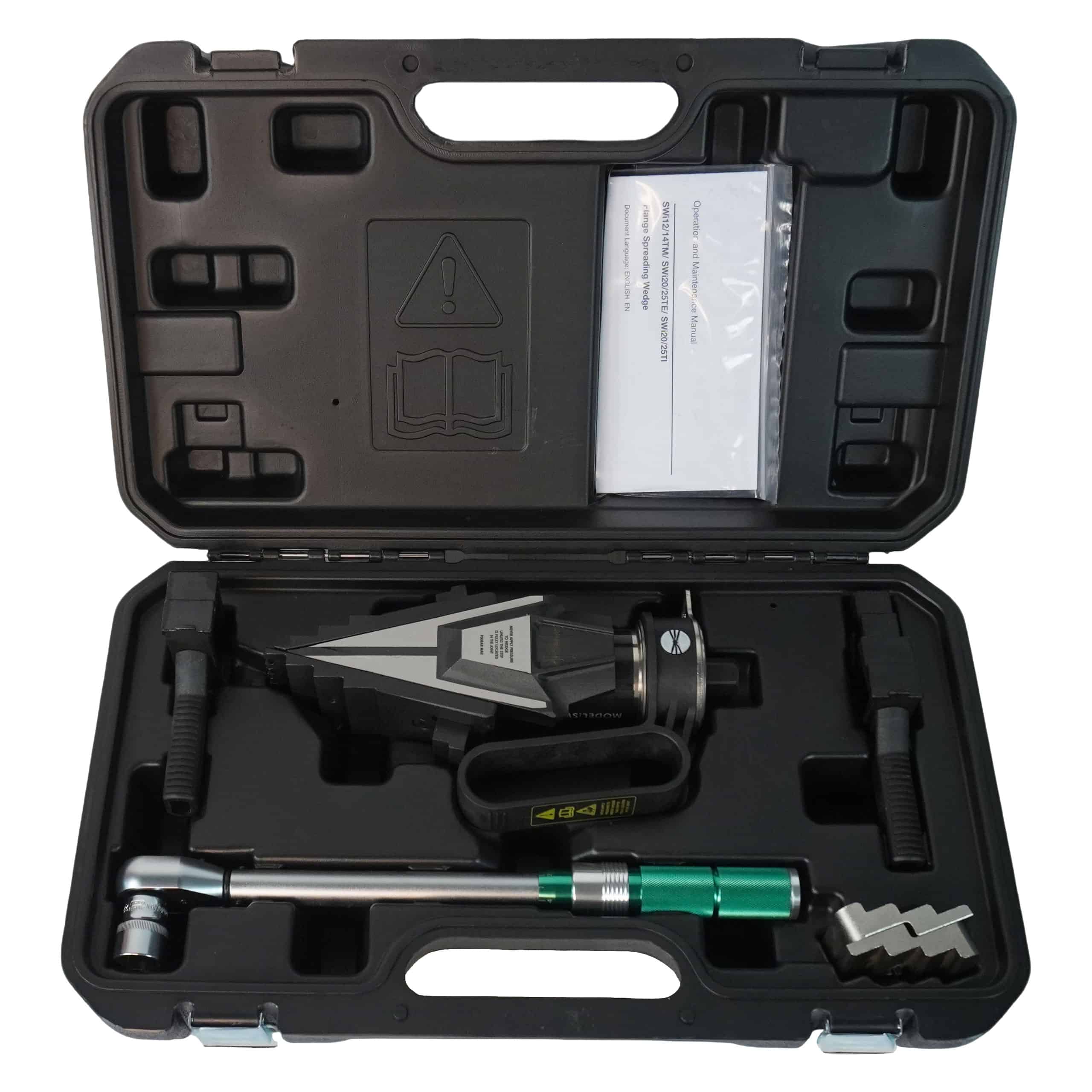

Complete Set for Convenience: Supplied as a set, the SWI1214TMSTDSPB includes the mechanical flange spreader, safety lanyard, and a durable carrying case (or designated storage) to keep components organized and protected during transport. No additional hydraulic equipment is required.

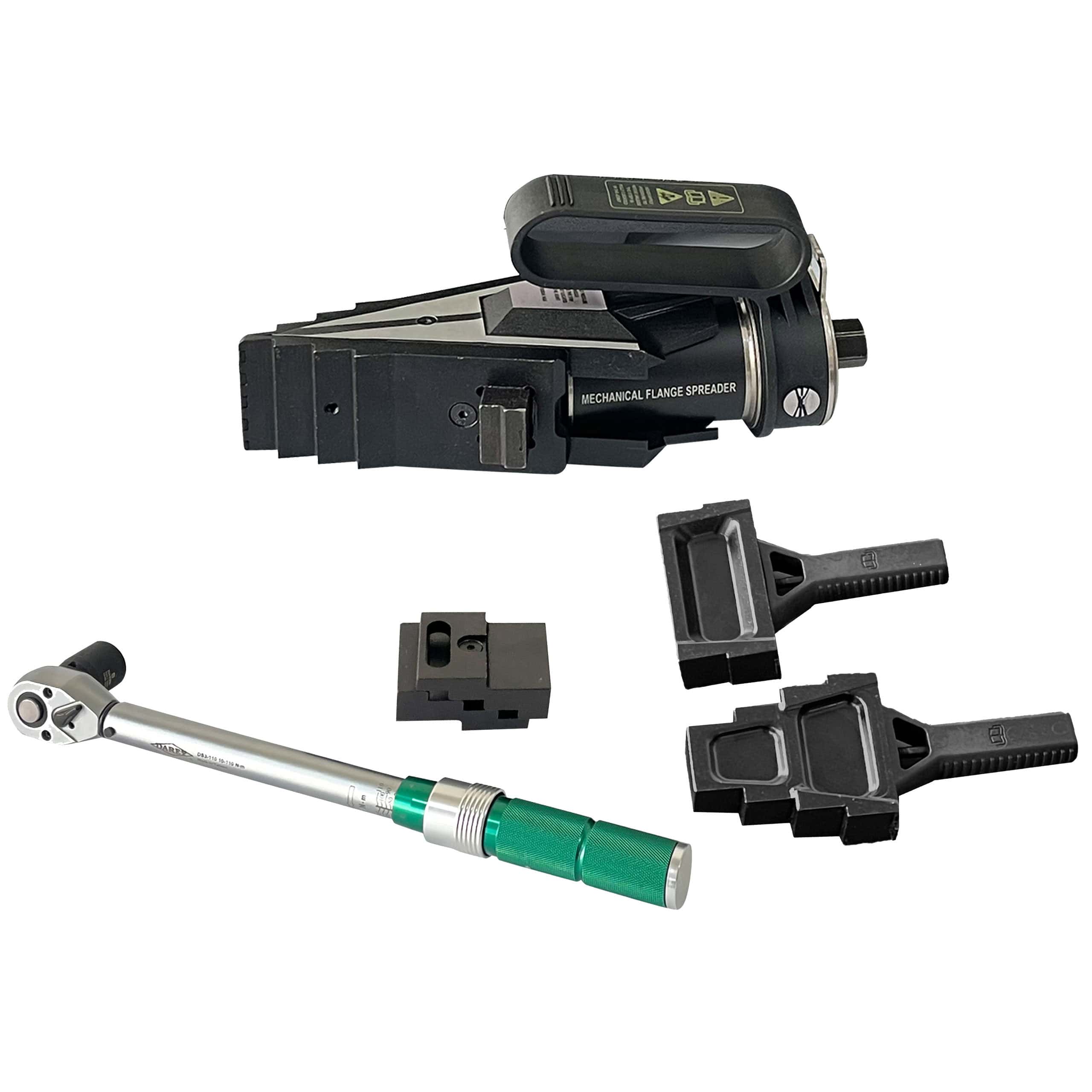

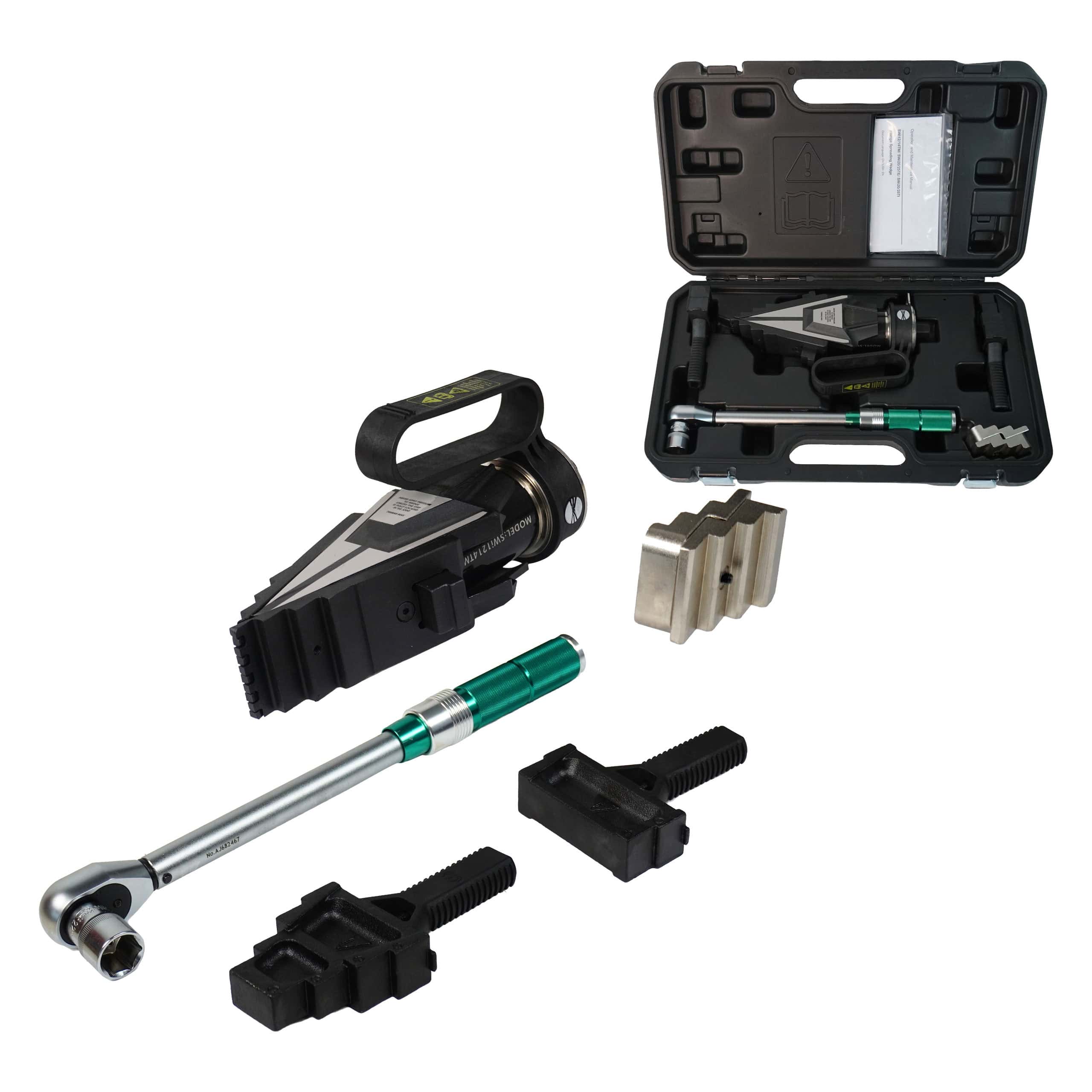

SWI1214TMSTDSPB Set Includes:

• 1 x SWi12/14TM Mechanical Flange Spreader Wedgehead
• 1 x 12/14TM Mechanical Cylinder
• 1 x Torque Wrench with 22 mm Socket
• 1 x Set of Safety Blocks
• 1 x Pair of Stepped Blocks
• 1 x Safety Lanyard
• 1 x Hex Key
• 1 x Plastic Tool Case
