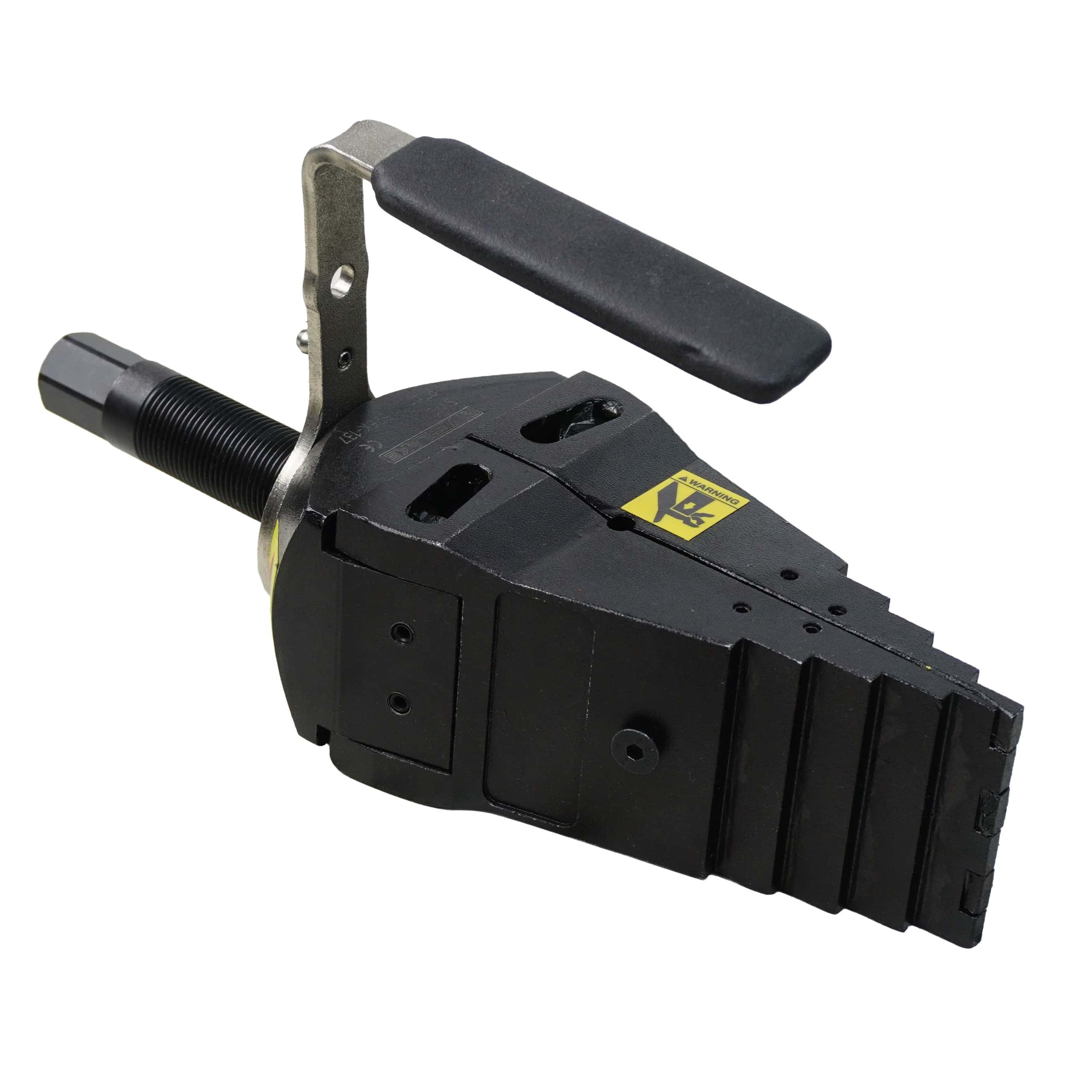

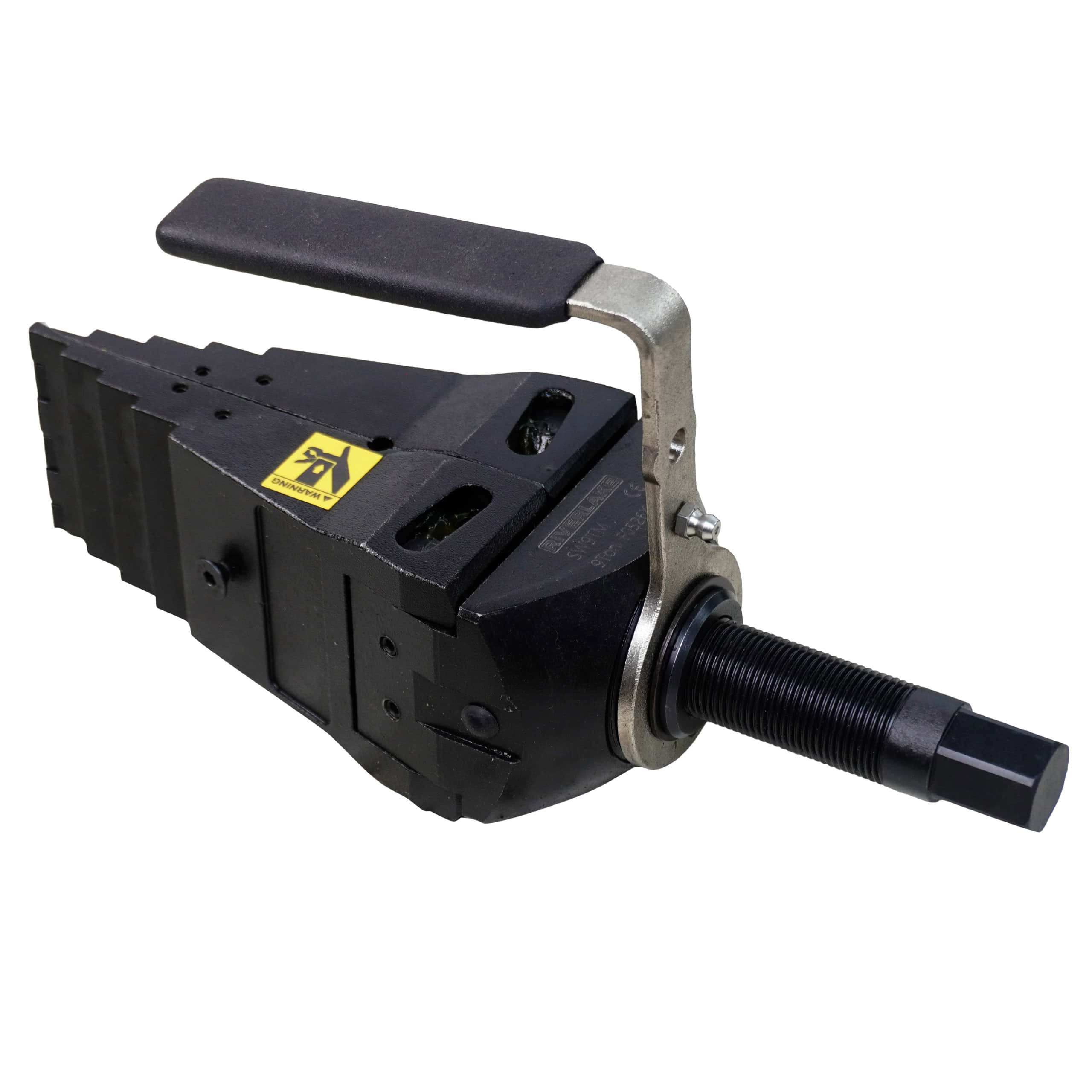

SW9TM, 9 Ton, Mechanical Flange Spreader Set, 81mm Maximum Spread
The RIVERLAKE SW9TM is a maintenance‑free mechanical flange spreader designed for safe, controlled opening of pipe flanges during gasket replacement, valve maintenance, and routine service operations. Delivering 9 tons of spreading force with a maximum opening distance of 81 mm, this lightweight, ergonomic tool requires only a 6 mm initial gap to begin operation – making it ideal for flanges that are lightly compressed or partially separated.
Description
Series: SW | Product Line: Industrial Tools
Simple, Reliable Mechanical Operation: The SW9TM is actuated by a standard torque wrench (200–203 N·m, included in the kit). Turning the torque wrench drives a precision screw mechanism that gradually and measurably spreads the flange faces. No hydraulics, hoses, or external power sources are needed, reducing setup time and eliminating leak points.
Safe & Ergonomic Design: The tool is lightweight and easy to handle, significantly reducing operator fatigue. It can be used individually for smaller flanges or in pairs (two spreaders opposite each other) for larger, more stubborn joints. A safety block is included to mechanically lock the opened gap, allowing technicians to work safely between flange faces without continuous tool pressure.
Durable & Corrosion‑Protected: The SW9TM is built from high‑strength, corrosion‑protected materials, ensuring long service life in harsh industrial environments. With no hydraulic seals or moving parts to wear out, the tool is virtually maintenance‑free.

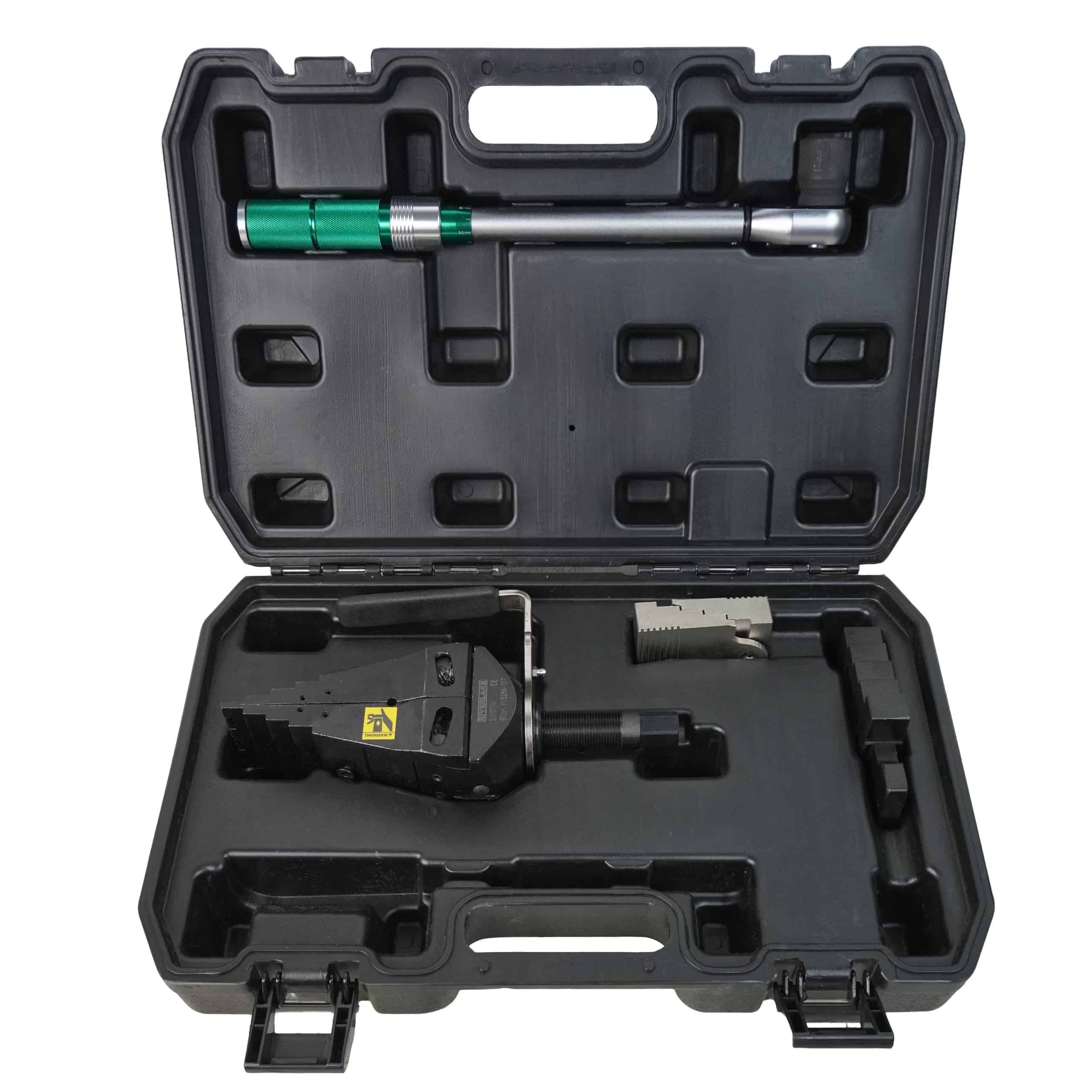

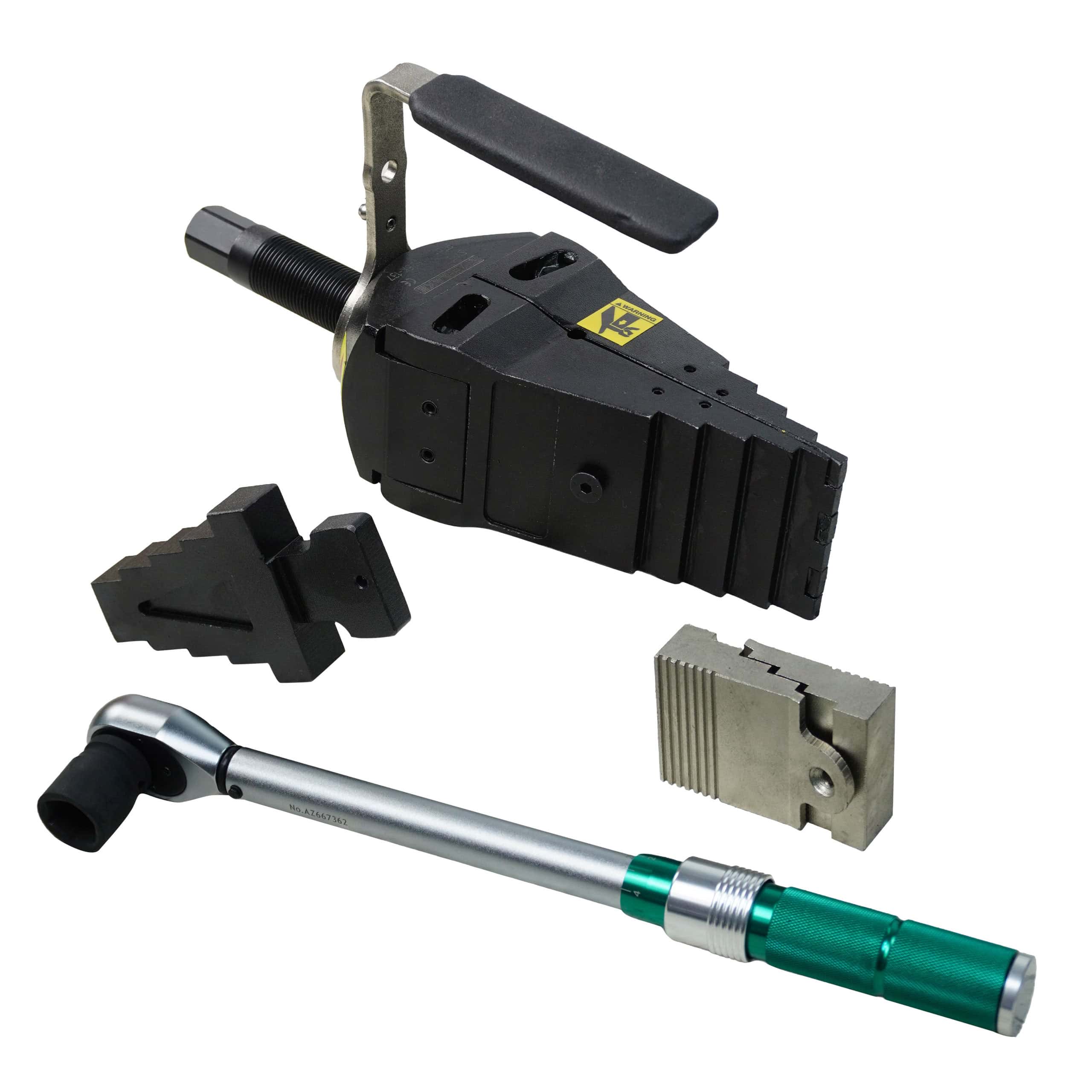

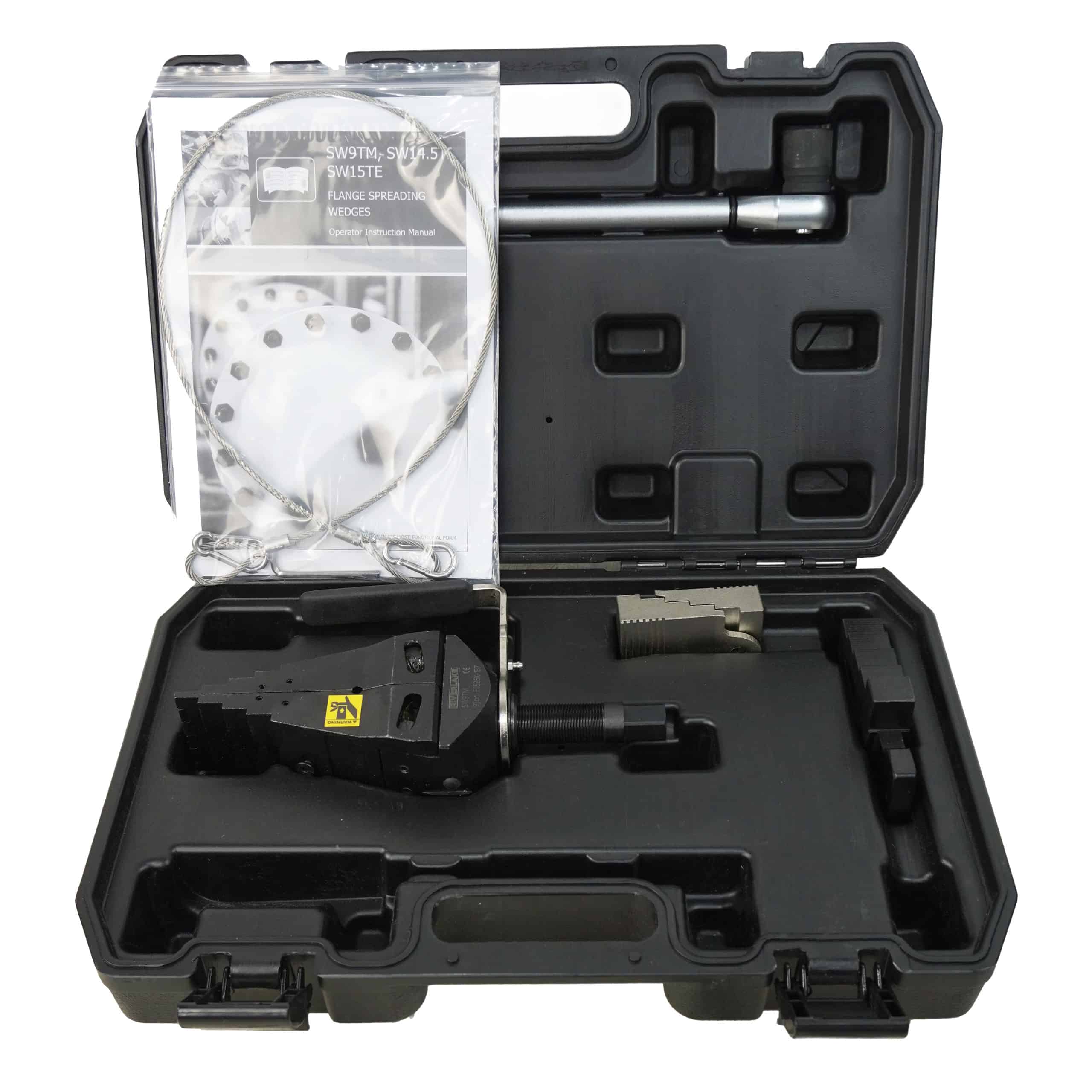

SW9TM Tool Kit Includes:
-
1 x SW9TM Wedgehead
-
1 x 203 N·m Torque Wrench
-
1 x Safety Block
-
1 x Instruction Manual
-
1 x Plastic Tool Case
Specifications
| Model | SW9TM |
| Maximum Spreading Force(Ton) | 9 |
| Spreading Distance Using Only 1ST Step(mm) | 6-31 |
| Spreading Distance Using 4 Steps,Without Stepped Blocks(mm) | 6-62 |
| Spreading Distance Using Optional Stepped Blocks Kit(mm) | 31-81 |
| Weight(Kg) | 5.5 |

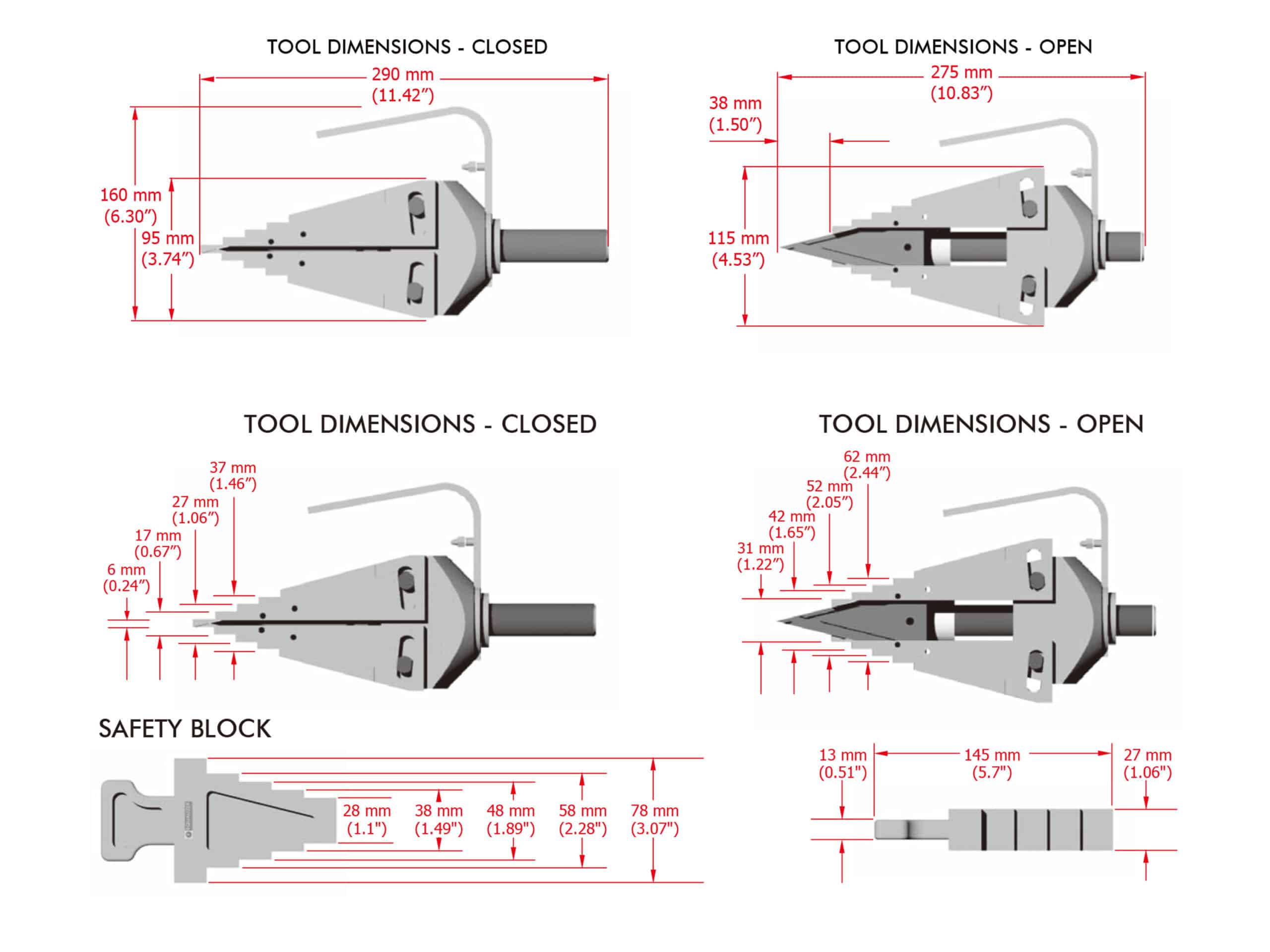

Dimensions
Drawing
Series Comparision Table
| Model | Type | Maximum Operating Pressure (bar) | Torque Applied | Maximum Spreading Force(Ton) | Spreading Distance Using Only 1ST Step(mm) | Spreading Distance Using 4 Steps,Without Stepped Blocks(mm) | Spreading Distance Using Optional Stepped Blocks Kit(mm) | Weight(Kg) |
|---|---|---|---|---|---|---|---|---|
| SW9TM | Mechanical | * | 203Nm | 9.00 | 6-31 | 6-62 | 31-81 | 5.50 |
| SW14.5TI | Integral Hydraulic | 700.00 | * | 14.50 | 6-31 | 6-62 | 31-81 | 9.00 |
| SW15TE | Split Hydraulic | 700.00 | * | 15.50 | 6-31 | 6-62 | 31-81 | 7.00 |
