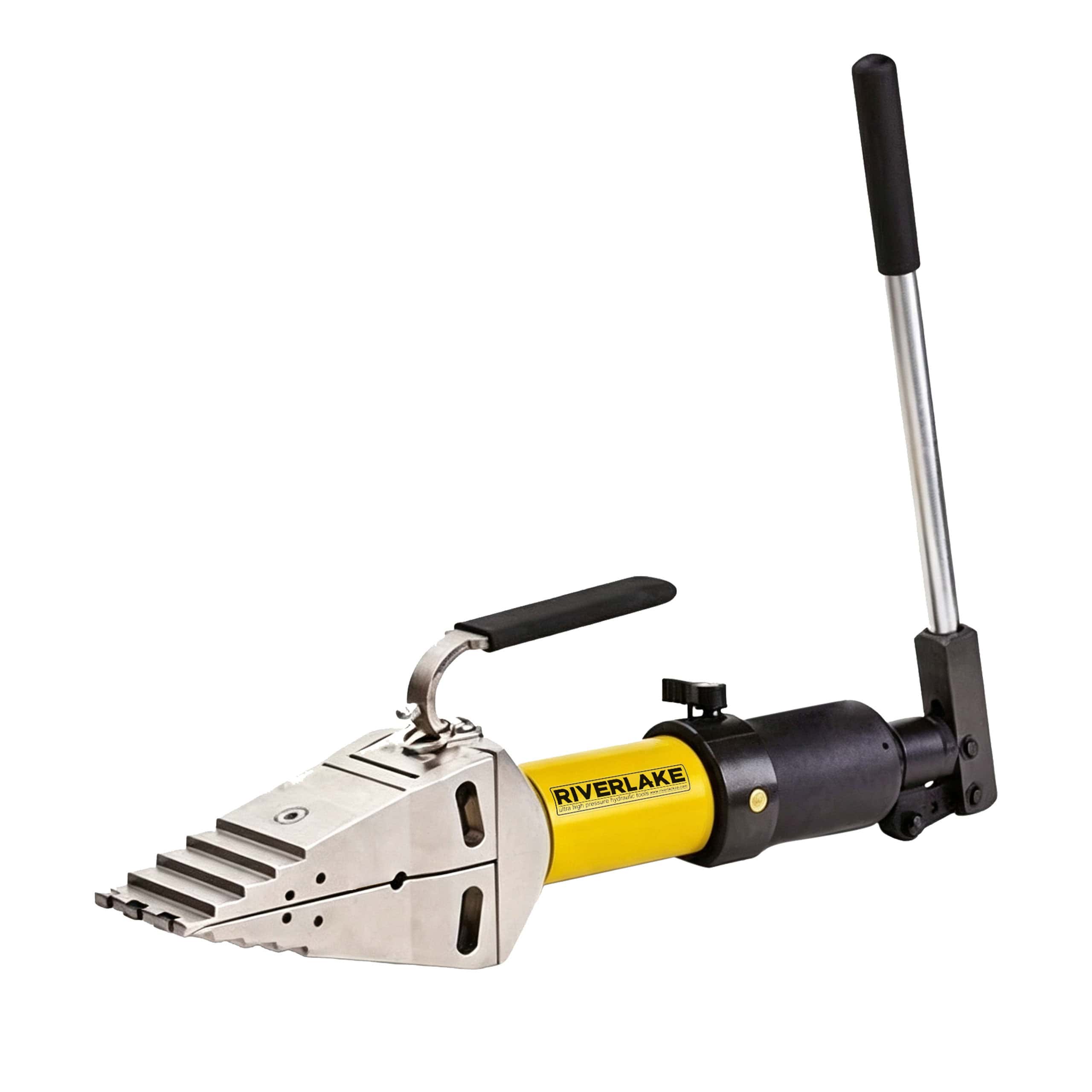

SW14.5TI, 14.5 Ton, Integral Hydraulic Flange Spreader Set, 81mm Maximum Spread
The RIVERLAKE SW14.5TI is a self-contained, integral hydraulic flange spreader designed for safe, controlled, and effortless opening of pipe flanges. Combining the spreading wedgehead with a 10,000 psi (700 bar) manual hydraulic pump in a single compact unit, this tool delivers 14.5 tons of spreading force with an 81 mm maximum opening distance – requiring only a 6 mm initial gap to begin operation.
Description
Series: SW | Product Line: Industrial Tools
Integrated Hydraulic Power – No External Connections: The built-in hydraulic pump eliminates the need for separate pumps, hoses, or couplings. Simply position the wedgehead, operate the integrated pump handle, and watch the flange gap open smoothly and precisely. This all-in-one design reduces setup time, eliminates leak points, and enhances portability.
Powerful & Controlled Spreading Performance: With 14.5 tons of force, the SW14.5TI handles stubborn, corroded, or seized flanges with ease. The hydraulic system provides measurable, gradual force application, preventing sudden movements that could damage gasket surfaces or injure operators. A built-in release valve allows controlled retraction when the job is complete.
Safe Operation: The tool is engineered with operator safety as a priority. A safety block is included to mechanically lock the opened gap, allowing technicians to work between flange faces without continuous hydraulic pressure. Stepped blocks (included) provide additional support for larger gaps. The ergonomic, lightweight design reduces fatigue, while the carry‑strap and robust moulded plastic carry case protect the tool during transport and storage.
Maintenance‑Free & Corrosion‑Protected: The SW14.5TI is virtually maintenance‑free, with no external seals or complex components to service. A corrosion‑protected finish ensures long service life in harsh industrial environments, including petrochemical plants, offshore platforms, and power generation facilities.
Kit Contents (Robust Moulded Plastic Carry Case):
-

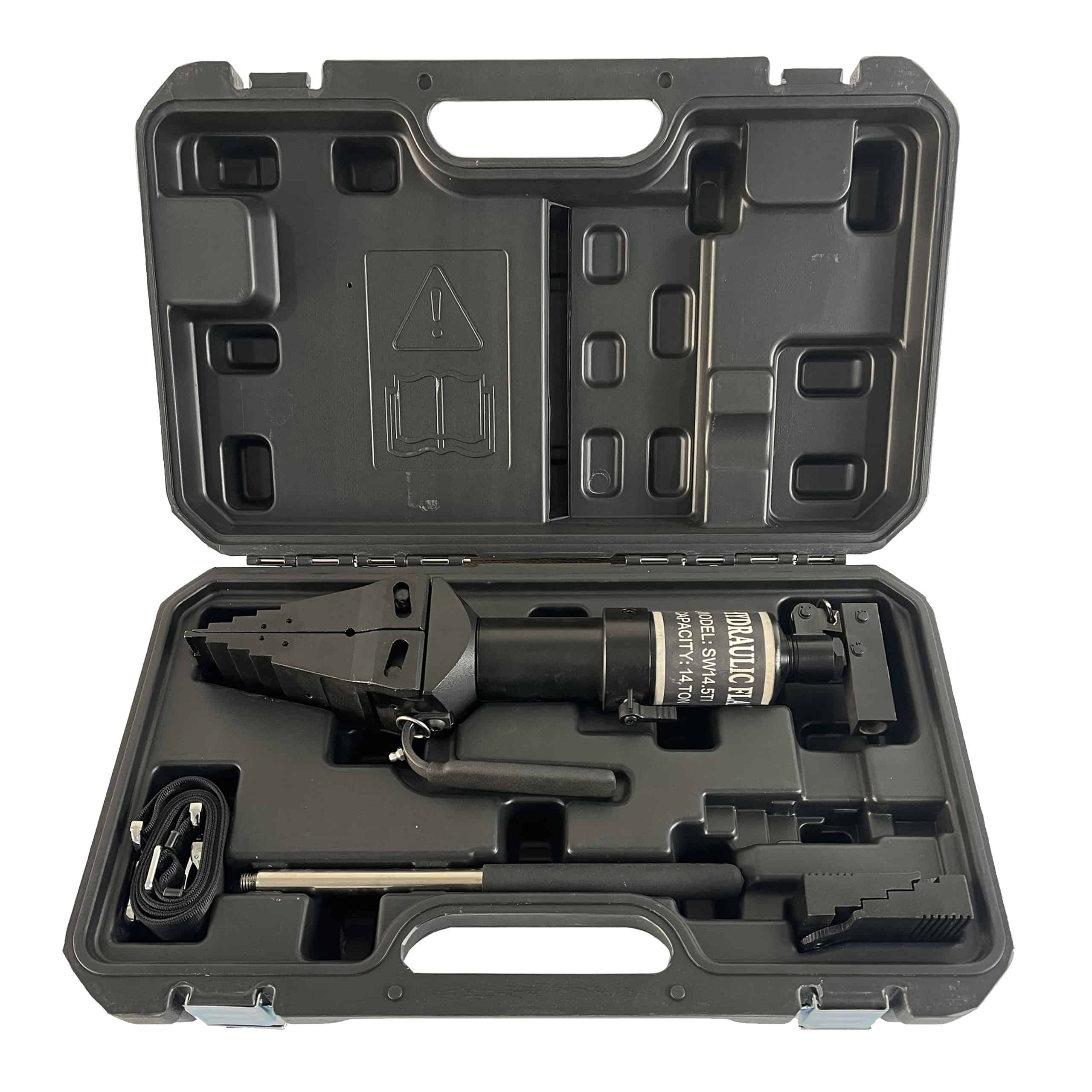

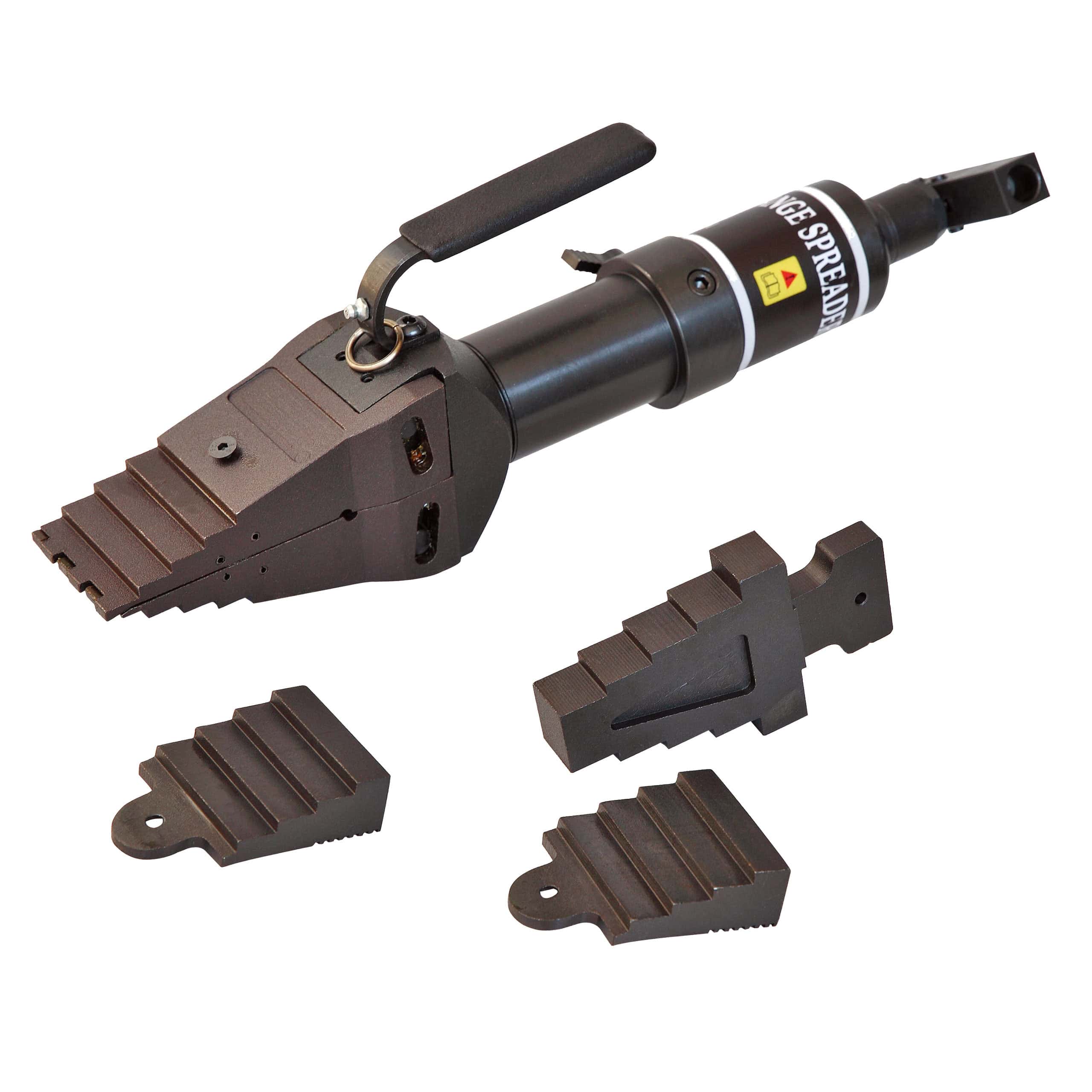

1 x SW14.5TI Flange Spreader Wedgehead with integral hydraulic pump/cylinder
-
1 x Safety Block
-
1 x Pair of Stepped Blocks
-
1 x Carry‑Strap
-
1 x Instruction Manual
-
1 x Plastic Tool Case
Specifications
| Model | SW14.5TI |
| Maximum Spreading Force(Ton) | 14.5 |
| Spreading Distance Using Only 1ST Step(mm) | 6-31 |
| Spreading Distance Using 4 Steps,Without Stepped Blocks(mm) | 6-62 |
| Spreading Distance Using Optional Stepped Blocks Kit(mm) | 31-81 |
| Weight(Kg) | 9 |

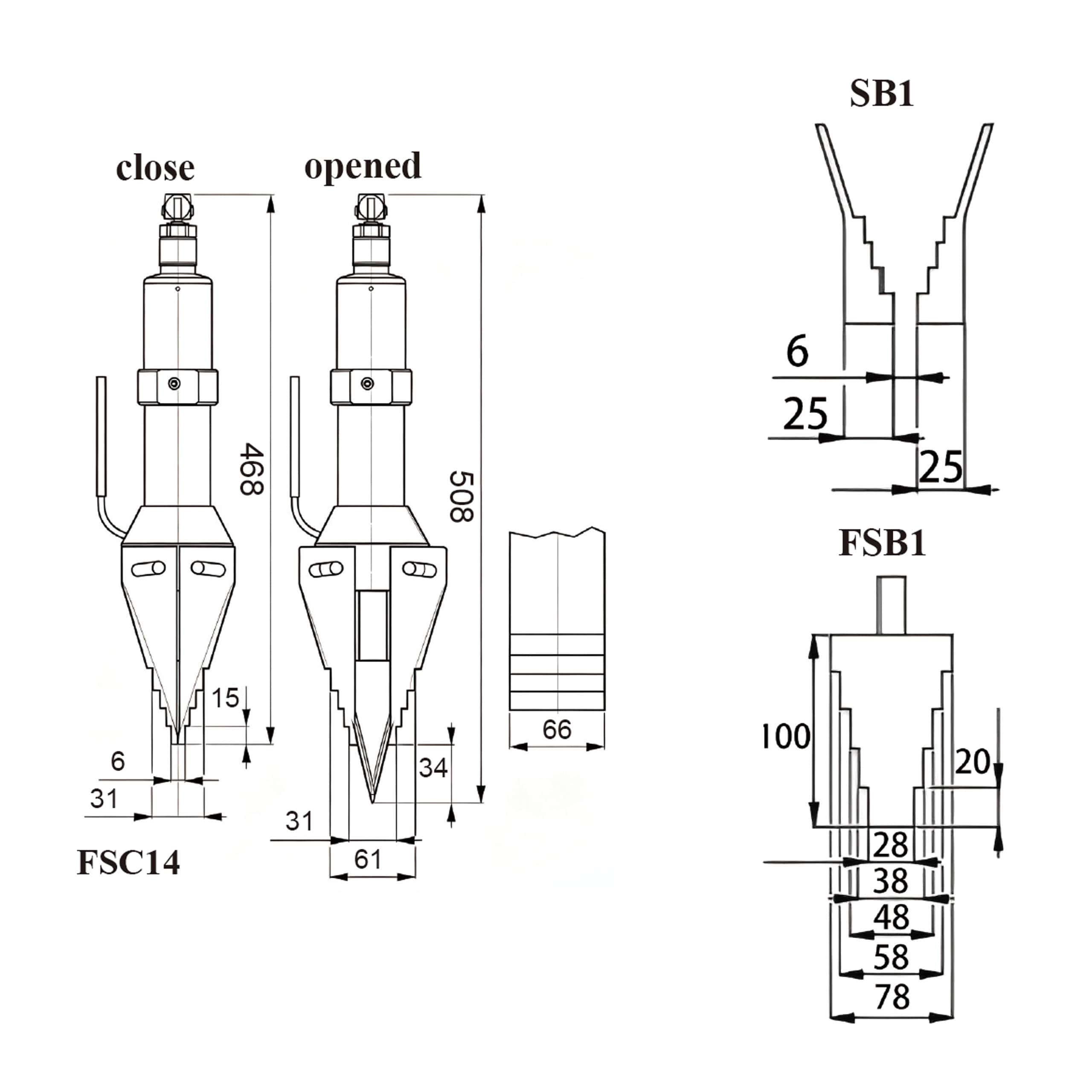

Dimensions

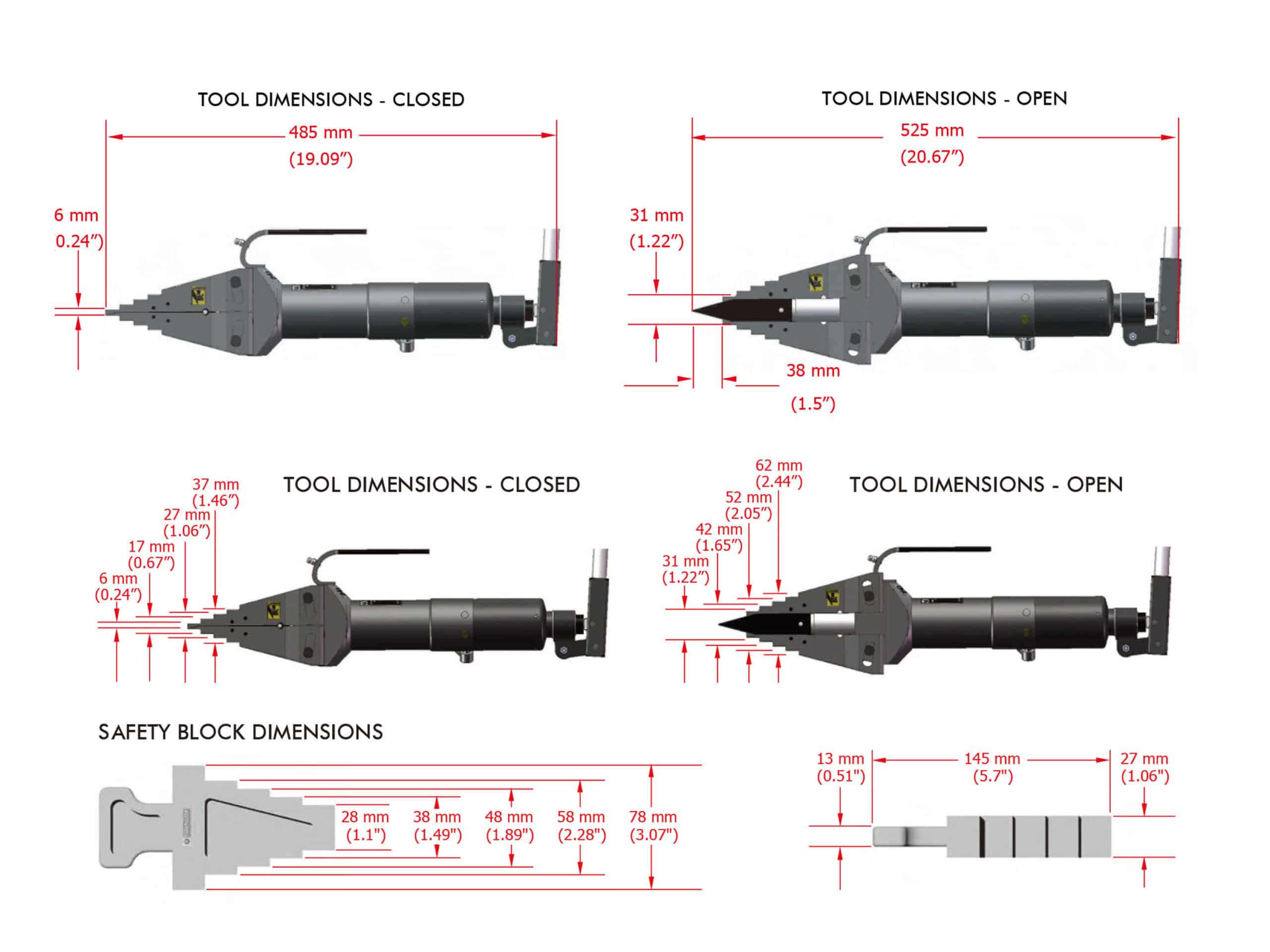

Drawing
Series Comparision Table
| Model | Type | Maximum Operating Pressure (bar) | Torque Applied | Maximum Spreading Force(Ton) | Spreading Distance Using Only 1ST Step(mm) | Spreading Distance Using 4 Steps,Without Stepped Blocks(mm) | Spreading Distance Using Optional Stepped Blocks Kit(mm) | Weight(Kg) |
|---|---|---|---|---|---|---|---|---|
| SW9TM | Mechanical | * | 203Nm | 9.00 | 6-31 | 6-62 | 31-81 | 5.50 |
| SW14.5TI | Integral Hydraulic | 700.00 | * | 14.50 | 6-31 | 6-62 | 31-81 | 9.00 |
| SW15TE | Split Hydraulic | 700.00 | * | 15.50 | 6-31 | 6-62 | 31-81 | 7.00 |
