STF56H, 5 Ton, Hydraulic Flange Spreader Set With Hand Pump, 155 mm Maximum Spread
The FS Series from RIVERLAKE is a family of high‑performance hydraulic flange spreaders designed to safely and efficiently separate pipe flanges, valve connections, and other bolted joint assemblies. Built around a patented interlock wedge system, these tools deliver controlled, parallel spreading force—even in the most challenging maintenance and repair scenarios. Lightweight yet rugged, the FS Series empowers single operators to tackle flange separation with speed, precision, and minimal physical effort.
PRICE ON REQUEST
Features
Description
Model: STF56H | Product Line: Industrial Tools

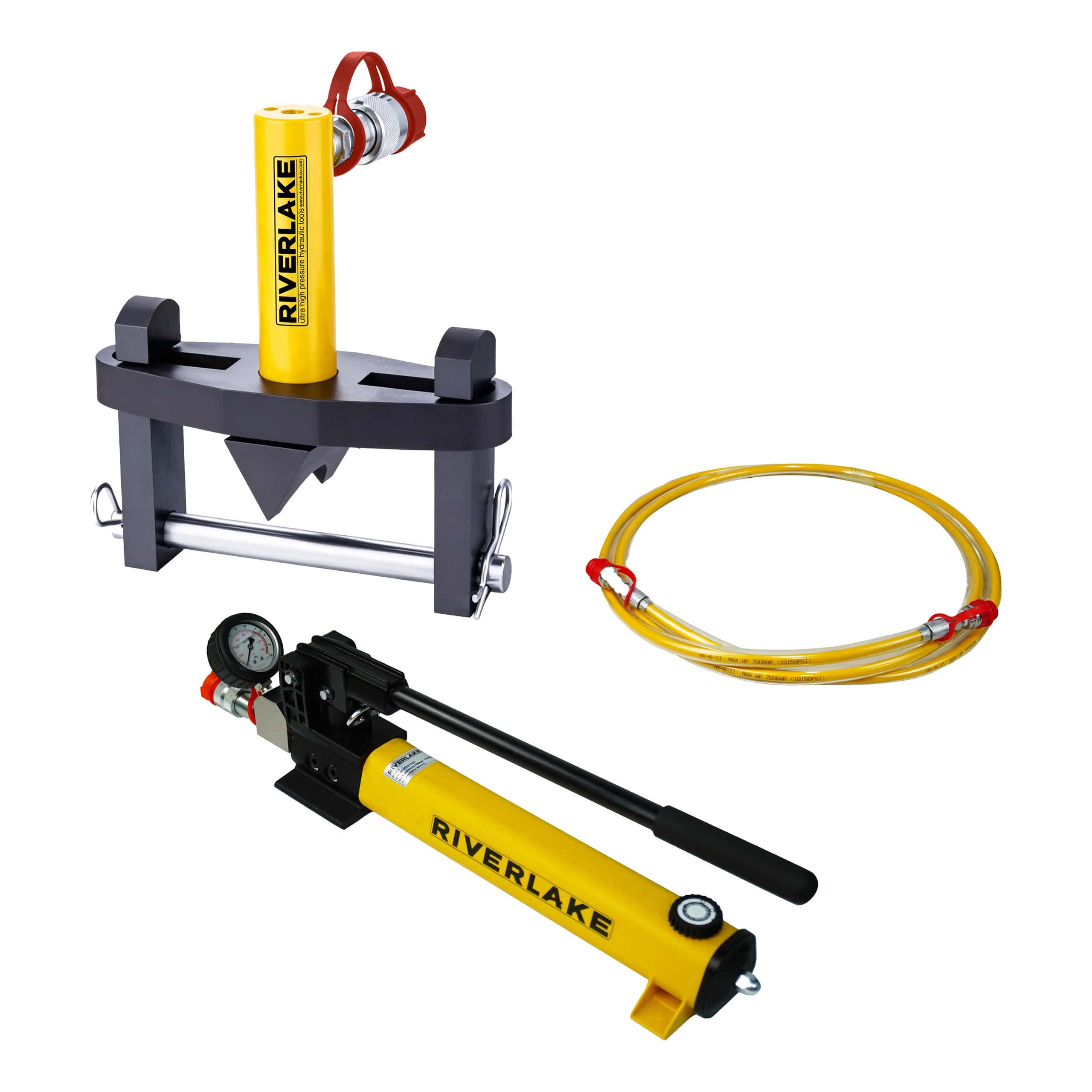

Hydraulic Flange Spreader Set Components Includes:
1PCS X FS56 Hydraulic Flange Spreader
1PCS X HSP700PC-2-MM Hydraulic Hose
1PCS X P392-GC Manual Hydraulic Pump
1PCS X Rhino Tool Case
Specifications
Specifications
| Maximum Operating Pressure | 10,000 psi (700 bar) |
| Maximum Spread | 155 mm |
| Power Source | Hydraulic |
| Maximum Spreading Force | 5 ton |
| Stroke | 38 mm |
| Maximum Flange Thickness | 2 x 57 mm |
| Stud Size | 19 – 28 mm |
| Standard Wedge | 3-28 mm |
| Oil Capacity | 24,6 cm3 |
| Weight | 11,5 kg |
Dimensions

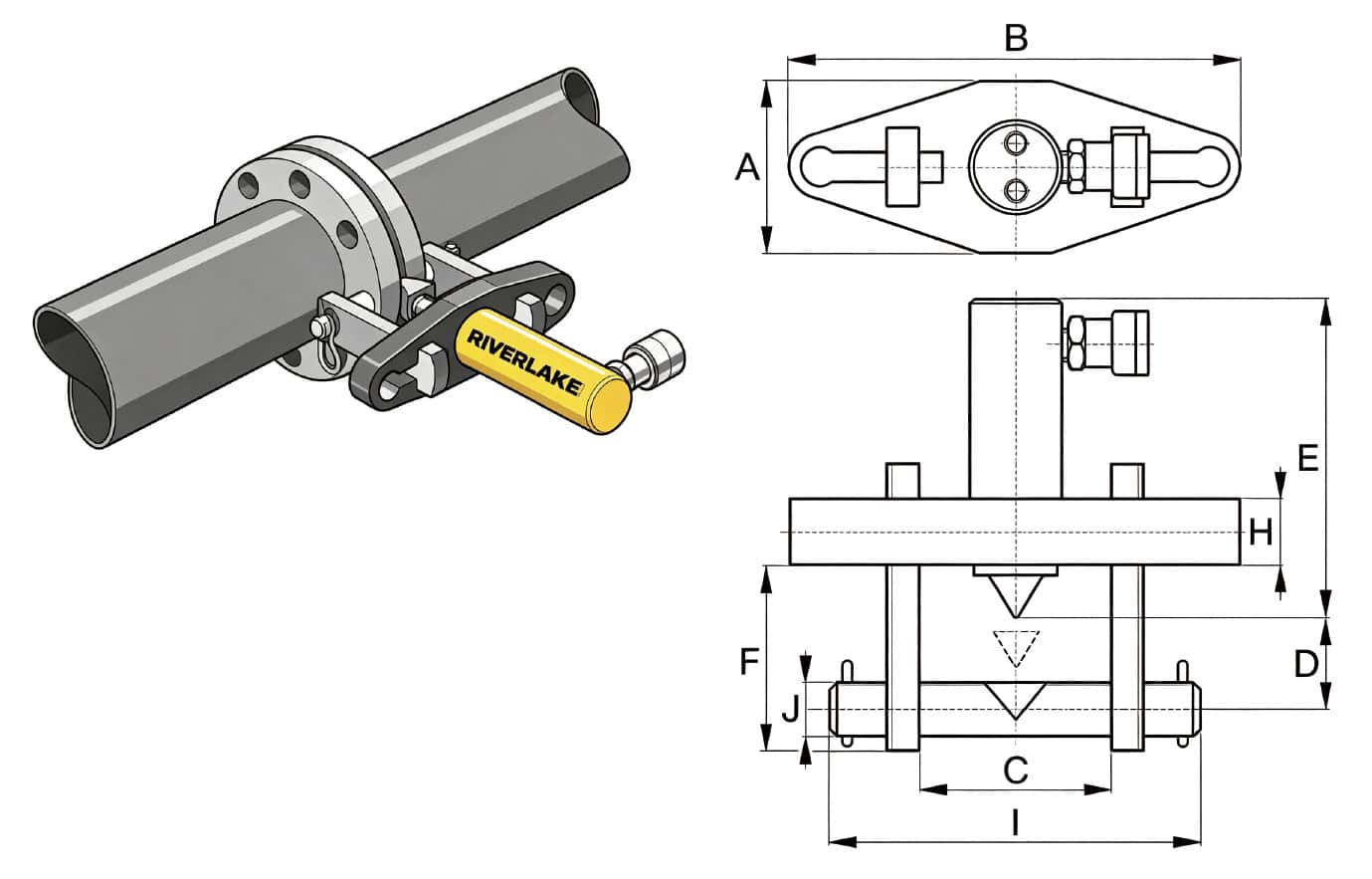

Drawing
Series Comparison
Series Comparision Table
| Model | Capacity（Ton) | Maximum Flange Thickness(mm) | Stud Size(mm) | Standard Wedge(mm) | Stroke(mm) | Oil Capacity(cm³) | Dimensions A(mm) | Dimensions B(mm) | Dimensions C Min.(mm) | Dimensions C Max.(mm) | Dimensions D(mm) | Dimensions E(mm) | Dimensions F(mm) | Dimensions H(mm) | Dimensions I(mm) | Dimensions J(mm) | Weight(Kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FS-56 | 5 | 2 × 57 | 19 – 28 | 3-28 | 38 | 24.6 | 76 | 209 | 70 | 155 | 32 | 196 | 88 | 25 | 206 | 19 | 11.5 |
| FS-109 | 10 | 2 × 92 | 31 – 41 | 3-28 | 54 | 78.7 | 108 | 279 | 104 | 216 | 50 | 152 | 114 | 38 | 273 | 31 | 18.1 |
