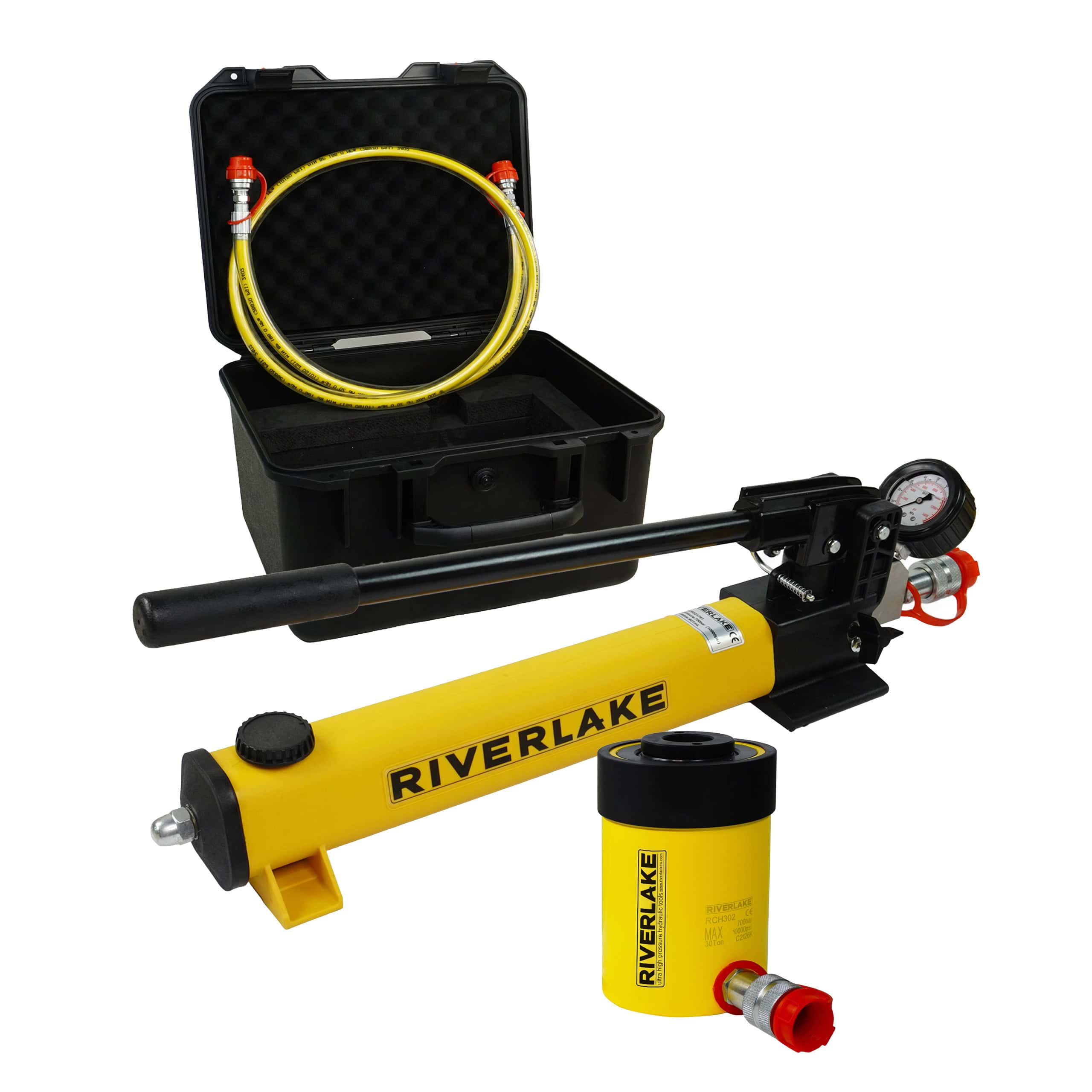

SCH202H, 20 Ton Capacity,49mm Stroke, Hydraulic Cylinder And Hand Pump Set

The RIVERLAKE Hydraulic Cylinder & Hand Pump Set is a complete, ready-to-use solution for high-force lifting, pushing, pulling, pressing, and bending applications. Housed in a rugged Rhino Case with custom hard‑molded foam interior, this industrial‑grade kit offers unmatched portability and protection on the job site, in the workshop, or during field maintenance.

PRICE ON REQUEST
Download Catalogue

Series: SCR | Product Line: Industrial Tools

The Cylinder & Hand Pump Set Including:

  • 1PCS High-Performance Hydraulic Hand Pump:two-speed operation for rapid cylinder advance.Ergonomic handle with anti-slip grip for reduced operator fatigue.Built-in safety relief valve prevents overload.

  • 1PCS Single-Acting Hydraulic Cylinder:Gas nitriding and post oxidation surface coating for all parts,cylinder body come with an extra baked paint layer for ultimate corrosion and wear resistance ability.Spring return for fast retraction.Lifting capacity and stroke available in multiple variants.

  • 1PCS 2 Meters Hydraulic Hose with PC Anti-Explosion Sleeve,Both End Male CEJN Quick Couplers

  • 1PCS Pressure Gauge & Gauge Mount Assembly

  • 1PCS Rhino Case with Custom Molded Foam:Ultra-durable, impact-resistant, water-repellent Rhino Case.Internal hard-molded foam – each component fits precisely, no shifting during transport.

Maximum Operating Pressure (bar)700
Capacity Class (tonnage)20
Stroke (mm)49
Collapsed Height/mm162
Hydraulic Cylinder ModelRCH202
Hydraulic Pump ModelP392GC
Hydraulic Hose ModelHSP700PC-2-MM
Cylinder ImageCylinder DescriptionCylinder ModelSet Capacity/TonStroke/mmCollapsed Height/mmHydraulic Hose ModelHand Pump P142GCHand Pump P392GCHand Pump P80GC
HSP700 Series,10,000 psi (700 bar), Hydraulic HoseP142-GC,70Mpa, 327cm³ Usable Oil, Manual Hydraulic Pump With Gauge AssemblyP392-GC,70Mpa, 901cm³ Usable Oil, Single Acting, Manual Hydraulic Pump With Pressure Gauge AssemblyP80-GC,70Mpa, 2200cm³ Usable Oil, Single Acting, Manual Hydraulic Pump With Pressure Gauge Assembly
RC series,Single-Acting Spring-Retraction Hydraulic CylindersRC Sereis,Single-Acting,General Purpose Hydraulic CylindersRC555127216HSP700PC-2-MMSCR55H**
RC1021054121HSP700PC-2-MM*SCR102H*
RC10610156248HSP700PC-2-MM*SCR106H*
RC101010257349HSP700PC-2-MM*SCR1010H*
RC15415101200HSP700PC-2-MM*SCR154H*
RC15615152271HSP700PC-2-MM*SCR156H*
RC2522550165HSP700PC-2-MM*SCR252H*
RC25425102216HSP700PC-2-MM*SCR254H*
RC25625158273HSP700PC-2-MM*SCR256H*
RC251425362476HSP700PC-2-MM**SCR2514H
RC50650159282HSP700PC-2-MM**SCR506H
RCS Series,Low Profile Hydraulic CylinderRCS Series,Single-Acting,Low-Height Hydraulic CylinderRCS101103888HSP700PC-2-MM*SCL101H*
RCS201204598HSP700PC-2-MM*SCL201H*
RCS3023062117HSP700PC-2-MM*SCL302H*
RCS5024560122HSP700PC-2-MM*SCL502H*
RCS10029057141HSP700PC-2-MM**SCL1002H
RCH Series Single-Acting Spring Return Hollow Hydraulic CylindersRCH Series,Single-Acting,Hollow Hydraulic CylinderRCH1211342120HSP700PC-2-MMSCH121H**
RCH2022049162HSP700PC-2-MM*SCH202H*
RCH3023064178HSP700PC-2-MM*SCH302H*
RCH6036076247HSP700PC-2-MM**SCH603H
RCH10039576254HSP700PC-2-MM**SCH1003H
