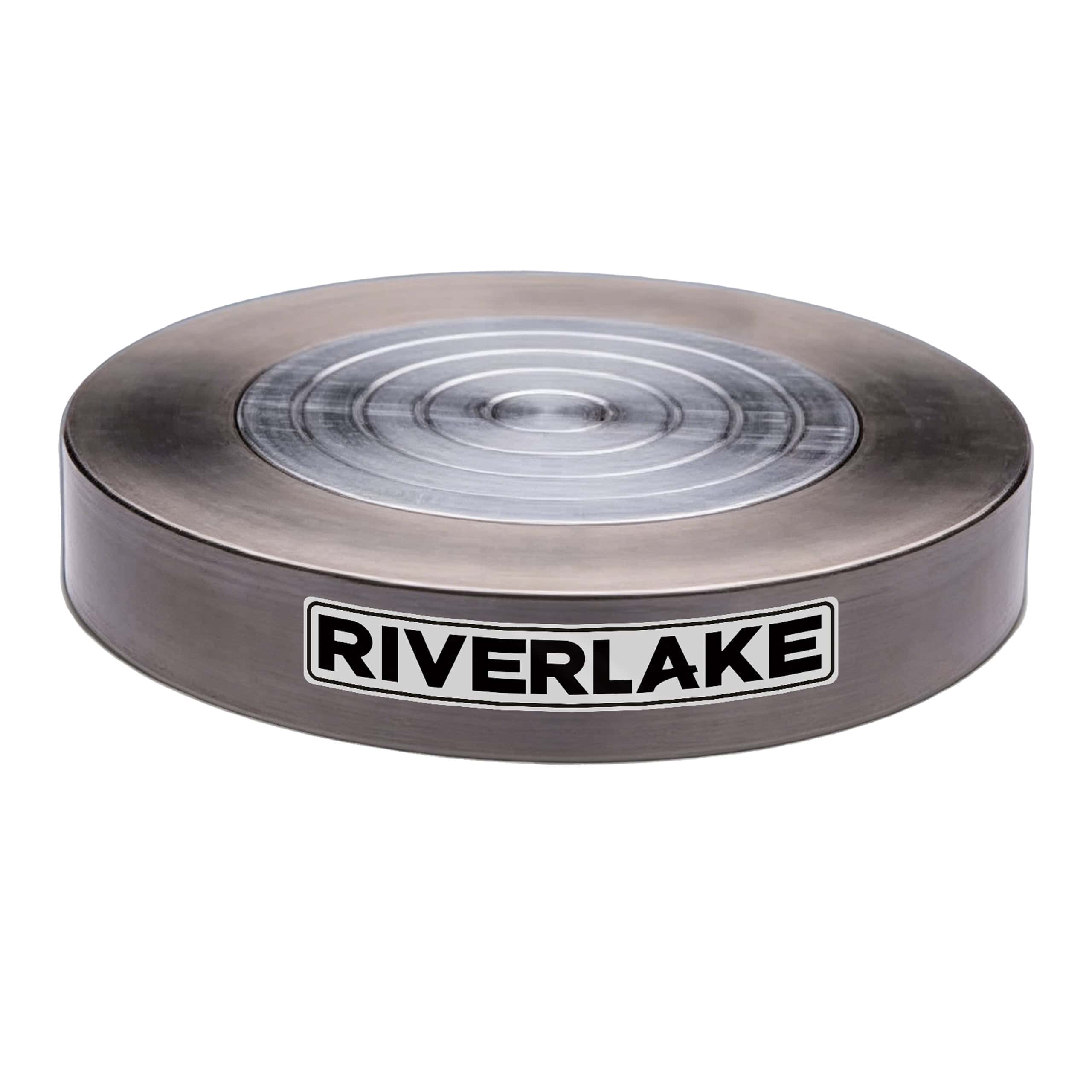

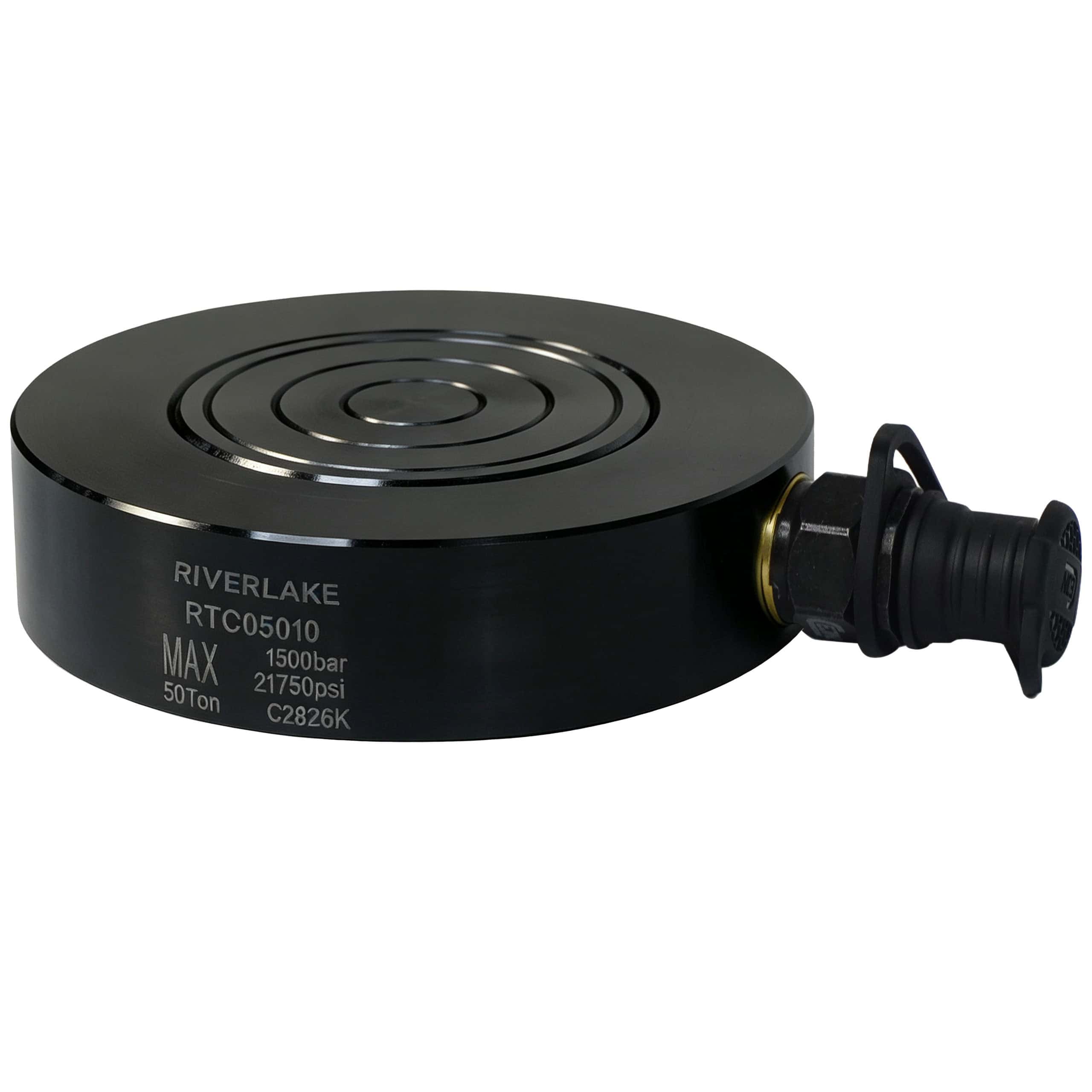

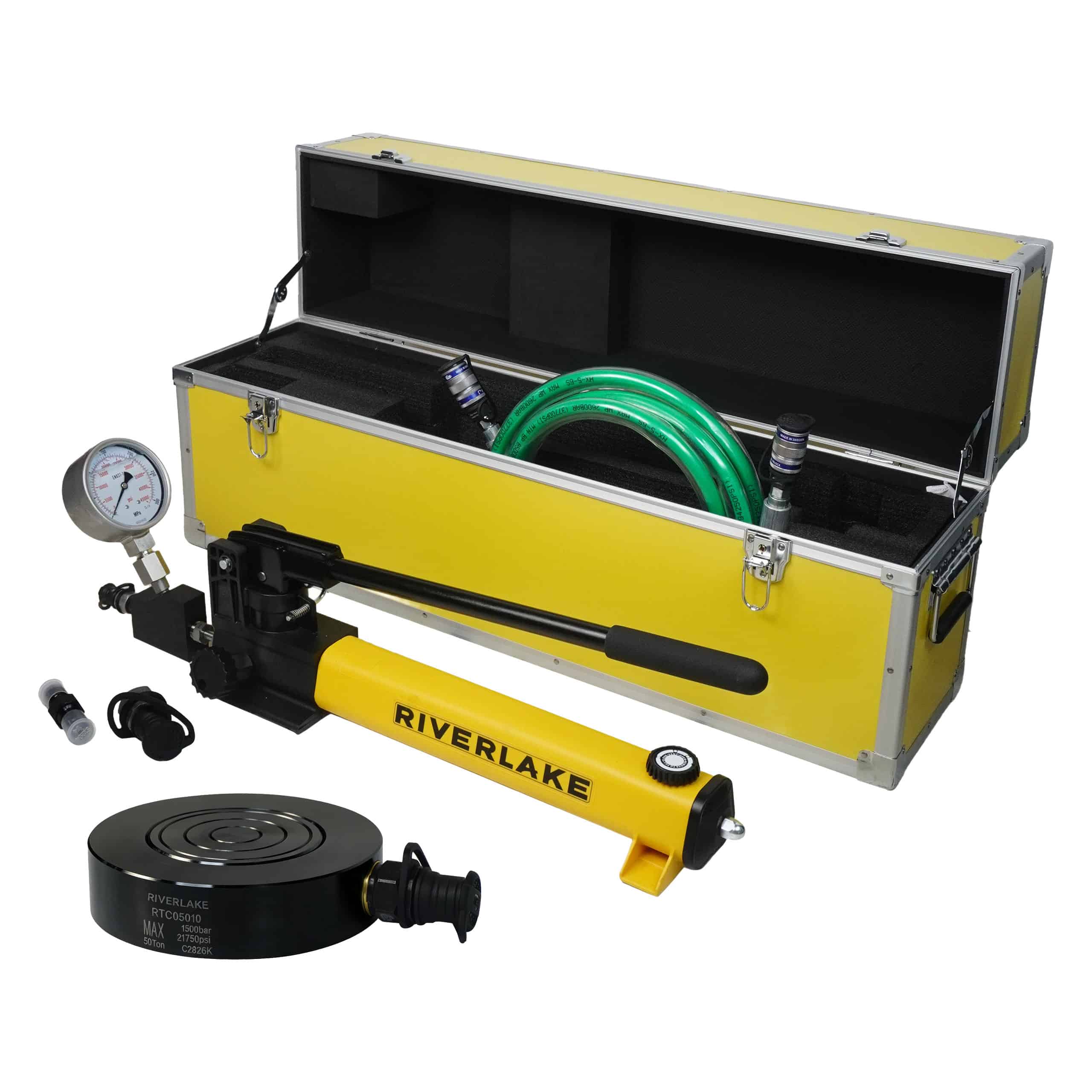

RTC-00510, 5 Ton Capacity, 10mm Stroke, Ultra Thin Hydraulic Jack
Engineered for high-force applications in space-restricted environments, the RIVERLAKE RTC Series is an ultra thin hydraulic cylinder that delivers exceptional performance without compromising on compactness. Designed with precision and durability in mind, this cylinder is the ideal solution for industries requiring reliable lifting, pressing, or positioning in confined areas.
PRICE ON REQUEST
Features
Description
Series: RTC | Product Line: Industrial Tools
-
Compact & Low-Profile Design:Specifically designed for confined-space applications, the RTC Series fits easily into tight clearances where traditional cylinders cannot operate.
-
Single-Acting, Load Return:Features a single-acting design with load return functionality, ensuring simple operation and safe retraction when the load is released.
-
High Working Pressure:Capable of operating at a working pressure of 1500 bar (21755 psi), delivering powerful force output for demanding industrial tasks.
-
Custom Specifications Available:To meet unique application requirements, RIVERLAKE offers customization options including stroke length, dimensions, capacity, and port configurations.
Specifications
Specifications
| Maximum Operating Pressure (bar) | 1500 |
| Capacity Class (tonnage) | 5 |
| Stroke (mm) | 10 |
| Collapsed Height(mm) | 30 |
| Extended Height(mm) | 40 |
| Return Type | Single-Acting,Load Retraction |
| Oil Capacity (cm3) | 3.46 |
| Quick Coupler | CEJN 116 Male Quick Coupler |
| Surface Treatment | Nickel Coating |
Dimensions
Dimensions
| Collapsed Height/mm(H) | 264 |
| Extended Height/mm | 391 |
| Outside Dia/mm | 48 |
| Plunger Dia/mm | 28 |
| self-alignment Angle | 19 |
| Body Length/mm(L) | 45 |
| Body Width/mm(W) | ¾”-14 |
Series Comparison
Series Comparison
| Model Number | Capacity/Ton | Stroke/mm | Oil Capacity/cm3 | Collapsed Height/mm(H) | Extended Height/mm | Outside Dia/mm | Plunger Dia/mm | self-alignment Angle | Body Length/mm(L) | Body Width/mm(W) | Retraction Type | Coupler |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RTC-00510 | 5 | 10 | 3.46 | 30 | 40 | 60 | 21 | * | 125 | 60 | Load Return | CEJN 116 Male Coupler |
| RTC-01010 | 10 | 10 | 7.07 | 30 | 40 | 70 | 30 | * | 135 | 70 | Load Return | CEJN 116 Male Coupler |
| RTC-02510 | 25 | 10 | 17.35 | 30 | 40 | 90 | 47 | * | 155 | 90 | Load Return | CEJN 116 Male Coupler |
| RTC-05010 | 50 | 10 | 36.32 | 30 | 40 | 118 | 70 | * | 180 | 115 | Load Return | CEJN 116 Male Coupler |
| RTC-10010 | 100 | 10 | 69.4 | 33 | 43 | 152 | 94 | 3° | 217 | 152 | Load Return | CEJN 116 Male Coupler |
| RTC-15010 | 150 | 10 | 105.68 | 34 | 44 | 180 | 116 | 3° | 245 | 180 | Load Return | CEJN 116 Male Coupler |
| RTC-20010 | 200 | 10 | 135.85 | 35 | 45 | 204 | 132 | 3° | 270 | 205 | Load Return | CEJN 116 Male Coupler |
