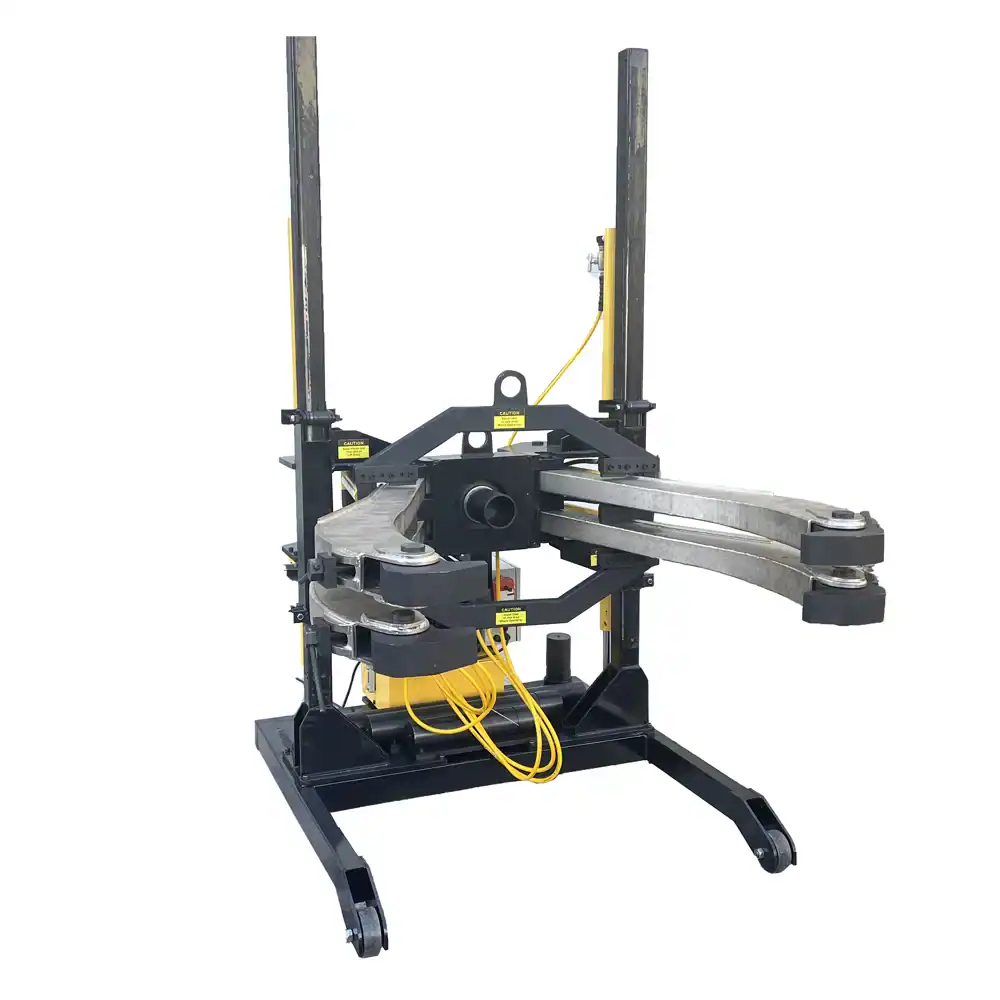

PH200T，4 Jaw,200 Ton, Safety-Cage Hydraulic Puller

Model: PH200T | Series: PH | Product Line: Industrial Tools

The Ultimate Hydraulic Muscle: The PH-200T delivers the ultimate hydraulic pulling power. It has been deemed the preferred maintenance solution for the effective removal of stubborn gears, bearings, wheels, and other press-fit components from machinery across diverse industries—including steel mills, mining operations, oil fields, shipyards, construction sites, and heavy equipment maintenance facilities. When standard pullers cannot meet the challenge, the PH-200T provides the force and reliability required.

High-Performance Hydraulic Power: Powered by a 10,000 PSI electric two-stage pump, the system delivers exceptional hydraulic force with optimal efficiency. The two-stage design provides rapid tool advancement for fast setup, automatically shifting to high-pressure, low-flow operation for controlled, precise pulling. Wireless Bluetooth remote control enables complete operation of the entire puller system from a safe distance, enhancing both convenience and operator safety.

Efficient Double-Acting Hydraulic Cylinders: The main hydraulic cylinders feature double-acting design, providing powered extension and retraction for fast, efficient pulling operations. This eliminates the need for manual return or spring-assisted retraction, significantly reducing cycle times and operator effort.

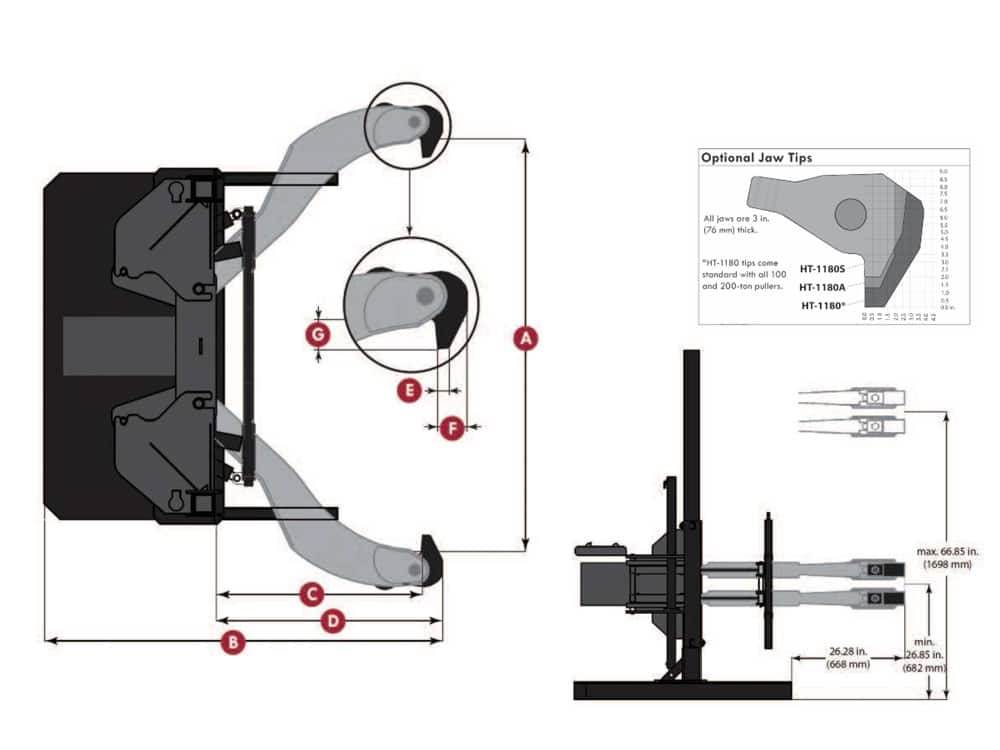

Hydraulic-Actuated Lift Cart for Easy Positioning: The system is equipped with a hydraulic-actuated lift cart that extends the puller from ground level to a height of 1.52 meters, enabling precise positioning at various working heights. This feature simplifies setup and alignment, reducing the need for additional lifting equipment or manual handling.

Mobile, Stable Platform: The puller is mounted on a portable trolley with lockable wheels, providing both mobility and stability. The unit can be easily moved between work areas and securely positioned during operation, ensuring a stable platform for high-force pulling applications.

Safety Cage Design: The PH-200T incorporates a robust safety cage design, providing an additional layer of protection for operators during high-force pulling operations. This feature contains components in the unlikely event of failure, enhancing workplace safety and operator confidence.

Self-Centering Hydraulic Pullers: The self-centering design ensures automatic alignment of the puller arms on the workpiece, eliminating guesswork and reducing setup time. The 4-jaw configuration provides superior grip and force distribution, maximizing pulling efficiency while minimizing the risk of component damage.

Adjustable for Maximum Versatility: Adjustable jaw tips and adjustable jaw guides provide flexibility to accommodate various component shapes and sizes. The jaws open and close under hydraulic control, allowing for precise positioning and secure engagement with minimal operator effort.

Comprehensive Adapter Kit: Every puller comes with four pushing adapters and one connection sleeve, allowing two adapters to be combined into a longer adapter for extended reach applications. The 200 ton puller adapter sizes include:

• 102 x 229 mm

• 102 x 483 mm

• 102 x 737 mm

• 102 x 990 mm
